liblwgeom_internal.h File Reference
#include "../postgis_config.h"#include "lwgeom_log.h"#include <assert.h>#include <stdarg.h>#include <stdint.h>#include <stdio.h>#include <string.h>#include <stdlib.h>#include <float.h>#include <math.h>#include "liblwgeom.h"

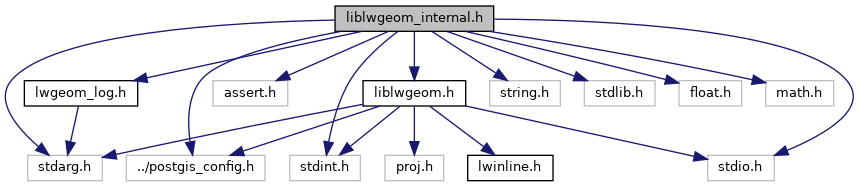

Include dependency graph for liblwgeom_internal.h:
Go to the source code of this file.
Macros | |
| #define | FP_TOLERANCE 1e-12 |
| Floating point comparators. More... | |
| #define | FP_IS_ZERO(A) (fabs(A) <= FP_TOLERANCE) |
| #define | FP_MAX(A, B) (((A) > (B)) ? (A) : (B)) |
| #define | FP_MIN(A, B) (((A) < (B)) ? (A) : (B)) |
| #define | FP_ABS(a) ((a) < (0) ? -(a) : (a)) |
| #define | FP_EQUALS(A, B) (fabs((A)-(B)) <= FP_TOLERANCE) |
| #define | FP_NEQUALS(A, B) (fabs((A)-(B)) > FP_TOLERANCE) |
| #define | FP_LT(A, B) (((A) + FP_TOLERANCE) < (B)) |
| #define | FP_LTEQ(A, B) (((A) - FP_TOLERANCE) <= (B)) |
| #define | FP_GT(A, B) (((A) - FP_TOLERANCE) > (B)) |
| #define | FP_GTEQ(A, B) (((A) + FP_TOLERANCE) >= (B)) |
| #define | FP_CONTAINS_TOP(A, X, B) (FP_LT(A, X) && FP_LTEQ(X, B)) |
| #define | FP_CONTAINS_BOTTOM(A, X, B) (FP_LTEQ(A, X) && FP_LT(X, B)) |
| #define | FP_CONTAINS_INCL(A, X, B) (FP_LTEQ(A, X) && FP_LTEQ(X, B)) |
| #define | FP_CONTAINS_EXCL(A, X, B) (FP_LT(A, X) && FP_LT(X, B)) |
| #define | FP_CONTAINS(A, X, B) FP_CONTAINS_EXCL(A, X, B) |
| #define | NO_VALUE 0.0 |
| #define | NO_Z_VALUE NO_VALUE |
| #define | NO_M_VALUE NO_VALUE |
| #define | WKT_NO_TYPE 0x08 /* Internal use only */ |
| Well-Known Text (WKT) Output Variant Types. More... | |
| #define | WKT_NO_PARENS 0x10 /* Internal use only */ |
| #define | WKT_IS_CHILD 0x20 /* Internal use only */ |
| #define | WKB_DOUBLE_SIZE 8 /* Internal use only */ |
| Well-Known Binary (WKB) Output Variant Types. More... | |
| #define | WKB_INT_SIZE 4 /* Internal use only */ |
| #define | WKB_BYTE_SIZE 1 /* Internal use only */ |
| #define | WKB_POINT_TYPE 1 |
| Well-Known Binary (WKB) Geometry Types. More... | |
| #define | WKB_LINESTRING_TYPE 2 |
| #define | WKB_POLYGON_TYPE 3 |
| #define | WKB_MULTIPOINT_TYPE 4 |
| #define | WKB_MULTILINESTRING_TYPE 5 |
| #define | WKB_MULTIPOLYGON_TYPE 6 |
| #define | WKB_GEOMETRYCOLLECTION_TYPE 7 |
| #define | WKB_CIRCULARSTRING_TYPE 8 |
| #define | WKB_COMPOUNDCURVE_TYPE 9 |
| #define | WKB_CURVEPOLYGON_TYPE 10 |
| #define | WKB_MULTICURVE_TYPE 11 |
| #define | WKB_MULTISURFACE_TYPE 12 |
| #define | WKB_CURVE_TYPE 13 /* from ISO draft, not sure is real */ |
| #define | WKB_SURFACE_TYPE 14 /* from ISO draft, not sure is real */ |
| #define | WKB_POLYHEDRALSURFACE_TYPE 15 |
| #define | WKB_TIN_TYPE 16 |
| #define | WKB_TRIANGLE_TYPE 17 |
| #define | SIZE_GET(varsize) (((varsize) >> 2) & 0x3FFFFFFF) |
| Macro for reading the size from the GSERIALIZED size attribute. More... | |
| #define | SIZE_SET(varsize, len) ((varsize) = (((uint32_t)(len)) << 2)) |
| #define | IS_BIG_ENDIAN 0 |
| #define | SIGNUM(n) (((n) > 0) - ((n) < 0)) |
| Macro that returns: -1 if n < 0, 1 if n > 0, 0 if n == 0. More... | |
| #define | EPSILON_SQLMM 1e-8 |
| Tolerance used to determine equality. More... | |
| #define | OUT_MAX_DOUBLE 1E15 |
| #define | OUT_SHOW_DIGS_DOUBLE 20 |
| #define | OUT_MAX_DOUBLE_PRECISION 15 |
| #define | OUT_MAX_DIGS_DOUBLE (OUT_SHOW_DIGS_DOUBLE + 2) /* +2 mean add dot and sign */ |
| #define | OUT_DOUBLE_BUFFER_SIZE OUT_MAX_DIGS_DOUBLE + OUT_MAX_DOUBLE_PRECISION + 1 |
| #define | LW_INSIDE 1 |
| Constants for point-in-polygon return values. More... | |
| #define | LW_BOUNDARY 0 |
| #define | LW_OUTSIDE -1 |
| #define | XDR 0 /* big endian */ |
| #define | NDR 1 /* little endian */ |
| #define | LW_ON_INTERRUPT(x) |
Enumerations | |
| enum | CG_SEGMENT_INTERSECTION_TYPE { SEG_ERROR = -1 , SEG_NO_INTERSECTION = 0 , SEG_COLINEAR = 1 , SEG_CROSS_LEFT = 2 , SEG_CROSS_RIGHT = 3 , SEG_TOUCH_LEFT = 4 , SEG_TOUCH_RIGHT = 5 } |
Functions | |
| LWGEOM * | lwgeom_force_dims (const LWGEOM *lwgeom, int hasz, int hasm) |
| LWPOINT * | lwpoint_force_dims (const LWPOINT *lwpoint, int hasz, int hasm) |
| LWLINE * | lwline_force_dims (const LWLINE *lwline, int hasz, int hasm) |
| LWPOLY * | lwpoly_force_dims (const LWPOLY *lwpoly, int hasz, int hasm) |
| LWCOLLECTION * | lwcollection_force_dims (const LWCOLLECTION *lwcol, int hasz, int hasm) |
| POINTARRAY * | ptarray_force_dims (const POINTARRAY *pa, int hasz, int hasm) |
| void | ptarray_swap_ordinates (POINTARRAY *pa, LWORD o1, LWORD o2) |
| Swap ordinate values o1 and o2 on a given POINTARRAY. More... | |
| int | lwpoly_is_empty (const LWPOLY *poly) |
| int | lwcollection_is_empty (const LWCOLLECTION *col) |
| int | lwcircstring_is_empty (const LWCIRCSTRING *circ) |
| int | lwtriangle_is_empty (const LWTRIANGLE *triangle) |
| int | lwline_is_empty (const LWLINE *line) |
| int | lwpoint_is_empty (const LWPOINT *point) |
| uint32_t | lwline_count_vertices (LWLINE *line) |
| uint32_t | lwpoly_count_vertices (LWPOLY *poly) |
| uint32_t | lwcollection_count_vertices (LWCOLLECTION *col) |
| void | ptarray_simplify_in_place (POINTARRAY *pa, double tolerance, uint32_t minpts) |
| int | lw_segment_intersects (const POINT2D *p1, const POINT2D *p2, const POINT2D *q1, const POINT2D *q2) |
| returns the kind of CG_SEGMENT_INTERSECTION_TYPE behavior of lineseg 1 (constructed from p1 and p2) and lineseg 2 (constructed from q1 and q2) More... | |
| double | lwpoint_get_ordinate (const POINT4D *p, char ordinate) |
| Given a POINT4D and an ordinate number, return the value of the ordinate. More... | |
| void | lwpoint_set_ordinate (POINT4D *p, char ordinate, double value) |
| Given a point, ordinate number and value, set that ordinate on the point. More... | |
| int | point_interpolate (const POINT4D *p1, const POINT4D *p2, POINT4D *p, int hasz, int hasm, char ordinate, double interpolation_value) |
| Given two points, a dimensionality, an ordinate, and an interpolation value generate a new point that is proportionally between the input points, using the values in the provided dimension as the scaling factors. More... | |
| int | lwgeom_geohash_precision (GBOX bbox, GBOX *bounds) |
| char * | geohash_point (double longitude, double latitude, int precision) |
| void | decode_geohash_bbox (char *geohash, double *lat, double *lon, int precision) |
| int | p4d_same (const POINT4D *p1, const POINT4D *p2) |
| int | p3d_same (const POINT3D *p1, const POINT3D *p2) |
| int | p2d_same (const POINT2D *p1, const POINT2D *p2) |
| double | lwpoly_area (const LWPOLY *poly) |
| Find the area of the outer ring - sum (area of inner rings). More... | |
| double | lwcurvepoly_area (const LWCURVEPOLY *curvepoly) |
| This should be rewritten to make use of the curve itself. More... | |
| double | lwtriangle_area (const LWTRIANGLE *triangle) |
| Find the area of the outer ring. More... | |
| int | gserialized_read_gbox_p (const GSERIALIZED *g, GBOX *gbox) |
| Pull a GBOX from the header of a GSERIALIZED, if one is available. More... | |
| int | gserialized_peek_gbox_p (const GSERIALIZED *g, GBOX *gbox) |
| size_t | gserialized_from_lwgeom_size (const LWGEOM *geom) |
| Calculate required memory segment to contain a serialized form of the LWGEOM. More... | |
| double | lwcompound_length (const LWCOMPOUND *comp) |
| double | lwcompound_length_2d (const LWCOMPOUND *comp) |
| double | lwline_length (const LWLINE *line) |
| double | lwline_length_2d (const LWLINE *line) |
| double | lwcircstring_length (const LWCIRCSTRING *circ) |
| double | lwcircstring_length_2d (const LWCIRCSTRING *circ) |
| double | lwpoly_perimeter (const LWPOLY *poly) |
| Compute the sum of polygon rings length. More... | |
| double | lwpoly_perimeter_2d (const LWPOLY *poly) |
| Compute the sum of polygon rings length (forcing 2d computation). More... | |
| double | lwcurvepoly_perimeter (const LWCURVEPOLY *poly) |
| double | lwcurvepoly_perimeter_2d (const LWCURVEPOLY *poly) |
| double | lwtriangle_perimeter (const LWTRIANGLE *triangle) |
| double | lwtriangle_perimeter_2d (const LWTRIANGLE *triangle) |
| LWPOLY * | lwcurvepoly_stroke (const LWCURVEPOLY *curvepoly, uint32_t perQuad) |
| void | ptarray_affine (POINTARRAY *pa, const AFFINE *affine) |
| Affine transform a pointarray. More... | |
| void | affine_invert (AFFINE *affine) |
| void | ptarray_scale (POINTARRAY *pa, const POINT4D *factor) |
| WARNING, make sure you send in only 16-member double arrays or obviously things will go pear-shaped fast. More... | |
| int | ptarray_has_z (const POINTARRAY *pa) |
| int | ptarray_has_m (const POINTARRAY *pa) |
| double | ptarray_signed_area (const POINTARRAY *pa) |
| Returns the area in cartesian units. More... | |
| double | ptarray_length (const POINTARRAY *pts) |
| Find the 3d/2d length of the given POINTARRAY (depending on its dimensionality) More... | |
| double | ptarray_arc_length_2d (const POINTARRAY *pts) |
| Find the 2d length of the given POINTARRAY, using circular arc interpolation between each coordinate triple. More... | |
| LWPOINT * | lwpoint_clone (const LWPOINT *lwgeom) |
| LWLINE * | lwline_clone (const LWLINE *lwgeom) |
| LWPOLY * | lwpoly_clone (const LWPOLY *lwgeom) |
| LWTRIANGLE * | lwtriangle_clone (const LWTRIANGLE *lwgeom) |
| LWCOLLECTION * | lwcollection_clone (const LWCOLLECTION *lwgeom) |
| Clone LWCOLLECTION object. More... | |
| LWCIRCSTRING * | lwcircstring_clone (const LWCIRCSTRING *curve) |
| POINTARRAY * | ptarray_clone (const POINTARRAY *ptarray) |
| Clone a POINTARRAY object. More... | |
| LWLINE * | lwline_clone_deep (const LWLINE *lwgeom) |
| LWPOLY * | lwpoly_clone_deep (const LWPOLY *lwgeom) |
| LWCOLLECTION * | lwcollection_clone_deep (const LWCOLLECTION *lwgeom) |
| Deep clone LWCOLLECTION object. More... | |
| GBOX * | gbox_clone (const GBOX *gbox) |
| void | lwpoly_force_clockwise (LWPOLY *poly) |
| void | lwtriangle_force_clockwise (LWTRIANGLE *triangle) |
| int | lwpoly_is_clockwise (LWPOLY *poly) |
| int | lwtriangle_is_clockwise (LWTRIANGLE *triangle) |
| int | ptarray_isccw (const POINTARRAY *pa) |
| char | ptarray_same (const POINTARRAY *pa1, const POINTARRAY *pa2) |
| char | lwpoint_same (const LWPOINT *p1, const LWPOINT *p2) |
| char | lwline_same (const LWLINE *p1, const LWLINE *p2) |
| char | lwpoly_same (const LWPOLY *p1, const LWPOLY *p2) |
| char | lwtriangle_same (const LWTRIANGLE *p1, const LWTRIANGLE *p2) |
| char | lwcollection_same (const LWCOLLECTION *p1, const LWCOLLECTION *p2) |
| check for same geometry composition More... | |
| char | lwcircstring_same (const LWCIRCSTRING *p1, const LWCIRCSTRING *p2) |
| void | ptarray_longitude_shift (POINTARRAY *pa) |
| Longitude shift for a pointarray. More... | |
| void | ptarray_copy_point (POINTARRAY *pa, uint32_t from, uint32_t to) |
| void | ptarray_reverse_in_place (POINTARRAY *pa) |
| int | lwpoly_startpoint (const LWPOLY *lwpoly, POINT4D *pt) |
| int | ptarray_startpoint (const POINTARRAY *pa, POINT4D *pt) |
| int | lwcollection_startpoint (const LWCOLLECTION *col, POINT4D *pt) |
| void | closest_point_on_segment (const POINT4D *R, const POINT4D *A, const POINT4D *B, POINT4D *ret) |
| POINTARRAY * | ptarray_remove_repeated_points (const POINTARRAY *in, double tolerance) |
| LWGEOM * | lwline_remove_repeated_points (const LWLINE *in, double tolerance) |
| void | ptarray_remove_repeated_points_in_place (POINTARRAY *pa, double tolerance, uint32_t min_points) |
| int | lwline_is_closed (const LWLINE *line) |
| int | lwpoly_is_closed (const LWPOLY *poly) |
| int | lwcircstring_is_closed (const LWCIRCSTRING *curve) |
| int | lwcompound_is_closed (const LWCOMPOUND *curve) |
| int | lwpsurface_is_closed (const LWPSURFACE *psurface) |
| int | lwtin_is_closed (const LWTIN *tin) |
| void | ptarray_grid_in_place (POINTARRAY *pa, const gridspec *grid) |
| Snap to grid. More... | |
| int | lw_segment_side (const POINT2D *p1, const POINT2D *p2, const POINT2D *q) |
| lw_segment_side() More... | |
| int | lw_arc_side (const POINT2D *A1, const POINT2D *A2, const POINT2D *A3, const POINT2D *Q) |
| int | lw_arc_calculate_gbox_cartesian_2d (const POINT2D *A1, const POINT2D *A2, const POINT2D *A3, GBOX *gbox) |
| double | lw_arc_center (const POINT2D *p1, const POINT2D *p2, const POINT2D *p3, POINT2D *result) |
| Determines the center of the circle defined by the three given points. More... | |
| int | lw_pt_in_seg (const POINT2D *P, const POINT2D *A1, const POINT2D *A2) |
| Returns true if P is between A1/A2. More... | |
| int | lw_pt_in_arc (const POINT2D *P, const POINT2D *A1, const POINT2D *A2, const POINT2D *A3) |
| Returns true if P is on the same side of the plane partition defined by A1/A3 as A2 is. More... | |
| int | lw_arc_is_pt (const POINT2D *A1, const POINT2D *A2, const POINT2D *A3) |
| Returns true if arc A is actually a point (all vertices are the same) . More... | |
| double | lw_seg_length (const POINT2D *A1, const POINT2D *A2) |
| Returns the length of a linear segment. More... | |
| double | lw_arc_length (const POINT2D *A1, const POINT2D *A2, const POINT2D *A3) |
| Returns the length of a circular arc segment. More... | |
| int | pt_in_ring_2d (const POINT2D *p, const POINTARRAY *ring) |
| int | ptarray_contains_point (const POINTARRAY *pa, const POINT2D *pt) |
| Return 1 if the point is inside the POINTARRAY, -1 if it is outside, and 0 if it is on the boundary. More... | |
| int | ptarrayarc_contains_point (const POINTARRAY *pa, const POINT2D *pt) |
| For POINTARRAYs representing CIRCULARSTRINGS. More... | |
| int | ptarray_contains_point_partial (const POINTARRAY *pa, const POINT2D *pt, int check_closed, int *winding_number) |
| int | ptarrayarc_contains_point_partial (const POINTARRAY *pa, const POINT2D *pt, int check_closed, int *winding_number) |
| int | lwcompound_contains_point (const LWCOMPOUND *comp, const POINT2D *pt) |
| int | lwgeom_contains_point (const LWGEOM *geom, const POINT2D *pt) |
| int | lwline_split_by_point_to (const LWLINE *ln, const LWPOINT *pt, LWMLINE *to) |
| Split a line by a point and push components to the provided multiline. More... | |
| void | lwcollection_reserve (LWCOLLECTION *col, uint32_t ngeoms) |
| Ensure the collection can hold at least up to ngeoms geometries. More... | |
| int | lwcollection_allows_subtype (int collectiontype, int subtype) |
| Check if subtype is allowed in collectiontype. More... | |
| double | gbox_angular_height (const GBOX *gbox) |
| GBOX utility functions to figure out coverage/location on the globe. More... | |
| double | gbox_angular_width (const GBOX *gbox) |
| Returns the angular width (longitudinal span) of the box in radians. More... | |
| int | gbox_centroid (const GBOX *gbox, POINT2D *out) |
| Computes the average(ish) center of the box and returns success. More... | |
| int | lwprint_double (double d, int maxdd, char *buf, size_t bufsize) |
| int | ptarray_npoints_in_rect (const POINTARRAY *pa, const GBOX *gbox) |
| int | gbox_contains_point2d (const GBOX *g, const POINT2D *p) |
| int | lwpoly_contains_point (const LWPOLY *poly, const POINT2D *pt) |
| POINT4D * | lwmpoint_extract_points_4d (const LWMPOINT *g, uint32_t *npoints, int *input_empty) |
| char * | lwstrdup (const char *a) |
Variables | |
| uint8_t | MULTITYPE [NUMTYPES] |
| Look-up for the correct MULTI* type promotion for singleton types. More... | |
| lwinterrupt_callback * | _lwgeom_interrupt_callback |
| int | _lwgeom_interrupt_requested |
