31. トポロジ

PostGIS は postgis_topology というエクステンションを介して SQL/MM SQL-MM 3 Topo-Geo と Topo-Net 3 仕様に対応しています。マニュアル PostGIS トポロジ でエクステンションで地峡される全ての関数とタイプに関して学習することができます。postgis_topology エクステンションには、もうひとつの中核的な空間型である topogeometry があります。topogeometry 空間型に加えて、topologies の構築とトポロジの投入の関数があります。

トポロジの使用を開始する前に、postgis_topology エクステンションをインストールします。次のようにします:

CREATE EXTENSION postgis_topology;

エクステンションをインストールすると、インストールしたデータベースに topology というスキーマができています。データベース内の topology スキーマは全てのトポロジをカタログ化しています。

topology スキーマには、二つのテーブルと全てのトポロジの補助関数とがあります。

  • topology - データベース内の全てのトポロジ覧と、それが格納されていスキーマの一覧です

  • layer - データベースでとぽジオメトリを保持する全てのテーブルカラムの一覧です

layer テーブルは、これより前に学習した raster_columnsgeometry_columnsgeography_columns カタログによく似ていますが、トポジオメトリ専用です。

31.1. トポロジの作成

What exactly is a topology and a topogeometry, and how are they related? Before we explain, let's start by creating a topology to house our NYC topologically perfect data using the CreateTopology function and set the tolerance to be 0.5 meters. Note the 0.5 is in meters since our spatial reference system is State Plany NY meters.

SELECT topology.CreateTopology('nyc_topo', 26918, 0.5);

出力:

1

Which is the id it assigned the new topology. Once you run the above command, you will see a new schema in your database called nyc_topo. You can name the topology anything you want. My convention is to add _topo at the end to distinguish it from other schemas I have in my database.

If you explore the topology.topology table,

SELECT * FROM topology.topology;

You will see:

id |   name    | srid  | precision | hasz
----+----------+-------+-----------+------
  1 | nyc_topo | 26918 |         0 | f
(1 row)

31.2. Storage of topologies and topogeometries

A topology is implemented as a schema in a PostgreSQL database. If you explore the nyc_topo schema, you will see these tables and views:

  • edge - This is a view built against edge_data, mostly for SQL/MM compliance.

    It has a subset of the columns in the edge_data table.

  • edge_data - Contains all the linestrings that make up the topology

  • face - Contains a list of all closed surfaces that can be formed from the edge_data.

    It does not contain the actual geometry, but instead just the bounding box of the geometry.

  • node - Contains all the start and end points of all edges as well as points not connected to anything (isolated nodes)

  • relation - this defines what elements in a topology make up a topogeometry.

So what is a topogeometry? A topogeometry is a representation of a geometry formed from the edges, faces, nodes, and other topogeometries in a topology.

Where does a topogeometry reside? It resides somewhere else which references elements of a topology via the relation table. Although we could throw the topogeometries in our nyc_topo schema, the general convention, is to define other tables in other schemas that have a topogeometry, and also have any other kind of data you might be interested in tracking.

31.3. Why use topogeometries?

Using topogeometries keeps your data tidy and connected. Topogeometries are very useful for Cadastral work, where you want to make sure two parcels of land don't overlap each other even if you change the boundaries of one or you want to make sure roads stay connected as you change the geometries that form them. Geometries live in an island of their own, you can duplicate them, morph them. Geometries are carefree, not caring about other geometries that share space with them. Topogeometries, in contrast, follow the rules of their topology; they can't exist unless there is an edge, node, face, or other topogeometry that defines them. A topogeometry belongs to one and only one topology. A topogeometry is a relational model of a geometry and as such as each component (edges/faces/nodes) are moved, added etc, they change not one topogeometry shape, but all topogeometries that have components in common.

We have an nyc_topo topology devoid of any data. Let's populate it with our NYC data. Topology edges, faces, and nodes can be created in 2 keys ways.

  • Edges, Faces, and Nodes can be created directly using topology primitive functions.

  • Edges, Faces, and Nodes can be formed by creating topogeometries. When a topogeometry is created from a geometry and their are missing edges, faces, or nodes that match its coordinates, then new edges, faces, and nodes are created as part of the process.

31.4. Defining topogeometry columns and creating topogeometries

The most common way to populate topologies is to create topogeometries. Lets start by creating a table to hold neighborhoods and then add a topogeometry column using the AddTopoGeometryColumn function.

CREATE TABLE nyc_neighborhoods_t(boroname varchar(43), name varchar(67),
  CONSTRAINT pk_nyc_neighborhoods_t PRIMARY KEY(boroname,name) );
SELECT topology.AddTopoGeometryColumn('nyc_topo', 'public', 'nyc_neighborhoods_t',
  'topo', 'POLYGON') As  layer_id;

The output of the above is:

layer_id
--------
1

Now we are ready to populate our table. It's best to ensure your geometries are valid before adding, otherwise you'll get errors such as SQLMM geometry is not simple.

So lets start by adding valid ones. The 1 used here refers to the layer_id generated from the previous query. If you don't know the layer id, you would look it up using the FindLayer function which we'll use in later examples.

For these examples you'll use the function toTopoGeom function to convert a geometry to it's topogeometry equivalent. toTopoGeom function handles a lot of book-keeping for you.

The toTopoGeom function inspects the geometry passed in and injects nodes, edges, and faces as needed into your topology to form the shape of the geometry. It will then add relationships to the relation table that defines how this new topogeometry is related to these new and existing topology elements. In some cases pieces of the geometry may exist or existing pieces need to be split to form the new geometry.

INSERT INTO nyc_neighborhoods_t(boroname,name, topo)
SELECT boroname, name,  topology.toTopoGeom(geom, 'nyc_topo', 1)
  FROM nyc_neighborhoods
  WHERE ST_ISvalid(geom);

The above step should take 3-4 secs. Now lets add the invalid ones:

INSERT INTO nyc_neighborhoods_t(boroname,name, topo)
SELECT boroname, name,  topology.toTopoGeom(
  ST_UnaryUnion(
    ST_CollectionExtract(
      ST_MakeValid(geom), 3)
      ), 'nyc_topo', 1)
  FROM nyc_neighborhoods
  WHERE NOT ST_ISvalid(geom);

The above should take about 300-400ms.

Now we have data in our topology. A quick check will show, nyc_topo.edge, nyc_topo.node, and nyc_topo.face have data:

SELECT 'edge' AS name, count(*)
  FROM nyc_topo.edge
UNION ALL
SELECT 'node' AS name, count(*)
  FROM nyc_topo.node
UNION ALL
SELECT 'face' AS name, count(*)
  FROM nyc_topo.face;

outputs:

name | count
------+-------
edge |   580
node |   396
face |   218
(3 rows)

Now we can express declaritively that boros are formed from a collection of neighborhoods by defining a column called topo in nyc_boros_t table that is of type POLYGON and is a collection of other topogeometries from nyc_neighborhoods_t.topo column.

CREATE TABLE nyc_boros_t(boroname varchar(43),
  CONSTRAINT pk_nyc_boros_t PRIMARY KEY(boroname) );
SELECT topology.AddTopoGeometryColumn('nyc_topo', 'public', 'nyc_boros_t',
  'topo', 'POLYGON',
    (topology.FindLayer('public', 'nyc_neighborhoods_t', 'topo')).layer_id
        ) AS  layer_id;

出力:

In order to populate this new table, we'll use the CreateTopoGeom function. Instead of starting with geometries to form a new topogeometry, the CreateTopoGeom starts with existing topology elements which may be primitives or other topogeometries to define a new topogeometry.

INSERT INTO nyc_boros_t(boroname, topo)
SELECT n.boroname,
  topology.CreateTopoGeom('nyc_topo',
  3,  (topology.FindLayer('public', 'nyc_boros_t', 'topo')).layer_id ,
    topology.TopoElementArray_Agg( ARRAY[ (n.topo).id, (n.topo).layer_id ]::topoelement ) )
  FROM nyc_neighborhoods_t AS n
GROUP BY n.boroname;

Which will insert 5 records corresponding to the boroughs of New York.

注釈

If you are using PostGIS 3.4 or higher, you can use the new cast to cast a topogeometry to a topoelement, and replace topology.TopoElementArray_Agg( ARRAY[ (n.topo).id, (n.topo).layer_id ]::topoelement ) ) in the above example with the shorter topology.TopoElementArray_Agg( n.topo::topoelement )

To view these in pgAdmin, you can cast the topogeometry to a geometry as follows:

SELECT boroname, topo::geometry AS geom
 FROM nyc_boros_t;

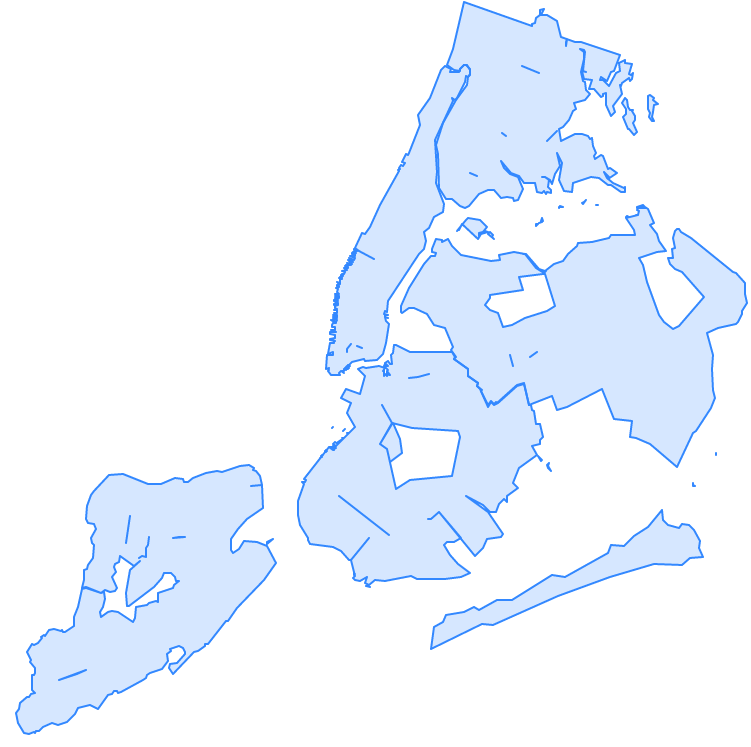

The output will look like below:

_images/boros_topogeom.png

If you are thinking, what a total mess, yes it is a total mess. This is what happens after numerous cycles of simplification and other geometry processes where each geometry is treated as a separate unit. You get gaps, you get dangling islands, and neighborhoods encroaching on each other's territory.

Luckily we can use topology to clean up this mess and to help us maintain good clean connected data.

Let's put our land surveyor hat on and ask the question, if we are dividing our plots of land into districts (boros or neighborhoods) such that each district may border other districts but should not share any area in common, does it make sense for districts to have areas in common? No it does not make sense. And here we are with our data pointing out some areas belong to more than one neighborhood or more than one borough.

Lets first look at boros and look for neighborhoods that share elements in common:

SELECT te, array_agg(DISTINCT b.boroname)
 FROM nyc_boros_t AS b, topology.GetTopoGeomelements(topo) AS te
 GROUP BY te
 HAVING count(DISTINCT b.boroname) > 1;

The output is:

  te    |     array_agg
--------+-------------------
{44,3}  | {Brooklyn,Queens}
{51,3}  | {Brooklyn,Queens}
{76,3}  | {Brooklyn,Queens}
{114,3} | {Brooklyn,Queens}
{117,3} | {Brooklyn,Queens}
(5 rows)

Which tells us that Queens and Brooklyn are in the middle of border wars. In this query we use the GetTopoGeomElements function to declaritively inspect what components are shared across boroughs.

What is returned are a set of topolements. A topoelement is represented as an array of 2 integers with the first number being the id of the element, and the second, being the layer (or primitive type) of the element. PostGIS GetTopoElements returns the primitives of a topogeometry with types number 1-3 corresponding to (1: nodes, 2: edges, and 3: faces). All the topoelements for neighborhoods and boroughs are type 3, which corresponds to a topological face. We can use the ST_GetFaceGeometry to get a visual representation of these shared faces as folows:

SELECT te, t.geom, ST_Area(t.geom) AS area, array_agg(DISTINCT d.boroname) AS shared_boros
FROM nyc_boros_t AS d, topology.GetTopoGeomelements(topo) AS te
  , topology.ST_GetFaceGeometry('nyc_topo',te[1]) AS t(geom)
GROUP BY te, t.geom
HAVING count(DISTINCT d.boroname) > 1
ORDER BY area;

The result will be 5 rows corresponding to border disputes between Queens and Brooklyn.

If we look at our neighborhoods, we'll see a similar story but with 44 border disputes:

SELECT te, t.geom, ST_Area(t.geom) AS area, array_agg(DISTINCT d.name) AS shared_d
FROM nyc_neighborhoods_t AS d, topology.GetTopoGeomelements(d.topo) AS te
  , topology.ST_GetFaceGeometry('nyc_topo',te[1]) AS t(geom)
GROUP BY te, t.geom
HAVING count(DISTINCT d.name) > 1
ORDER BY area;

Because boroughs are an aggregation of neighborhoods, we can fix the borough issue by fixing the neighborhood border disputes.

There are a number of ways we could fix this. We could go out surveying asking people what neighbhood do they think they are standing in. Alternatively we could just assign slivers of land to the neighborhood with the least amount of area or to the highest bidder.

Removing elements from Topogeometries is handled using the TopoGeom_remElement function. So lets get on with it, removing duplicaed elements from neighborhoods with the most amount of area as follows:

WITH to_remove AS (SELECT te, MAX( ST_Area(d.topo::geometry) ) AS max_area, array_agg(DISTINCT d.name) AS shared_d
  FROM nyc_neighborhoods_t AS d, topology.GetTopoGeomelements(d.topo) AS te
    , topology.ST_GetFaceGeometry('nyc_topo',te[1]) AS t(geom)
  GROUP BY te
  HAVING count(DISTINCT d.name) > 1)
  UPDATE nyc_neighborhoods_t AS d SET topo = TopoGeom_remElement(topo, te)
  FROM to_remove
  WHERE d.name = ANY(to_remove.shared_d)
    AND ST_Area(d.topo::geometry) = to_remove.max_area;

The result of the above is 29 neighborhoods were updated. If you rerun the border dispute queries for neighborhoods and boroughs, you'll find you have no more border disputes.

We do still have gaps of empty space between neighborhoods caused by intensive simplication. Such issues can be fixed by directly editing the topology using the Topology Editor family of functions and/or filling in the holes and assigning those to neighborhoods.
