◆ rect_leaf_node_distance()

static double rect_leaf_node_distance ( const RECT_NODE_LEAF *  n1,
const RECT_NODE_LEAF *  n2,
RECT_TREE_DISTANCE_STATE *  state
)
static

Definition at line 1100 of file lwtree.c.

1101{
1102 const POINT2D *p1, *p2, *p3, *q1, *q2, *q3;
1103 DISTPTS dl;
1104
1105 //lwnotice("rect_leaf_node_distance, %d<->%d", n1->seg_num, n2->seg_num);
1106
1107 lw_dist2d_distpts_init(&dl, DIST_MIN);
1108
1109 switch (n1->seg_type)
1110 {
1111 case RECT_NODE_SEG_POINT:
1112 {
1113 p1 = getPoint2d_cp(n1->pa, n1->seg_num);
1114
1115 switch (n2->seg_type)
1116 {
1117 case RECT_NODE_SEG_POINT:
1118 q1 = getPoint2d_cp(n2->pa, n2->seg_num);
1119 lw_dist2d_pt_pt(q1, p1, &dl);
1120 break;
1121
1122 case RECT_NODE_SEG_LINEAR:
1123 q1 = getPoint2d_cp(n2->pa, n2->seg_num);
1124 q2 = getPoint2d_cp(n2->pa, n2->seg_num+1);
1125 lw_dist2d_pt_seg(p1, q1, q2, &dl);
1126 break;
1127
1128 case RECT_NODE_SEG_CIRCULAR:
1129 q1 = getPoint2d_cp(n2->pa, n2->seg_num*2);
1130 q2 = getPoint2d_cp(n2->pa, n2->seg_num*2+1);
1131 q3 = getPoint2d_cp(n2->pa, n2->seg_num*2+2);
1132 lw_dist2d_pt_arc(p1, q1, q2, q3, &dl);
1133 break;
1134
1135 default:
1136 lwerror("%s: unsupported segment type", __func__);
1137 }
1138 break;
1139 }
1140
1141 case RECT_NODE_SEG_LINEAR:
1142 {
1143 p1 = getPoint2d_cp(n1->pa, n1->seg_num);
1144 p2 = getPoint2d_cp(n1->pa, n1->seg_num+1);
1145
1146 switch (n2->seg_type)
1147 {
1148 case RECT_NODE_SEG_POINT:
1149 q1 = getPoint2d_cp(n2->pa, n2->seg_num);
1150 lw_dist2d_pt_seg(q1, p1, p2, &dl);
1151 break;
1152
1153 case RECT_NODE_SEG_LINEAR:
1154 q1 = getPoint2d_cp(n2->pa, n2->seg_num);
1155 q2 = getPoint2d_cp(n2->pa, n2->seg_num+1);
1156 lw_dist2d_seg_seg(q1, q2, p1, p2, &dl);
1157 // lwnotice(
1158 // "%d\tLINESTRING(%g %g,%g %g)\t%d\tLINESTRING(%g %g,%g %g)\t%g\t%g\t%g",
1159 // n1->seg_num,
1160 // p1->x, p1->y, p2->x, p2->y,
1161 // n2->seg_num,
1162 // q1->x, q1->y, q2->x, q2->y,
1163 // dl.distance, state->min_dist, state->max_dist);
1164 break;
1165
1166 case RECT_NODE_SEG_CIRCULAR:
1167 q1 = getPoint2d_cp(n2->pa, n2->seg_num*2);
1168 q2 = getPoint2d_cp(n2->pa, n2->seg_num*2+1);
1169 q3 = getPoint2d_cp(n2->pa, n2->seg_num*2+2);
1170 lw_dist2d_seg_arc(p1, p2, q1, q2, q3, &dl);
1171 break;
1172
1173 default:
1174 lwerror("%s: unsupported segment type", __func__);
1175 }
1176 break;
1177 }
1178 case RECT_NODE_SEG_CIRCULAR:
1179 {
1180 p1 = getPoint2d_cp(n1->pa, n1->seg_num*2);
1181 p2 = getPoint2d_cp(n1->pa, n1->seg_num*2+1);
1182 p3 = getPoint2d_cp(n1->pa, n1->seg_num*2+2);
1183
1184 switch (n2->seg_type)
1185 {
1186 case RECT_NODE_SEG_POINT:
1187 q1 = getPoint2d_cp(n2->pa, n2->seg_num);
1188 lw_dist2d_pt_arc(q1, p1, p2, p3, &dl);
1189 break;
1190
1191 case RECT_NODE_SEG_LINEAR:
1192 q1 = getPoint2d_cp(n2->pa, n2->seg_num);
1193 q2 = getPoint2d_cp(n2->pa, n2->seg_num+1);
1194 lw_dist2d_seg_arc(q1, q2, p1, p2, p3, &dl);
1195 break;
1196
1197 case RECT_NODE_SEG_CIRCULAR:
1198 q1 = getPoint2d_cp(n2->pa, n2->seg_num*2);
1199 q2 = getPoint2d_cp(n2->pa, n2->seg_num*2+1);
1200 q3 = getPoint2d_cp(n2->pa, n2->seg_num*2+2);
1201 lw_dist2d_arc_arc(p1, p2, p3, q1, q2, q3, &dl);
1202 break;
1203
1204 default:
1205 lwerror("%s: unsupported segment type", __func__);
1206 }
1207 break;
1208 }
1209 default:
1210 lwerror("%s: unsupported segment type", __func__);
1211 }
1212
1213 /* If this is a new global minima, save it */
1214 if (dl.distance < state->min_dist)
1215 {
1216 state->min_dist = dl.distance;
1217 state->p1 = dl.p1;
1218 state->p2 = dl.p2;
1219 }
1220
1221 return dl.distance;
1222}
lwerror
void void lwerror(const char *fmt,...) __attribute__((format(printf
Write a notice out to the error handler.
getPoint2d_cp
static const POINT2D * getPoint2d_cp(const POINTARRAY *pa, uint32_t n)
Returns a POINT2D pointer into the POINTARRAY serialized_ptlist, suitable for reading from.
Definition lwinline.h:97
RECT_NODE_SEG_POINT
@ RECT_NODE_SEG_POINT
Definition lwtree.h:43
RECT_NODE_SEG_LINEAR
@ RECT_NODE_SEG_LINEAR
Definition lwtree.h:44
RECT_NODE_SEG_CIRCULAR
@ RECT_NODE_SEG_CIRCULAR
Definition lwtree.h:45
lw_dist2d_pt_arc
int lw_dist2d_pt_arc(const POINT2D *P, const POINT2D *A1, const POINT2D *A2, const POINT2D *A3, DISTPTS *dl)
Definition measures.c:1495
lw_dist2d_pt_seg
int lw_dist2d_pt_seg(const POINT2D *p, const POINT2D *A, const POINT2D *B, DISTPTS *dl)
lw_dist2d_comp from p to line A->B This one is now sending every occasion to lw_dist2d_pt_pt Before i...
Definition measures.c:2217
lw_dist2d_seg_seg
int lw_dist2d_seg_seg(const POINT2D *A, const POINT2D *B, const POINT2D *C, const POINT2D *D, DISTPTS *dl)
Finds the shortest distance between two segments.
Definition measures.c:1830
lw_dist2d_seg_arc
int lw_dist2d_seg_arc(const POINT2D *A1, const POINT2D *A2, const POINT2D *B1, const POINT2D *B2, const POINT2D *B3, DISTPTS *dl)
Calculate the shortest distance between an arc and an edge.
Definition measures.c:1351
lw_dist2d_distpts_init
void lw_dist2d_distpts_init(DISTPTS *dl, int mode)
Definition measures.c:67
lw_dist2d_arc_arc
int lw_dist2d_arc_arc(const POINT2D *A1, const POINT2D *A2, const POINT2D *A3, const POINT2D *B1, const POINT2D *B2, const POINT2D *B3, DISTPTS *dl)
Definition measures.c:1677
lw_dist2d_pt_pt
int lw_dist2d_pt_pt(const POINT2D *thep1, const POINT2D *thep2, DISTPTS *dl)
Compares incoming points and stores the points closest to each other or most far away from each other...
Definition measures.c:2312
DIST_MIN
#define DIST_MIN
Definition measures.h:44
DISTPTS::p1
POINT2D p1
Definition measures.h:52
DISTPTS::p2
POINT2D p2
Definition measures.h:53
DISTPTS::distance
double distance
Definition measures.h:51
DISTPTS
Structure used in distance-calculations.
Definition measures.h:50
RECT_NODE_LEAF::pa
const POINTARRAY * pa
Definition lwtree.h:50
RECT_NODE_LEAF::seg_num
int seg_num
Definition lwtree.h:52
RECT_NODE_LEAF::seg_type
RECT_NODE_SEG_TYPE seg_type
Definition lwtree.h:51
rect_tree_distance_state::p2
POINT2D p2
Definition lwtree.h:86
rect_tree_distance_state::p1
POINT2D p1
Definition lwtree.h:85
rect_tree_distance_state::min_dist
double min_dist
Definition lwtree.h:83

References DIST_MIN, DISTPTS::distance, getPoint2d_cp(), lw_dist2d_arc_arc(), lw_dist2d_distpts_init(), lw_dist2d_pt_arc(), lw_dist2d_pt_pt(), lw_dist2d_pt_seg(), lw_dist2d_seg_arc(), lw_dist2d_seg_seg(), lwerror(), rect_tree_distance_state::min_dist, rect_tree_distance_state::p1, DISTPTS::p1, rect_tree_distance_state::p2, DISTPTS::p2, RECT_NODE_LEAF::pa, RECT_NODE_SEG_CIRCULAR, RECT_NODE_SEG_LINEAR, RECT_NODE_SEG_POINT, RECT_NODE_LEAF::seg_num, and RECT_NODE_LEAF::seg_type.

Referenced by rect_tree_distance_tree_recursive().

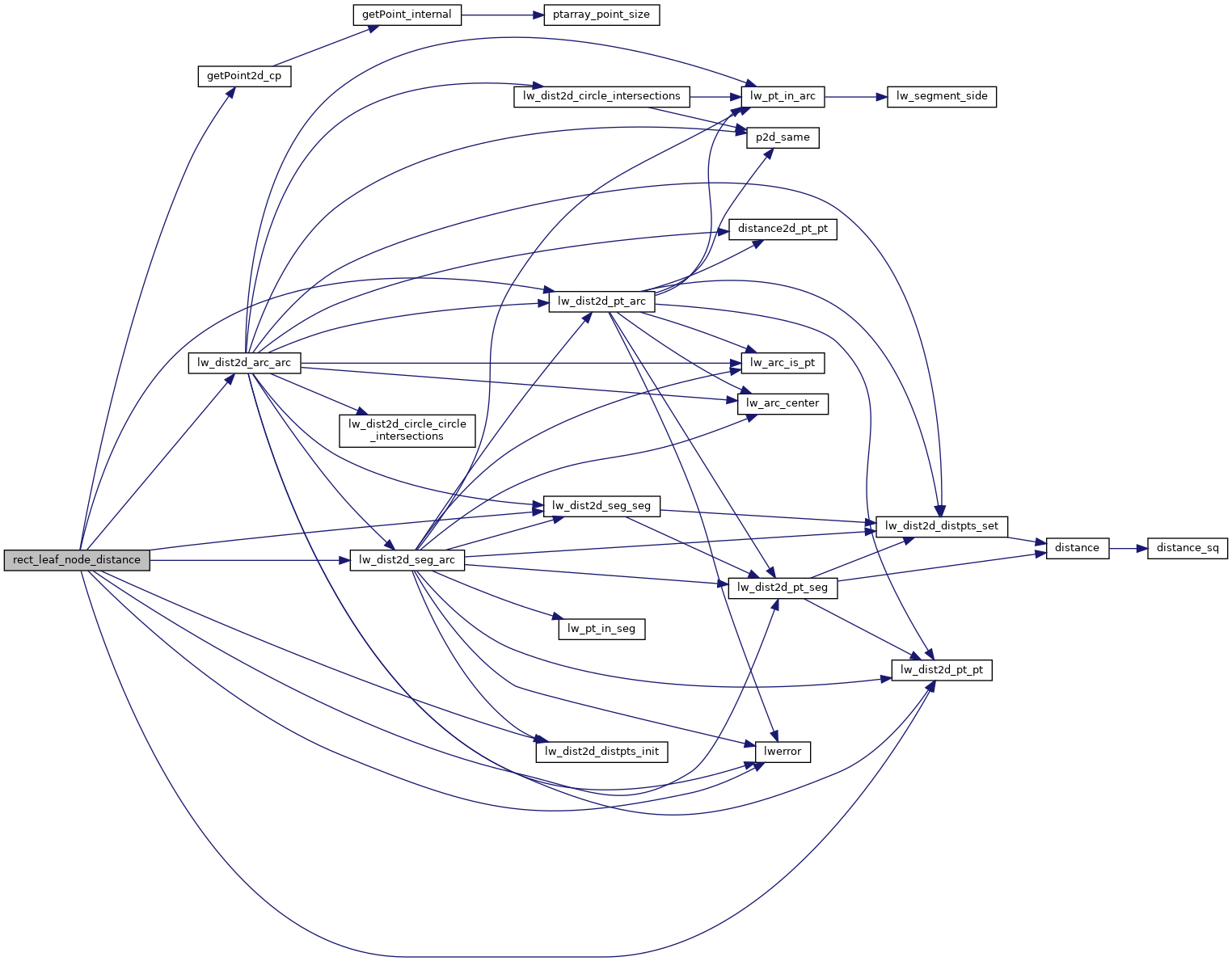

Here is the call graph for this function:

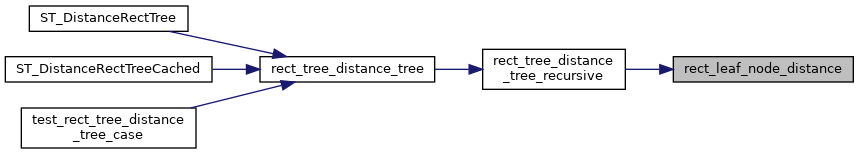

Here is the caller graph for this function:
