assvg_compound()

static void assvg_compound ( stringbuffer_t *  sb, const LWCOMPOUND *  icompound, int  relative, int  precision  )

static

if the compound curve does not start with a line, we need to skip the first point since it is the same as previous point of previous curve

in theory this should never happen

Definition at line 261 of file lwout_svg.c.

{
        uint32_t i;
        LWGEOM *geom;
        LWCIRCSTRING *tmpc = NULL;
        LWLINE *tmpl = NULL;
        /* Start path with SVG MoveTo */
        stringbuffer_append(sb, "M ");

        for (i = 0; i < icompound->ngeoms; i++)
        {
                if (i) stringbuffer_append(sb, " ");  /* SVG whitespace Separator */
                geom = icompound->geoms[i];

                switch (geom->type)
                {
                        case CIRCSTRINGTYPE:
                                tmpc = (LWCIRCSTRING *)geom;
                                pointArray_svg_arc(sb, tmpc->points, 1, relative, precision);
                                break;

                        case LINETYPE:
                                tmpl = (LWLINE *)geom;

                                if (i){
                                        if (relative)
                                                pointArray_svg_rel(sb, tmpl->points, 1, precision, 1);
                                        else
                                                pointArray_svg_abs(sb, tmpl->points, 1, precision, 1);
                                }
                                else {
                                        if (relative)
                                                pointArray_svg_rel(sb, tmpl->points, 1, precision, 0);
                                        else
                                                pointArray_svg_abs(sb, tmpl->points, 1, precision, 0);
                                }
                                break;

                        default:
                                break;
                }
        }
}

References CIRCSTRINGTYPE, LWCOMPOUND::geoms, LINETYPE, LWCOMPOUND::ngeoms, pointArray_svg_abs(), pointArray_svg_arc(), pointArray_svg_rel(), LWLINE::points, LWCIRCSTRING::points, precision, stringbuffer_append(), and LWGEOM::type.

Referenced by assvg_curvepoly(), assvg_geom(), and lwgeom_to_svg().

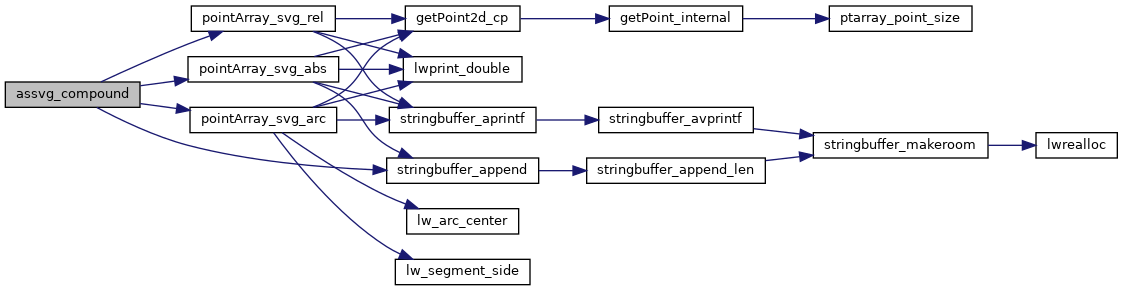

Here is the call graph for this function:

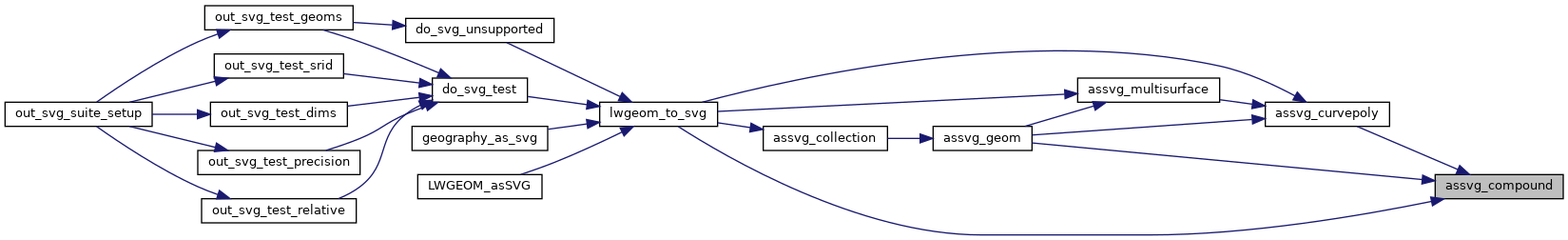

Here is the caller graph for this function:
