pointArray_svg_rel()

static void pointArray_svg_rel ( stringbuffer_t *  sb, const POINTARRAY *  pa, int  close_ring, int  precision, int  start_at_index  )

static

Definition at line 44 of file lwout_svg.c.

{
        int i, end;
        const POINT2D *pt;

        double f = 1.0;
        double dx, dy, x, y, accum_x, accum_y;

        char sx[OUT_DOUBLE_BUFFER_SIZE];
        char sy[OUT_DOUBLE_BUFFER_SIZE];

        if (precision >= 0)
        {
                f = pow(10, precision);
        }

        end = close_ring ? pa->npoints : pa->npoints - 1;

        /* Starting point */
        pt = getPoint2d_cp(pa, start_at_index);

        x = round(pt->x*f)/f;
        y = round(pt->y*f)/f;

        lwprint_double(x, precision, sx);
        lwprint_double(-y, precision, sy);

        stringbuffer_aprintf(sb, "%s %s l", sx, sy);

        /* accum */
        accum_x = x;
        accum_y = y;

        /* All the following ones */
        for (i = (start_at_index + 1); i < end; i++)
        {
                pt = getPoint2d_cp(pa, i);

                x = round(pt->x*f)/f;
                y = round(pt->y*f)/f;

                dx = x - accum_x;
                dy = y - accum_y;

                accum_x += dx;
                accum_y += dy;

                lwprint_double(dx, precision, sx);
                lwprint_double(-dy, precision, sy);
                stringbuffer_aprintf(sb, " %s %s", sx, sy);
        }
}

References getPoint2d_cp(), lwprint_double(), POINTARRAY::npoints, OUT_DOUBLE_BUFFER_SIZE, precision, stringbuffer_aprintf(), POINT2D::x, and POINT2D::y.

Referenced by assvg_compound(), assvg_line(), and assvg_polygon().

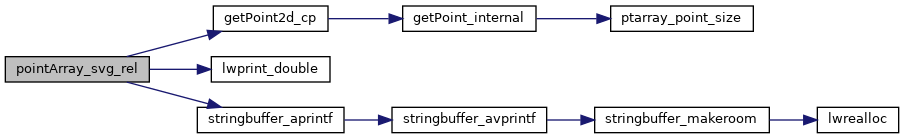

Here is the call graph for this function:

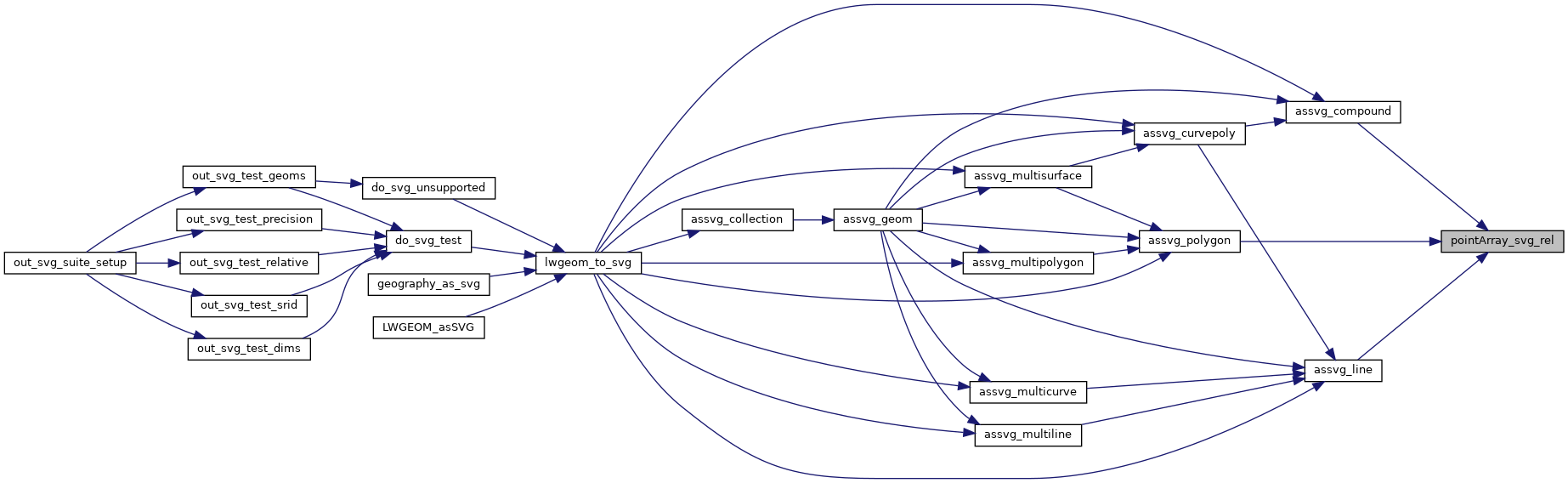

Here is the caller graph for this function:
