pointArray_svg_abs()

static void pointArray_svg_abs ( stringbuffer_t *  sb, const POINTARRAY *  pa, int  close_ring, int  precision, int  start_at_index  )

static

Returns maximum size of rendered pointarray in bytes.

Definition at line 102 of file lwout_svg.c.

{
        int i, end;
        const POINT2D* pt;
        char sx[OUT_DOUBLE_BUFFER_SIZE];
        char sy[OUT_DOUBLE_BUFFER_SIZE];

        end = close_ring ? pa->npoints : pa->npoints - 1;

        for (i = start_at_index; i < end; i++)
        {
                pt = getPoint2d_cp(pa, i);

                if (i == 1)
                {
                        if (start_at_index > 0 ){
                                        stringbuffer_append(sb, "L ");
                        }
                        else {
                                        stringbuffer_append(sb, " L ");
                        }
                }
                else if (i) stringbuffer_append(sb, " ");

                lwprint_double(pt->x, precision, sx);
                lwprint_double(-(pt->y), precision, sy);

                stringbuffer_aprintf(sb, "%s %s", sx, sy);
        }
}

References getPoint2d_cp(), lwprint_double(), POINTARRAY::npoints, OUT_DOUBLE_BUFFER_SIZE, precision, stringbuffer_append(), stringbuffer_aprintf(), POINT2D::x, and POINT2D::y.

Referenced by assvg_compound(), assvg_line(), and assvg_polygon().

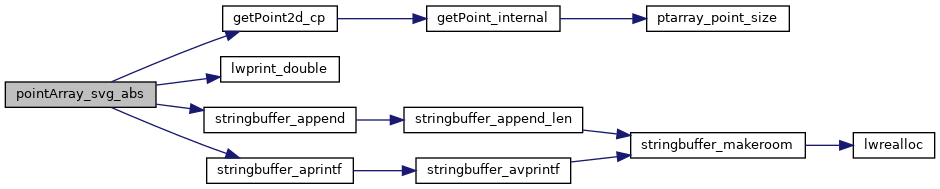

Here is the call graph for this function:

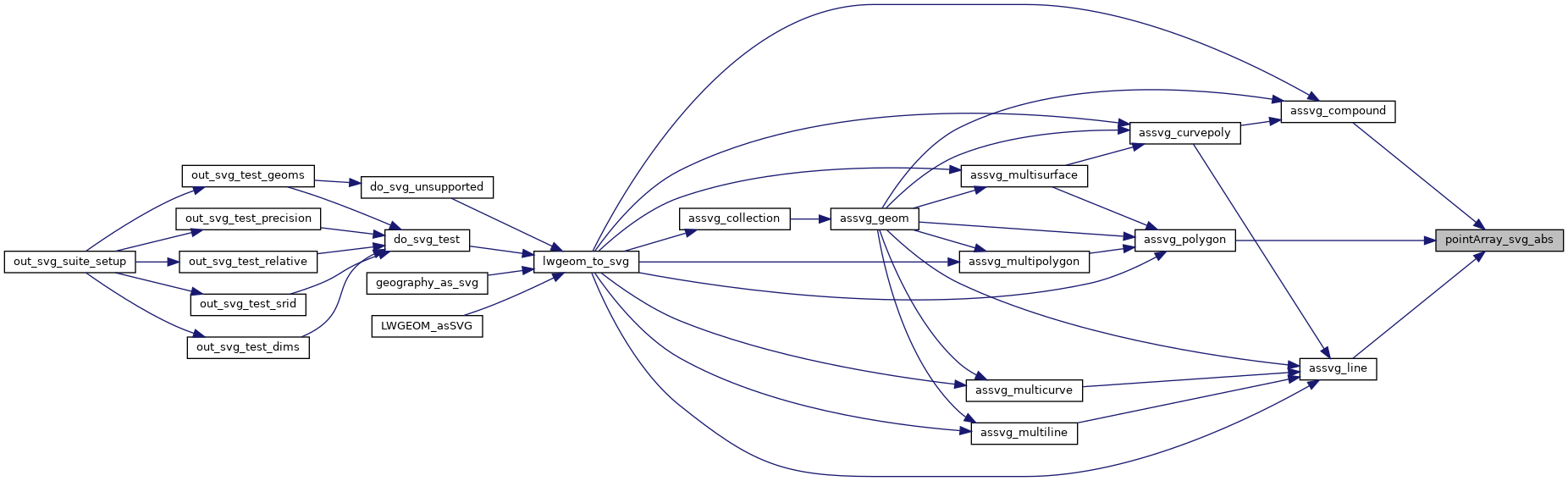

Here is the caller graph for this function:
