_lwt_SplitAllEdgesToNewNode()

static LWT_ELEMID _lwt_SplitAllEdgesToNewNode ( LWT_TOPOLOGY *  topo, LWT_ISO_EDGE *  edges, uint64_t  num, LWPOINT *  point, double  tol, int *  moved  )

static

Definition at line 6632 of file lwgeom_topo.c.

{
  uint64_t i, j;
  scored_pointer *sorted = lwalloc(sizeof(scored_pointer)*num);
  LWT_ISO_EDGE *edges2 = NULL;
  LWT_ISO_NODE node;
  node.node_id = 0; /* unneeded, but hushes a compiler warning */
  LWGEOM *prj; /* incoming point projected to nearest node or edge */
  const POINT2D *pt = NULL; /* projected 2d point */
  LWGEOM *lwpoint = lwpoint_as_lwgeom(point);

  j = 0;
  for (i=0; i<num; ++i)
  {
    double dist;
    LWT_ISO_EDGE *e = edges+i;
    /* TODO: use square distance */
    dist = lwgeom_mindistance2d(lwline_as_lwgeom(edges[i].geom), lwpoint_as_lwgeom(point));
    LWDEBUGF(1, "Edge %" LWTFMT_ELEMID " distance: %.15g", e->edge_id, dist);
    if ( dist >= tol ) continue;
    sorted[j].ptr = e;
    sorted[j++].score = dist;
  }
  if ( ! j )
  {
    lwfree(sorted);
    return 0;
  }

  num = j;
  qsort(sorted, num, sizeof(scored_pointer), compare_scored_pointer);
  edges2 = lwalloc(sizeof(LWT_ISO_EDGE)*num);
  for (j=0, i=0; i<num; ++i)
  {
    if ( sorted[i].score == sorted[0].score )
    {
      edges2[j++] = *((LWT_ISO_EDGE*)sorted[i].ptr);
    }
    else
    {
      edges2[j++] = *((LWT_ISO_EDGE*)sorted[i].ptr);
      //lwline_free(((LWT_ISO_EDGE*)sorted[i].ptr)->geom);
    }
  }
  num = j;
  lwfree(sorted);
  edges = edges2;

  /* project point to closest edge */
  prj = lwgeom_closest_point(lwline_as_lwgeom(edges[0].geom), lwpoint);
  if ( moved ) *moved = lwgeom_same(prj, lwpoint) ? 0 : 1;
  if ( lwgeom_has_z(lwpoint) )
  {{
    /*
    -- This is a workaround for ClosestPoint lack of Z support:
    -- http://trac.osgeo.org/postgis/ticket/2033
    */
    LWGEOM *tmp;
    double z;
    POINT4D p4d;
    LWPOINT *prjpt;
    /* add Z to "prj" */
    tmp = lwgeom_force_3dz(prj, 0);
    prjpt = lwgeom_as_lwpoint(tmp);
    getPoint4d_p(point->point, 0, &p4d);
    z = p4d.z;
    getPoint4d_p(prjpt->point, 0, &p4d);
    p4d.z = z;
    ptarray_set_point4d(prjpt->point, 0, &p4d);
    lwgeom_free(prj);
    prj = tmp;
  }}

  LWDEBUGG(1, prj, "Projected point");
  node.geom = lwgeom_as_lwpoint(prj);
  node.containing_face = -1; /* means not-isolated */

  for (i=0; i<num; ++i)
  {
    /* The point is on or near one or more edges,
     * project it to closest edge and then split all
     * edges to it
     */

    LWT_ISO_EDGE *e = &(edges[i]);
    LWGEOM *g = lwline_as_lwgeom(e->geom);
    int contains;
    LWT_ELEMID edge_id = e->edge_id;

    if ( i )
    {{
      int ret = _lwt_SnapEdgeToExistingNode( topo, &node, e, tol );
      if ( ret != 0 ) {
        lwerror("Something went wrong with _lwt_SnapEdgeToExistingNode");
        return -1;
      }
      continue;
    }}

    LWDEBUGF(1, "Splitting closest edge %" LWTFMT_ELEMID, edge_id);

    pt = getPoint2d_cp(lwgeom_as_lwpoint(prj)->point, 0);
    contains = ptarray_contains_point_partial(e->geom->points, pt, 0, NULL) == LW_BOUNDARY;
    if ( ! contains )
    {{
      LWGEOM *snapedge;
      LWLINE *snapline;
      POINT4D p1, p2;

      LWDEBUGF(1, "Edge %" LWTFMT_ELEMID
                  " does not contain projected point to it",
                  edge_id);

#if 0
      /* In order to reduce the robustness issues, we'll pick
       * an edge that contains the projected point, if possible */
      if ( i+1 < num )
      {
        LWDEBUG(1, "But there's another to check");
        //lwgeom_free(prj);
        continue;
      }
#endif

      snapedge = _lwt_toposnap(g, prj, tol);
      snapline = lwgeom_as_lwline(snapedge);

      LWDEBUGF(1, "Edge snapped with tolerance %g", tol);

      /* TODO: check if snapping did anything ? */
#if POSTGIS_DEBUG_LEVEL > 0
      {
      size_t sz;
      char *wkt1 = lwgeom_to_wkt(g, WKT_EXTENDED, 15, &sz);
      char *wkt2 = lwgeom_to_wkt(snapedge, WKT_EXTENDED, 15, &sz);
      LWDEBUGF(1, "Edge %s snapped became %s", wkt1, wkt2);
      lwfree(wkt1);
      lwfree(wkt2);
      }
#endif


      /*
      -- Snapping currently snaps the first point below tolerance
      -- so may possibly move first point. See ticket #1631
      */
      getPoint4d_p(e->geom->points, 0, &p1);
      getPoint4d_p(snapline->points, 0, &p2);
      LWDEBUGF(1, "Edge first point is %g %g, "
                  "snapline first point is %g %g",
                  p1.x, p1.y, p2.x, p2.y);
      if ( p1.x != p2.x || p1.y != p2.y )
      {
        LWDEBUG(1, "Snapping moved first point, re-adding it");
        if ( LW_SUCCESS != ptarray_insert_point(snapline->points, &p1, 0) )
        {
          lwgeom_free(prj);
          lwgeom_free(snapedge);
          lwerror("GEOS exception on Contains: %s", lwgeom_geos_errmsg);
          return -1;
        }
#if POSTGIS_DEBUG_LEVEL > 0
        {
        size_t sz;
        char *wkt1 = lwgeom_to_wkt(g, WKT_EXTENDED, 15, &sz);
        LWDEBUGF(1, "Tweaked snapline became %s", wkt1);
        lwfree(wkt1);
        }
#endif
      }
#if POSTGIS_DEBUG_LEVEL > 0
      else {
        LWDEBUG(1, "Snapping did not move first point");
      }
#endif

      if ( -1 == lwt_ChangeEdgeGeom( topo, edge_id, snapline ) )
      {
        /* TODO: should have invoked lwerror already, leaking memory */
        lwgeom_free(prj);
        lwgeom_free(snapedge);
        lwerror("lwt_ChangeEdgeGeom failed");
        return -1;
      }
      lwgeom_free(snapedge);
    }}
#if POSTGIS_DEBUG_LEVEL > 0
    else
    {{
      size_t sz;
      char *wkt1 = lwgeom_to_wkt(g, WKT_EXTENDED, 15, &sz);
      char *wkt2 = lwgeom_to_wkt(prj, WKT_EXTENDED, 15, &sz);
      LWDEBUGF(1, "Edge %s contains projected point %s", wkt1, wkt2);
      lwfree(wkt1);
      lwfree(wkt2);
    }}
#endif

    /* TODO: pass 1 as last argument (skipChecks) ? */
    node.node_id = lwt_ModEdgeSplit( topo, edge_id, node.geom, 0 );
    if ( -1 == node.node_id )
    {
      /* TODO: should have invoked lwerror already, leaking memory */
      lwgeom_free(prj);
      lwerror("lwt_ModEdgeSplit failed");
      return -1;
    }

    /*
     * TODO: decimate the two new edges with the given tolerance ?
     *
     * the edge identifiers to decimate would be: edge_id and "id"
     * The problem here is that decimation of existing edges
     * may introduce intersections or topological inconsistencies,
     * for example:
     *
     *  - A node may end up falling on the other side of the edge
     *  - The decimated edge might intersect another existing edge
     *
     */

  }

  lwgeom_free(prj);

  if ( edges2 ) lwfree(edges2);
  return node.node_id;
}

References _lwt_SnapEdgeToExistingNode(), _lwt_toposnap(), compare_scored_pointer(), LWT_ISO_NODE::containing_face, contains(), LWT_ISO_EDGE::edge_id, LWT_ISO_NODE::geom, LWT_ISO_EDGE::geom, getPoint2d_cp(), getPoint4d_p(), LW_BOUNDARY, LW_SUCCESS, lwalloc(), LWDEBUG, LWDEBUGF, LWDEBUGG, lwerror(), lwfree(), lwgeom_as_lwline(), lwgeom_as_lwpoint(), lwgeom_closest_point(), lwgeom_force_3dz(), lwgeom_free(), lwgeom_geos_errmsg, lwgeom_has_z(), lwgeom_mindistance2d(), lwgeom_same(), lwgeom_to_wkt(), lwline_as_lwgeom(), lwpoint_as_lwgeom(), lwt_ChangeEdgeGeom(), lwt_ModEdgeSplit(), LWTFMT_ELEMID, LWT_ISO_NODE::node_id, LWPOINT::point, LWLINE::points, ptarray_contains_point_partial(), ptarray_insert_point(), ptarray_set_point4d(), scored_pointer_t::ptr, scored_pointer_t::score, WKT_EXTENDED, POINT4D::x, POINT4D::y, and POINT4D::z.

Referenced by _lwt_AddPoint().

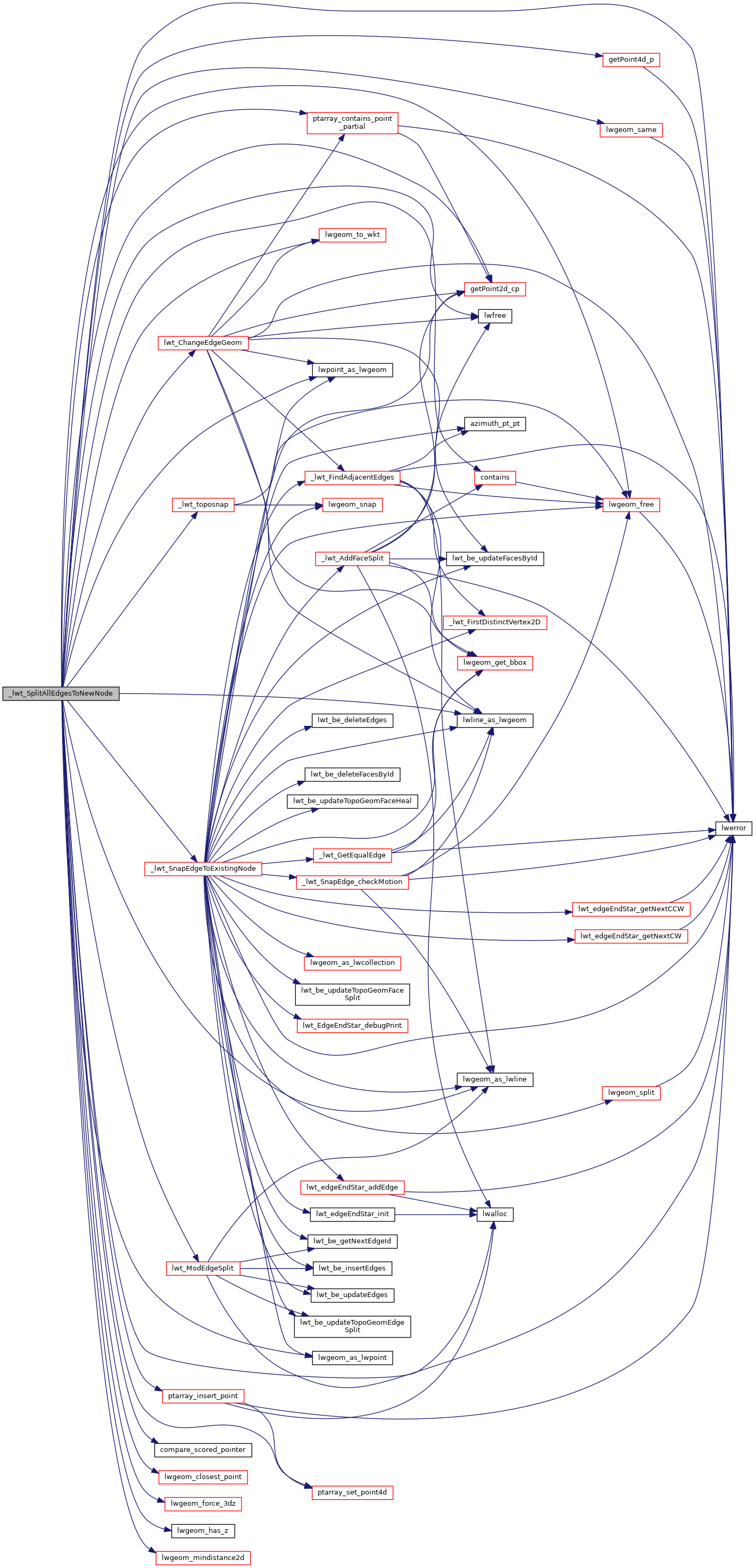

Here is the call graph for this function:

Here is the caller graph for this function:
