_lwt_SnapEdgeToExistingNode()

static int _lwt_SnapEdgeToExistingNode ( LWT_TOPOLOGY *  topo, LWT_ISO_NODE *  node, LWT_ISO_EDGE *  edge, double  tol  )

static

Definition at line 5407 of file lwgeom_topo.c.

{
  LWGEOM *prj = lwpoint_as_lwgeom(node->geom);
  const POINT2D *pt = getPoint2d_cp(lwgeom_as_lwpoint(prj)->point, 0);

  LWDEBUGF(1, "Experimental handling of within-tolerance edge %" LWTFMT_ELEMID, edge->edge_id);
  LWGEOM *snapE = lwgeom_snap(lwline_as_lwgeom(edge->geom), prj, tol);

  /* TODO: check if an endpoint moved */

  LWGEOM *splitE = lwgeom_split(snapE, prj);
  LWDEBUGG(1, splitE, "Split edge");

  LWCOLLECTION *splitC = lwgeom_as_lwcollection(splitE);
  if ( splitC->ngeoms != 2 )
  {
    lwerror("Split of edge resulted in %d components", splitC->ngeoms);
    return -1;
  }

  LWT_NODE_EDGES *firstNodeEdges = lwt_nodeEdges_loadFromDB(topo, edge->start_node, LWT_COL_EDGE_ALL );
  if ( ! firstNodeEdges ) {
    lwerror("No edges found in DB to be incident to split edge's first node");
    return -1;
  }
  LWT_NODE_EDGES *lastNodeEdges = lwt_nodeEdges_loadFromDB(topo, edge->end_node, LWT_COL_EDGE_ALL );
  if ( ! lastNodeEdges ) {
    lwerror("No edges found in DB to be incident to split edge's last node");
    return -1;
  }
  LWT_NODE_EDGES *splitNodeEdges = lwt_nodeEdges_loadFromDB(topo, node->node_id, LWT_COL_EDGE_ALL);
  if ( ! splitNodeEdges ) {
    lwerror("No edges found in DB to be incident to split node");
    return -1;
  }

  /* Update split edge reference as it was possibly changed by previous call */
  for ( uint64_t t=0; t<firstNodeEdges->numEdges; t++ )
  {
    if ( firstNodeEdges->edges[t].edge_id == edge->edge_id )
    {
      edge = &(firstNodeEdges->edges[t]);
      break;
    }
  }

  LWDEBUGF(1, "Split edge %"
      LWTFMT_ELEMID " start condition: next_right:%"
      LWTFMT_ELEMID ", next_left:%"
      LWTFMT_ELEMID ", face_right:%"
      LWTFMT_ELEMID ", face_left:%"
      LWTFMT_ELEMID ", start_node:%"
      LWTFMT_ELEMID ", end_node:%"
      LWTFMT_ELEMID,
      edge->edge_id,
      edge->next_right,
      edge->next_left,
      edge->face_right,
      edge->face_left,
      edge->start_node,
      edge->end_node
  );

  int ret;

  uint64_t n;
  LWT_ELEMID replacedBy[2];
  LWT_ISO_EDGE *existingEdges[2];
  //int replacedByForward[2];
  edgeend splitNodeEdgeEnds[2];
  for ( n=0; n<2; ++n)
  {
    int forward;
    /* TODO: directly get full existing edge rather than just id * */
    LWT_ELEMID existingEdgeId = _lwt_GetEqualEdge( topo, lwgeom_as_lwline(splitC->geoms[n]), &forward );
    if ( existingEdgeId == -1 )
    {
      /* probably too late, due to internal lwerror */
      return -1;
    }
    existingEdges[n] = NULL;
    if ( existingEdgeId == 0 )
    {
      LWDEBUGF(1, "Split component %llu is a new edge, computing edgeEndInfo", n);
      {
        // Compute nextCW and nextCCW of the split edge now
        // incident to the split point

        POINT2D op; /* other point */
        if ( n == 1 ) {
          ret = _lwt_FirstDistinctVertex2D(
            lwgeom_as_lwline(splitC->geoms[1])->points, //const POINTARRAY* pa,
            pt, //POINT2D *ref,
            0, // int from,
            1, // int dir,
            &op // POINT2D *op
          );
          if (!ret)
          {
            lwerror("No distinct vertices found on second part of split edge");
            return -1; /* lwerror should have been raised */
          }
        } else {
          const POINTARRAY *pa = lwgeom_as_lwline(splitC->geoms[0])->points;
          ret = _lwt_FirstDistinctVertex2D(
            pa, //const POINTARRAY* pa,
            pt, //POINT2D *ref,
            pa->npoints-1, // int from,
            -1, // int dir,
            &op // POINT2D *op
          );
          if (!ret)
          {
            lwerror("No distinct vertices found on first part of split edge");
            return -1; /* lwerror should have been raised */
          }
        }
        if ( ! azimuth_pt_pt(pt, &op, &(splitNodeEdgeEnds[n].myaz)) ) {
          lwerror("error computing azimuth of split endpoint [%.15g %.15g,%.15g %.15g]",
                  op.x, op.y,
                  pt->x, pt->y
          );
          return -1;
        }
        LWDEBUGF(1, "Azimuth of split component %llu edgeend [%.15g %.15g,%.15g %.15g] is %.15g",
          n, op.x, op.y, pt->x, pt->y, splitNodeEdgeEnds[n].myaz);
        ret = _lwt_FindAdjacentEdges( topo, node->node_id, &(splitNodeEdgeEnds[n]), NULL, -1 );
        if ( ! ret ) {
            lwerror("Unexpected backend return: _lwt_FindAdjacentEdges(%"
              LWTFMT_ELEMID ") found no edges when we previously split edge %"
              LWTFMT_ELEMID "d on it",
              node->node_id, edge->edge_id);
            return -1;
        }
        LWDEBUGF(1, "Component %llu of split edge %" LWTFMT_ELEMID
                                        " next CW is %" LWTFMT_ELEMID ", next CCW is %" LWTFMT_ELEMID,
          n, edge->edge_id, splitNodeEdgeEnds[n].nextCW, splitNodeEdgeEnds[n].nextCCW);
      }
    }
    else
    {
      LWDEBUGF(1, "Split component %llu matches existing edge %" LWTFMT_ELEMID
        " (%s)", n, existingEdgeId, forward ? "forward" : "backward" );
      /* Get existing edge */
      for ( uint64_t t=0; t<splitNodeEdges->numEdges; t++ )
      {
        if ( splitNodeEdges->edges[t].edge_id == existingEdgeId )
        {
          existingEdges[n] = &(splitNodeEdges->edges[t]);
          break;
        }
      }
      if (existingEdges[n] == NULL)
      {
        lwerror("could not find edge %" LWTFMT_ELEMID " in database, but _lwt_GetEqualEdges said it was there", existingEdgeId );
        return -1;
      }
    }

    replacedBy[n] = existingEdgeId;
  }


  LWT_ISO_EDGE updatedEdge;
  int updateFlags;
  LWT_ISO_EDGE selEdge;

  if ( ( replacedBy[0] != 0 && replacedBy[1] == 0 ) ||
       ( replacedBy[1] != 0 && replacedBy[0] == 0 ) )
  {
    /* One side of the snapped edge collapsed to an existing edge */

    LWT_ISO_EDGE *existingEdge;
    edgeend *splitNodeEdgeEndInfo;
    LWLINE *newSplitEdgeLine;
    int splitNodeNewEdgeOutgoing; // The new split edge goes out of the split node

    if ( replacedBy[1] == 0 )
    /* First part of edge is the existing edge */
    {
      existingEdge = existingEdges[0];
      newSplitEdgeLine = lwgeom_as_lwline(splitC->geoms[1]);
      splitNodeEdgeEndInfo = &(splitNodeEdgeEnds[1]);
      splitNodeNewEdgeOutgoing = 1;
    }
    else
    /* Second part of edge is the existing edge */
    {
      existingEdge = existingEdges[1];
      newSplitEdgeLine = lwgeom_as_lwline(splitC->geoms[0]);
      splitNodeEdgeEndInfo = &(splitNodeEdgeEnds[0]);
      splitNodeNewEdgeOutgoing = 0;
    }

    _lwt_SnapEdge_checkMotion( topo, splitC, edge, existingEdge, splitNodeEdges );

    LWDEBUGF(1, "Existing edge %"
        LWTFMT_ELEMID " (post-modEdgeSplit) next_right:%"
        LWTFMT_ELEMID ", next_left:%"
        LWTFMT_ELEMID ", face_right:%"
        LWTFMT_ELEMID ", face_left:%"
        LWTFMT_ELEMID,
        existingEdge->edge_id,
        existingEdge->next_right,
        existingEdge->next_left,
        existingEdge->face_right,
        existingEdge->face_left
    );

    /*****
     *
     * Update edge linking
     *
     */

    /*
     * Update next CW / CCW edges on split node
     * (fix linking on split node)
     */

    /* Update next CCW edge */
    {
      LWT_ELEMID nextEdge, sideFace;
      if ( splitNodeNewEdgeOutgoing ) {
        nextEdge = edge->edge_id;
        sideFace = edge->face_left;
      } else {
        nextEdge = -edge->edge_id;
        sideFace = edge->face_right;
      }

      LWDEBUGF(1, "Setting nextEdge/sideFace of CCW edge %" LWTFMT_ELEMID
        " to %" LWTFMT_ELEMID "/%" LWTFMT_ELEMID,
        splitNodeEdgeEndInfo->nextCCW,
        nextEdge, sideFace
      );

      if ( splitNodeEdgeEndInfo->nextCCW > 0 )
      {
        selEdge.edge_id = splitNodeEdgeEndInfo->nextCCW;
        updatedEdge.next_right = nextEdge;
        updatedEdge.face_right = sideFace;
        updateFlags = LWT_COL_EDGE_NEXT_RIGHT|
                      LWT_COL_EDGE_FACE_RIGHT;
        LWDEBUGF(1, "Will update next_right/face_right of outgoing CCW edge %" LWTFMT_ELEMID
          " to %" LWTFMT_ELEMID "/%" LWTFMT_ELEMID,
          selEdge.edge_id,
          nextEdge, sideFace
        );
      }
      else
      {
        selEdge.edge_id = -splitNodeEdgeEndInfo->nextCCW;
        updatedEdge.next_left = nextEdge;
        updatedEdge.face_left = sideFace;
        updateFlags = LWT_COL_EDGE_NEXT_LEFT|
                      LWT_COL_EDGE_FACE_LEFT;
        LWDEBUGF(1, "Will update next_left/face_left of incoming CCW edge %" LWTFMT_ELEMID
          " to %" LWTFMT_ELEMID "/%" LWTFMT_ELEMID,
          selEdge.edge_id,
          nextEdge, sideFace
        );
      }

      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge %" LWTFMT_ELEMID " disappeared during operations", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " ! (corrupted topology?)", selEdge.edge_id);
        return -1;
      }
    }

    /* Update next CW edge on split node */
    {
      LWT_ELEMID sideFace;
      if ( splitNodeNewEdgeOutgoing ) {
        sideFace = edge->face_right;
      } else {
        sideFace = edge->face_left;
      }

      LWDEBUGF(1, "Setting sideFace of CW edge %" LWTFMT_ELEMID
        " to %" LWTFMT_ELEMID,
        splitNodeEdgeEndInfo->nextCW, sideFace
      );

      if ( splitNodeEdgeEndInfo->nextCW > 0 )
      {
        selEdge.edge_id = splitNodeEdgeEndInfo->nextCW;
        updatedEdge.face_left = sideFace;
        updateFlags = LWT_COL_EDGE_FACE_LEFT;
        LWDEBUGF(1, "Updating left_face of edge %" LWTFMT_ELEMID
          ", outgoing next CW of new split edge on split node",
          selEdge.edge_id);
      }
      else
      {
        selEdge.edge_id = -splitNodeEdgeEndInfo->nextCW;
        updatedEdge.face_right = sideFace;
        updateFlags = LWT_COL_EDGE_FACE_RIGHT;
        LWDEBUGF(1, "Updating right_face of edge %" LWTFMT_ELEMID
          ", incoming next CW of new split edge on split node",
          selEdge.edge_id);
      }

      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge %" LWTFMT_ELEMID " disappeared during operations", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with edge_id %"
          LWTFMT_ELEMID " ! (corrupted topology?)", selEdge.edge_id);
        return -1;
      }
    }

    /*
     * Update links to now-disappeared edgeend
     * on the node originally in common with
     * the existing node
     */

    LWT_ISO_EDGE *nextCCWEdge = NULL;
    int nextCCWEdgeIsIncoming = 0;
    int collapsedEdgeIsIncoming;

    LWT_ELEMID commonNodeID;

    LWT_NODE_EDGES *commonNodeEdges;
    if ( replacedBy[0] ) {
      commonNodeEdges = firstNodeEdges;
      commonNodeID = edge->start_node;
      collapsedEdgeIsIncoming = 0;
    } else {
      commonNodeEdges = lastNodeEdges;
      commonNodeID = edge->end_node;
      collapsedEdgeIsIncoming = 1;
    }


    // Update next CCW edge
    {
      LWT_ELEMID signedCollapsedEdgeID = collapsedEdgeIsIncoming ?  -edge->edge_id: edge->edge_id;

      LWDEBUGF(1, "Looking for next CCW edge of split edge %"
          LWTFMT_ELEMID " on common node %" LWTFMT_ELEMID
          " having %llu attached edges",
          edge->edge_id,
          commonNodeID, commonNodeEdges->numEdges
      );

      /* Find next CCW edge */
      for ( uint64_t t=0; t<commonNodeEdges->numEdges; t++ )
      {
        LWT_ISO_EDGE *et = &(commonNodeEdges->edges[t]);

        LWDEBUGF(1, "common node edge %"
            LWTFMT_ELEMID " has next_left:%" LWTFMT_ELEMID
            " next_right:%" LWTFMT_ELEMID,
            et->edge_id,
            et->next_left,
            et->next_right
        );

        if ( et->start_node == commonNodeID )
        {
          if ( et->next_right == signedCollapsedEdgeID )
          {
            nextCCWEdge = et;
            nextCCWEdgeIsIncoming = 0;
            break;
          }
        }
        else if ( et->end_node == commonNodeID )
        {
          if ( et->next_left == signedCollapsedEdgeID )
          {
            nextCCWEdge = et;
            nextCCWEdgeIsIncoming = 1;
            break;
          }
        }
      }
      if ( ! nextCCWEdge )
      {
        lwerror("Could not find nextCCW edge on common node %" LWTFMT_ELEMID,
             commonNodeID
        );
        return -1;
      }

      LWDEBUGF(1, "Next CCW edge of split edge %"
          LWTFMT_ELEMID " on common node %" LWTFMT_ELEMID
          " is (%s) %" LWTFMT_ELEMID,
          edge->edge_id,
          commonNodeID,
          nextCCWEdgeIsIncoming ? "incoming" : "outgoing",
          nextCCWEdge->edge_id
      );

      if ( nextCCWEdge->edge_id == existingEdge->edge_id )
      {
        LWDEBUG(1, "Next CCW edge is existing/collapse edge, will not update here");
      }
      else
      {
        /*
         *  TODO: the nextCCW is only of interest IFF the collapse
         *        happened clockwise!
         *
         *  just update to the split edge id (positive or negative
         *  depending on whether it was outgoing or incoming in the
         *  common node)
         */
        LWT_ELEMID newNextEdge = existingEdge->start_node == commonNodeID ?
          existingEdge->edge_id :
          -existingEdge->edge_id;

        selEdge.edge_id = nextCCWEdge->edge_id;
        if ( nextCCWEdgeIsIncoming ) {
          updatedEdge.next_left = newNextEdge;
          updateFlags = LWT_COL_EDGE_NEXT_LEFT;
          LWDEBUGF(1, "Updating next_left of incoming next CCW edge %"
              LWTFMT_ELEMID
              " to %" LWTFMT_ELEMID,
              selEdge.edge_id,
              newNextEdge
          );
        } else {
          updatedEdge.next_right = newNextEdge;
          updateFlags = LWT_COL_EDGE_NEXT_RIGHT;
          LWDEBUGF(1, "Updating next_right of outgoing next CCW edge %"
              LWTFMT_ELEMID
              " to %" LWTFMT_ELEMID,
              selEdge.edge_id,
              newNextEdge
          );
        }
        ret = lwt_be_updateEdges(topo,
          &selEdge, LWT_COL_EDGE_EDGE_ID,
          &updatedEdge, updateFlags,
          NULL, 0);
        if ( ret == -1 ) {
          PGTOPO_BE_ERROR();
          return -1;
        } else if ( ret == 0 ) {
          lwerror("Edge %" LWTFMT_ELEMID " disappeared during operations", selEdge.edge_id);
          return -1;
        } else if ( ret > 1 ) {
          lwerror("More than a single edge found with next_left %"
            LWTFMT_ELEMID " ! (corrupted topology?)", selEdge.next_left);
          return -1;
        }
      }
    }

    /*****
     *
     * Update the existing edge our split edge collapsed to
     *
     */

    selEdge.edge_id = existingEdge->edge_id;
    updateFlags = 0;
    if ( existingEdge->next_left == edge->edge_id )
    {
      updatedEdge.next_left = edge->next_right;
      updateFlags |= LWT_COL_EDGE_NEXT_LEFT;
      LWDEBUGF(1, "Will update next_left of existing edge %"
        LWTFMT_ELEMID " to %" LWTFMT_ELEMID,
        selEdge.edge_id,
        updatedEdge.next_left
      );
    }
    if ( existingEdge->next_right == edge->edge_id )
    {
      updatedEdge.next_right = edge->next_right;
      updateFlags |= LWT_COL_EDGE_NEXT_RIGHT;
      LWDEBUGF(1, "Will update next_right of existing edge %"
        LWTFMT_ELEMID " to %" LWTFMT_ELEMID,
        selEdge.edge_id,
        updatedEdge.next_right
      );
    }
    if ( existingEdge->next_left == -edge->edge_id )
    {
      updatedEdge.next_left = edge->next_left;
      updateFlags |= LWT_COL_EDGE_NEXT_LEFT;
      LWDEBUGF(1, "Will update next_left of existing edge %"
        LWTFMT_ELEMID " to %" LWTFMT_ELEMID,
        selEdge.edge_id,
        updatedEdge.next_left
      );
    }
    if ( existingEdge->next_right == -edge->edge_id )
    {
      updatedEdge.next_right = edge->next_left;
      updateFlags |= LWT_COL_EDGE_NEXT_RIGHT;
      LWDEBUGF(1, "Will update next_right of existing edge %"
        LWTFMT_ELEMID " to %" LWTFMT_ELEMID,
        selEdge.edge_id,
        updatedEdge.next_right
      );
    }
    if ( updateFlags )
    {
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    /*****
     *
     * Update the split edge
     *
     */

    selEdge.edge_id = edge->edge_id;
    updatedEdge.geom = newSplitEdgeLine;
    updateFlags = LWT_COL_EDGE_GEOM;
    if ( splitNodeNewEdgeOutgoing ) {
      updatedEdge.start_node = node->node_id;
      updatedEdge.next_right = splitNodeEdgeEndInfo->nextCW;
      updateFlags |= LWT_COL_EDGE_START_NODE;
      updateFlags |= LWT_COL_EDGE_NEXT_RIGHT;
      LWDEBUGF(1, "Updating split edge %" LWTFMT_ELEMID
        " start node to %" LWTFMT_ELEMID
        " and next_right to %" LWTFMT_ELEMID,
        selEdge.edge_id,
        updatedEdge.start_node,
        updatedEdge.next_right
      );
    } else {
      updatedEdge.end_node = node->node_id;
      updatedEdge.next_left = splitNodeEdgeEndInfo->nextCW;
      updateFlags |= LWT_COL_EDGE_END_NODE;
      updateFlags |= LWT_COL_EDGE_NEXT_LEFT;
      LWDEBUGF(1, "Updating split edge %" LWTFMT_ELEMID
        " end node to %" LWTFMT_ELEMID
        " and next_left to %" LWTFMT_ELEMID
        ,
        selEdge.edge_id,
        updatedEdge.end_node
        , updatedEdge.next_left
      );
    }

    ret = lwt_be_updateEdges(topo,
      &selEdge, LWT_COL_EDGE_EDGE_ID,
      &updatedEdge, updateFlags,
      NULL, 0);
    if ( ret == -1 ) {
      PGTOPO_BE_ERROR();
      return -1;
    } else if ( ret == 0 ) {
      lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
      return -1;
    } else if ( ret > 1 ) {
      lwerror("More than a single edge found with id %"
        LWTFMT_ELEMID " !", selEdge.edge_id);
      return -1;
    }

    /************
     *
     * Update split-edge collapsed side face MBR, if needed
     *
     */

    if ( edge->face_left != edge->face_right )
    {
      /* TODO: update a single face ? */
      LWT_ISO_FACE updface;
      updface.face_id = edge->face_right;
      if ( updface.face_id != 0 )
      {
        /* We only need to update the MBR if the shrunk face is
         * not the universe face */
        LWGEOM *fg = lwt_GetFaceGeometry(topo, updface.face_id);
        if ( ! fg )
        {
          lwerror("Could not get geometry of face %" LWTFMT_ELEMID, updface.face_id);
          return -1;
        }
        updface.mbr = (GBOX *)lwgeom_get_bbox(fg);
        if ( updface.mbr )
        {
          int ret = lwt_be_updateFacesById( topo, &updface, 1 );
          if ( ret == -1 )
          {
            PGTOPO_BE_ERROR();
            return -1;
          }
          lwgeom_free(fg);
        }
        else
        {
          lwerror("Programmatic error ? Geometry of face %" LWTFMT_ELEMID " is empty!", updface.face_id);
        }
      }
      updface.face_id = edge->face_left;
      if ( updface.face_id != 0 )
      {
        /* We only need to update the MBR if the shrunk face is
         * not the universe face */
        LWGEOM *fg = lwt_GetFaceGeometry(topo, updface.face_id);
        if ( ! fg )
        {
          lwerror("Could not get geometry of face %" LWTFMT_ELEMID, updface.face_id);
          return -1;
        }
        updface.mbr = (GBOX *)lwgeom_get_bbox(fg);
        if ( updface.mbr )
        {
          int ret = lwt_be_updateFacesById( topo, &updface, 1 );
          if ( ret == -1 )
          {
            PGTOPO_BE_ERROR();
            return -1;
          }
          lwgeom_free(fg);
        }
        else
        {
          lwerror("Programmatic error ? Geometry of face %" LWTFMT_ELEMID " is empty!", updface.face_id);
        }
      }
    }

    /************
     *
     * Update TopoGeometries composition
     *
     */

    LWDEBUGF(1, "Updating lineal TopoGeometry composition to add edge %" LWTFMT_ELEMID
      " to features composed by edge %" LWTFMT_ELEMID,
      existingEdge->edge_id, edge->edge_id
    );
    ret = lwt_be_updateTopoGeomEdgeSplit(topo, edge->edge_id, existingEdge->edge_id, -1);
    if ( ! ret ) {
      PGTOPO_BE_ERROR();
      return -1;
    }

    return 0;
  }
  else if ( replacedBy[0] == 0 && replacedBy[1] == 0 )
  {

    /* Neither sides of the snapped edge collapsed to an existing edge */

    /* New edge is the outgoing one, by design */
    LWT_ISO_EDGE newEdge;
    newEdge.edge_id = lwt_be_getNextEdgeId( topo );
    if ( newEdge.edge_id == -1 ) {
      PGTOPO_BE_ERROR();
      return -1;
    }
    newEdge.geom = lwgeom_as_lwline(splitC->geoms[1]);
    newEdge.end_node = edge->end_node;
    newEdge.start_node = node->node_id;
    newEdge.next_right = -updatedEdge.edge_id; // to be assigned later, if needed
    if ( edge->next_left == -edge->edge_id ) {
      newEdge.next_left = -newEdge.edge_id;
    } else {
      newEdge.next_left = edge->next_left; // unchanged
    }
    newEdge.face_left = edge->face_left; // to be changed later
    newEdge.face_right = edge->face_right; // to be changed later

    /* Updated edge is the incoming one, by design */
    updatedEdge.edge_id = edge->edge_id;
    updatedEdge.geom = lwgeom_as_lwline(splitC->geoms[0]);
    updatedEdge.end_node = node->node_id;
    updatedEdge.next_left = newEdge.edge_id; // to be re-assigned later, if needed


    LWT_EDGEEND_STAR *nodeStar = lwt_edgeEndStar_init( node->node_id );
    for ( uint64_t t=0; t<splitNodeEdges->numEdges; t++ )
    {
      lwt_edgeEndStar_addEdge( nodeStar, &(splitNodeEdges->edges[t]) );
    }
    lwt_edgeEndStar_addEdge( nodeStar, &updatedEdge );
    lwt_edgeEndStar_addEdge( nodeStar, &newEdge );

    _lwt_SnapEdge_checkMotion( topo, splitC, edge, NULL, splitNodeEdges );

    /* There cannot be anything in the middle of the two components,
     * so both sides will give the same nextCCW and same nextCW */

    lwt_EdgeEndStar_debugPrint( nodeStar );

    const LWT_EDGEEND *ee0 = lwt_edgeEndStar_getNextCW( nodeStar, &updatedEdge, 0); // incoming
    LWDEBUGF(1, "* NextCW of incoming snap-edge component is %s %" LWTFMT_ELEMID,
      ee0->outgoing ? "outgoing" : "incoming", ee0->edge->edge_id);
    if ( ee0->outgoing ) {
      updatedEdge.next_left = ee0->edge->edge_id;
    } else  {
      updatedEdge.next_left = -ee0->edge->edge_id;
    }
    int splitFaceOnLeft = 1;
    if ( ee0->edge->edge_id == newEdge.edge_id )
    {
      splitFaceOnLeft = 0;
    }

    const LWT_EDGEEND *ee1 = lwt_edgeEndStar_getNextCW( nodeStar, &newEdge, 1); // outgoing
    LWDEBUGF(1, "* NextCW of outgoing snap-edge component is %s %" LWTFMT_ELEMID,
      ee1->outgoing ? "outgoing" : "incoming", ee1->edge->edge_id);
    if ( ee1->outgoing ) {
      newEdge.next_right = ee1->edge->edge_id;
    } else  {
      newEdge.next_right = -ee1->edge->edge_id;
    }

    int ret = lwt_be_insertEdges(topo, &newEdge, 1);
    if (ret != 1)
    {
      PGTOPO_BE_ERROR();
      return -1;
    }

    /* Updating the first portion of the edge */
    selEdge.edge_id = edge->edge_id;
    ret = lwt_be_updateEdges(topo,
      &selEdge, LWT_COL_EDGE_EDGE_ID,
      &updatedEdge, LWT_COL_EDGE_NEXT_LEFT|LWT_COL_EDGE_GEOM|LWT_COL_EDGE_END_NODE,
      NULL, 0);
    if ( ret == -1 ) {
      PGTOPO_BE_ERROR();
      return -1;
    } else if ( ret == 0 ) {
      lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
      return -1;
    } else if ( ret > 1 ) {
      lwerror("More than a single edge found with id %"
        LWTFMT_ELEMID " !", selEdge.edge_id);
      return -1;
    }

    /* Update CCW edges if needed */
    ee0 = lwt_edgeEndStar_getNextCCW( nodeStar, &updatedEdge, 0); // incoming
    LWDEBUGF(1, "* NextCCW of incoming snap-edge component is %s %" LWTFMT_ELEMID,
      ee0->outgoing ? "outgoing" : "incoming", ee0->edge->edge_id);
    if ( ee0->edge->edge_id != newEdge.edge_id )
    {
      selEdge.edge_id = ee0->edge->edge_id;
      if ( ee0->outgoing ) {
        updatedEdge.next_right = -edge->edge_id;
        updateFlags = LWT_COL_EDGE_NEXT_RIGHT;
      } else {
        updatedEdge.next_left = -edge->edge_id;
        updateFlags = LWT_COL_EDGE_NEXT_LEFT;
      }

      LWDEBUGF(1, "Updating edge %" LWTFMT_ELEMID ", %s nextCCW of incoming snap-edge",
        selEdge.edge_id, ee0->outgoing ? "outgoing" : "incoming");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    /* Update CCW edge of outgoing portion if needed */
    ee1 = lwt_edgeEndStar_getNextCCW( nodeStar, &newEdge, 1); // outgoing
    LWDEBUGF(1, "* NextCCW of outgoing snap-edge component is %s %" LWTFMT_ELEMID,
      ee1->outgoing ? "outgoing" : "incoming", ee1->edge->edge_id);
    if ( ee1->edge->edge_id != edge->edge_id )
    {
      selEdge.edge_id = ee1->edge->edge_id;
      if ( ee1->outgoing ) {
        updatedEdge.next_right = newEdge.edge_id;
        updateFlags = LWT_COL_EDGE_NEXT_RIGHT;
      } else {
        updatedEdge.next_left = newEdge.edge_id;
        updateFlags = LWT_COL_EDGE_NEXT_LEFT;
      }

      LWDEBUGF(1, "Updating edge %" LWTFMT_ELEMID ", %s nextCCW of outgoing snap-edge",
        selEdge.edge_id, ee1->outgoing ? "outgoing" : "incoming");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    /* If any edge was connected to the end node of the split edge, we
     * need to update its link to us */
    updateFlags = 0;
    for ( uint64_t t=0; t<lastNodeEdges->numEdges; t++ )
    {
      const LWT_ISO_EDGE *in = &(lastNodeEdges->edges[t]);
      if ( in->next_right == -edge->edge_id )
      {
        if ( in->edge_id != edge->edge_id ) {
          selEdge.edge_id = in->edge_id;
          updatedEdge.next_right = -newEdge.edge_id;
          updateFlags = LWT_COL_EDGE_NEXT_RIGHT;
        }
        break;
      }
      if ( in->next_left == -edge->edge_id )
      {
        if ( in->edge_id != edge->edge_id ) {
          selEdge.edge_id = in->edge_id;
          updatedEdge.next_left = -newEdge.edge_id;
          updateFlags = LWT_COL_EDGE_NEXT_LEFT;
        }
        break;
      }
    }
    if ( updateFlags != 0 )
    {
      LWDEBUGF(1, "Updating edge %" LWTFMT_ELEMID ", %s nextCCW of outgoing snap-edge",
        selEdge.edge_id,
        updateFlags & LWT_COL_EDGE_NEXT_LEFT ?  "incoming" : "outgoing");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    /* Handle face split */
    LWT_ELEMID newFaceId1 = 0;
    LWT_ELEMID newFaceId2 = 0;
    LWT_ELEMID oldFaceId;
    if ( splitFaceOnLeft ) {

      oldFaceId = edge->face_left;

      LWDEBUGF(1, "Adding face split for left side of new edge %" LWTFMT_ELEMID, newEdge.edge_id);
      newFaceId1 = _lwt_AddFaceSplit( topo, newEdge.edge_id, oldFaceId, 0 );
      LWDEBUGF(1, "_lwt_AddFaceSplit(%" LWTFMT_ELEMID ") returned %" LWTFMT_ELEMID,
                  newEdge.edge_id, newFaceId1);

      // TODO: retain oldFaceID rather than creating a new one, if a
      // new one was already created for the new edge ring !
      LWDEBUGF(1, "Adding face split for left side of updated edge %" LWTFMT_ELEMID, edge->edge_id);
      newFaceId2 = _lwt_AddFaceSplit( topo, edge->edge_id, oldFaceId, 0 );
      LWDEBUGF(1, "_lwt_AddFaceSplit(%" LWTFMT_ELEMID ") returned %" LWTFMT_ELEMID,
                  edge->edge_id, newFaceId2);


    } else {

      oldFaceId = edge->face_right;

      LWDEBUGF(1, "Adding face split for right side of new edge %" LWTFMT_ELEMID, newEdge.edge_id);
      newFaceId1 = _lwt_AddFaceSplit( topo, -newEdge.edge_id, oldFaceId, 0 );
      LWDEBUGF(1, "_lwt_AddFaceSplit(%" LWTFMT_ELEMID ") returned %" LWTFMT_ELEMID,
                  -newEdge.edge_id, newFaceId1);

      // TODO: retain oldFaceID rather than creating a new one, if a
      // new one was already created on the new edge ring !
      LWDEBUGF(1, "Adding face split for right side of updated edge %" LWTFMT_ELEMID, edge->edge_id);
      newFaceId2 = _lwt_AddFaceSplit( topo, -edge->edge_id, oldFaceId, 0 );
      LWDEBUGF(1, "_lwt_AddFaceSplit(%" LWTFMT_ELEMID ") returned %" LWTFMT_ELEMID,
                  -edge->edge_id, newFaceId2);

    }

    /************
     *
     * Update TopoGeometries composition
     *
     */

    ret = lwt_be_updateTopoGeomEdgeSplit(topo, edge->edge_id, newEdge.edge_id, -1);
    if ( ! ret ) {
      PGTOPO_BE_ERROR();
      return -1;
    }

    LWDEBUGF(1, "New faces %" LWTFMT_ELEMID " and %" LWTFMT_ELEMID
                "split from from old face %" LWTFMT_ELEMID,
                newFaceId1, newFaceId2, oldFaceId);
    if ( newFaceId1 || newFaceId2 )
    {
      ret = lwt_be_updateTopoGeomFaceSplit(
        topo, oldFaceId,
        newFaceId1 ? newFaceId1 : oldFaceId,
        newFaceId2 ? newFaceId2 : oldFaceId
      );
      if ( ! ret ) {
        PGTOPO_BE_ERROR();
        return -1;
      }

      if ( newFaceId1 && newFaceId2 )
      {
        LWDEBUGF(1, "Deleting fully replaced face %" LWTFMT_ELEMID, oldFaceId);
        int nids = 1;
        ret = lwt_be_deleteFacesById(topo, &oldFaceId, nids);
        if ( ret == -1 ) {
          PGTOPO_BE_ERROR();
          return -1;
        }
      }
    }

    return 0;
  }
  else if ( replacedBy[0] != 0 && replacedBy[1] != 0 )
  {
    // Edge was replaced with two existing edges

    // Sanity check
    if ( edge->face_right == edge->face_left )
    {
      lwerror("Unexpectedly, dangling edge %" LWTFMT_ELEMID " was replaced by "
        "edges %" LWTFMT_ELEMID " and %" LWTFMT_ELEMID
        " when snap to node %" LWTFMT_ELEMID,
        edge->edge_id, replacedBy[0], replacedBy[1], node->node_id);
      return -1;
    }

    LWT_ELEMID collapsedFace = 0;
    LWT_ELEMID replacingFace = 0;

    if ( FP_ABS(edge->next_right) == replacedBy[0] ) {
      /* Face on the right of the removed edge disappeared */
      // We need to update nextCW on first node and nextCCW on last node
      collapsedFace = edge->face_right;
      replacingFace = edge->face_left;
    } else {
      /* Face on the left of the removed edge disappeared */
      // We need to update nextCCW on first node and nextCW on last node
      collapsedFace = edge->face_left;
      replacingFace = edge->face_right;
    }

    //const LWT_ISO_EDGE *sp_nextCCW = 0;
    //const LWT_ISO_EDGE *ep_nextCCW = 0;

    // Update CCW edge on first node
    updateFlags = 0;
    for ( uint64_t t=0; t<firstNodeEdges->numEdges; t++ )
    {
      const LWT_ISO_EDGE *in = &(firstNodeEdges->edges[t]);
      if ( in->edge_id == edge->edge_id ) continue;
      if ( in->next_right == edge->edge_id )
      {
        selEdge.edge_id = in->edge_id;
        updatedEdge.next_right = edge->next_right;
        updateFlags = LWT_COL_EDGE_NEXT_RIGHT;
        if ( in->face_right == collapsedFace ) {
          updatedEdge.face_right = replacingFace;
          updateFlags |= LWT_COL_EDGE_FACE_RIGHT;
        }
        //sp_nextCCW = in;
        break;
      }
      if ( in->next_left == edge->edge_id )
      {
        selEdge.edge_id = in->edge_id;
        updatedEdge.next_left = edge->next_right;
        updateFlags = LWT_COL_EDGE_NEXT_LEFT;
        if ( in->face_left == collapsedFace ) {
          updatedEdge.face_left = replacingFace;
          updateFlags |= LWT_COL_EDGE_FACE_LEFT;
        }
        //sp_nextCCW = in;
        break;
      }
    }
    if ( updateFlags != 0 )
    {
      LWDEBUGF(1, "Updating edge %" LWTFMT_ELEMID ", %s nextCCW of outgoing snap-edge",
        selEdge.edge_id,
        updateFlags & LWT_COL_EDGE_NEXT_LEFT ?  "incoming" : "outgoing");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    // Update CCW edge on last node
    updateFlags = 0;
    for ( uint64_t t=0; t<lastNodeEdges->numEdges; t++ )
    {
      const LWT_ISO_EDGE *in = &(lastNodeEdges->edges[t]);
      if ( in->edge_id == edge->edge_id ) continue;
      if ( in->next_right == -edge->edge_id )
      {
        selEdge.edge_id = in->edge_id;
        updatedEdge.next_right = edge->next_left;
        updateFlags = LWT_COL_EDGE_NEXT_RIGHT;
        if ( in->face_right == collapsedFace ) {
          updatedEdge.face_right = replacingFace;
          updateFlags |= LWT_COL_EDGE_FACE_RIGHT;
        }
        break;
      }
      if ( in->next_left == -edge->edge_id )
      {
        selEdge.edge_id = in->edge_id;
        updatedEdge.next_left = edge->next_left;
        updateFlags = LWT_COL_EDGE_NEXT_LEFT;
        if ( in->face_left == collapsedFace ) {
          updatedEdge.face_left = replacingFace;
          updateFlags |= LWT_COL_EDGE_FACE_LEFT;
        }
        break;
      }
    }
    if ( updateFlags != 0 )
    {
      LWDEBUGF(1, "Updating edge %" LWTFMT_ELEMID ", %s nextCCW of incoming snap-edge",
        selEdge.edge_id,
        updateFlags & LWT_COL_EDGE_NEXT_LEFT ?  "incoming" : "outgoing");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    if ( collapsedFace == edge->face_right )
    {
      // We need to update side face of nextCW on first node and nextCCW on last node
      // nextCCW on last node was done already, supposedly so we need to do nextCW
      // on first
      if ( edge->next_right < 0 ) {
        selEdge.edge_id = -edge->next_right;
        updatedEdge.face_right = replacingFace;
        updateFlags = LWT_COL_EDGE_FACE_RIGHT;
      } else {
        selEdge.edge_id = edge->next_right;
        updatedEdge.face_left = replacingFace;
        updateFlags = LWT_COL_EDGE_FACE_LEFT;
      }
      LWDEBUGF(1, "Updating %s face of edge %" LWTFMT_ELEMID ", %s nextCW of outgoing snap-edge",
        updateFlags & LWT_COL_EDGE_FACE_LEFT ?  "left" : "right",
        selEdge.edge_id,
        updateFlags & LWT_COL_EDGE_FACE_RIGHT ? "incoming" : "outgoing");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }
    else
    {
      // We need to update side face of nextCCW on first node and nextCW on last node
      // nextCCW on first node was done already, supposedly so we need to do nextCW
      // on last
      if ( edge->next_left < 0 ) {
        selEdge.edge_id = -edge->next_left;
        updatedEdge.face_right = replacingFace;
        updateFlags = LWT_COL_EDGE_FACE_RIGHT;
      } else {
        selEdge.edge_id = edge->next_left;
        updatedEdge.face_left = replacingFace;
        updateFlags = LWT_COL_EDGE_FACE_LEFT;
      }
      LWDEBUGF(1, "Updating %s face of edge %" LWTFMT_ELEMID ", %s nextCW of incoming snap-edge",
        updateFlags & LWT_COL_EDGE_FACE_LEFT ?  "left" : "right",
        selEdge.edge_id,
        updateFlags & LWT_COL_EDGE_FACE_RIGHT ? "incoming" : "outgoing");
      ret = lwt_be_updateEdges(topo,
        &selEdge, LWT_COL_EDGE_EDGE_ID,
        &updatedEdge, updateFlags,
        NULL, 0);
      if ( ret == -1 ) {
        PGTOPO_BE_ERROR();
        return -1;
      } else if ( ret == 0 ) {
        lwerror("Edge being split (%" LWTFMT_ELEMID ") disappeared during operations?", selEdge.edge_id);
        return -1;
      } else if ( ret > 1 ) {
        lwerror("More than a single edge found with id %"
          LWTFMT_ELEMID " !", selEdge.edge_id);
        return -1;
      }
    }

    /* Delete the old edge */
    selEdge.edge_id = edge->edge_id;
    LWDEBUGF(1, "Deleting edge %" LWTFMT_ELEMID, selEdge.edge_id);
    ret = lwt_be_deleteEdges(topo, &selEdge, LWT_COL_EDGE_EDGE_ID);
    if ( ret == -1 ) {
      PGTOPO_BE_ERROR();
      return -1;
    }

    /* Delete collapsed face */
    LWDEBUGF(1, "Deleting collapsed face %" LWTFMT_ELEMID, collapsedFace);
    int nids = 1;
    ret = lwt_be_deleteFacesById(topo, &collapsedFace, nids);
    if ( ret == -1 ) {
      PGTOPO_BE_ERROR();
      return -1;
    }

    /* Delete the collapsed face from composition of TopoGeometries */
    if ( ! lwt_be_updateTopoGeomFaceHeal( topo, collapsedFace, -1, -1) )
    {
      PGTOPO_BE_ERROR();
      return -1;
    }

    return 0;
  }

  //LWDEBUGF(1, "Not handling within-tolerance edge %" LWTFMT_ELEMID, edge->edge_id);
  lwerror("Don't know how to deal with edge %" LWTFMT_ELEMID
          " replaced by edges %" LWTFMT_ELEMID
          " and %" LWTFMT_ELEMID, edge->edge_id, replacedBy[0], replacedBy[1]);

  return -1;
}

References _lwt_AddFaceSplit(), _lwt_FindAdjacentEdges(), _lwt_FirstDistinctVertex2D(), _lwt_GetEqualEdge(), _lwt_SnapEdge_checkMotion(), azimuth_pt_pt(), LWT_EDGEEND_t::edge, LWT_ISO_EDGE::edge_id, LWT_NODE_EDGES_t::edges, LWT_ISO_EDGE::end_node, LWT_ISO_FACE::face_id, LWT_ISO_EDGE::face_left, LWT_ISO_EDGE::face_right, FP_ABS, LWT_ISO_NODE::geom, LWT_ISO_EDGE::geom, LWCOLLECTION::geoms, getPoint2d_cp(), LWDEBUG, LWDEBUGF, LWDEBUGG, lwerror(), lwgeom_as_lwcollection(), lwgeom_as_lwline(), lwgeom_as_lwpoint(), lwgeom_free(), lwgeom_get_bbox(), lwgeom_snap(), lwgeom_split(), lwline_as_lwgeom(), lwpoint_as_lwgeom(), lwt_be_deleteEdges(), lwt_be_deleteFacesById(), lwt_be_getNextEdgeId(), lwt_be_insertEdges(), lwt_be_updateEdges(), lwt_be_updateFacesById(), lwt_be_updateTopoGeomEdgeSplit(), lwt_be_updateTopoGeomFaceHeal(), lwt_be_updateTopoGeomFaceSplit(), LWT_COL_EDGE_ALL, LWT_COL_EDGE_EDGE_ID, LWT_COL_EDGE_END_NODE, LWT_COL_EDGE_FACE_LEFT, LWT_COL_EDGE_FACE_RIGHT, LWT_COL_EDGE_GEOM, LWT_COL_EDGE_NEXT_LEFT, LWT_COL_EDGE_NEXT_RIGHT, LWT_COL_EDGE_START_NODE, lwt_edgeEndStar_addEdge(), lwt_EdgeEndStar_debugPrint(), lwt_edgeEndStar_getNextCCW(), lwt_edgeEndStar_getNextCW(), lwt_edgeEndStar_init(), lwt_GetFaceGeometry(), lwt_nodeEdges_loadFromDB(), LWTFMT_ELEMID, LWT_ISO_FACE::mbr, edgeend_t::myaz, LWT_ISO_EDGE::next_left, LWT_ISO_EDGE::next_right, edgeend_t::nextCCW, edgeend_t::nextCW, LWCOLLECTION::ngeoms, LWT_ISO_NODE::node_id, POINTARRAY::npoints, LWT_NODE_EDGES_t::numEdges, LWT_EDGEEND_t::outgoing, PGTOPO_BE_ERROR, LWLINE::points, LWT_ISO_EDGE::start_node, POINT2D::x, and POINT2D::y.

Referenced by _lwt_SplitAllEdgesToNewNode().

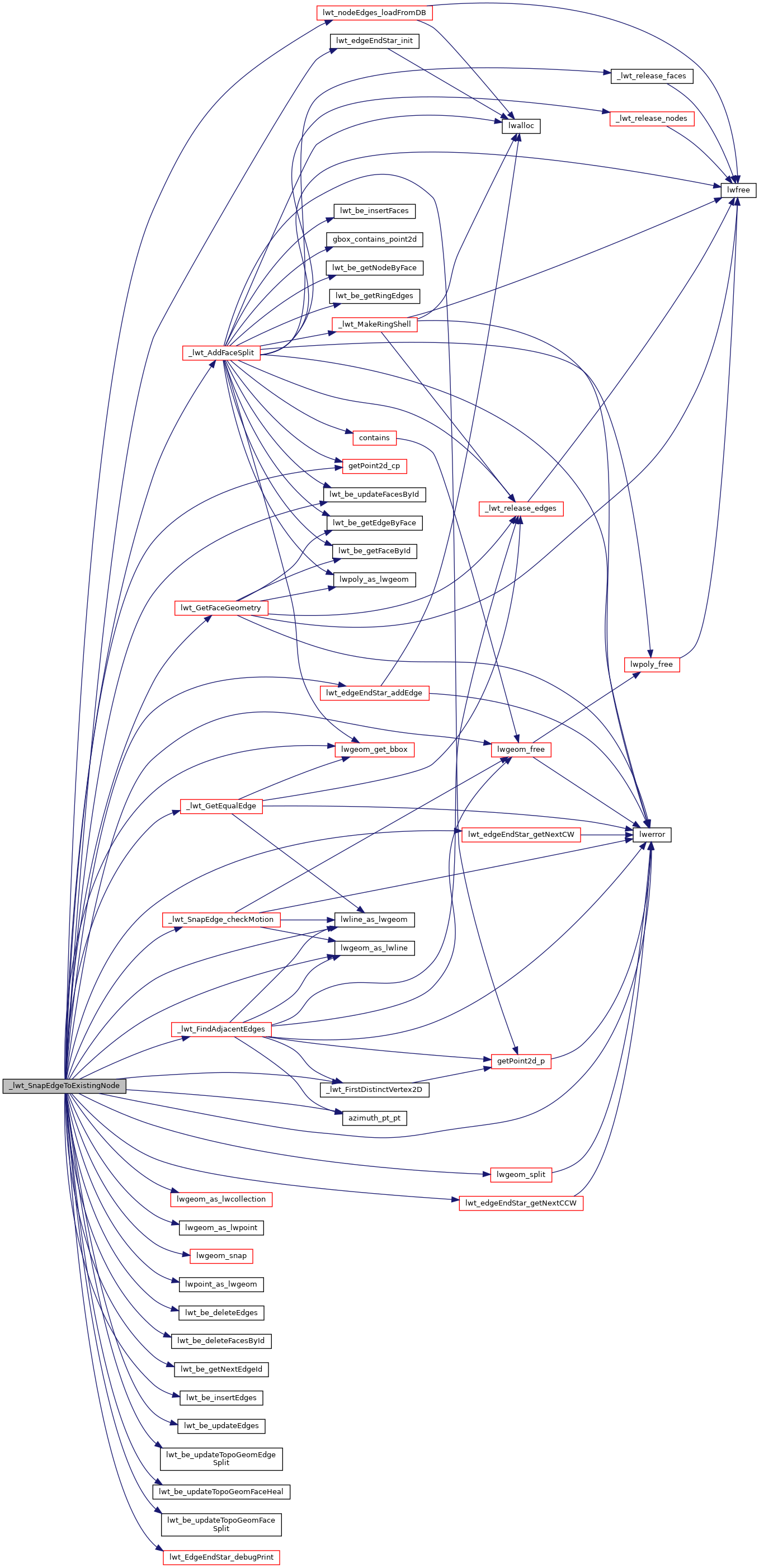

Here is the call graph for this function:

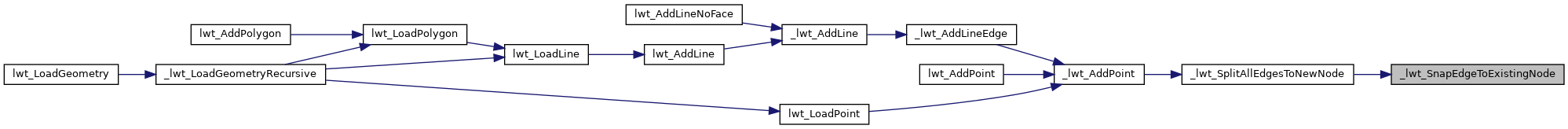

Here is the caller graph for this function:
