lw_dist3d_distanceline()

LWGEOM * lw_dist3d_distanceline	(	const LWGEOM *	lw1,
		const LWGEOM *	lw2,
		int32_t	srid,
		int	mode
	)

Function initializing 3dshortestline and 3dlongestline calculations.

Definition at line 97 of file measures3d.c.

{
        LWDEBUG(2, "lw_dist3d_distanceline is called");
        double x1, x2, y1, y2, z1, z2, x, y;
        double initdistance = (mode == DIST_MIN ? DBL_MAX : -1.0);
        DISTPTS3D thedl;
        LWPOINT *lwpoints[2];
        LWGEOM *result;

        thedl.mode = mode;
        thedl.distance = initdistance;
        thedl.tolerance = 0.0;

        /* Check if we really have 3D geometries
         * If not, send it to 2D-calculations which will give the same result
         * as an infinite z-value at one or two of the geometries */
        if (!lwgeom_has_z(lw1) || !lwgeom_has_z(lw2))
        {

                lwnotice(
                    "One or both of the geometries is missing z-value. The unknown z-value will be regarded as \"any value\"");

                if (!lwgeom_has_z(lw1) && !lwgeom_has_z(lw2))
                        return lw_dist2d_distanceline(lw1, lw2, srid, mode);

                DISTPTS thedl2d;
                thedl2d.mode = mode;
                thedl2d.distance = initdistance;
                thedl2d.tolerance = 0.0;
                if (!lw_dist2d_comp(lw1, lw2, &thedl2d))
                {
                        /* should never get here. all cases ought to be error handled earlier */
                        lwerror("Some unspecified error.");
                        result = (LWGEOM *)lwcollection_construct_empty(COLLECTIONTYPE, srid, 0, 0);
                }
                LWGEOM *vertical_line;
                if (!lwgeom_has_z(lw1))
                {
                        x = thedl2d.p1.x;
                        y = thedl2d.p1.y;

                        vertical_line = create_v_line(lw2, x, y, srid);
                        if (!lw_dist3d_recursive(vertical_line, lw2, &thedl))
                        {
                                /* should never get here. all cases ought to be error handled earlier */
                                lwfree(vertical_line);
                                lwerror("Some unspecified error.");
                                result = (LWGEOM *)lwcollection_construct_empty(COLLECTIONTYPE, srid, 0, 0);
                        }
                        lwfree(vertical_line);
                }
                if (!lwgeom_has_z(lw2))
                {
                        x = thedl2d.p2.x;
                        y = thedl2d.p2.y;

                        vertical_line = create_v_line(lw1, x, y, srid);
                        if (!lw_dist3d_recursive(lw1, vertical_line, &thedl))
                        {
                                /* should never get here. all cases ought to be error handled earlier */
                                lwfree(vertical_line);
                                lwerror("Some unspecified error.");
                                return (LWGEOM *)lwcollection_construct_empty(COLLECTIONTYPE, srid, 0, 0);
                        }
                        lwfree(vertical_line);
                }
        }
        else
        {
                if (!lw_dist3d_recursive(lw1, lw2, &thedl))
                {
                        /* should never get here. all cases ought to be error handled earlier */
                        lwerror("Some unspecified error.");
                        result = (LWGEOM *)lwcollection_construct_empty(COLLECTIONTYPE, srid, 0, 0);
                }
        }
        /*if thedl.distance is unchanged there where only empty geometries input*/
        if (thedl.distance == initdistance)
        {
                LWDEBUG(3, "didn't find geometries to measure between, returning null");
                result = (LWGEOM *)lwcollection_construct_empty(COLLECTIONTYPE, srid, 0, 0);
        }
        else
        {
                x1 = thedl.p1.x;
                y1 = thedl.p1.y;
                z1 = thedl.p1.z;
                x2 = thedl.p2.x;
                y2 = thedl.p2.y;
                z2 = thedl.p2.z;

                lwpoints[0] = lwpoint_make3dz(srid, x1, y1, z1);
                lwpoints[1] = lwpoint_make3dz(srid, x2, y2, z2);

                result = (LWGEOM *)lwline_from_ptarray(srid, 2, lwpoints);
        }

        return result;
}

References COLLECTIONTYPE, create_v_line(), DIST_MIN, DISTPTS::distance, DISTPTS3D::distance, lw_dist2d_comp(), lw_dist2d_distanceline(), lw_dist3d_recursive(), lwcollection_construct_empty(), LWDEBUG, lwerror(), lwfree(), lwgeom_has_z(), lwline_from_ptarray(), lwnotice(), lwpoint_make3dz(), DISTPTS::mode, DISTPTS3D::mode, DISTPTS::p1, DISTPTS3D::p1, DISTPTS::p2, DISTPTS3D::p2, DISTPTS::tolerance, DISTPTS3D::tolerance, POINT2D::x, POINT3DZ::x, POINT2D::y, POINT3DZ::y, and POINT3DZ::z.

Referenced by lwgeom_closest_line_3d(), and lwgeom_furthest_line_3d().

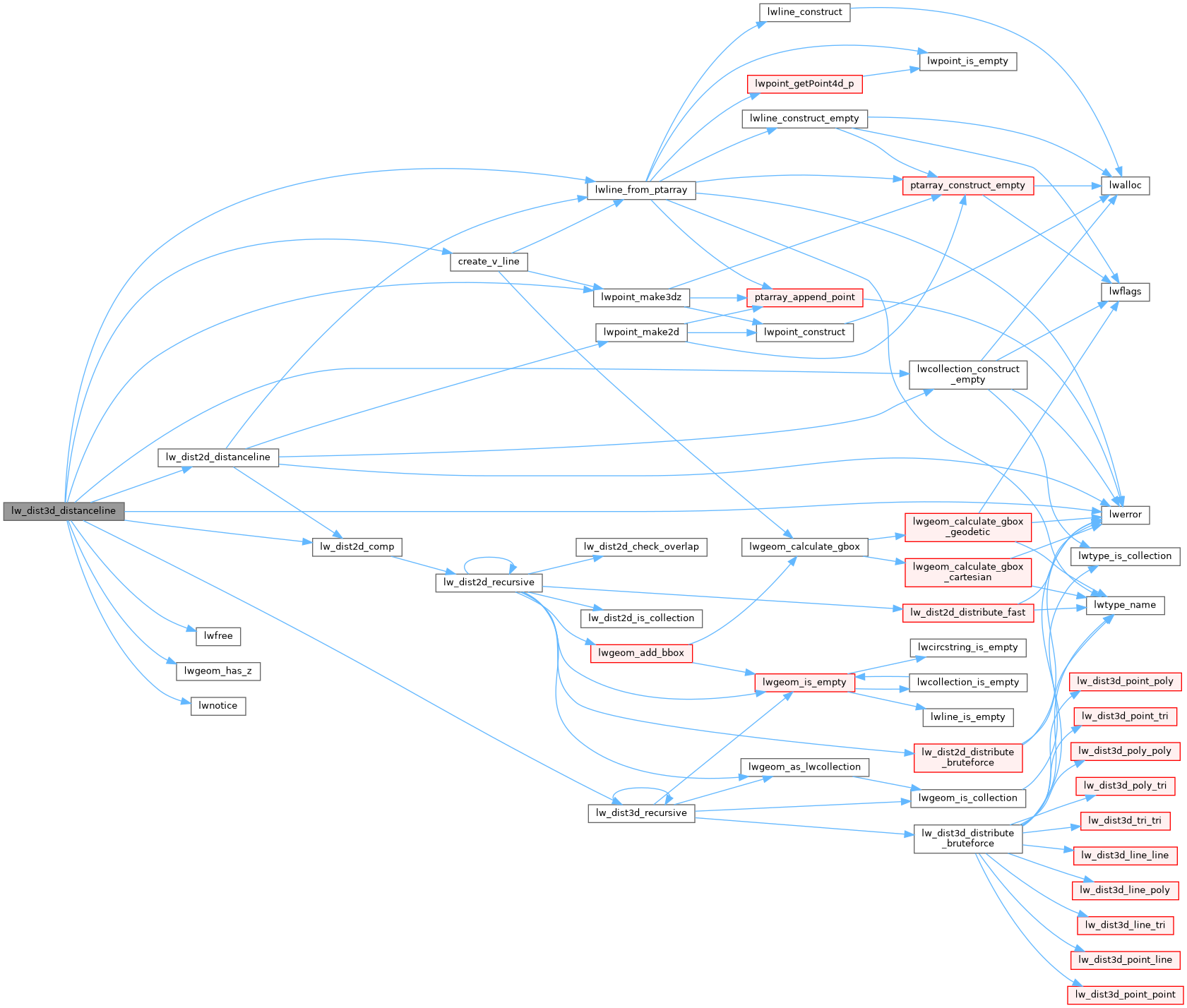

Here is the call graph for this function:

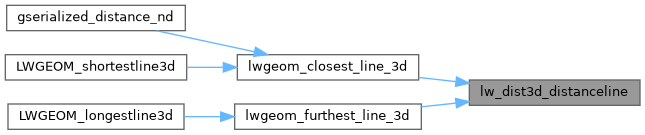

Here is the caller graph for this function:
