15. Spatial Indexing

Recall that spatial index is one of the three key features of a spatial database. Indexes make using a spatial database for large data sets possible. Without indexing, any search for a feature would require a “sequential scan” of every record in the database. Indexing speeds up searching by organizing the data into a search tree which can be quickly traversed to find a particular record.

Spatial indices are one of the greatest assets of PostGIS. In the previous example building spatial joins requires comparing whole tables with each other. This can get very costly: joining two tables of 10,000 records each without indexes would require 100,000,000 comparisons; with indexes the cost could be as low as 20,000 comparisons.

Our data load file already included spatial indexes for all the tables, so in order to demonstrate the efficacy of indexes we will have to first remove them.

Let’s run a query on nyc_census_blocks without our spatial index.

Our first step is to remove the index.

DROP INDEX nyc_census_blocks_geom_idx;

Note

The DROP INDEX statement drops an existing index from the database system. For more information, see the PostgreSQL documentation.

Now, watch the “Timing” meter at the lower right-hand corner of the pgAdmin query window and run the following. Our query searches through every single census block in order to identify blocks that contain subway stops that start with “B”.

SELECT count(blocks.blkid)
 FROM nyc_census_blocks blocks
 JOIN nyc_subway_stations subways
 ON ST_Contains(blocks.geom, subways.geom)
 WHERE subways.name LIKE 'B%';
    count
---------------
    46

The nyc_census_blocks table is very small (only a few thousand records) so even without an index, the query only takes 300 ms on my test computer.

Now add the spatial index back in and run the query again.

CREATE INDEX nyc_census_blocks_geom_idx
  ON nyc_census_blocks
  USING GIST (geom);

Note

The USING GIST clause tells PostgreSQL to use the generic index structure (GIST) when building the index. If you receive an error that looks like ERROR: index row requires 11340 bytes, maximum size is 8191 when creating your index, you have likely neglected to add the USING GIST clause.

On my test computer the time drops to 50 ms. The larger your table, the larger the relative speed improvement of an indexed query will be.

15.1. How Spatial Indexes Work

Standard database indexes create a hierarchical tree based on the values of the column being indexed. Spatial indexes are a little different – they are unable to index the geometric features themselves and instead index the bounding boxes of the features.

_images/bbox.png

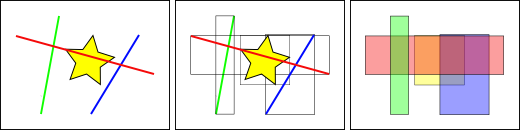

In the figure above, the number of lines that intersect the yellow star is one, the red line. But the bounding boxes of features that intersect the yellow box is two, the red and blue ones.

The way the database efficiently answers the question “what lines intersect the yellow star” is to first answer the question “what boxes intersect the yellow box” using the index (which is very fast) and then do an exact calculation of “what lines intersect the yellow star” only for those features returned by the first test.

For a large table, this “two pass” system of evaluating the approximate index first, then carrying out an exact test can radically reduce the amount of calculations necessary to answer a query.

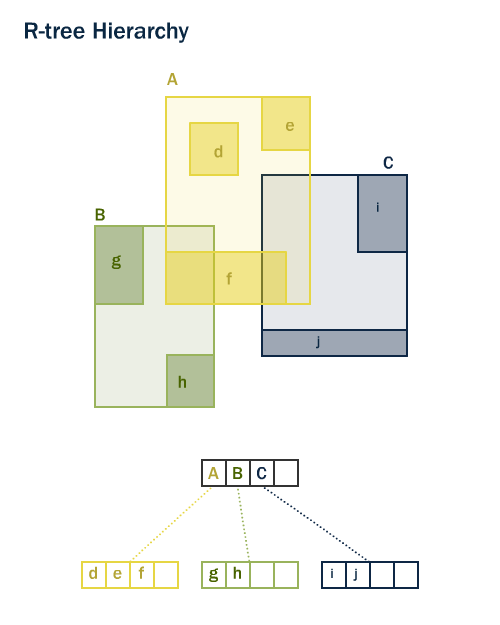

Both PostGIS and Oracle Spatial share the same “R-Tree” 1 spatial index structure. R-Trees break up data into rectangles, and sub-rectangles, and sub-sub rectangles, etc. It is a self-tuning index structure that automatically handles variable data density, differing amounts of object overlap, and object size.

_images/index-01.png

15.2. Spatially Indexed Functions

Only a subset of functions will automatically make use of a spatial index, if one is available.

The first four are the ones most commonly used in queries, and ST_DWithin is very important for doing “within a distance” or “within a radius” style queries while still getting a performance boost from the index.

In order to add index acceleration to other functions that are not in this list (most commonly, ST_Relate) add an index-only clause as descibed below.

15.3. Index-Only Queries

Most of the commonly used functions in PostGIS (ST_Contains, ST_Intersects, ST_DWithin, etc) include an index filter automatically. But some functions (e.g., ST_Relate) do not include an index filter.

To do a bounding-box search using the index (and no filtering), make use of the && operator. For geometries, the && operator means “bounding boxes overlap or touch” in the same way that for numbers the = operator means “values are the same”.

Let’s compare an index-only query for the population of the ‘West Village’ to a more exact query. Using && our index-only query looks like the following:

SELECT Sum(popn_total)
FROM nyc_neighborhoods neighborhoods
JOIN nyc_census_blocks blocks
ON neighborhoods.geom && blocks.geom
WHERE neighborhoods.name = 'West Village';
49821

Now let’s do the same query using the more exact ST_Intersects function.

SELECT Sum(popn_total)
FROM nyc_neighborhoods neighborhoods
JOIN nyc_census_blocks blocks
ON ST_Intersects(neighborhoods.geom, blocks.geom)
WHERE neighborhoods.name = 'West Village';
26718

A much lower answer! The first query summed up every block whose bounding box intersects the neighborhood’s bounding box; the second query only summed up those blocks that intersect the neighborhood itself.

15.4. Analyzing

The PostgreSQL query planner intelligently chooses when to use or not to use indexes to evaluate a query. Counter-intuitively, it is not always faster to do an index search: if the search is going to return every record in the table, traversing the index tree to get each record will actually be slower than just sequentially reading the whole table from the start.

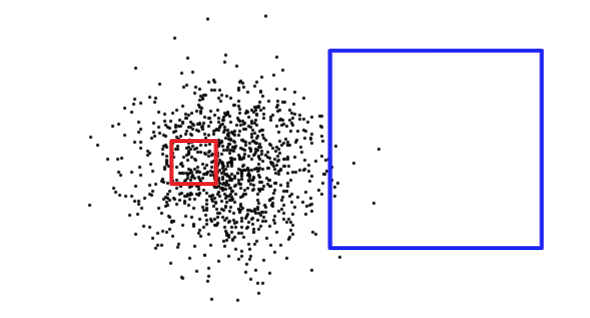

Knowing the size of the query rectangle is not enough to pin down whether a query will return a large number or small number of records. Below, the red square is small, but will return many more records than the blue square.

_images/index-02.png

In order to figure out what situation it is dealing with (reading a small part of the table versus reading a large portion of the table), PostgreSQL keeps statistics about the distribution of data in each indexed table column. By default, PostgreSQL gathers statistics on a regular basis. However, if you dramatically change the contents of your table within a short period of time, the statistics will not be up-to-date.

To ensure the statistics match your table contents, it is wise the to run the ANALYZE command after bulk data loads and deletes in your tables. This force the statistics system to gather data for all your indexed columns.

The ANALYZE command asks PostgreSQL to traverse the table and update its internal statistics used for query plan estimation (query plan analysis will be discussed later).

ANALYZE nyc_census_blocks;

15.5. Vacuuming

It’s worth stressing that just creating an index is not enough to allow PostgreSQL to use it effectively. VACUUMing must be performed whenever a large number of UPDATEs, INSERTs or DELETEs are issued against a table. The VACUUM command asks PostgreSQL to reclaim any unused space in the table pages left by updates or deletes to records.

Vacuuming is so critical for the efficient running of the database that PostgreSQL provides an “autovacuum” facility by default.

Autovacuum both vacuums (recovers space) and analyzes (updates statistics) on your tables at sensible intervals determined by the level of activity. While this is essential for highly transactional databases, it is not advisable to wait for an autovacuum run after adding indices or bulk-loading data. Whenever a large batch update is performed, you should manually run VACUUM.

Vacuuming and analyzing the database can be performed separately as needed. Issuing VACUUM command will not update the database statistics; likewise issuing an ANALYZE command will not recover unused table rows. Both commands can be run against the entire database, a single table, or a single column.

VACUUM ANALYZE nyc_census_blocks;
