◆ RASTER_union_transfn()

Datum RASTER_union_transfn ( PG_FUNCTION_ARGS  )

Definition at line 2079 of file rtpg_mapalgebra.c.

2080{
2081 MemoryContext aggcontext;
2082 MemoryContext oldcontext;
2083 rtpg_union_arg iwr = NULL;
2084 int skiparg = 0;
2085
2086 rt_pgraster *pgraster = NULL;
2087 rt_raster raster = NULL;
2088 rt_raster _raster = NULL;
2089 rt_band _band = NULL;
2090 int nband = 1;
2091 int noerr = 1;
2092 int isempty[2] = {0};
2093 int hasband[2] = {0};
2094 int nargs = 0;
2095 double _offset[4] = {0.};
2096 int nbnodata = 0; /* 1 if adding bands */
2097
2098 int i = 0;
2099 int j = 0;
2100 int k = 0;
2101
2102 rt_iterator itrset;
2103 char *utypename = NULL;
2104 rtpg_union_type utype = UT_LAST;
2105 rt_pixtype pixtype = PT_END;
2106 int hasnodata = 1;
2107 double nodataval = 0;
2108
2109 rt_raster iraster = NULL;
2110 rt_band iband = NULL;
2111 int reuserast = 0;
2112 int y = 0;
2113 uint16_t _dim[2] = {0};
2114 void *vals = NULL;
2115 uint16_t nvals = 0;
2116
2117 POSTGIS_RT_DEBUG(3, "Starting...");
2118
2119 /* cannot be called directly as this is exclusive aggregate function */
2120 if (!AggCheckCallContext(fcinfo, &aggcontext)) {
2121 elog(ERROR, "RASTER_union_transfn: Cannot be called in a non-aggregate context");
2122 PG_RETURN_NULL();
2123 }
2124
2125 /* switch to aggcontext */
2126 oldcontext = MemoryContextSwitchTo(aggcontext);
2127
2128 if (PG_ARGISNULL(0)) {
2129 POSTGIS_RT_DEBUG(3, "Creating state variable");
2130 /* allocate container in aggcontext */
2131 iwr = MemoryContextAlloc(aggcontext, sizeof(struct rtpg_union_arg_t));
2132 if (iwr == NULL) {
2133 MemoryContextSwitchTo(oldcontext);
2134 elog(ERROR, "RASTER_union_transfn: Could not allocate memory for state variable");
2135 PG_RETURN_NULL();
2136 }
2137
2138 iwr->numband = 0;
2139 iwr->bandarg = NULL;
2140
2141 skiparg = 0;
2142 }
2143 else {
2144 POSTGIS_RT_DEBUG(3, "State variable already exists");
2145 iwr = (rtpg_union_arg) PG_GETARG_POINTER(0);
2146 skiparg = 1;
2147 }
2148
2149 /* raster arg is NOT NULL */
2150 if (!PG_ARGISNULL(1)) {
2151 /* deserialize raster */
2152 pgraster = (rt_pgraster *) PG_DETOAST_DATUM(PG_GETARG_DATUM(1));
2153
2154 /* Get raster object */
2155 raster = rt_raster_deserialize(pgraster, FALSE);
2156 if (raster == NULL) {
2157
2158 rtpg_union_arg_destroy(iwr);
2159 PG_FREE_IF_COPY(pgraster, 1);
2160
2161 MemoryContextSwitchTo(oldcontext);
2162 elog(ERROR, "RASTER_union_transfn: Could not deserialize raster");
2163 PG_RETURN_NULL();
2164 }
2165 }
2166
2167 /* process additional args if needed */
2168 nargs = PG_NARGS();
2169 POSTGIS_RT_DEBUGF(4, "nargs = %d", nargs);
2170 if (nargs > 2) {
2171 POSTGIS_RT_DEBUG(4, "processing additional arguments");
2172
2173 /* if more than 2 arguments, determine the type of argument 3 */
2174 /* band number, UNION type or unionarg */
2175 if (!PG_ARGISNULL(2)) {
2176 Oid calltype = get_fn_expr_argtype(fcinfo->flinfo, 2);
2177
2178 switch (calltype) {
2179 /* UNION type */
2180 case TEXTOID: {
2181 int idx = 0;
2182 int numband = 0;
2183
2184 POSTGIS_RT_DEBUG(4, "Processing arg 3 as UNION type");
2185 nbnodata = 1;
2186
2187 utypename = text_to_cstring(PG_GETARG_TEXT_P(2));
2188 utype = rtpg_uniontype_index_from_name(rtpg_strtoupper(utypename));
2189 POSTGIS_RT_DEBUGF(4, "Union type: %s", utypename);
2190
2191 POSTGIS_RT_DEBUGF(4, "iwr->numband: %d", iwr->numband);
2192 /* see if we need to append new bands */
2193 if (raster) {
2194 idx = iwr->numband;
2195 numband = rt_raster_get_num_bands(raster);
2196 POSTGIS_RT_DEBUGF(4, "numband: %d", numband);
2197
2198 /* only worry about appended bands */
2199 if (numband > iwr->numband)
2200 iwr->numband = numband;
2201 }
2202
2203 if (!iwr->numband)
2204 iwr->numband = 1;
2205 POSTGIS_RT_DEBUGF(4, "iwr->numband: %d", iwr->numband);
2206 POSTGIS_RT_DEBUGF(4, "numband, idx: %d, %d", numband, idx);
2207
2208 /* bandarg set. only possible after the first call to function */
2209 if (iwr->bandarg) {
2210 /* only reallocate if new bands need to be added */
2211 if (numband > idx) {
2212 POSTGIS_RT_DEBUG(4, "Reallocating iwr->bandarg");
2213 iwr->bandarg = repalloc(iwr->bandarg, sizeof(struct rtpg_union_band_arg_t) * iwr->numband);
2214 }
2215 /* prevent initial values step happening below */
2216 else
2217 idx = iwr->numband;
2218 }
2219 /* bandarg not set, first call to function */
2220 else {
2221 POSTGIS_RT_DEBUG(4, "Allocating iwr->bandarg");
2222 iwr->bandarg = palloc(sizeof(struct rtpg_union_band_arg_t) * iwr->numband);
2223 }
2224 if (iwr->bandarg == NULL) {
2225
2226 rtpg_union_arg_destroy(iwr);
2227 if (raster != NULL) {
2228 rt_raster_destroy(raster);
2229 PG_FREE_IF_COPY(pgraster, 1);
2230 }
2231
2232 MemoryContextSwitchTo(oldcontext);
2233 elog(ERROR, "RASTER_union_transfn: Could not allocate memory for band information");
2234 PG_RETURN_NULL();
2235 }
2236
2237 /* set initial values for bands that are "new" */
2238 for (i = idx; i < iwr->numband; i++) {
2239 iwr->bandarg[i].uniontype = utype;
2240 iwr->bandarg[i].nband = i;
2241
2242 if (
2243 utype == UT_MEAN ||
2244 utype == UT_RANGE
2245 ) {
2246 iwr->bandarg[i].numraster = 2;
2247 }
2248 else
2249 iwr->bandarg[i].numraster = 1;
2250 iwr->bandarg[i].raster = NULL;
2251 }
2252
2253 break;
2254 }
2255 /* band number */
2256 case INT2OID:
2257 case INT4OID:
2258 if (skiparg)
2259 break;
2260
2261 POSTGIS_RT_DEBUG(4, "Processing arg 3 as band number");
2262 nband = PG_GETARG_INT32(2);
2263 if (nband < 1) {
2264
2265 rtpg_union_arg_destroy(iwr);
2266 if (raster != NULL) {
2267 rt_raster_destroy(raster);
2268 PG_FREE_IF_COPY(pgraster, 1);
2269 }
2270
2271 MemoryContextSwitchTo(oldcontext);
2272 elog(ERROR, "RASTER_union_transfn: Band number must be greater than zero (1-based)");
2273 PG_RETURN_NULL();
2274 }
2275
2276 iwr->numband = 1;
2277 iwr->bandarg = palloc(sizeof(struct rtpg_union_band_arg_t) * iwr->numband);
2278 if (iwr->bandarg == NULL) {
2279
2280 rtpg_union_arg_destroy(iwr);
2281 if (raster != NULL) {
2282 rt_raster_destroy(raster);
2283 PG_FREE_IF_COPY(pgraster, 1);
2284 }
2285
2286 MemoryContextSwitchTo(oldcontext);
2287 elog(ERROR, "RASTER_union_transfn: Could not allocate memory for band information");
2288 PG_RETURN_NULL();
2289 }
2290
2291 iwr->bandarg[0].uniontype = UT_LAST;
2292 iwr->bandarg[0].nband = nband - 1;
2293
2294 iwr->bandarg[0].numraster = 1;
2295 iwr->bandarg[0].raster = NULL;
2296 break;
2297 /* only other type allowed is unionarg */
2298 default:
2299 if (skiparg)
2300 break;
2301
2302 POSTGIS_RT_DEBUG(4, "Processing arg 3 as unionarg");
2303 if (!rtpg_union_unionarg_process(iwr, PG_GETARG_ARRAYTYPE_P(2))) {
2304
2305 rtpg_union_arg_destroy(iwr);
2306 if (raster != NULL) {
2307 rt_raster_destroy(raster);
2308 PG_FREE_IF_COPY(pgraster, 1);
2309 }
2310
2311 MemoryContextSwitchTo(oldcontext);
2312 elog(ERROR, "RASTER_union_transfn: Could not process unionarg");
2313 PG_RETURN_NULL();
2314 }
2315
2316 break;
2317 }
2318 }
2319
2320 /* UNION type */
2321 if (nargs > 3 && !PG_ARGISNULL(3)) {
2322 utypename = text_to_cstring(PG_GETARG_TEXT_P(3));
2323 utype = rtpg_uniontype_index_from_name(rtpg_strtoupper(utypename));
2324 iwr->bandarg[0].uniontype = utype;
2325 POSTGIS_RT_DEBUGF(4, "Union type: %s", utypename);
2326
2327 if (
2328 utype == UT_MEAN ||
2329 utype == UT_RANGE
2330 ) {
2331 iwr->bandarg[0].numraster = 2;
2332 }
2333 }
2334
2335 /* allocate space for pointers to rt_raster */
2336 for (i = 0; i < iwr->numband; i++) {
2337 POSTGIS_RT_DEBUGF(4, "iwr->bandarg[%d].raster @ %p", i, iwr->bandarg[i].raster);
2338
2339 /* no need to allocate */
2340 if (iwr->bandarg[i].raster != NULL)
2341 continue;
2342
2343 POSTGIS_RT_DEBUGF(4, "Allocating space for working rasters of band %d", i);
2344
2345 iwr->bandarg[i].raster = (rt_raster *) palloc(sizeof(rt_raster) * iwr->bandarg[i].numraster);
2346 if (iwr->bandarg[i].raster == NULL) {
2347
2348 rtpg_union_arg_destroy(iwr);
2349 if (raster != NULL) {
2350 rt_raster_destroy(raster);
2351 PG_FREE_IF_COPY(pgraster, 1);
2352 }
2353
2354 MemoryContextSwitchTo(oldcontext);
2355 elog(ERROR, "RASTER_union_transfn: Could not allocate memory for working raster(s)");
2356 PG_RETURN_NULL();
2357 }
2358
2359 memset(iwr->bandarg[i].raster, 0, sizeof(rt_raster) * iwr->bandarg[i].numraster);
2360
2361 /* add new working rt_raster but only if working raster already exists */
2362 if (i > 0 && !rt_raster_is_empty(iwr->bandarg[0].raster[0])) {
2363 for (j = 0; j < iwr->bandarg[i].numraster; j++) {
2364 iwr->bandarg[i].raster[j] = rt_raster_clone(iwr->bandarg[0].raster[0], 0); /* shallow clone */
2365 if (iwr->bandarg[i].raster[j] == NULL) {
2366
2367 rtpg_union_arg_destroy(iwr);
2368 if (raster != NULL) {
2369 rt_raster_destroy(raster);
2370 PG_FREE_IF_COPY(pgraster, 1);
2371 }
2372
2373 MemoryContextSwitchTo(oldcontext);
2374 elog(ERROR, "RASTER_union_transfn: Could not create working raster");
2375 PG_RETURN_NULL();
2376 }
2377 }
2378 }
2379 }
2380 }
2381 /* only raster, no additional args */
2382 /* only do this if raster isn't empty */
2383 else {
2384 POSTGIS_RT_DEBUG(4, "no additional args, checking input raster");
2385 nbnodata = 1;
2386 if (!rtpg_union_noarg(iwr, raster)) {
2387
2388 rtpg_union_arg_destroy(iwr);
2389 if (raster != NULL) {
2390 rt_raster_destroy(raster);
2391 PG_FREE_IF_COPY(pgraster, 1);
2392 }
2393
2394 MemoryContextSwitchTo(oldcontext);
2395 elog(ERROR, "RASTER_union_transfn: Could not check and balance number of bands");
2396 PG_RETURN_NULL();
2397 }
2398 }
2399
2400 /* init itrset */
2401 itrset = palloc(sizeof(struct rt_iterator_t) * 2);
2402 if (itrset == NULL) {
2403
2404 rtpg_union_arg_destroy(iwr);
2405 if (raster != NULL) {
2406 rt_raster_destroy(raster);
2407 PG_FREE_IF_COPY(pgraster, 1);
2408 }
2409
2410 MemoryContextSwitchTo(oldcontext);
2411 elog(ERROR, "RASTER_union_transfn: Could not allocate memory for iterator arguments");
2412 PG_RETURN_NULL();
2413 }
2414
2415 /* by band to UNION */
2416 for (i = 0; i < iwr->numband; i++) {
2417
2418 /* by raster */
2419 for (j = 0; j < iwr->bandarg[i].numraster; j++) {
2420 reuserast = 0;
2421
2422 /* type of union */
2423 utype = iwr->bandarg[i].uniontype;
2424
2425 /* raster flags */
2426 isempty[0] = rt_raster_is_empty(iwr->bandarg[i].raster[j]);
2427 isempty[1] = rt_raster_is_empty(raster);
2428
2429 if (!isempty[0])
2430 hasband[0] = rt_raster_has_band(iwr->bandarg[i].raster[j], 0);
2431 if (!isempty[1])
2432 hasband[1] = rt_raster_has_band(raster, iwr->bandarg[i].nband);
2433
2434 /* determine pixtype, hasnodata and nodataval */
2435 _band = NULL;
2436 if (!isempty[0] && hasband[0])
2437 _band = rt_raster_get_band(iwr->bandarg[i].raster[j], 0);
2438 else if (!isempty[1] && hasband[1])
2439 _band = rt_raster_get_band(raster, iwr->bandarg[i].nband);
2440 else {
2441 pixtype = PT_64BF;
2442 hasnodata = 1;
2443 nodataval = rt_pixtype_get_min_value(pixtype);
2444 }
2445 if (_band != NULL) {
2446 pixtype = rt_band_get_pixtype(_band);
2447 hasnodata = 1;
2448 if (rt_band_get_hasnodata_flag(_band))
2449 rt_band_get_nodata(_band, &nodataval);
2450 else
2451 nodataval = rt_band_get_min_value(_band);
2452 }
2453
2454 /* UT_MEAN and UT_RANGE require two passes */
2455 /* UT_MEAN: first for UT_COUNT and second for UT_SUM */
2456 if (iwr->bandarg[i].uniontype == UT_MEAN) {
2457 /* first pass, UT_COUNT */
2458 if (j < 1)
2459 utype = UT_COUNT;
2460 else
2461 utype = UT_SUM;
2462 }
2463 /* UT_RANGE: first for UT_MIN and second for UT_MAX */
2464 else if (iwr->bandarg[i].uniontype == UT_RANGE) {
2465 /* first pass, UT_MIN */
2466 if (j < 1)
2467 utype = UT_MIN;
2468 else
2469 utype = UT_MAX;
2470 }
2471
2472 /* force band settings for UT_COUNT */
2473 if (utype == UT_COUNT) {
2474 pixtype = PT_32BUI;
2475 hasnodata = 0;
2476 nodataval = 0;
2477 }
2478
2479 POSTGIS_RT_DEBUGF(4, "(pixtype, hasnodata, nodataval) = (%s, %d, %f)", rt_pixtype_name(pixtype), hasnodata, nodataval);
2480
2481 /* set itrset */
2482 itrset[0].raster = iwr->bandarg[i].raster[j];
2483 itrset[0].nband = 0;
2484 itrset[1].raster = raster;
2485 itrset[1].nband = iwr->bandarg[i].nband;
2486
2487 /* allow use NODATA to replace missing bands */
2488 if (nbnodata) {
2489 itrset[0].nbnodata = 1;
2490 itrset[1].nbnodata = 1;
2491 }
2492 /* missing bands are not ignored */
2493 else {
2494 itrset[0].nbnodata = 0;
2495 itrset[1].nbnodata = 0;
2496 }
2497
2498 /* if rasters AND bands are present, use copy approach */
2499 if (!isempty[0] && !isempty[1] && hasband[0] && hasband[1]) {
2500 POSTGIS_RT_DEBUG(3, "using line method");
2501
2502 /* generate empty out raster */
2503 if (rt_raster_from_two_rasters(
2504 iwr->bandarg[i].raster[j], raster,
2505 ET_UNION,
2506 &iraster, _offset
2507 ) != ES_NONE) {
2508
2509 pfree(itrset);
2510 rtpg_union_arg_destroy(iwr);
2511 if (raster != NULL) {
2512 rt_raster_destroy(raster);
2513 PG_FREE_IF_COPY(pgraster, 1);
2514 }
2515
2516 MemoryContextSwitchTo(oldcontext);
2517 elog(ERROR, "RASTER_union_transfn: Could not create internal raster");
2518 PG_RETURN_NULL();
2519 }
2520 POSTGIS_RT_DEBUGF(4, "_offset = %f, %f, %f, %f",
2521 _offset[0], _offset[1], _offset[2], _offset[3]);
2522
2523 /* rasters are spatially the same? */
2524 if (
2525 rt_raster_get_width(iwr->bandarg[i].raster[j]) == rt_raster_get_width(iraster) &&
2526 rt_raster_get_height(iwr->bandarg[i].raster[j]) == rt_raster_get_height(iraster)
2527 ) {
2528 double igt[6] = {0};
2529 double gt[6] = {0};
2530
2531 rt_raster_get_geotransform_matrix(iwr->bandarg[i].raster[j], gt);
2532 rt_raster_get_geotransform_matrix(iraster, igt);
2533
2534 reuserast = rt_util_same_geotransform_matrix(gt, igt);
2535 }
2536
2537 /* use internal raster */
2538 if (!reuserast) {
2539 /* create band of same type */
2540 if (rt_raster_generate_new_band(
2541 iraster,
2542 pixtype,
2543 nodataval,
2544 hasnodata, nodataval,
2545 0
2546 ) == -1) {
2547
2548 pfree(itrset);
2549 rtpg_union_arg_destroy(iwr);
2550 rt_raster_destroy(iraster);
2551 if (raster != NULL) {
2552 rt_raster_destroy(raster);
2553 PG_FREE_IF_COPY(pgraster, 1);
2554 }
2555
2556 MemoryContextSwitchTo(oldcontext);
2557 elog(ERROR, "RASTER_union_transfn: Could not add new band to internal raster");
2558 PG_RETURN_NULL();
2559 }
2560 iband = rt_raster_get_band(iraster, 0);
2561
2562 /* copy working raster to output raster */
2563 _dim[0] = rt_raster_get_width(iwr->bandarg[i].raster[j]);
2564 _dim[1] = rt_raster_get_height(iwr->bandarg[i].raster[j]);
2565 for (y = 0; y < _dim[1]; y++) {
2566 POSTGIS_RT_DEBUGF(4, "Getting pixel line of working raster at (x, y, length) = (0, %d, %d)", y, _dim[0]);
2567 if (rt_band_get_pixel_line(
2568 _band,
2569 0, y,
2570 _dim[0],
2571 &vals, &nvals
2572 ) != ES_NONE) {
2573
2574 pfree(itrset);
2575 rtpg_union_arg_destroy(iwr);
2576 rt_band_destroy(iband);
2577 rt_raster_destroy(iraster);
2578 if (raster != NULL) {
2579 rt_raster_destroy(raster);
2580 PG_FREE_IF_COPY(pgraster, 1);
2581 }
2582
2583 MemoryContextSwitchTo(oldcontext);
2584 elog(ERROR, "RASTER_union_transfn: Could not get pixel line from band of working raster");
2585 PG_RETURN_NULL();
2586 }
2587
2588 POSTGIS_RT_DEBUGF(4, "Setting pixel line at (x, y, length) = (%d, %d, %d)", (int) _offset[0], (int) _offset[1] + y, nvals);
2589 if (rt_band_set_pixel_line(
2590 iband,
2591 (int) _offset[0], (int) _offset[1] + y,
2592 vals, nvals
2593 ) != ES_NONE) {
2594
2595 pfree(itrset);
2596 rtpg_union_arg_destroy(iwr);
2597 rt_band_destroy(iband);
2598 rt_raster_destroy(iraster);
2599 if (raster != NULL) {
2600 rt_raster_destroy(raster);
2601 PG_FREE_IF_COPY(pgraster, 1);
2602 }
2603
2604 MemoryContextSwitchTo(oldcontext);
2605 elog(ERROR, "RASTER_union_transfn: Could not set pixel line to band of internal raster");
2606 PG_RETURN_NULL();
2607 }
2608 }
2609 }
2610 else {
2611 rt_raster_destroy(iraster);
2612 iraster = iwr->bandarg[i].raster[j];
2613 iband = rt_raster_get_band(iraster, 0);
2614 }
2615
2616 /* run iterator for extent of input raster */
2617 noerr = rt_raster_iterator(
2618 itrset, 2,
2619 ET_LAST, NULL,
2620 pixtype,
2621 hasnodata, nodataval,
2622 0, 0,
2623 NULL,
2624 &utype,
2625 rtpg_union_callback,
2626 &_raster
2627 );
2628 if (noerr != ES_NONE) {
2629
2630 pfree(itrset);
2631 rtpg_union_arg_destroy(iwr);
2632 if (!reuserast) {
2633 rt_band_destroy(iband);
2634 rt_raster_destroy(iraster);
2635 }
2636 if (raster != NULL) {
2637 rt_raster_destroy(raster);
2638 PG_FREE_IF_COPY(pgraster, 1);
2639 }
2640
2641 MemoryContextSwitchTo(oldcontext);
2642 elog(ERROR, "RASTER_union_transfn: Could not run raster iterator function");
2643 PG_RETURN_NULL();
2644 }
2645
2646 /* with iterator raster, copy data to output raster */
2647 _band = rt_raster_get_band(_raster, 0);
2648 _dim[0] = rt_raster_get_width(_raster);
2649 _dim[1] = rt_raster_get_height(_raster);
2650 for (y = 0; y < _dim[1]; y++) {
2651 POSTGIS_RT_DEBUGF(4, "Getting pixel line of iterator raster at (x, y, length) = (0, %d, %d)", y, _dim[0]);
2652 if (rt_band_get_pixel_line(
2653 _band,
2654 0, y,
2655 _dim[0],
2656 &vals, &nvals
2657 ) != ES_NONE) {
2658
2659 pfree(itrset);
2660 rtpg_union_arg_destroy(iwr);
2661 if (!reuserast) {
2662 rt_band_destroy(iband);
2663 rt_raster_destroy(iraster);
2664 }
2665 if (raster != NULL) {
2666 rt_raster_destroy(raster);
2667 PG_FREE_IF_COPY(pgraster, 1);
2668 }
2669
2670 MemoryContextSwitchTo(oldcontext);
2671 elog(ERROR, "RASTER_union_transfn: Could not get pixel line from band of working raster");
2672 PG_RETURN_NULL();
2673 }
2674
2675 POSTGIS_RT_DEBUGF(4, "Setting pixel line at (x, y, length) = (%d, %d, %d)", (int) _offset[2], (int) _offset[3] + y, nvals);
2676 if (rt_band_set_pixel_line(
2677 iband,
2678 (int) _offset[2], (int) _offset[3] + y,
2679 vals, nvals
2680 ) != ES_NONE) {
2681
2682 pfree(itrset);
2683 rtpg_union_arg_destroy(iwr);
2684 if (!reuserast) {
2685 rt_band_destroy(iband);
2686 rt_raster_destroy(iraster);
2687 }
2688 if (raster != NULL) {
2689 rt_raster_destroy(raster);
2690 PG_FREE_IF_COPY(pgraster, 1);
2691 }
2692
2693 MemoryContextSwitchTo(oldcontext);
2694 elog(ERROR, "RASTER_union_transfn: Could not set pixel line to band of internal raster");
2695 PG_RETURN_NULL();
2696 }
2697 }
2698
2699 /* free _raster */
2700 rt_band_destroy(_band);
2701 rt_raster_destroy(_raster);
2702
2703 /* replace working raster with output raster */
2704 _raster = iraster;
2705 }
2706 else {
2707 POSTGIS_RT_DEBUG(3, "using pixel method");
2708
2709 /* pass everything to iterator */
2710 noerr = rt_raster_iterator(
2711 itrset, 2,
2712 ET_UNION, NULL,
2713 pixtype,
2714 hasnodata, nodataval,
2715 0, 0,
2716 NULL,
2717 &utype,
2718 rtpg_union_callback,
2719 &_raster
2720 );
2721
2722 if (noerr != ES_NONE) {
2723
2724 pfree(itrset);
2725 rtpg_union_arg_destroy(iwr);
2726 if (raster != NULL) {
2727 rt_raster_destroy(raster);
2728 PG_FREE_IF_COPY(pgraster, 1);
2729 }
2730
2731 MemoryContextSwitchTo(oldcontext);
2732 elog(ERROR, "RASTER_union_transfn: Could not run raster iterator function");
2733 PG_RETURN_NULL();
2734 }
2735 }
2736
2737 /* replace working raster */
2738 if (iwr->bandarg[i].raster[j] != NULL && !reuserast) {
2739 for (k = rt_raster_get_num_bands(iwr->bandarg[i].raster[j]) - 1; k >= 0; k--)
2740 rt_band_destroy(rt_raster_get_band(iwr->bandarg[i].raster[j], k));
2741 rt_raster_destroy(iwr->bandarg[i].raster[j]);
2742 }
2743 iwr->bandarg[i].raster[j] = _raster;
2744 }
2745
2746 }
2747
2748 pfree(itrset);
2749 if (raster != NULL) {
2750 rt_raster_destroy(raster);
2751 PG_FREE_IF_COPY(pgraster, 1);
2752 }
2753
2754 /* switch back to local context */
2755 MemoryContextSwitchTo(oldcontext);
2756
2757 POSTGIS_RT_DEBUG(3, "Finished");
2758
2759 PG_RETURN_POINTER(iwr);
2760}
FALSE
#define FALSE
Definition dbfopen.c:72
rt_raster_generate_new_band
int rt_raster_generate_new_band(rt_raster raster, rt_pixtype pixtype, double initialvalue, uint32_t hasnodata, double nodatavalue, int index)
Generate a new inline band and add it to a raster.
Definition rt_raster.c:489
rt_band_get_hasnodata_flag
int rt_band_get_hasnodata_flag(rt_band band)
Get hasnodata flag value.
Definition rt_band.c:833
rt_raster_destroy
void rt_raster_destroy(rt_raster raster)
Release memory associated to a raster.
Definition rt_raster.c:86
rt_pixtype
rt_pixtype
Definition librtcore.h:188
PT_32BUI
@ PT_32BUI
Definition librtcore.h:197
PT_END
@ PT_END
Definition librtcore.h:201
PT_64BF
@ PT_64BF
Definition librtcore.h:200
rt_pixtype_get_min_value
double rt_pixtype_get_min_value(rt_pixtype pixtype)
Return minimum value possible for pixel type.
Definition rt_pixel.c:156
rt_raster_has_band
int rt_raster_has_band(rt_raster raster, int nband)
Return TRUE if the raster has a band of this number.
Definition rt_raster.c:1253
rt_pixtype_name
const char * rt_pixtype_name(rt_pixtype pixtype)
Definition rt_pixel.c:114
rt_band_get_min_value
double rt_band_get_min_value(rt_band band)
Returns the minimal possible value for the band according to the pixel type.
Definition rt_band.c:2082
ES_NONE
@ ES_NONE
Definition librtcore.h:182
rt_band_set_pixel_line
rt_errorstate rt_band_set_pixel_line(rt_band band, int x, int y, void *vals, uint32_t len)
Set values of multiple pixels.
Definition rt_band.c:1019
rt_band_destroy
void rt_band_destroy(rt_band band)
Destroy a raster band.
Definition rt_band.c:499
rt_raster_get_num_bands
uint16_t rt_raster_get_num_bands(rt_raster raster)
Definition rt_raster.c:376
rt_raster_clone
rt_raster rt_raster_clone(rt_raster raster, uint8_t deep)
Clone an existing raster.
Definition rt_raster.c:1446
rt_raster_get_height
uint16_t rt_raster_get_height(rt_raster raster)
Definition rt_raster.c:133
rt_raster_iterator
rt_errorstate rt_raster_iterator(rt_iterator itrset, uint16_t itrcount, rt_extenttype extenttype, rt_raster customextent, rt_pixtype pixtype, uint8_t hasnodata, double nodataval, uint16_t distancex, uint16_t distancey, rt_mask mask, void *userarg, int(*callback)(rt_iterator_arg arg, void *userarg, double *value, int *nodata), rt_raster *rtnraster)
n-raster iterator.
Definition rt_mapalgebra.c:823
ET_LAST
@ ET_LAST
Definition librtcore.h:209
ET_UNION
@ ET_UNION
Definition librtcore.h:206
rt_band_get_nodata
rt_errorstate rt_band_get_nodata(rt_band band, double *nodata)
Get NODATA value.
Definition rt_band.c:2067
rt_band_get_pixtype
rt_pixtype rt_band_get_pixtype(rt_band band)
Return pixeltype of this band.
Definition rt_band.c:790
rt_raster_get_width
uint16_t rt_raster_get_width(rt_raster raster)
Definition rt_raster.c:125
rt_raster_from_two_rasters
rt_errorstate rt_raster_from_two_rasters(rt_raster rast1, rt_raster rast2, rt_extenttype extenttype, rt_raster *rtnraster, double *offset)
Definition rt_raster.c:3348
rt_util_same_geotransform_matrix
int rt_util_same_geotransform_matrix(double *gt1, double *gt2)
Definition rt_util.c:640
rt_raster_get_geotransform_matrix
void rt_raster_get_geotransform_matrix(rt_raster raster, double *gt)
Get 6-element array of raster geotransform matrix.
Definition rt_raster.c:588
rt_raster_deserialize
rt_raster rt_raster_deserialize(void *serialized, int header_only)
Return a raster from a serialized form.
Definition rt_serialize.c:732
rt_band_get_pixel_line
rt_errorstate rt_band_get_pixel_line(rt_band band, int x, int y, uint16_t len, void **vals, uint16_t *nvals)
Get values of multiple pixels.
Definition rt_band.c:1312
rt_raster_is_empty
int rt_raster_is_empty(rt_raster raster)
Return TRUE if the raster is empty.
Definition rt_raster.c:1240
rt_raster_get_band
rt_band rt_raster_get_band(rt_raster raster, int bandNum)
Return Nth band, or NULL if unavailable.
Definition rt_raster.c:385
pixval.nband
nband
Definition pixval.py:56
rtrowdump.raster
raster
Be careful!! Zeros function's input parameter can be a (height x width) array, not (width x height): ...
Definition rtrowdump.py:125
rtpg_strtoupper
char * rtpg_strtoupper(char *str)
Definition rtpg_internal.c:100
rtpg_uniontype_index_from_name
static rtpg_union_type rtpg_uniontype_index_from_name(const char *cutype)
Definition rtpg_mapalgebra.c:1693
rtpg_union_arg_destroy
static void rtpg_union_arg_destroy(rtpg_union_arg arg)
Definition rtpg_mapalgebra.c:1731
rtpg_union_arg
struct rtpg_union_arg_t * rtpg_union_arg
Definition rtpg_mapalgebra.c:1725
rtpg_union_unionarg_process
static int rtpg_union_unionarg_process(rtpg_union_arg arg, ArrayType *array)
Definition rtpg_mapalgebra.c:1919
rtpg_union_callback
static int rtpg_union_callback(rt_iterator_arg arg, void *userarg, double *value, int *nodata)
Definition rtpg_mapalgebra.c:1759
rtpg_union_type
rtpg_union_type
Definition rtpg_mapalgebra.c:1681
UT_MIN
@ UT_MIN
Definition rtpg_mapalgebra.c:1684
UT_MEAN
@ UT_MEAN
Definition rtpg_mapalgebra.c:1688
UT_COUNT
@ UT_COUNT
Definition rtpg_mapalgebra.c:1686
UT_LAST
@ UT_LAST
Definition rtpg_mapalgebra.c:1682
UT_SUM
@ UT_SUM
Definition rtpg_mapalgebra.c:1687
UT_MAX
@ UT_MAX
Definition rtpg_mapalgebra.c:1685
UT_RANGE
@ UT_RANGE
Definition rtpg_mapalgebra.c:1689
rtpg_union_noarg
static int rtpg_union_noarg(rtpg_union_arg arg, rt_raster raster)
Definition rtpg_mapalgebra.c:2027
POSTGIS_RT_DEBUG
#define POSTGIS_RT_DEBUG(level, msg)
Definition rtpostgis.h:65
POSTGIS_RT_DEBUGF
#define POSTGIS_RT_DEBUGF(level, msg,...)
Definition rtpostgis.h:69
rt_band_t
Definition librtcore.h:2515
rt_iterator_t::raster
rt_raster raster
Definition librtcore.h:2659
rt_iterator_t::nband
uint16_t nband
Definition librtcore.h:2660
rt_iterator_t::nbnodata
uint8_t nbnodata
Definition librtcore.h:2661
rt_iterator_t
Definition librtcore.h:2658
rt_raster_serialized_t
Struct definitions.
Definition librtcore.h:2452
rt_raster_t
Definition librtcore.h:2486
rtpg_union_arg_t::numband
int numband
Definition rtpg_mapalgebra.c:1727
rtpg_union_arg_t::bandarg
rtpg_union_band_arg bandarg
Definition rtpg_mapalgebra.c:1728
rtpg_union_arg_t
Definition rtpg_mapalgebra.c:1726
rtpg_union_band_arg_t::numraster
int numraster
Definition rtpg_mapalgebra.c:1721
rtpg_union_band_arg_t::raster
rt_raster * raster
Definition rtpg_mapalgebra.c:1722
rtpg_union_band_arg_t::nband
int nband
Definition rtpg_mapalgebra.c:1718
rtpg_union_band_arg_t::uniontype
rtpg_union_type uniontype
Definition rtpg_mapalgebra.c:1719
rtpg_union_band_arg_t
Definition rtpg_mapalgebra.c:1717

References rtpg_union_arg_t::bandarg, ES_NONE, ET_LAST, ET_UNION, FALSE, rt_iterator_t::nband, rtpg_union_band_arg_t::nband, rt_iterator_t::nbnodata, rtpg_union_arg_t::numband, rtpg_union_band_arg_t::numraster, POSTGIS_RT_DEBUG, POSTGIS_RT_DEBUGF, PT_32BUI, PT_64BF, PT_END, rt_iterator_t::raster, rtpg_union_band_arg_t::raster, rt_band_destroy(), rt_band_get_hasnodata_flag(), rt_band_get_min_value(), rt_band_get_nodata(), rt_band_get_pixel_line(), rt_band_get_pixtype(), rt_band_set_pixel_line(), rt_pixtype_get_min_value(), rt_pixtype_name(), rt_raster_clone(), rt_raster_deserialize(), rt_raster_destroy(), rt_raster_from_two_rasters(), rt_raster_generate_new_band(), rt_raster_get_band(), rt_raster_get_geotransform_matrix(), rt_raster_get_height(), rt_raster_get_num_bands(), rt_raster_get_width(), rt_raster_has_band(), rt_raster_is_empty(), rt_raster_iterator(), rt_util_same_geotransform_matrix(), rtpg_strtoupper(), rtpg_union_arg_destroy(), rtpg_union_callback(), rtpg_union_noarg(), rtpg_union_unionarg_process(), rtpg_uniontype_index_from_name(), rtpg_union_band_arg_t::uniontype, UT_COUNT, UT_LAST, UT_MAX, UT_MEAN, UT_MIN, UT_RANGE, and UT_SUM.

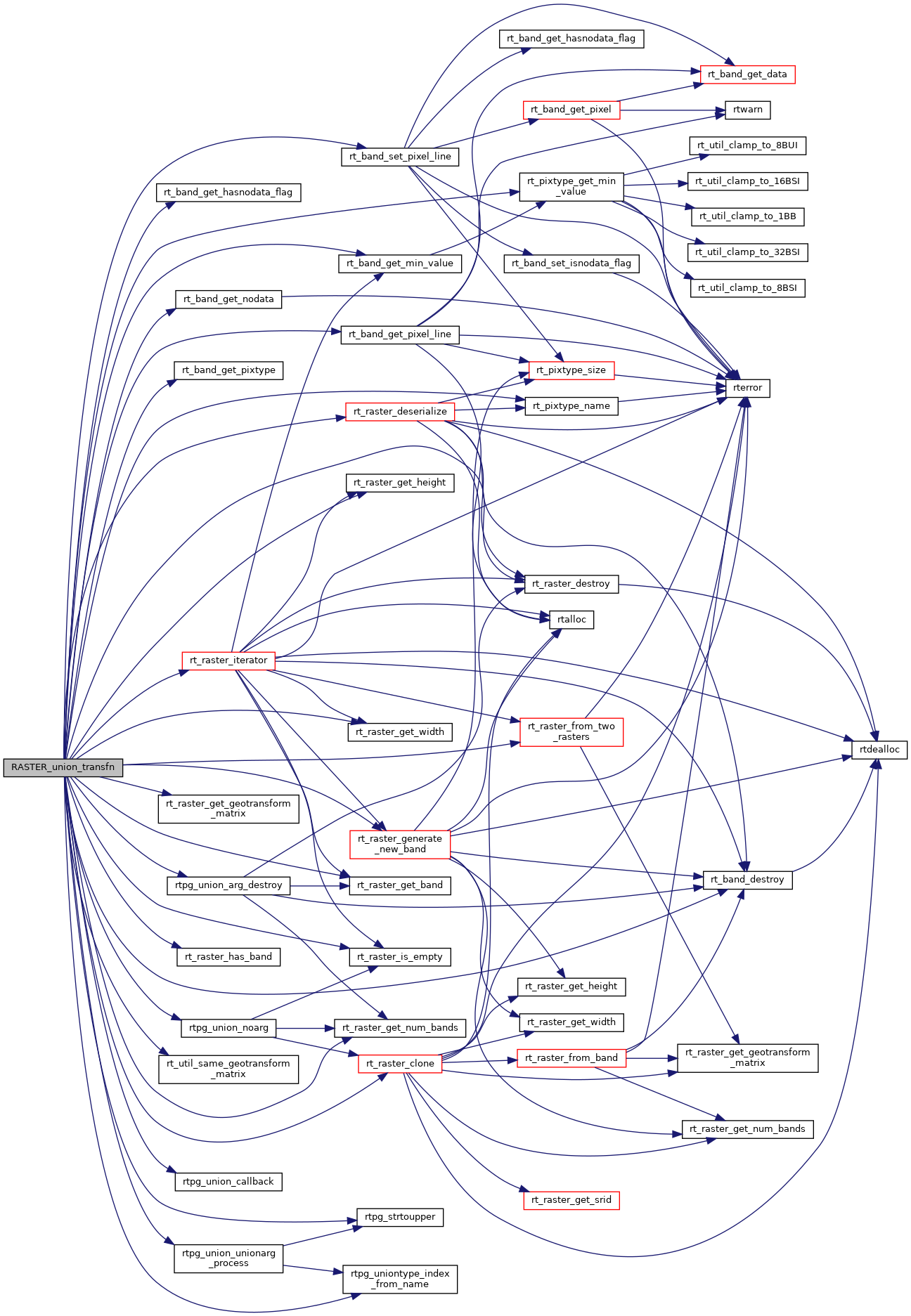

Here is the call graph for this function:
