lwt_Polygonize()

int lwt_Polygonize

(

LWT_TOPOLOGY *

topo

)

Definition at line 802 of file lwgeom_topo_polygonizer.c.

{
  /*
     Fetch all edges
     Sort edges by edge_id
     Mark all edges' left and right face as -1
     Iteratively:
       Fetch next edge with left or right face == -1
       For each side with face == -1:
         Find ring on its side
         If ring is CCW:
            create a new face, assign to the ring edges' appropriate side
         If ring is CW (face needs to be same of external):
            assign a negative face_id the ring edges' appropriate side
     Now for each edge with a negative face_id on the side:
       Find containing face (mbr cache and all)
       Update with id of containing face
   */

  const LWT_BE_IFACE *iface = topo->be_iface;
  LWT_ISO_EDGE *edge;
  int numfaces = -1;
  LWT_ISO_EDGE_TABLE edgetable;
  LWT_EDGERING_ARRAY holes, shells;
  int i;
  int err = 0;

  LWT_EDGERING_ARRAY_INIT(&holes);
  LWT_EDGERING_ARRAY_INIT(&shells);

  initGEOS(lwnotice, lwgeom_geos_error);

  /*
   Check if Topology already contains some Face
   (ignoring the Universal Face)
  */
  numfaces = _lwt_CheckFacesExist(topo);
  if ( numfaces != 0 ) {
    if ( numfaces > 0 ) {
      /* Faces exist */
      lwerror("Polygonize: face table is not empty.");
    }
    /* Backend error, message should have been printed already */
    return -1;
  }


  edgetable.edges = _lwt_FetchAllEdges(topo, &(edgetable.size));
  if ( ! edgetable.edges ) {
    if (edgetable.size == 0) {
      /* not an error: no Edges */
      return 0;
    }
    /* error should have been printed already */
    return -1;
  }

  /* Sort edges by ID (to allow btree searches) */
  qsort(edgetable.edges, edgetable.size, sizeof(LWT_ISO_EDGE), compare_iso_edges_by_id);

  /* Mark all edges as unvisited */
  for (i=0; i<edgetable.size; ++i)
    edgetable.edges[i].face_left = edgetable.edges[i].face_right = -1;

  i = 0;
  while (1)
  {
    i = _lwt_FetchNextUnvisitedEdge(topo, &edgetable, i);
    if ( i < 0 ) break; /* end of unvisited */
    edge = &(edgetable.edges[i]);

    LWT_ELEMID newface = -1;

    LWDEBUGF(1, "Next face-missing edge has id:%lld, face_left:%lld, face_right:%lld",
               edge->edge_id, edge->face_left, edge->face_right);
    if ( edge->face_left == -1 )
    {
      err = _lwt_RegisterFaceOnEdgeSide(topo, edge, 1, &edgetable,
                                        &holes, &shells, &newface);
      if ( err ) break;
      LWDEBUGF(1, "New face on the left of edge %lld is %lld",
                 edge->edge_id, newface);
      edge->face_left = newface;
    }
    if ( edge->face_right == -1 )
    {
      err = _lwt_RegisterFaceOnEdgeSide(topo, edge, -1, &edgetable,
                                        &holes, &shells, &newface);
      if ( err ) break;
      LWDEBUGF(1, "New face on the right of edge %lld is %lld",
                 edge->edge_id, newface);
      edge->face_right = newface;
    }
  }

  if ( err )
  {
      _lwt_release_edges(edgetable.edges, edgetable.size);
      LWT_EDGERING_ARRAY_CLEAN( &holes );
      LWT_EDGERING_ARRAY_CLEAN( &shells );
      lwerror("Errors fetching or registering face-missing edges: %s",
              lwt_be_lastErrorMessage(iface));
      return -1;
  }

  LWDEBUGF(1, "Found %d holes and %d shells", holes.size, shells.size);

  /* TODO: sort holes by pt.x, sort shells by bbox.xmin */

  /* Assign shells to holes */
  for (i=0; i<holes.size; ++i)
  {
    LWT_ELEMID containing_face;
    LWT_EDGERING *ring = holes.rings[i];

    containing_face = _lwt_FindFaceContainingRing(topo, ring, &shells);
    LWDEBUGF(1, "Ring %d contained by face %" LWTFMT_ELEMID, i, containing_face);
    if ( containing_face == -1 )
    {
      _lwt_release_edges(edgetable.edges, edgetable.size);
      LWT_EDGERING_ARRAY_CLEAN( &holes );
      LWT_EDGERING_ARRAY_CLEAN( &shells );
      lwerror("Errors finding face containing ring: %s",
              lwt_be_lastErrorMessage(iface));
      return -1;
    }
    int ret = _lwt_UpdateEdgeRingSideFace(topo, holes.rings[i], containing_face);
    if ( ret )
    {
      _lwt_release_edges(edgetable.edges, edgetable.size);
      LWT_EDGERING_ARRAY_CLEAN( &holes );
      LWT_EDGERING_ARRAY_CLEAN( &shells );
      lwerror("Errors updating edgering side face: %s",
              lwt_be_lastErrorMessage(iface));
      return -1;
    }
  }

  LWDEBUG(1, "All holes assigned, cleaning up");

  _lwt_release_edges(edgetable.edges, edgetable.size);

  /* delete all shell and hole EDGERINGS */
  LWT_EDGERING_ARRAY_CLEAN( &holes );
  LWT_EDGERING_ARRAY_CLEAN( &shells );

  return 0;
}

References _lwt_CheckFacesExist(), _lwt_FetchAllEdges(), _lwt_FetchNextUnvisitedEdge(), _lwt_FindFaceContainingRing(), _lwt_RegisterFaceOnEdgeSide(), _lwt_release_edges(), _lwt_UpdateEdgeRingSideFace(), LWT_TOPOLOGY_T::be_iface, compare_iso_edges_by_id(), LWT_ISO_EDGE::edge_id, LWT_ISO_EDGE_TABLE_T::edges, LWT_ISO_EDGE::face_left, LWT_ISO_EDGE::face_right, LWDEBUG, LWDEBUGF, lwerror(), lwgeom_geos_error(), lwnotice(), lwt_be_lastErrorMessage(), LWT_EDGERING_ARRAY_CLEAN, LWT_EDGERING_ARRAY_INIT, LWTFMT_ELEMID, LWT_EDGERING_ARRAY_T::rings, LWT_ISO_EDGE_TABLE_T::size, and LWT_EDGERING_ARRAY_T::size.

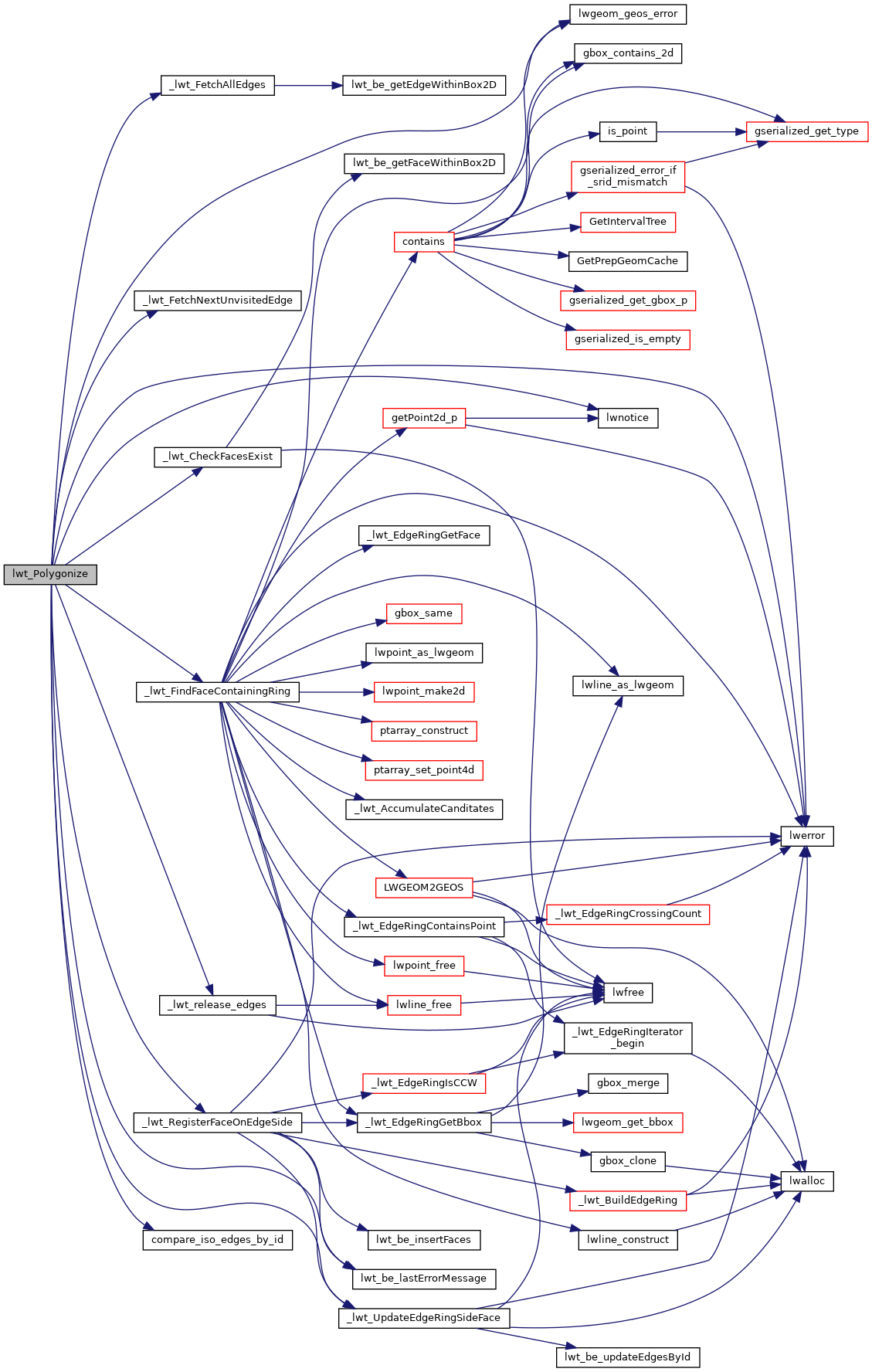

Here is the call graph for this function:
