◆ test_edge_intersects()

static void test_edge_intersects ( void  )
static

Definition at line 583 of file cu_geodetic.c.

584{
585 POINT3D A1, A2, B1, B2;
586 GEOGRAPHIC_POINT g;
587 uint32_t rv;
588
589 /* 5m close case */
590 line2pts("LINESTRING(58.5112113206308 0, 58.511211320077201 0.00090193752520337797)", &A1, &A2);
591 line2pts("LINESTRING(58.511166525601702 0.00027058124084120699, 58.511166525562899 0.00036077498778824899)", &B1, &B2);
592 rv = edge_intersects(&A1, &A2, &B1, &B2);
593 CU_ASSERT(rv == 0);
594
595 /* Covers case, end-to-end intersection */
596 line2pts("LINESTRING(50 -10.999999999999998224, -10.0 50.0)", &A1, &A2);
597 line2pts("LINESTRING(-10.0 50.0, -10.272779983831613393 -16.937003313332997578)", &B1, &B2);
598 rv = edge_intersects(&A1, &A2, &B1, &B2);
599 CU_ASSERT(rv & PIR_INTERSECTS);
600
601 /* Medford case, very short segment vs very long one */
602 g.lat = 0.74123572595649878103;
603 g.lon = -2.1496353191142714145;
604 geog2cart(&g, &A1);
605 g.lat = 0.74123631950116664058;
606 g.lon = -2.1496353248304860273;
607 geog2cart(&g, &A2);
608 g.lat = 0.73856343764436815924;
609 g.lon = -2.1461493501950630325;
610 geog2cart(&g, &B1);
611 g.lat = 0.70971354024834598651;
612 g.lon = 2.1082194552519770703;
613 geog2cart(&g, &B2);
614 rv = edge_intersects(&A1, &A2, &B1, &B2);
615 CU_ASSERT(rv == 0);
616
617 /* Second Medford case, very short segment vs very long one */
618 g.lat = 0.73826546728290887156;
619 g.lon = -2.14426380171833042;
620 geog2cart(&g, &A1);
621 g.lat = 0.73826545883786642843;
622 g.lon = -2.1442638997530165668;
623 geog2cart(&g, &A2);
624 g.lat = 0.73775469118192538165;
625 g.lon = -2.1436035534281718817;
626 geog2cart(&g, &B1);
627 g.lat = 0.71021099548296817705;
628 g.lon = 2.1065275171200439353;
629 geog2cart(&g, &B2);
630 rv = edge_intersects(&A1, &A2, &B1, &B2);
631 CU_ASSERT(rv == PIR_INTERSECTS);
632
633 /* Again, this time with a less exact input edge. */
634 line2pts("LINESTRING(-123.165031277506 42.4696787216231, -123.165031605021 42.4697127292275)", &A1, &A2);
635 rv = edge_intersects(&A1, &A2, &B1, &B2);
636 CU_ASSERT(rv == 0);
637
638 /* Intersection at (0 0) */
639 line2pts("LINESTRING(-1.0 0.0, 1.0 0.0)", &A1, &A2);
640 line2pts("LINESTRING(0.0 -1.0, 0.0 1.0)", &B1, &B2);
641 rv = edge_intersects(&A1, &A2, &B1, &B2);
642 CU_ASSERT(rv == PIR_INTERSECTS);
643
644 /* No intersection at (0 0) */
645 line2pts("LINESTRING(-1.0 0.0, 1.0 0.0)", &A1, &A2);
646 line2pts("LINESTRING(0.0 -1.0, 0.0 -2.0)", &B1, &B2);
647 rv = edge_intersects(&A1, &A2, &B1, &B2);
648 CU_ASSERT(rv == 0);
649
650 /* End touches middle of segment at (0 0) */
651 line2pts("LINESTRING(-1.0 0.0, 1.0 0.0)", &A1, &A2);
652 line2pts("LINESTRING(0.0 -1.0, 0.0 0.0)", &B1, &B2);
653 rv = edge_intersects(&A1, &A2, &B1, &B2);
654 CU_ASSERT(rv == (PIR_INTERSECTS|PIR_B_TOUCH_RIGHT) );
655
656 /* End touches end of segment at (0 0) */
657 line2pts("LINESTRING(0.0 0.0, 1.0 0.0)", &A1, &A2);
658 line2pts("LINESTRING(0.0 -1.0, 0.0 0.0)", &B1, &B2);
659 rv = edge_intersects(&A1, &A2, &B1, &B2);
660 CU_ASSERT(rv == (PIR_INTERSECTS|PIR_B_TOUCH_RIGHT|PIR_A_TOUCH_RIGHT) );
661
662 /* Intersection at (180 0) */
663 line2pts("LINESTRING(-179.0 -1.0, 179.0 1.0)", &A1, &A2);
664 line2pts("LINESTRING(-179.0 1.0, 179.0 -1.0)", &B1, &B2);
665 rv = edge_intersects(&A1, &A2, &B1, &B2);
666 CU_ASSERT(rv == PIR_INTERSECTS);
667
668 /* Intersection at (180 0) */
669 line2pts("LINESTRING(-170.0 0.0, 170.0 0.0)", &A1, &A2);
670 line2pts("LINESTRING(180.0 -10.0, 180.0 10.0)", &B1, &B2);
671 rv = edge_intersects(&A1, &A2, &B1, &B2);
672 CU_ASSERT(rv == PIR_INTERSECTS);
673
674 /* Intersection at north pole */
675 line2pts("LINESTRING(-180.0 80.0, 0.0 80.0)", &A1, &A2);
676 line2pts("LINESTRING(90.0 80.0, -90.0 80.0)", &B1, &B2);
677 rv = edge_intersects(&A1, &A2, &B1, &B2);
678 CU_ASSERT(rv == PIR_INTERSECTS);
679
680 /* Equal edges return true */
681 line2pts("LINESTRING(45.0 10.0, 50.0 20.0)", &A1, &A2);
682 line2pts("LINESTRING(45.0 10.0, 50.0 20.0)", &B1, &B2);
683 rv = edge_intersects(&A1, &A2, &B1, &B2);
684 CU_ASSERT(rv & PIR_INTERSECTS);
685
686 /* Parallel edges (same great circle, different end points) return true */
687 line2pts("LINESTRING(40.0 0.0, 70.0 0.0)", &A1, &A2);
688 line2pts("LINESTRING(60.0 0.0, 50.0 0.0)", &B1, &B2);
689 rv = edge_intersects(&A1, &A2, &B1, &B2);
690 CU_ASSERT(rv == (PIR_INTERSECTS|PIR_COLINEAR) );
691
692 /* End touches arc at north pole */
693 line2pts("LINESTRING(-180.0 80.0, 0.0 80.0)", &A1, &A2);
694 line2pts("LINESTRING(90.0 80.0, -90.0 90.0)", &B1, &B2);
695 rv = edge_intersects(&A1, &A2, &B1, &B2);
696 CU_ASSERT(rv == (PIR_INTERSECTS|PIR_B_TOUCH_LEFT) );
697
698 /* End touches end at north pole */
699 line2pts("LINESTRING(-180.0 80.0, 0.0 90.0)", &A1, &A2);
700 line2pts("LINESTRING(90.0 80.0, -90.0 90.0)", &B1, &B2);
701 rv = edge_intersects(&A1, &A2, &B1, &B2);
702 CU_ASSERT(rv == (PIR_INTERSECTS|PIR_B_TOUCH_LEFT|PIR_A_TOUCH_RIGHT) );
703
704 /* Antipodal straddles. Great circles cross but at opposite */
705 /* sides of the globe */
706 /* #2534 */
707 /* http://www.gcmap.com/mapui?P=60N+90E-20S+90E%0D%0A0N+0E-90.04868865037885W+57.44011727050777S%0D%0A&MS=wls&DU=mi */
708 line2pts("LINESTRING(90.0 60.0, 90.0 -20.0)", &A1, &A2);
709 line2pts("LINESTRING(0.0 0.0, -90.04868865037885 -57.44011727050777)", &B1, &B2);
710 rv = edge_intersects(&A1, &A2, &B1, &B2);
711 CU_ASSERT(rv == 0);
712
713 line2pts("LINESTRING(-5 0, 5 0)", &A1, &A2);
714 line2pts("LINESTRING(179 -5, 179 5)", &B1, &B2);
715 rv = edge_intersects(&A1, &A2, &B1, &B2);
716 CU_ASSERT(rv == 0);
717
718 line2pts("LINESTRING(175 -85, 175 85)", &A1, &A2);
719 line2pts("LINESTRING(65 0, -105 0)", &B1, &B2);
720 rv = edge_intersects(&A1, &A2, &B1, &B2);
721 CU_ASSERT(rv == 0);
722
723 line2pts("LINESTRING(175 -85, 175 85)", &A1, &A2);
724 line2pts("LINESTRING(45 0, -125 0)", &B1, &B2);
725 rv = edge_intersects(&A1, &A2, &B1, &B2);
726 CU_ASSERT(rv == 0);
727
728}
line2pts
static void line2pts(const char *wkt, POINT3D *A1, POINT3D *A2)
Definition cu_geodetic.c:561
edge_intersects
uint32_t edge_intersects(const POINT3D *A1, const POINT3D *A2, const POINT3D *B1, const POINT3D *B2)
Returns non-zero if edges A and B interact.
Definition lwgeodetic.c:3389
geog2cart
void geog2cart(const GEOGRAPHIC_POINT *g, POINT3D *p)
Convert spherical coordinates to cartesian coordinates on unit sphere.
Definition lwgeodetic.c:404
PIR_COLINEAR
#define PIR_COLINEAR
Definition lwgeodetic.h:89
PIR_INTERSECTS
#define PIR_INTERSECTS
Definition lwgeodetic.h:88
PIR_A_TOUCH_RIGHT
#define PIR_A_TOUCH_RIGHT
Definition lwgeodetic.h:90
PIR_B_TOUCH_RIGHT
#define PIR_B_TOUCH_RIGHT
Definition lwgeodetic.h:92
PIR_B_TOUCH_LEFT
#define PIR_B_TOUCH_LEFT
Definition lwgeodetic.h:93
GEOGRAPHIC_POINT::lat
double lat
Definition lwgeodetic.h:56
GEOGRAPHIC_POINT::lon
double lon
Definition lwgeodetic.h:55
GEOGRAPHIC_POINT
Point in spherical coordinates on the world.
Definition lwgeodetic.h:54

References edge_intersects(), geog2cart(), GEOGRAPHIC_POINT::lat, line2pts(), GEOGRAPHIC_POINT::lon, PIR_A_TOUCH_RIGHT, PIR_B_TOUCH_LEFT, PIR_B_TOUCH_RIGHT, PIR_COLINEAR, and PIR_INTERSECTS.

Referenced by geodetic_suite_setup().

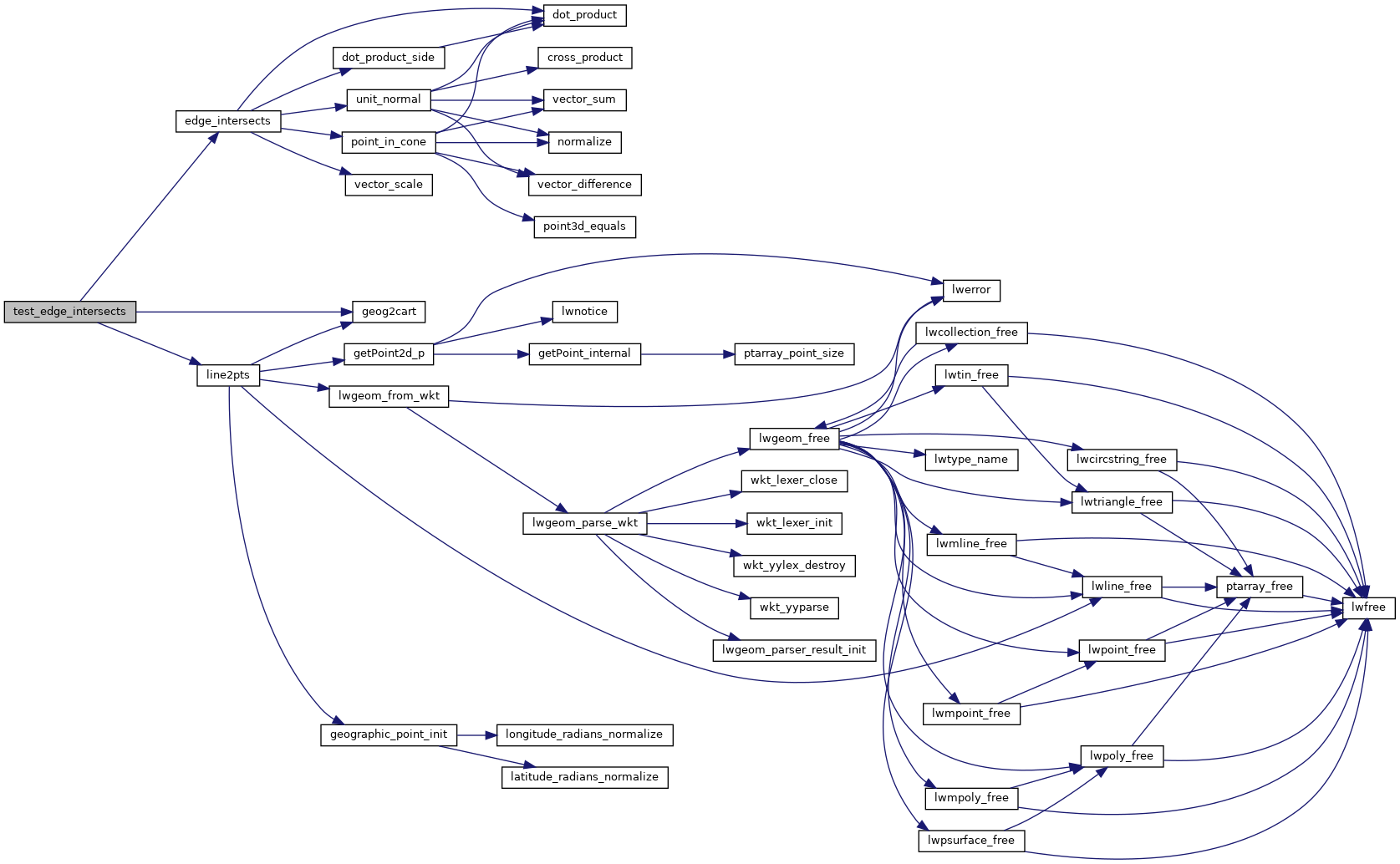

Here is the call graph for this function:
Here is the caller graph for this function:
