◆ test_ptarray_contains_point_sphere()

static void test_ptarray_contains_point_sphere ( void  )
static

Definition at line 933 of file cu_geodetic.c.

934{
935 LWGEOM *lwg;
936 LWPOLY *poly;
937 POINT2D pt_to_test;
938 POINT2D pt_outside;
939 int result;
940
941 /* Small polygon and huge distance between outside point and close-but-not-quite-inside point. Should return LW_FALSE. Pretty degenerate case. */
942 lwg = lwgeom_from_hexwkb("0103000020E61000000100000025000000ACAD6F91DDB65EC03F84A86D57264540CCABC279DDB65EC0FCE6926B57264540B6DEAA62DDB65EC0A79F6B63572645402E0BE84CDDB65EC065677155572645405D0B1D39DDB65EC0316310425726454082B5DB27DDB65EC060A4E12957264540798BB619DDB65EC0C393A10D57264540D4BC160FDDB65EC0BD0320EE56264540D7AC4E08DDB65EC096C862CC56264540AFD29205DDB65EC02A1F68A956264540363AFA06DDB65EC0722E418656264540B63A780CDDB65EC06E9B0064562645409614E215DDB65EC0E09DA84356264540FF71EF22DDB65EC0B48145265626454036033F33DDB65EC081B8A60C5626454066FB4546DDB65EC08A47A6F7552645409061785BDDB65EC0F05AE0E755264540D4B63772DDB65EC05C86CEDD55264540D2E4C689DDB65EC09B6EBFD95526454082E573A1DDB65EC0C90BD5DB552645401ABE85B8DDB65EC06692FCE35526454039844ECEDDB65EC04D8AF6F155264540928319E2DDB65EC0AD8D570556264540D31055F3DDB65EC02D618F1D56264540343B7A01DEB65EC0EB70CF3956264540920A1A0CDEB65EC03B00515956264540911BE212DEB65EC0E43A0E7B56264540E3F69D15DEB65EC017E4089E562645408D903614DEB65EC0F0D42FC1562645402191B80EDEB65EC0586870E35626454012B84E05DEB65EC09166C80357264540215B41F8DDB65EC08F832B21572645408392F7E7DDB65EC01138C13A57264540F999F0D4DDB65EC0E4A9C14F57264540AC3FB8BFDDB65EC0EED6875F57264540D3DCFEA8DDB65EC04F6C996957264540ACAD6F91DDB65EC03F84A86D57264540", LW_PARSER_CHECK_NONE);
943 poly = (LWPOLY*)lwg;
944 pt_to_test.x = -122.819436560680316;
945 pt_to_test.y = 42.2702301207017328;
946 pt_outside.x = 120.695136159150778;
947 pt_outside.y = 40.6920926049588516;
948 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
949 CU_ASSERT_EQUAL(result, LW_FALSE);
950 lwgeom_free(lwg);
951
952 /* Point on ring between vertices case */
953 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
954 poly = (LWPOLY*)lwg;
955 pt_to_test.x = 1.1;
956 pt_to_test.y = 1.05;
957 pt_outside.x = 1.2;
958 pt_outside.y = 1.05;
959 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
960 CU_ASSERT_EQUAL(result, LW_TRUE);
961 lwgeom_free(lwg);
962
963 /* Simple containment case */
964 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
965 poly = (LWPOLY*)lwg;
966 pt_to_test.x = 1.05;
967 pt_to_test.y = 1.05;
968 pt_outside.x = 1.2;
969 pt_outside.y = 1.15;
970 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
971 CU_ASSERT_EQUAL(result, LW_TRUE);
972 lwgeom_free(lwg);
973
974 /* Less Simple containment case. */
975 /* Interior point quite close to boundary and stab line going through bottom edge vertex */
976 /* This breaks the "extend-it" trick of handling vertex crossings */
977 /* It should also break the "lowest end" trick. */
978 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.05 0.95, 1.0 1.0))", LW_PARSER_CHECK_NONE);
979 poly = (LWPOLY*)lwg;
980 pt_to_test.x = 1.05;
981 pt_to_test.y = 1.00;
982 pt_outside.x = 1.05;
983 pt_outside.y = 0.5;
984 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
985 CU_ASSERT_EQUAL(result, LW_TRUE);
986 lwgeom_free(lwg);
987
988 /* Simple noncontainment case */
989 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
990 poly = (LWPOLY*)lwg;
991 pt_to_test.x = 1.05;
992 pt_to_test.y = 1.15;
993 pt_outside.x = 1.2;
994 pt_outside.y = 1.2;
995 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
996 CU_ASSERT_EQUAL(result, LW_FALSE);
997 lwgeom_free(lwg);
998
999 /* Harder noncontainment case */
1000 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1001 poly = (LWPOLY*)lwg;
1002 pt_to_test.x = 1.05;
1003 pt_to_test.y = 0.9;
1004 pt_outside.x = 1.2;
1005 pt_outside.y = 1.05;
1006 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1007 CU_ASSERT_EQUAL(result, LW_FALSE);
1008 lwgeom_free(lwg);
1009
1010 /* Harder containment case */
1011 lwg = lwgeom_from_wkt("POLYGON((0 0, 0 2, 1 2, 0 3, 2 3, 0 4, 3 5, 0 6, 6 10, 6 1, 0 0))", LW_PARSER_CHECK_NONE);
1012 poly = (LWPOLY*)lwg;
1013 pt_to_test.x = 1.0;
1014 pt_to_test.y = 1.0;
1015 pt_outside.x = 1.0;
1016 pt_outside.y = 10.0;
1017 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1018 CU_ASSERT_EQUAL(result, LW_TRUE);
1019 lwgeom_free(lwg);
1020
1021 /* Point on ring at first vertex case */
1022 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1023 poly = (LWPOLY*)lwg;
1024 pt_to_test.x = 1.0;
1025 pt_to_test.y = 1.0;
1026 pt_outside.x = 1.2;
1027 pt_outside.y = 1.05;
1028 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1029 CU_ASSERT_EQUAL(result, LW_TRUE);
1030 lwgeom_free(lwg);
1031
1032 /* Point on ring at vertex case */
1033 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1034 poly = (LWPOLY*)lwg;
1035 pt_to_test.x = 1.0;
1036 pt_to_test.y = 1.1;
1037 pt_outside.x = 1.2;
1038 pt_outside.y = 1.05;
1039 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1040 CU_ASSERT_EQUAL(result, LW_TRUE);
1041 lwgeom_free(lwg);
1042
1043 /* Co-linear crossing case for point-in-polygon test, should return LW_TRUE */
1044 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.2, 1.2 1.2, 1.2 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1045 poly = (LWPOLY*)lwg;
1046 pt_to_test.x = 1.1;
1047 pt_to_test.y = 1.05;
1048 pt_outside.x = 1.1;
1049 pt_outside.y = 1.3;
1050 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1051 CU_ASSERT_EQUAL(result, LW_TRUE);
1052 lwgeom_free(lwg);
1053
1054 /* Co-linear grazing case for point-in-polygon test, should return LW_FALSE */
1055 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.2, 1.2 1.2, 1.2 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1056 poly = (LWPOLY*)lwg;
1057 pt_to_test.x = 1.0;
1058 pt_to_test.y = 0.0;
1059 pt_outside.x = 1.0;
1060 pt_outside.y = 2.0;
1061 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1062 CU_ASSERT_EQUAL(result, LW_FALSE);
1063 lwgeom_free(lwg);
1064
1065 /* Grazing case for point-in-polygon test, should return LW_FALSE */
1066 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 2.0, 1.5 1.5, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1067 poly = (LWPOLY*)lwg;
1068 pt_to_test.x = 1.5;
1069 pt_to_test.y = 1.0;
1070 pt_outside.x = 1.5;
1071 pt_outside.y = 2.0;
1072 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1073 CU_ASSERT_EQUAL(result, LW_FALSE);
1074 lwgeom_free(lwg);
1075
1076 /* Grazing case at first point for point-in-polygon test, should return LW_FALSE */
1077 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 2.0 3.0, 2.0 0.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1078 poly = (LWPOLY*)lwg;
1079 pt_to_test.x = 1.0;
1080 pt_to_test.y = 0.0;
1081 pt_outside.x = 1.0;
1082 pt_outside.y = 2.0;
1083 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1084 CU_ASSERT_EQUAL(result, LW_FALSE);
1085 lwgeom_free(lwg);
1086
1087 /* Outside multi-crossing case for point-in-polygon test, should return LW_FALSE */
1088 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.2, 1.2 1.2, 1.2 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1089 poly = (LWPOLY*)lwg;
1090 pt_to_test.x = 0.99;
1091 pt_to_test.y = 0.99;
1092 pt_outside.x = 1.21;
1093 pt_outside.y = 1.21;
1094 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1095 CU_ASSERT_EQUAL(result, LW_FALSE);
1096 lwgeom_free(lwg);
1097
1098 /* Inside multi-crossing case for point-in-polygon test, should return LW_TRUE */
1099 lwg = lwgeom_from_wkt("POLYGON((1.0 1.0, 1.0 1.1, 1.1 1.1, 1.1 1.2, 1.2 1.2, 1.2 1.0, 1.0 1.0))", LW_PARSER_CHECK_NONE);
1100 poly = (LWPOLY*)lwg;
1101 pt_to_test.x = 1.11;
1102 pt_to_test.y = 1.11;
1103 pt_outside.x = 1.21;
1104 pt_outside.y = 1.21;
1105 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1106 CU_ASSERT_EQUAL(result, LW_TRUE);
1107 lwgeom_free(lwg);
1108
1109 /* Point on vertex of ring */
1110 lwg = lwgeom_from_wkt("POLYGON((-9 50,51 -11,-10 50,-9 50))", LW_PARSER_CHECK_NONE);
1111 poly = (LWPOLY*)lwg;
1112 pt_to_test.x = -10.0;
1113 pt_to_test.y = 50.0;
1114 pt_outside.x = -10.2727799838316134;
1115 pt_outside.y = -16.9370033133329976;
1116 result = ptarray_contains_point_sphere(poly->rings[0], &pt_outside, &pt_to_test);
1117 CU_ASSERT_EQUAL(result, LW_TRUE);
1118 lwgeom_free(lwg);
1119
1120}
result
char result[OUT_DOUBLE_BUFFER_SIZE]
Definition cu_print.c:267
LW_FALSE
#define LW_FALSE
Definition liblwgeom.h:94
lwgeom_free
void lwgeom_free(LWGEOM *geom)
Definition lwgeom.c:1246
LW_PARSER_CHECK_NONE
#define LW_PARSER_CHECK_NONE
Definition liblwgeom.h:2149
lwgeom_from_hexwkb
LWGEOM * lwgeom_from_hexwkb(const char *hexwkb, const char check)
Definition lwin_wkb.c:866
LW_TRUE
#define LW_TRUE
Return types for functions with status returns.
Definition liblwgeom.h:93
lwgeom_from_wkt
LWGEOM * lwgeom_from_wkt(const char *wkt, const char check)
Definition lwin_wkt.c:940
ptarray_contains_point_sphere
int ptarray_contains_point_sphere(const POINTARRAY *pa, const POINT2D *pt_outside, const POINT2D *pt_to_test)
This routine returns LW_TRUE if the stabline joining the pt_outside and pt_to_test crosses the ring a...
Definition lwgeodetic.c:3502
LWPOLY::rings
POINTARRAY ** rings
Definition liblwgeom.h:519
POINT2D::y
double y
Definition liblwgeom.h:390
POINT2D::x
double x
Definition liblwgeom.h:390

References LW_FALSE, LW_PARSER_CHECK_NONE, LW_TRUE, lwgeom_free(), lwgeom_from_hexwkb(), lwgeom_from_wkt(), ptarray_contains_point_sphere(), result, LWPOLY::rings, POINT2D::x, and POINT2D::y.

Referenced by geodetic_suite_setup().

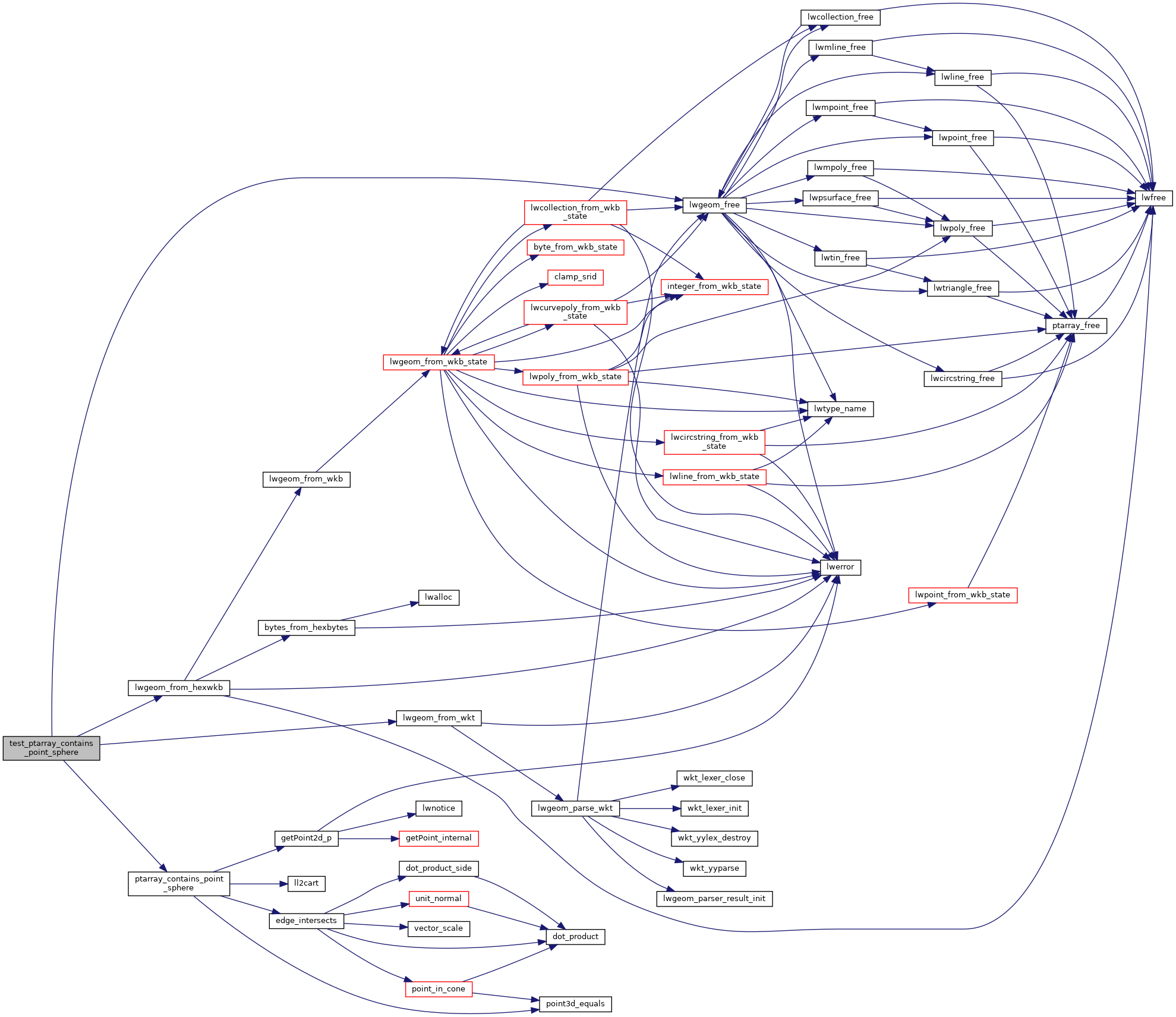

Here is the call graph for this function:
