RASTER_addBandOutDB()

Datum RASTER_addBandOutDB

(

PG_FUNCTION_ARGS

)

Definition at line 557 of file rtpg_create.c.

{
        rt_pgraster *pgraster = NULL;
        rt_pgraster *pgrtn = NULL;

        rt_raster raster = NULL;
        rt_band band = NULL;
        int numbands = 0;
        int dstnband = 1; /* 1-based */
        int appendband = FALSE;
        char *outdbfile = NULL;
        int *srcnband = NULL; /* 1-based */
        int numsrcnband = 0;
        int allbands = FALSE;
        int hasnodata = FALSE;
        double nodataval = 0.;
        uint16_t width = 0;
        uint16_t height = 0;
        char *authname = NULL;
        char *authcode = NULL;

        int i = 0;
        int j = 0;

        GDALDatasetH hdsOut;

        double ogt[6] = {0.};
        rt_raster _rast = NULL;
        int aligned = 0;
        int err = 0;

        /* destination raster */
        if (!PG_ARGISNULL(0)) {
                pgraster = (rt_pgraster *) PG_DETOAST_DATUM(PG_GETARG_DATUM(0));

                /* raster */
                raster = rt_raster_deserialize(pgraster, FALSE);
                if (!raster) {
                        PG_FREE_IF_COPY(pgraster, 0);
                        elog(ERROR, "RASTER_addBandOutDB: Cannot deserialize destination raster");
                        PG_RETURN_NULL();
                }

                POSTGIS_RT_DEBUG(4, "destination raster isn't NULL");
        }

        /* destination band index (1) */
        if (!PG_ARGISNULL(1))
                dstnband = PG_GETARG_INT32(1);
        else
                appendband = TRUE;

        /* outdb file (2) */
        if (PG_ARGISNULL(2)) {
                elog(NOTICE, "Out-db raster file not provided. Returning original raster");
                if (pgraster != NULL) {
                        rt_raster_destroy(raster);
                        PG_RETURN_POINTER(pgraster);
                }
                else
                        PG_RETURN_NULL();
        }
        else {
                outdbfile = text_to_cstring(PG_GETARG_TEXT_P(2));
                if (!strlen(outdbfile)) {
                        elog(NOTICE, "Out-db raster file not provided. Returning original raster");
                        if (pgraster != NULL) {
                                rt_raster_destroy(raster);
                                PG_RETURN_POINTER(pgraster);
                        }
                        else
                                PG_RETURN_NULL();
                }
        }

        /* outdb band index (3) */
        if (!PG_ARGISNULL(3)) {
                ArrayType *array;
                Oid etype;
                Datum *e;
                bool *nulls;

                int16 typlen;
                bool typbyval;
                char typalign;

                allbands = FALSE;

                array = PG_GETARG_ARRAYTYPE_P(3);
                etype = ARR_ELEMTYPE(array);
                get_typlenbyvalalign(etype, &typlen, &typbyval, &typalign);

                switch (etype) {
                        case INT2OID:
                        case INT4OID:
                                break;
                        default:
                                if (pgraster != NULL) {
                                        rt_raster_destroy(raster);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                }
                                elog(ERROR, "RASTER_addBandOutDB: Invalid data type for band indexes");
                                PG_RETURN_NULL();
                                break;
                }

                deconstruct_array(array, etype, typlen, typbyval, typalign, &e, &nulls, &numsrcnband);

                srcnband = palloc(sizeof(int) * numsrcnband);
                if (srcnband == NULL) {
                        if (pgraster != NULL) {
                                rt_raster_destroy(raster);
                                PG_FREE_IF_COPY(pgraster, 0);
                        }
                        elog(ERROR, "RASTER_addBandOutDB: Cannot allocate memory for band indexes");
                        PG_RETURN_NULL();
                }

                for (i = 0, j = 0; i < numsrcnband; i++) {
                        if (nulls[i]) continue;

                        switch (etype) {
                                case INT2OID:
                                        srcnband[j] = DatumGetInt16(e[i]);
                                        break;
                                case INT4OID:
                                        srcnband[j] = DatumGetInt32(e[i]);
                                        break;
                        }
                        j++;
                }

                if (j < numsrcnband) {
                        srcnband = repalloc(srcnband, sizeof(int) * j);
                        if (srcnband == NULL) {
                                if (pgraster != NULL) {
                                        rt_raster_destroy(raster);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                }
                                elog(ERROR, "RASTER_addBandOutDB: Cannot reallocate memory for band indexes");
                                PG_RETURN_NULL();
                        }

                        numsrcnband = j;
                }
        }
        else
                allbands = TRUE;

        /* nodataval (4) */
        if (!PG_ARGISNULL(4)) {
                hasnodata = TRUE;
                nodataval = PG_GETARG_FLOAT8(4);
        }
        else
                hasnodata = FALSE;

        /* validate input */

        /* make sure dstnband is valid */
        if (raster != NULL) {
                numbands = rt_raster_get_num_bands(raster);
                if (!appendband) {
                        if (dstnband < 1) {
                                elog(NOTICE, "Invalid band index %d for adding bands. Using band index 1", dstnband);
                                dstnband = 1;
                        }
                        else if (numbands > 0 && dstnband > numbands) {
                                elog(NOTICE, "Invalid band index %d for adding bands. Using band index %d", dstnband, numbands);
                                dstnband = numbands + 1;
                        }
                }
                else
                        dstnband = numbands + 1;
        }

        /* open outdb raster file */
        rt_util_gdal_register_all(0);
        hdsOut = rt_util_gdal_open(outdbfile, GA_ReadOnly, 1);
        if (hdsOut == NULL) {
                if (pgraster != NULL) {
                        rt_raster_destroy(raster);
                        PG_FREE_IF_COPY(pgraster, 0);
                }
                elog(ERROR, "RASTER_addBandOutDB: Cannot open out-db file with GDAL");
                PG_RETURN_NULL();
        }

        /* get offline raster's geotransform */
        if (GDALGetGeoTransform(hdsOut, ogt) != CE_None) {
                ogt[0] = 0;
                ogt[1] = 1;
                ogt[2] = 0;
                ogt[3] = 0;
                ogt[4] = 0;
                ogt[5] = -1;
        }

        /* raster doesn't exist, create it now */
        if (raster == NULL) {
                raster = rt_raster_new(GDALGetRasterXSize(hdsOut), GDALGetRasterYSize(hdsOut));
                if (rt_raster_is_empty(raster)) {
                        elog(ERROR, "RASTER_addBandOutDB: Cannot create new raster");
                        PG_RETURN_NULL();
                }
                rt_raster_set_geotransform_matrix(raster, ogt);

                if (rt_util_gdal_sr_auth_info(hdsOut, &authname, &authcode) == ES_NONE) {
                        if (
                                authname != NULL &&
                                strcmp(authname, "EPSG") == 0 &&
                                authcode != NULL
                        ) {
                                rt_raster_set_srid(raster, atoi(authcode));
                        }
                        else
                                elog(INFO, "Unknown SRS auth name and code from out-db file. Defaulting SRID of new raster to %d", SRID_UNKNOWN);
                }
                else
                        elog(INFO, "Cannot get SRS auth name and code from out-db file. Defaulting SRID of new raster to %d", SRID_UNKNOWN);
        }

        /* some raster info */
        width = rt_raster_get_width(raster);
        height = rt_raster_get_height(raster);

        /* are rasters aligned? */
        _rast = rt_raster_new(1, 1);
        rt_raster_set_geotransform_matrix(_rast, ogt);
        rt_raster_set_srid(_rast, rt_raster_get_srid(raster));
        err = rt_raster_same_alignment(raster, _rast, &aligned, NULL);
        rt_raster_destroy(_rast);

        if (err != ES_NONE) {
                GDALClose(hdsOut);
                if (raster != NULL)
                        rt_raster_destroy(raster);
                if (pgraster != NULL)
                        PG_FREE_IF_COPY(pgraster, 0);
                elog(ERROR, "RASTER_addBandOutDB: Cannot test alignment of out-db file");
                return ES_ERROR;
        }
        else if (!aligned)
                elog(WARNING, "The in-db representation of the out-db raster is not aligned. Band data may be incorrect");

        /* build up srcnband */
        if (allbands) {
                numsrcnband = GDALGetRasterCount(hdsOut);
                GDALClose(hdsOut);

                srcnband = palloc(sizeof(int) * numsrcnband);
                if (srcnband == NULL) {
                        if (raster != NULL)
                                rt_raster_destroy(raster);
                        if (pgraster != NULL)
                                PG_FREE_IF_COPY(pgraster, 0);
                        elog(ERROR, "RASTER_addBandOutDB: Cannot allocate memory for band indexes");
                        PG_RETURN_NULL();
                }

                for (i = 0, j = 1; i < numsrcnband; i++, j++)
                        srcnband[i] = j;
        }
        else
                GDALClose(hdsOut);

        /* add band */
        for (i = 0, j = dstnband - 1; i < numsrcnband; i++, j++) {

                /* create band with path */
                band = rt_band_new_offline_from_path(
                        width, height,
                        hasnodata, nodataval,
                        srcnband[i], outdbfile,
                        FALSE
                );
                if (band == NULL) {
                        if (raster != NULL)
                                rt_raster_destroy(raster);
                        if (pgraster != NULL)
                                PG_FREE_IF_COPY(pgraster, 0);
                        elog(ERROR, "RASTER_addBandOutDB: Cannot create new out-db band");
                        PG_RETURN_NULL();
                }

                /* add band */
                if (rt_raster_add_band(raster, band, j) < 0) {
                        if (raster != NULL)
                                rt_raster_destroy(raster);
                        if (pgraster != NULL)
                                PG_FREE_IF_COPY(pgraster, 0);
                        elog(ERROR, "RASTER_addBandOutDB: Cannot add new out-db band to raster");
                        PG_RETURN_NULL();
                }
        }

        pgrtn = rt_raster_serialize(raster);
        rt_raster_destroy(raster);
        if (pgraster != NULL)
                PG_FREE_IF_COPY(pgraster, 0);
        if (!pgrtn)
                PG_RETURN_NULL();

        SET_VARSIZE(pgrtn, pgrtn->size);
        PG_RETURN_POINTER(pgrtn);
}

References ES_ERROR, ES_NONE, FALSE, POSTGIS_RT_DEBUG, rt_band_new_offline_from_path(), rt_raster_add_band(), rt_raster_deserialize(), rt_raster_destroy(), rt_raster_get_height(), rt_raster_get_num_bands(), rt_raster_get_srid(), rt_raster_get_width(), rt_raster_is_empty(), rt_raster_new(), rt_raster_same_alignment(), rt_raster_serialize(), rt_raster_set_geotransform_matrix(), rt_raster_set_srid(), rt_util_gdal_open(), rt_util_gdal_register_all(), rt_util_gdal_sr_auth_info(), rt_raster_serialized_t::size, SRID_UNKNOWN, and TRUE.

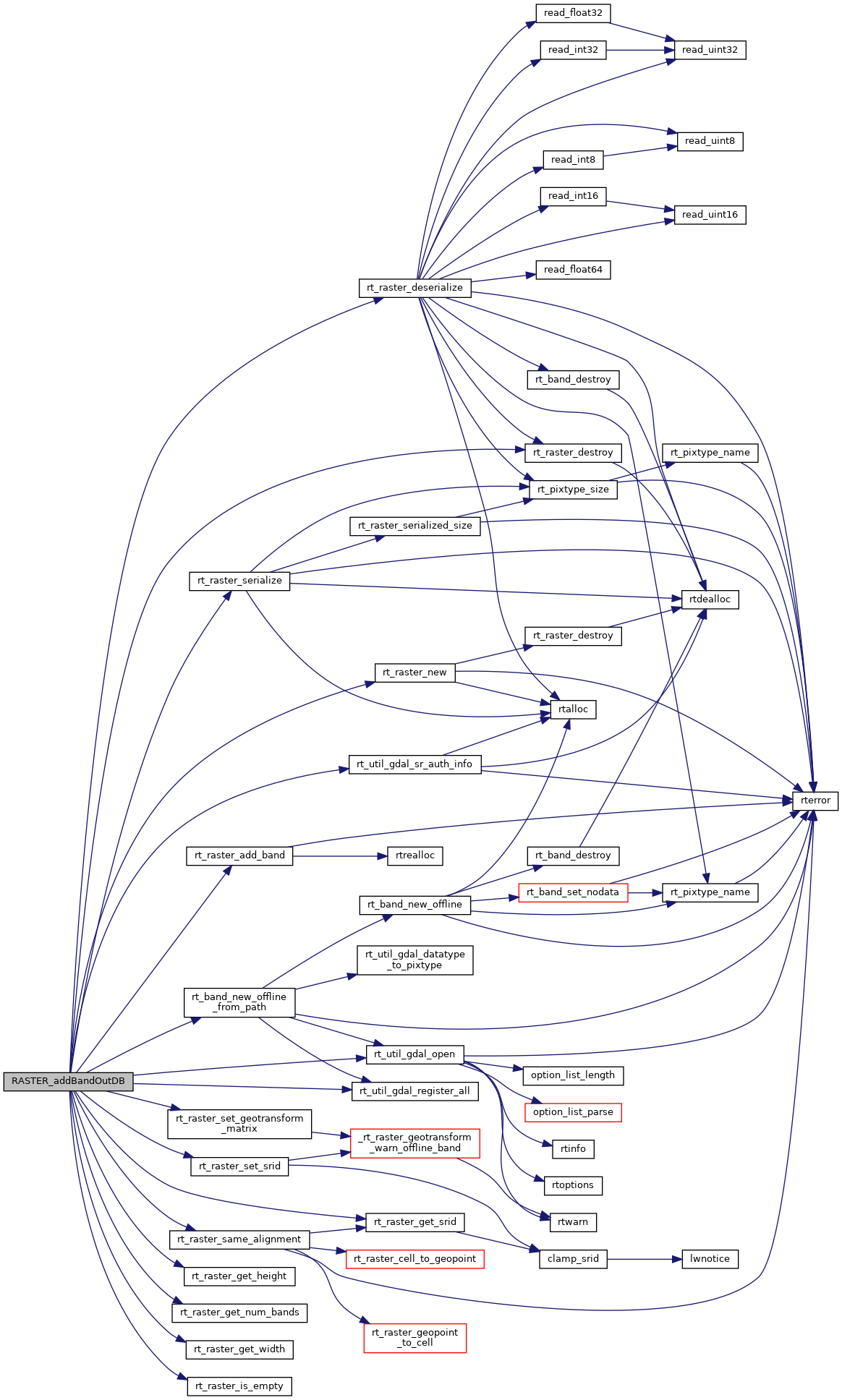

Here is the call graph for this function:
