PostGIS  3.4.0dev-r@@SVN_REVISION@@

◆ parse_gml_linearring()

static LWGEOM* parse_gml_linearring ( xmlNodePtr  xnode,
bool *  hasz,
int *  root_srid
)
static

Parse GML LinearRing (3.1.1)

Definition at line 1159 of file lwgeom_in_gml.c.

1160 {
1161  gmlSrs srs;
1162  LWGEOM *geom;
1163  POINTARRAY **ppa = NULL;
1164
1165  if (is_xlink(xnode)) xnode = get_xlink_node(xnode);
1166  parse_gml_srs(xnode, &srs);
1167
1168  ppa = (POINTARRAY**) lwalloc(sizeof(POINTARRAY*));
1169  ppa[0] = parse_gml_data(xnode->children, hasz, root_srid);
1170
1171  if (ppa[0]->npoints < 4
1172  || (!*hasz && !ptarray_is_closed_2d(ppa[0]))
1173  || (*hasz && !ptarray_is_closed_3d(ppa[0])))
1174  gml_lwpgerror("invalid GML representation", 42);
1175
1176  if (srs.reverse_axis)
1177  ppa[0] = ptarray_flip_coordinates(ppa[0]);
1178
1179  if (srs.srid != *root_srid && *root_srid != SRID_UNKNOWN)
1180  gml_reproject_pa(ppa[0], srs.srid, *root_srid);
1181
1182  geom = (LWGEOM *) lwpoly_construct(*root_srid, NULL, 1, ppa);
1183
1184  return geom;
1185 }
int ptarray_is_closed_3d(const POINTARRAY *pa)
Definition: ptarray.c:727
void * lwalloc(size_t size)
Definition: lwutil.c:227
int ptarray_is_closed_2d(const POINTARRAY *pa)
Definition: ptarray.c:714
#define SRID_UNKNOWN
Unknown SRID value.
Definition: liblwgeom.h:215
LWPOLY * lwpoly_construct(int32_t srid, GBOX *bbox, uint32_t nrings, POINTARRAY **points)
Definition: lwpoly.c:43
POINTARRAY * ptarray_flip_coordinates(POINTARRAY *pa)
Reverse X and Y axis on a given POINTARRAY.
Definition: ptarray.c:360
static xmlNodePtr get_xlink_node(xmlNodePtr xnode)
Return a xmlNodePtr on a node referenced by a XLink or NULL otherwise.
static bool is_xlink(xmlNodePtr node)
Return true if current node contains a simple XLink Return false otherwise.
static POINTARRAY * gml_reproject_pa(POINTARRAY *pa, int32_t epsg_in, int32_t epsg_out)
Use Proj to reproject a given POINTARRAY.
static void parse_gml_srs(xmlNodePtr xnode, gmlSrs *srs)
Parse gml srsName attribute.
static POINTARRAY * parse_gml_data(xmlNodePtr xnode, bool *hasz, int *root_srid)
Parse data coordinates.
static void gml_lwpgerror(char *msg, __attribute__((__unused__)) int error_code)
Definition: lwgeom_in_gml.c:81

References get_xlink_node(), gml_lwpgerror(), gml_reproject_pa(), is_xlink(), lwalloc(), lwpoly_construct(), parse_gml_data(), parse_gml_srs(), ptarray_flip_coordinates(), ptarray_is_closed_2d(), ptarray_is_closed_3d(), struct_gmlSrs::reverse_axis, struct_gmlSrs::srid, and SRID_UNKNOWN.

Referenced by parse_gml().

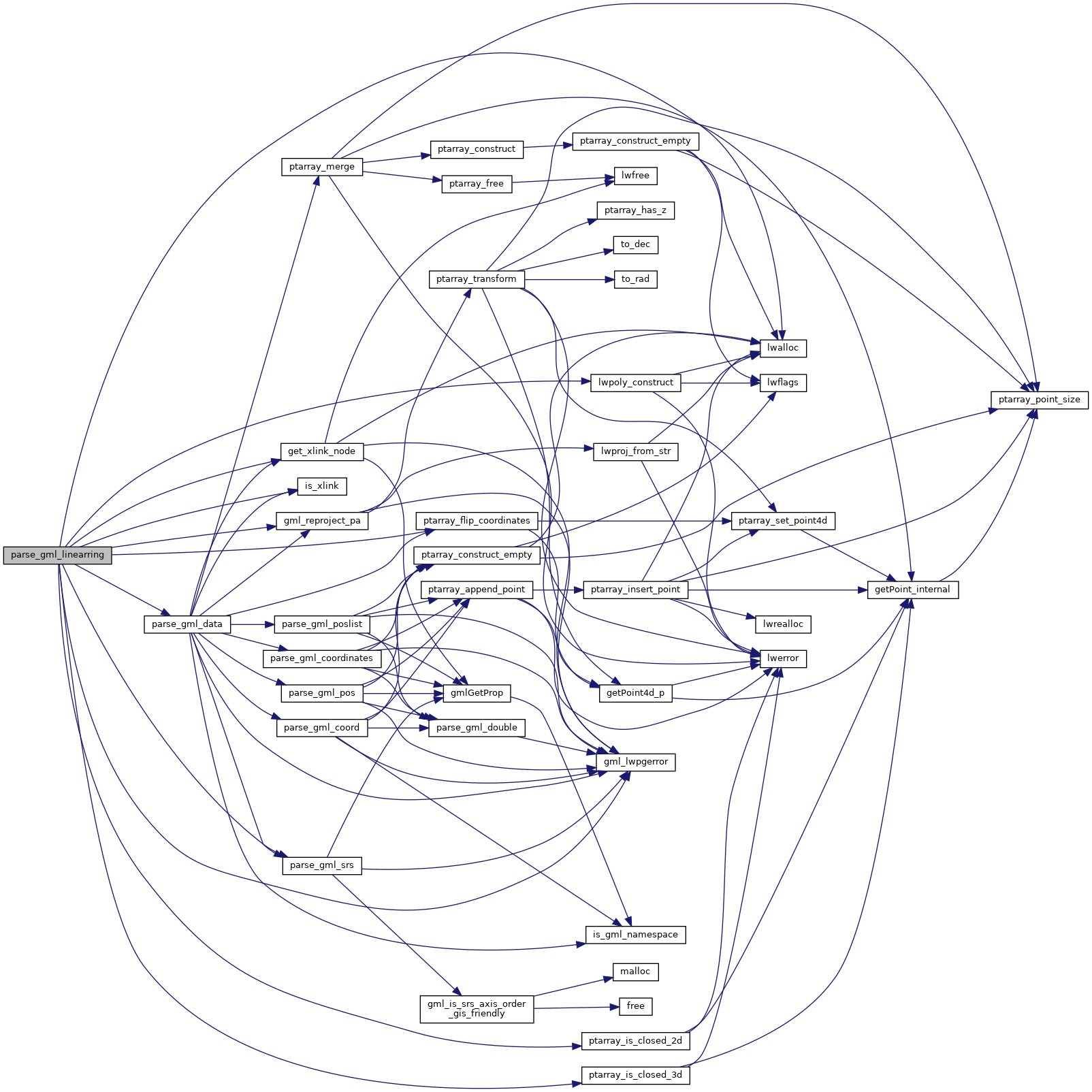

Here is the call graph for this function:

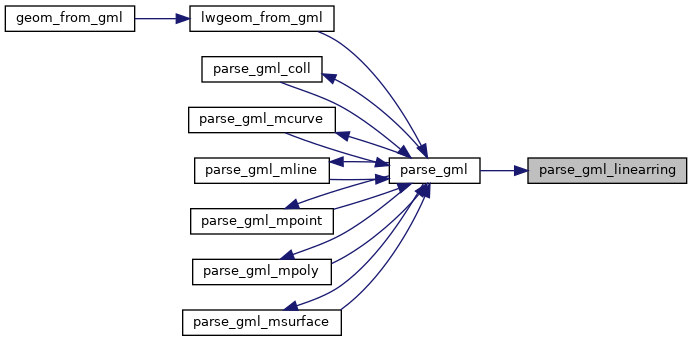

Here is the caller graph for this function:
