rt_raster_generate_new_band()

int rt_raster_generate_new_band	(	rt_raster	raster,
		rt_pixtype	pixtype,
		double	initialvalue,
		uint32_t	hasnodata,
		double	nodatavalue,
		int	index
	)

Generate a new inline band and add it to a raster.

Memory is allocated in this function for band data.

Parameters

raster	: the raster to add a band to
pixtype	: the pixel type for the new band
initialvalue	: initial value for pixels
hasnodata	: indicates if the band has a nodata value
nodatavalue	: nodata value for the new band
index	: position to add the new band in the raster

Returns

identifier (position) for the just-added raster, or -1 on error

Definition at line 489 of file rt_raster.c.

  {
    rt_band band = NULL;
    int width = 0;
    int height = 0;
    int numval = 0;
    int datasize = 0;
    int oldnumbands = 0;
    int numbands = 0;
    void * mem = NULL;
    int32_t checkvalint = 0;
    uint32_t checkvaluint = 0;
    double checkvaldouble = 0;
    float checkvalfloat = 0;
    int i;


    assert(NULL != raster);

    /* Make sure index is in a valid range */
    oldnumbands = rt_raster_get_num_bands(raster);
    if (index < 0)
        index = 0;
    else if (index > oldnumbands + 1)
        index = oldnumbands + 1;

    /* Determine size of memory block to allocate and allocate it */
    width = rt_raster_get_width(raster);
    height = rt_raster_get_height(raster);
    numval = width * height;
    datasize = rt_pixtype_size(pixtype) * numval;

    mem = (int *)rtalloc(datasize);
    if (!mem) {
        rterror("rt_raster_generate_new_band: Could not allocate memory for band");
        return -1;
    }

    if (FLT_EQ(initialvalue, 0.0))
        memset(mem, 0, datasize);
    else {
        switch (pixtype)
        {
            case PT_1BB:
            {
                uint8_t *ptr = mem;
                uint8_t clamped_initval = rt_util_clamp_to_1BB(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_2BUI:
            {
                uint8_t *ptr = mem;
                uint8_t clamped_initval = rt_util_clamp_to_2BUI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_4BUI:
            {
                uint8_t *ptr = mem;
                uint8_t clamped_initval = rt_util_clamp_to_4BUI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_8BSI:
            {
                int8_t *ptr = mem;
                int8_t clamped_initval = rt_util_clamp_to_8BSI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_8BUI:
            {
                uint8_t *ptr = mem;
                uint8_t clamped_initval = rt_util_clamp_to_8BUI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_16BSI:
            {
                int16_t *ptr = mem;
                int16_t clamped_initval = rt_util_clamp_to_16BSI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_16BUI:
            {
                uint16_t *ptr = mem;
                uint16_t clamped_initval = rt_util_clamp_to_16BUI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_32BSI:
            {
                int32_t *ptr = mem;
                int32_t clamped_initval = rt_util_clamp_to_32BSI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalint = ptr[0];
                break;
            }
            case PT_32BUI:
            {
                uint32_t *ptr = mem;
                uint32_t clamped_initval = rt_util_clamp_to_32BUI(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvaluint = ptr[0];
                break;
            }
            case PT_32BF:
            {
                float *ptr = mem;
                float clamped_initval = rt_util_clamp_to_32F(initialvalue);
                for (i = 0; i < numval; i++)
                    ptr[i] = clamped_initval;
                checkvalfloat = ptr[0];
                break;
            }
            case PT_64BF:
            {
                double *ptr = mem;
                for (i = 0; i < numval; i++)
                    ptr[i] = initialvalue;
                checkvaldouble = ptr[0];
                break;
            }
            default:
            {
                rterror("rt_raster_generate_new_band: Unknown pixeltype %d", pixtype);
                rtdealloc(mem);
                return -1;
            }
        }
    }

    /* Overflow checking */
    rt_util_dbl_trunc_warning(
                        initialvalue,
                        checkvalint, checkvaluint,
                        checkvalfloat, checkvaldouble,
                        pixtype
                );

    band = rt_band_new_inline(width, height, pixtype, hasnodata, nodatavalue, mem);
    if (! band) {
        rterror("rt_raster_generate_new_band: Could not add band to raster. Aborting");
        rtdealloc(mem);
        return -1;
    }
                rt_band_set_ownsdata_flag(band, 1); /* we DO own this data!!! */
    index = rt_raster_add_band(raster, band, index);
    numbands = rt_raster_get_num_bands(raster);
    if (numbands == oldnumbands || index == -1) {
        rterror("rt_raster_generate_new_band: Could not add band to raster. Aborting");
        rt_band_destroy(band);
    }

                /* set isnodata if hasnodata = TRUE and initial value = nodatavalue */
                if (hasnodata && FLT_EQ(initialvalue, nodatavalue))
                        rt_band_set_isnodata_flag(band, 1);

    return index;
}

References ovdump::band, FLT_EQ, PT_16BSI, PT_16BUI, PT_1BB, PT_2BUI, PT_32BF, PT_32BSI, PT_32BUI, PT_4BUI, PT_64BF, PT_8BSI, PT_8BUI, rtrowdump::raster, rt_band_destroy(), rt_band_new_inline(), rt_band_set_isnodata_flag(), rt_band_set_ownsdata_flag(), rt_pixtype_size(), rt_raster_add_band(), rt_raster_get_height(), rt_raster_get_num_bands(), rt_raster_get_width(), rt_util_clamp_to_16BSI(), rt_util_clamp_to_16BUI(), rt_util_clamp_to_1BB(), rt_util_clamp_to_2BUI(), rt_util_clamp_to_32BSI(), rt_util_clamp_to_32BUI(), rt_util_clamp_to_32F(), rt_util_clamp_to_4BUI(), rt_util_clamp_to_8BSI(), rt_util_clamp_to_8BUI(), rt_util_dbl_trunc_warning(), rtalloc(), rtdealloc(), and rterror().

Referenced by RASTER_addBand(), RASTER_clip(), RASTER_mapAlgebra2(), RASTER_mapAlgebraExpr(), RASTER_mapAlgebraFct(), RASTER_mapAlgebraFctNgb(), RASTER_tile(), RASTER_union_transfn(), rt_raster_from_gdal_dataset(), rt_raster_iterator(), and test_raster_get_pixel_bilinear().

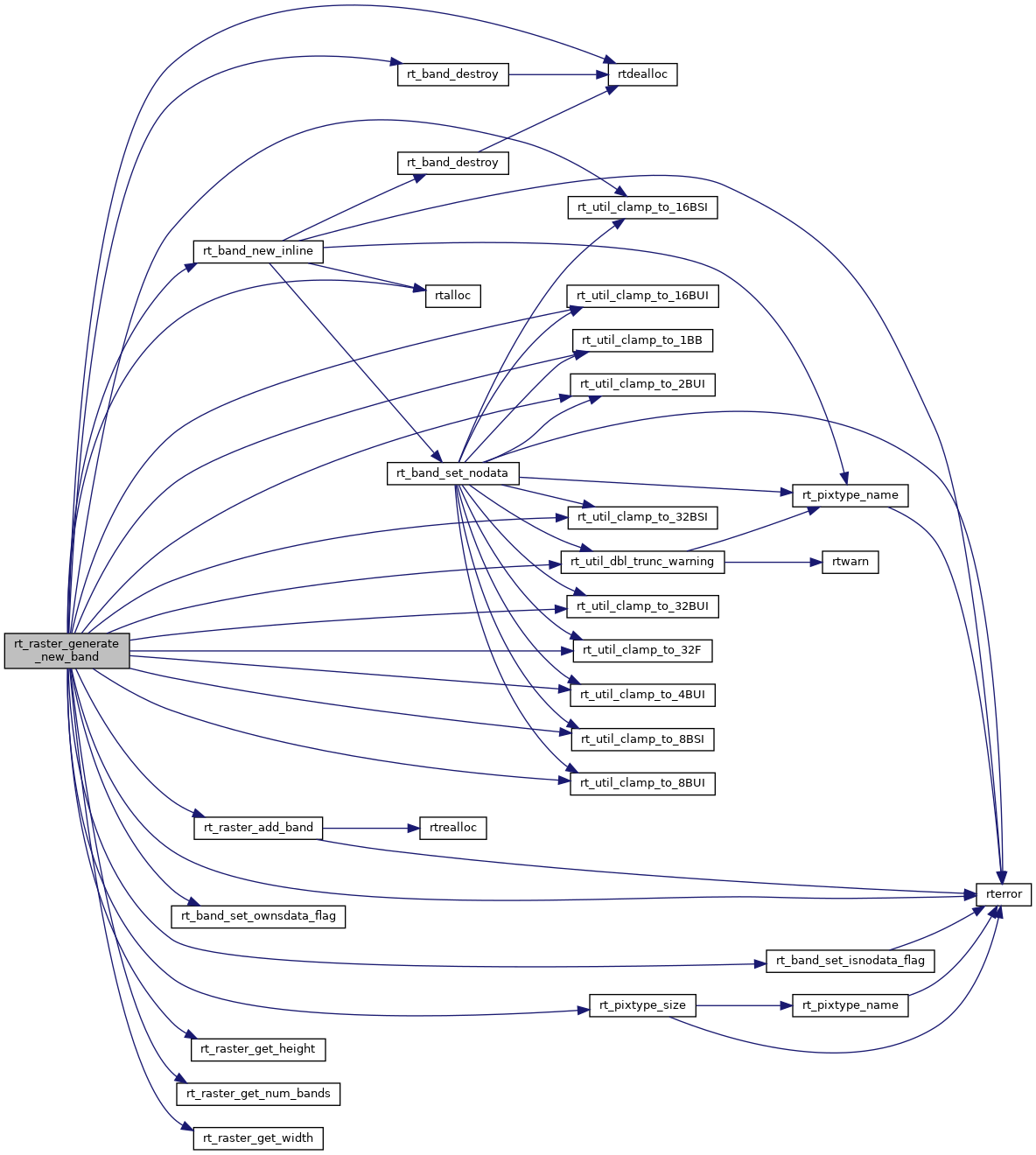

Here is the call graph for this function:

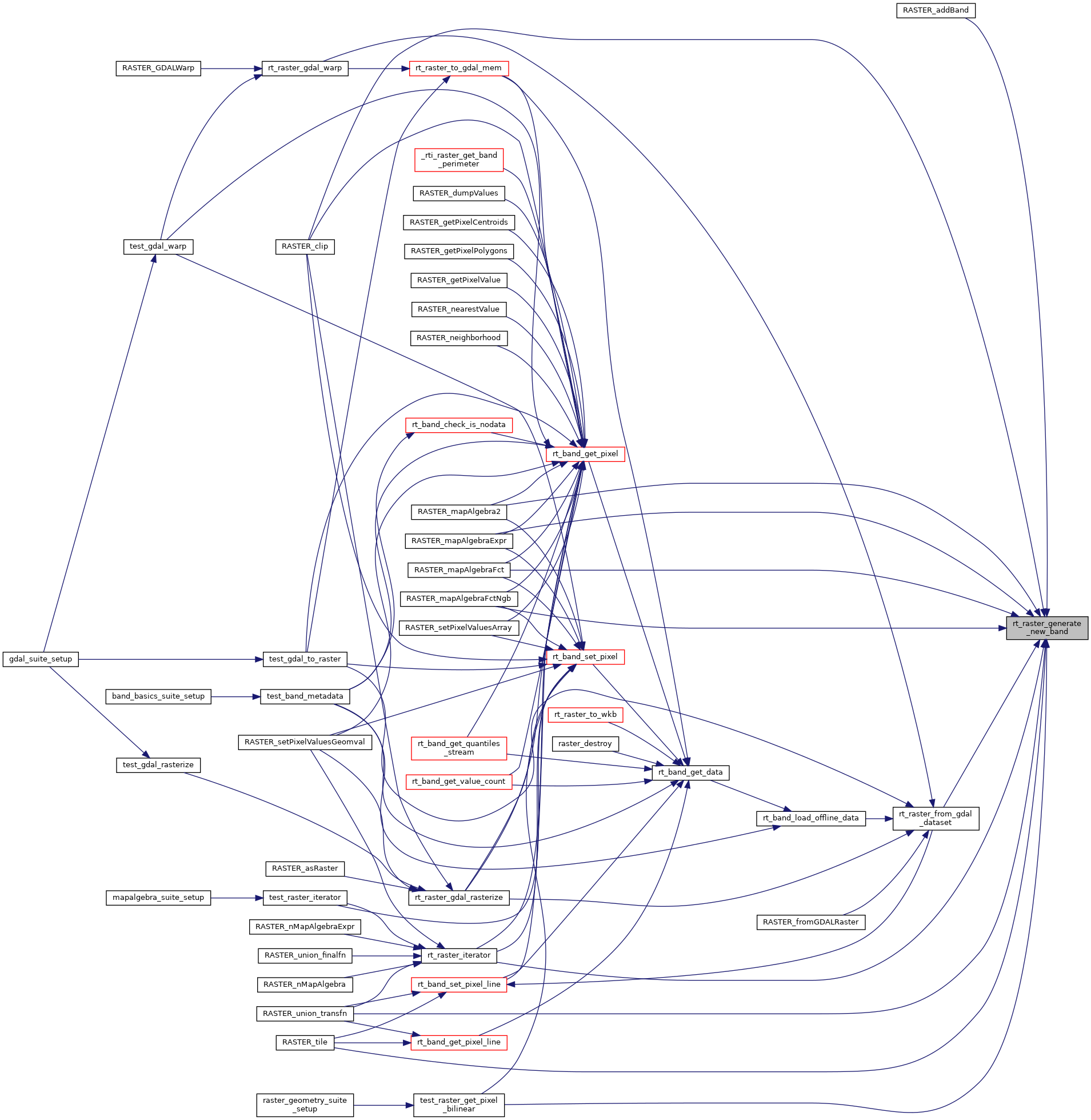

Here is the caller graph for this function:
