wkblify_raster_level()

def raster2pgsql.wkblify_raster_level	(		options,
			ds,
			level,
			band_range,
			infile,
			i
	)

Definition at line 830 of file raster2pgsql.py.

def wkblify_raster_level(options, ds, level, band_range, infile, i):
    assert ds is not None
    assert level >= 1
    assert len(band_range) == 2

    band_from = band_range[0]
    band_to = band_range[1]

    # Collect raster and block dimensions
    raster_size = ( ds.RasterXSize, ds.RasterYSize )
    if options.block_size is not None:
        block_size = parse_block_size(options)
        read_block_size = ( block_size[0] * level, block_size[1] * level)
        grid_size = calculate_grid_size(raster_size, read_block_size)
    else:
        block_size = raster_size # Whole raster as a single block
        read_block_size = block_size
        grid_size = (1, 1)

    logit("MSG: Processing raster=%s using read_block_size=%s block_size=%s of grid=%s in level=%d\n" % \
          (str(raster_size), str(read_block_size), str(block_size), str(grid_size), level))

    # Register base raster in RASTER_COLUMNS - SELECT AddRasterColumn();
    if level == 1:
        if i == 0 and options.create_table:
            gt = get_gdal_geotransform(ds)
            pixel_size = ( gt[1], gt[5] )
            pixel_types = collect_pixel_types(ds, band_from, band_to)
            nodata_values = collect_nodata_values(ds, band_from, band_to)
            extent = calculate_bounding_box(ds, gt)
            sql = make_sql_addrastercolumn(options, pixel_types, nodata_values,
                                           pixel_size, block_size, extent)
            options.output.write(sql)
        gen_table = options.table

    else:
        # Create overview table and register in RASTER_OVERVIEWS

        # CREATE TABLE o_<LEVEL>_<NAME> ( rid serial, options.column RASTER )
        schema_table_names = make_sql_schema_table_names(options.table)
        level_table_name = 'o_' + str(level) + '_' + schema_table_names[1]
        level_table = schema_table_names[0] + '.' + level_table_name
        if i == 0:
            sql = make_sql_create_table(options, level_table, True)
            options.output.write(sql)
            sql = make_sql_register_overview(options, level_table_name, level)
            options.output.write(sql)
        gen_table = level_table

    # Write (original) raster to hex binary output
    tile_count = 0
    hexwkb = ''

    for ycell in range(0, grid_size[1]):
        for xcell in range(0, grid_size[0]):

            xoff = xcell * read_block_size[0]
            yoff = ycell * read_block_size[1]

            logit("MSG: --------- CELL #%04d\tindex = %d x %d\tdim = (%d x %d)\t(%d x %d) \t---------\n" % \
                  (tile_count, xcell, ycell, xoff, yoff, xoff + read_block_size[0], yoff + read_block_size[1]))

            if options.block_size is not None:
                hexwkb = '' # Reset buffer as single INSERT per tile is generated
                hexwkb += wkblify_raster_header(options, ds, level, (xoff, yoff),
                                                block_size[0], block_size[1])
            else:
                hexwkb += wkblify_raster_header(options, ds, level, (xoff, yoff))

            for b in range(band_from, band_to):
                band = ds.GetRasterBand(b)
                assert band is not None, "Missing GDAL raster band %d" % b
                logit("MSG: Band %d\n" % b)

                hexwkb += wkblify_band_header(options, band)
                hexwkb += wkblify_band(options, band, level, xoff, yoff, read_block_size, block_size, infile, b)

            # INSERT INTO
            check_hex(hexwkb) # TODO: Remove to not to decrease performance
            sql = make_sql_insert_raster(gen_table, options.column, hexwkb, options.filename, infile)
            options.output.write(sql)

            tile_count = tile_count + 1

    return (gen_table, tile_count)


References calculate_bounding_box(), calculate_grid_size(), check_hex(), collect_nodata_values(), collect_pixel_types(), get_gdal_geotransform(), logit(), make_sql_addrastercolumn(), make_sql_create_table(), make_sql_insert_raster(), make_sql_register_overview(), make_sql_schema_table_names(), parse_block_size(), str, wkblify_band(), wkblify_band_header(), and wkblify_raster_header().

Referenced by wkblify_raster().

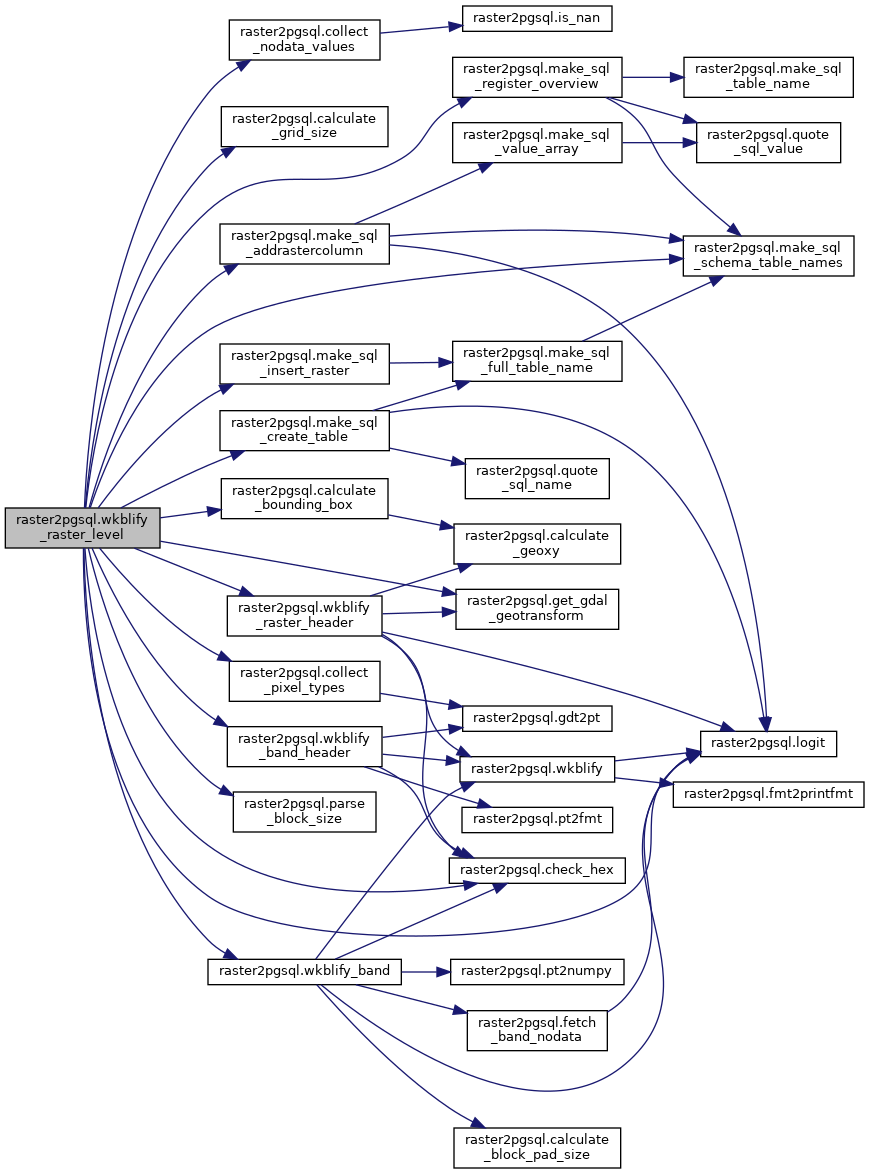

Here is the call graph for this function:

Here is the caller graph for this function:
