11. Spatial Relationships

So far we have only used spatial functions that measure (ST_Area, ST_Length), serialize (ST_GeomFromText) or deserialize (ST_AsGML) geometries. What these functions have in common is that they only work on one geometry at a time.

Spatial databases are powerful because they not only store geometry, they also have the ability to compare relationships between geometries.

Questions like “Which are the closest bike racks to a park?” or “Where are the intersections of subway lines and streets?” can only be answered by comparing geometries representing the bike racks, streets, and subway lines.

The OGC standard defines the following set of methods to compare geometries.

11.1. ST_Equals

ST_Equals(geometry A, geometry B) tests the spatial equality of two geometries.

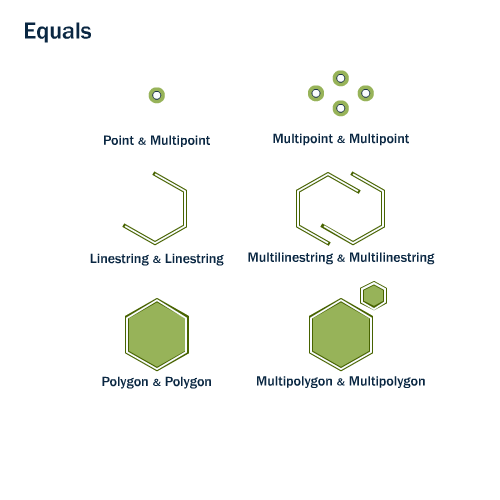

_images/st_equals.png

ST_Equals returns TRUE if two geometries of the same type have identical x,y coordinate values, i.e. if the second shape is equal (identical) to the first shape.

First, let’s retrieve a representation of a point from our nyc_subway_stations table. We’ll take just the entry for ‘Broad St’.

SELECT name, geom
FROM nyc_subway_stations
WHERE name = 'Broad St';
   name   |                      geom
----------+---------------------------------------------------
 Broad St | 0101000020266900000EEBD4CF27CF2141BC17D69516315141

Then, plug the geometry representation back into an ST_Equals test:

SELECT name
FROM nyc_subway_stations
WHERE ST_Equals(
  geom,
  '0101000020266900000EEBD4CF27CF2141BC17D69516315141');
Broad St

Note

The representation of the point was not very human readable (0101000020266900000EEBD4CF27CF2141BC17D69516315141) but it was an exact representation of the coordinate values. For a test like equality, using the exact coordinates is necessary.

11.2. ST_Intersects, ST_Disjoint, ST_Crosses and ST_Overlaps

ST_Intersects, ST_Crosses, and ST_Overlaps test whether the interiors of the geometries intersect.

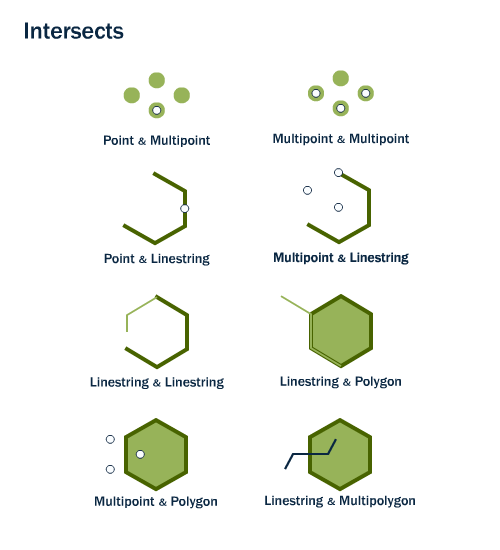

_images/st_intersects.png

ST_Intersects(geometry A, geometry B) returns t (TRUE) if the two shapes have any space in common, i.e., if their boundaries or interiors intersect.

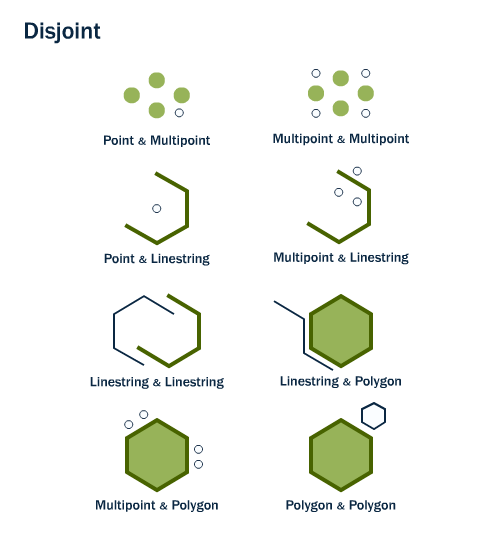

_images/st_disjoint.png

The opposite of ST_Intersects is ST_Disjoint(geometry A , geometry B). If two geometries are disjoint, they do not intersect, and vice-versa. In fact, it is often more efficient to test “not intersects” than to test “disjoint” because the intersects tests can be spatially indexed, while the disjoint test cannot.

_images/st_crosses.png

For multipoint/polygon, multipoint/linestring, linestring/linestring, linestring/polygon, and linestring/multipolygon comparisons, ST_Crosses(geometry A, geometry B) returns t (TRUE) if the intersection results in a geometry whose dimension is one less than the maximum dimension of the two source geometries and the intersection set is interior to both source geometries.

_images/st_overlaps.png

ST_Overlaps(geometry A, geometry B) compares two geometries of the same dimension and returns TRUE if their intersection set results in a geometry different from both but of the same dimension.

Let’s take our Broad Street subway station and determine its neighborhood using the ST_Intersects function:

SELECT name, ST_AsText(geom)
FROM nyc_subway_stations
WHERE name = 'Broad St';
POINT(583571 4506714)
SELECT name, boroname
FROM nyc_neighborhoods
WHERE ST_Intersects(geom, ST_GeomFromText('POINT(583571 4506714)',26918));
        name        | boroname
--------------------+-----------
 Financial District | Manhattan

11.3. ST_Touches

ST_Touches tests whether two geometries touch at their boundaries, but do not intersect in their interiors

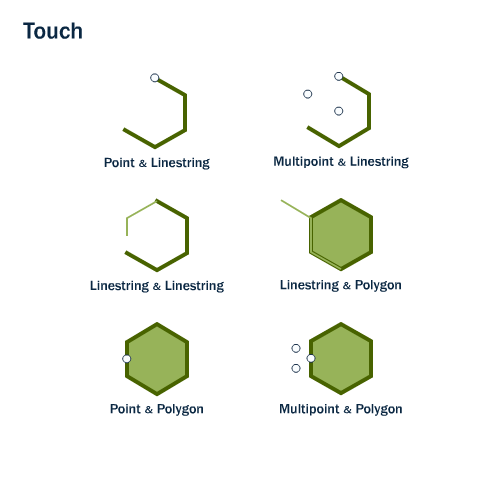

_images/st_touches.png

ST_Touches(geometry A, geometry B) returns TRUE if either of the geometries’ boundaries intersect or if only one of the geometry’s interiors intersects the other’s boundary.

11.4. ST_Within and ST_Contains

ST_Within and ST_Contains test whether one geometry is fully within the other.

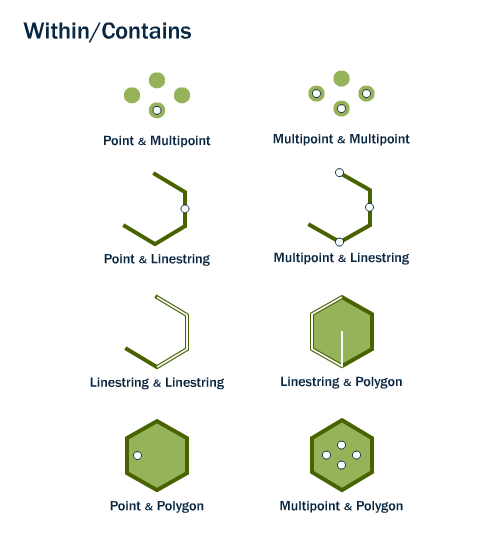

_images/st_within.png

ST_Within(geometry A , geometry B) returns TRUE if the first geometry is completely within the second geometry. ST_Within tests for the exact opposite result of ST_Contains.

ST_Contains(geometry A, geometry B) returns TRUE if the second geometry is completely contained by the first geometry.

11.5. ST_Distance and ST_DWithin

An extremely common GIS question is “find all the stuff within distance X of this other stuff”.

The ST_Distance(geometry A, geometry B) calculates the shortest distance between two geometries and returns it as a float. This is useful for actually reporting back the distance between objects.

SELECT ST_Distance(
  ST_GeometryFromText('POINT(0 5)'),
  ST_GeometryFromText('LINESTRING(-2 2, 2 2)'));
3

For testing whether two objects are within a distance of one another, the ST_DWithin function provides an index-accelerated true/false test. This is useful for questions like “how many trees are within a 500 meter buffer of the road?”. You don’t have to calculate an actual buffer, you just have to test the distance relationship.

_images/st_dwithin.png

Using our Broad Street subway station again, we can find the streets nearby (within 10 meters of) the subway stop:

SELECT name
FROM nyc_streets
WHERE ST_DWithin(
        geom,
        ST_GeomFromText('POINT(583571 4506714)',26918),
        10
      );
     name
--------------
   Wall St
   Broad St
   Nassau St

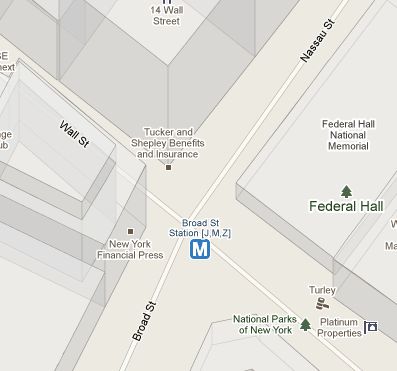

And we can verify the answer on a map. The Broad St station is actually at the intersection of Wall, Broad and Nassau Streets.

_images/broad_st.jpg

11.6. Function List

ST_Contains(geometry A, geometry B): Returns true if and only if no points of B lie in the exterior of A, and at least one point of the interior of B lies in the interior of A.

ST_Crosses(geometry A, geometry B): Returns TRUE if the supplied geometries have some, but not all, interior points in common.

ST_Disjoint(geometry A , geometry B): Returns TRUE if the Geometries do not “spatially intersect” - if they do not share any space together.

ST_Distance(geometry A, geometry B): Returns the 2-dimensional cartesian minimum distance (based on spatial ref) between two geometries in projected units.

ST_DWithin(geometry A, geometry B, radius): Returns true if the geometries are within the specified distance (radius) of one another.

ST_Equals(geometry A, geometry B): Returns true if the given geometries represent the same geometry. Directionality is ignored.

ST_Intersects(geometry A, geometry B): Returns TRUE if the Geometries/Geography “spatially intersect” - (share any portion of space) and FALSE if they don’t (they are Disjoint).

ST_Overlaps(geometry A, geometry B): Returns TRUE if the Geometries share space, are of the same dimension, but are not completely contained by each other.

ST_Touches(geometry A, geometry B): Returns TRUE if the geometries have at least one point in common, but their interiors do not intersect.

ST_Within(geometry A , geometry B): Returns true if the geometry A is completely inside geometry B
