ST_PixelWidth
Précédent  11.4. Fonctions d'accès aux rasters  Suivant

Nom

ST_PixelWidth — Retourne la largeur d'un pixel, dans l'unité du système de référence spatial.

Synopsis

double precision ST_PixelWidth(raster rast);

Description

Retourne la largeur d'un pixel, dans l'unité du système de référence spatial. Dans le cas général où il n'y a pas d'obliquité (skew), la largeur d'un pixel est simplement l'échelle entre les coordonnées géométriques et les pixels rasters.

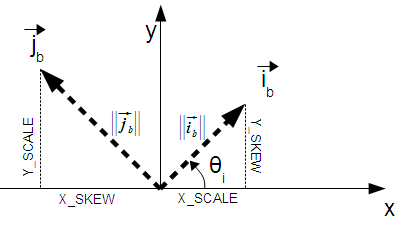

The following executable example draws the two pixel basis vectors on the same coordinate frame as a skewed raster footprint. The i direction vector is (scaleX, skewY); the j direction vector is (skewX, scaleY).

Exemples

Pixel basis vectors and footprint for a raster with non-zero skew.

Code
WITH raster AS (
    SELECT ST_MakeEmptyRaster(
        3, 3, 0, 0,
        2, -3, 1, 0.5,
        0
    ) AS rast
)
SELECT
    ST_ConvexHull(rast) AS footprint,
    ST_MakeLine(
        ST_Point(0, 0),
        ST_Point(ST_ScaleX(rast), ST_SkewY(rast))
    ) AS "i direction (scaleX, skewY)",
    ST_MakeLine(
        ST_Point(0, 0),
        ST_Point(ST_SkewX(rast), ST_ScaleY(rast))
    ) AS "j direction (skewX, scaleY)"
FROM raster;
Export de raster
POLYGON((0 0,6 1.5,9 -7.5,3 -9,0 0)) | LINESTRING(0 0,2 0.5) | LINESTRING(0 0,1 -3)
Figure
Geometry figure for visual-rt-st-pixelwidth-01

Rasters with no skew.

Code
SELECT ST_Width(rast) As rastwidth, ST_PixelWidth(rast) As pixwidth,
ST_ScaleX(rast) As scalex, ST_ScaleY(rast) As scaley, ST_SkewX(rast) As skewx,
ST_SkewY(rast) As skewy
FROM dummy_rast;
Export de raster
rastwidth | pixwidth | scalex | scaley | skewx | skewy
-----------+----------+--------+--------+-------+----------
10 |        2 |      2 |      3 |     0 |        0
 5 |     0.05 |   0.05 |  -0.05 |     0 |        0

Rasters with skew different than 0.

Code
SELECT ST_Width(rast) As rastwidth, ST_PixelWidth(rast) As pixwidth,
ST_ScaleX(rast) As scalex, ST_ScaleY(rast) As scaley, ST_SkewX(rast) As skewx,
ST_SkewY(rast) As skewy
FROM (SELECT ST_SetSkew(rast, 0.5, 0.5) As rast
FROM dummy_rast) As skewed;
Export de raster
rastwidth |     pixwidth      | scalex | scaley | skewx | skewy
-----------+-------------------+--------+--------+-------+----------
10 |  2.06155281280883 |      2 |      3 |   0.5 |      0.5
 5 | 0.502493781056044 |   0.05 |  -0.05 |   0.5 |      0.5
