lwmsurface_to_wkt_sb()

static void lwmsurface_to_wkt_sb ( const LWMSURFACE *  msurf, stringbuffer_t *  sb, int  precision, uint8_t  variant  )

static

Definition at line 463 of file lwout_wkt.c.

{
        uint32_t i = 0;

        if ( ! (variant & WKT_NO_TYPE) )
        {
                stringbuffer_append_len(sb, "MULTISURFACE", 12); /* "MULTISURFACE" */
                dimension_qualifiers_to_wkt_sb((LWGEOM*)msurf, sb, variant);
        }
        if ( msurf->ngeoms < 1 )
        {
                empty_to_wkt_sb(sb);
                return;
        }
        stringbuffer_append_len(sb, "(", 1);
        variant = variant | WKT_IS_CHILD; /* Inform the sub-geometries they are childre */
        for ( i = 0; i < msurf->ngeoms; i++ )
        {
                int type = msurf->geoms[i]->type;
                if ( i > 0 )
                        stringbuffer_append_len(sb, ",", 1);
                switch (type)
                {
                case POLYGONTYPE:
                        /* Linestring subgeoms don't get type identifiers */
                        lwpoly_to_wkt_sb((LWPOLY*)msurf->geoms[i], sb, precision, variant | WKT_NO_TYPE );
                        break;
                case CURVEPOLYTYPE:
                        /* But circstring subgeoms *do* get type identifiers */
                        lwcurvepoly_to_wkt_sb((LWCURVEPOLY*)msurf->geoms[i], sb, precision, variant);
                        break;
                default:
                        lwerror("lwmsurface_to_wkt_sb: Unknown type received %d - %s", type, lwtype_name(type));
                }
        }
        stringbuffer_append_len(sb, ")", 1);
}

References CURVEPOLYTYPE, dimension_qualifiers_to_wkt_sb(), empty_to_wkt_sb(), LWMSURFACE::geoms, lwcurvepoly_to_wkt_sb(), lwerror(), lwpoly_to_wkt_sb(), lwtype_name(), LWMSURFACE::ngeoms, POLYGONTYPE, precision, stringbuffer_append_len(), LWGEOM::type, variant, WKT_IS_CHILD, and WKT_NO_TYPE.

Referenced by lwgeom_to_wkt_sb().

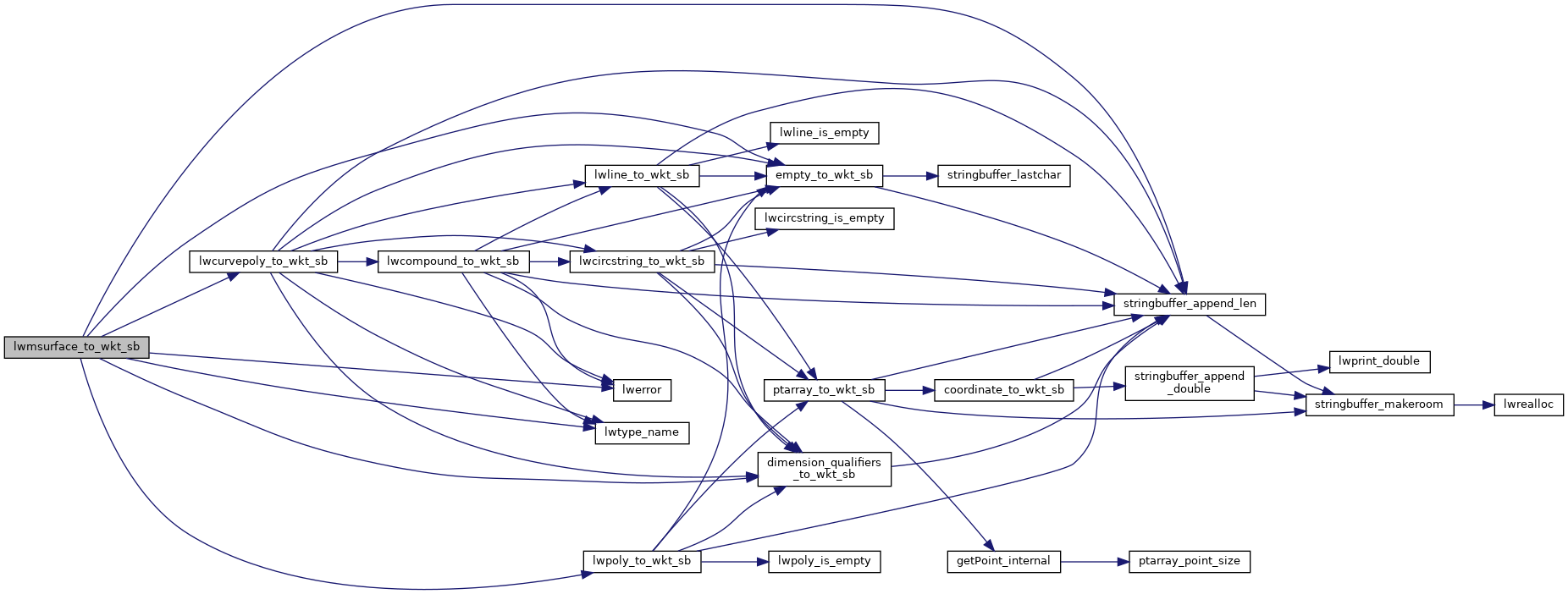

Here is the call graph for this function:

Here is the caller graph for this function:
