◆ test_tree_circ_pip()
|
static |
Definition at line 48 of file cu_tree.c.
49{
50 LWLINE *g;
51 CIRC_NODE *c;
52 POINT2D pt, pt_outside;
53 int rv, on_boundary;
54
55 pt.x = 0.0;
56 pt.y = 0.0;
57 pt_outside.x = -2.0;
58 pt_outside.y = 0.0;
59
60 /* Point in square */
61 g = lwgeom_as_lwline(lwgeom_from_wkt("LINESTRING(-1 -1,1 -1,1 1,-1 1,-1 -1)", LW_PARSER_CHECK_NONE));
63 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
64 CU_ASSERT_EQUAL(rv, 1);
65
66 /* Point on other side of square */
67 pt.x = 2.0;
68 pt.y = 0.0;
69 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
70 CU_ASSERT_EQUAL(rv, 0);
71
72 /* Clean and do new shape */
73 circ_tree_free(c);
74 lwline_free(g);
75
76 /* Point in square, stab passing through vertex */
77 pt.x = 0.0;
78 pt.y = 0.0;
79 g = lwgeom_as_lwline(lwgeom_from_wkt("LINESTRING(-1 -1,0 -1,1 -1,1 0,1 1,0 1,-1 1,-1 0,-1 -1)", LW_PARSER_CHECK_NONE));
81 //circ_tree_print(c, 0);
82 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
83 CU_ASSERT_EQUAL(rv, 1);
84
85 /* Point on other side of square, stab passing through vertex */
86 pt.x = 2.0;
87 pt.y = 0.0;
88 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
89 CU_ASSERT_EQUAL(rv, 0);
90
91 /* Clean and do new shape */
92 circ_tree_free(c);
93 lwline_free(g);
94
95 /* Point outside "w" thing, stab passing through vertices and grazing pointy thing */
96 pt.x = 2.0;
97 pt.y = 0.0;
98 g = lwgeom_as_lwline(lwgeom_from_wkt("LINESTRING(-1 -1,0 -1,1 -1,1 0,1 1,0 0,-1 1,-1 0,-1 -1)", LW_PARSER_CHECK_NONE));
100 //circ_tree_print(c, 0);
101 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
102 //printf("rv %d\n", rv);
103 CU_ASSERT_EQUAL(rv, 0);
104
105 /* Point inside "w" thing, stab passing through vertices and grazing pointy thing */
106 pt.x = 0.8;
107 pt.y = 0.0;
108 rv = circ_tree_contains_point(c, &pt, &pt_outside, 0, &on_boundary);
109 //printf("rv %d\n", rv);
110 CU_ASSERT_EQUAL(rv, 1);
111
112 /* Clean and do new shape */
113 circ_tree_free(c);
114 lwline_free(g);
115
116}
void circ_tree_free(CIRC_NODE *node)
Recurse from top of node tree and free all children.
Definition lwgeodetic_tree.c:49
CIRC_NODE * circ_tree_new(const POINTARRAY *pa)
Build a tree of nodes from a point array, one node per edge.
Definition lwgeodetic_tree.c:354
int circ_tree_contains_point(const CIRC_NODE *node, const POINT2D *pt, const POINT2D *pt_outside, int level, int *on_boundary)
Walk the tree and count intersections between the stab line and the edges.
Definition lwgeodetic_tree.c:494
Definition liblwgeom.h:481
Definition liblwgeom.h:389
Note that p1 and p2 are pointers into an independent POINTARRAY, do not free them.
Definition lwgeodetic_tree.h:37
References circ_tree_contains_point(), circ_tree_free(), circ_tree_new(), LW_PARSER_CHECK_NONE, lwgeom_as_lwline(), lwgeom_from_wkt(), lwline_free(), LWLINE::points, POINT2D::x, and POINT2D::y.
Referenced by tree_suite_setup().

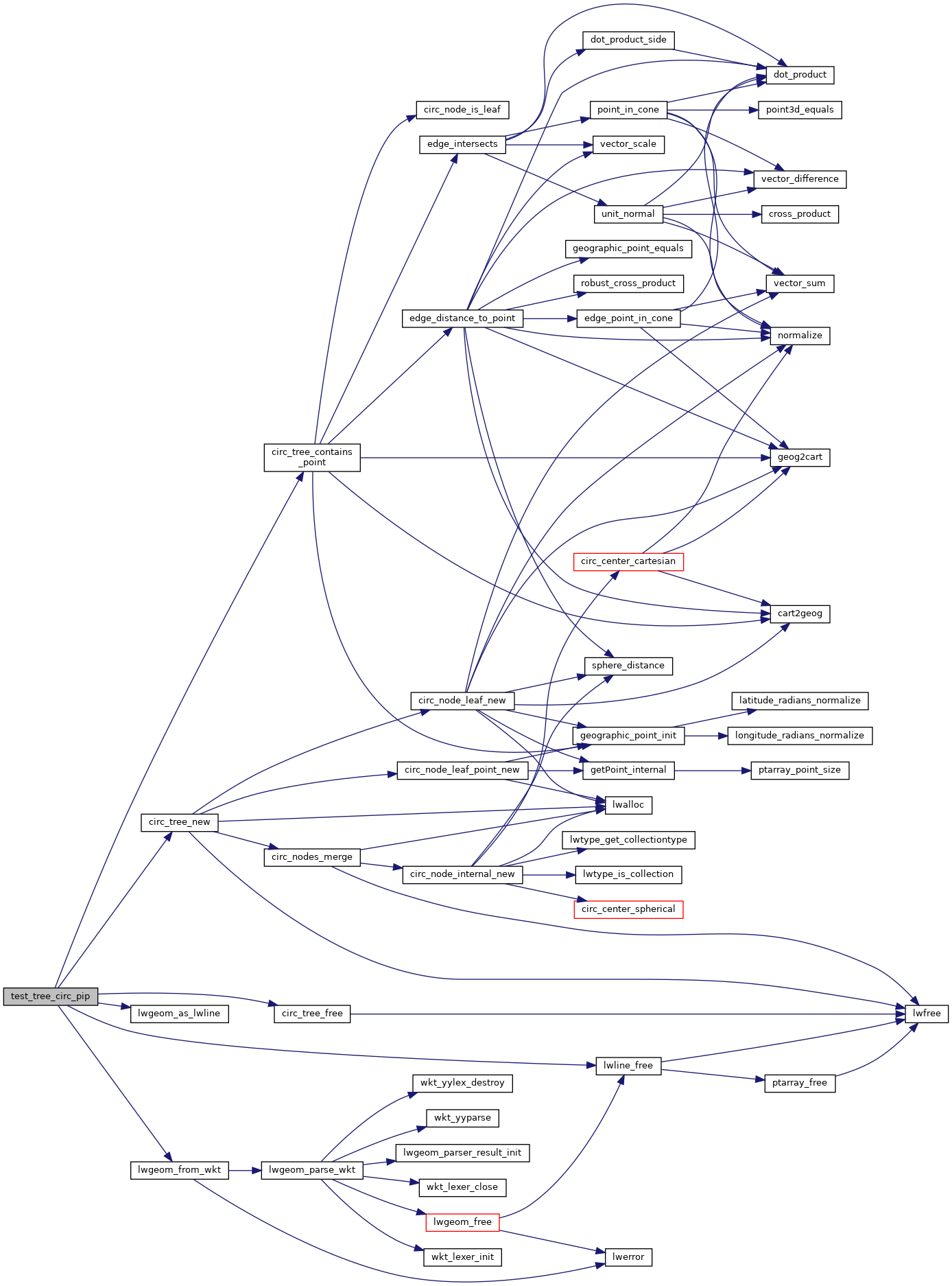

Here is the call graph for this function:
Here is the caller graph for this function:
