LWGEOM_dumppoints()

Datum LWGEOM_dumppoints

(

PG_FUNCTION_ARGS

)

Definition at line 76 of file lwgeom_dumppoints.c.

                                          {
        FuncCallContext *funcctx;
        MemoryContext oldcontext, newcontext;

        GSERIALIZED *pglwgeom;
        LWCOLLECTION *lwcoll;
        LWGEOM *lwgeom;
        struct dumpstate *state;
        struct dumpnode *node;

        HeapTuple tuple;
        Datum pathpt[2]; /* used to construct the composite return value */
        bool isnull[2] = {0,0}; /* needed to say neither value is null */
        Datum result; /* the actual composite return value */

        if (SRF_IS_FIRSTCALL()) {
                funcctx = SRF_FIRSTCALL_INIT();

                newcontext = funcctx->multi_call_memory_ctx;
                oldcontext = MemoryContextSwitchTo(newcontext);

                /* get a local copy of what we're doing a dump points on */
                pglwgeom = PG_GETARG_GSERIALIZED_P_COPY(0);
                lwgeom = lwgeom_from_gserialized(pglwgeom);

                /* return early if nothing to do */
                if (!lwgeom || lwgeom_is_empty(lwgeom)) {
                        MemoryContextSwitchTo(oldcontext);
                        funcctx = SRF_PERCALL_SETUP();
                        SRF_RETURN_DONE(funcctx);
                }

                /* Create function state */
                state = lwalloc(sizeof *state);
                state->root = lwgeom;
                state->stacklen = 0;
                state->pathlen = 0;
                state->pt = 0;
                state->ring = 0;

                funcctx->user_fctx = state;

                /*
                 * Push a struct dumpnode on the state stack
                 */

                state->stack[0].idx = 0;
                state->stack[0].geom = lwgeom;
                state->stacklen++;

                /*
                 * get tuple description for return type
                 */
                if (get_call_result_type(fcinfo, 0, &funcctx->tuple_desc) != TYPEFUNC_COMPOSITE) {
                        ereport(ERROR, (errcode(ERRCODE_FEATURE_NOT_SUPPORTED),
                                errmsg("set-valued function called in context that cannot accept a set")));
                }

                BlessTupleDesc(funcctx->tuple_desc);

                /* get and cache data for constructing int4 arrays */
                get_typlenbyvalalign(INT4OID, &state->typlen, &state->byval, &state->align);

                MemoryContextSwitchTo(oldcontext);
        }

        /* stuff done on every call of the function */
        funcctx = SRF_PERCALL_SETUP();
        newcontext = funcctx->multi_call_memory_ctx;

        /* get state */
        state = funcctx->user_fctx;

        while (1) {
                node = &state->stack[state->stacklen-1];
                lwgeom = node->geom;

                /* need to return a point from this geometry */
                if (!lwgeom_is_collection(lwgeom) ) {
                        /* either return a point, or pop the stack */
                        /* TODO use a union?  would save a tiny amount of stack space.
                         * probably not worth the bother
                         */
                        LWLINE  *line;
                        LWCIRCSTRING *circ;
                        LWPOLY  *poly;
                        LWTRIANGLE      *tri;
                        LWPOINT *lwpoint = NULL;
                        POINT4D pt;

                        if ( !lwgeom_is_empty(lwgeom) ) {
                                /*
                                * net result of switch should be to set lwpoint to the
                                * next point to return, or leave at NULL if there
                                * are no more points in the geometry
                                */
                                switch(lwgeom->type) {
                                        case TRIANGLETYPE:
                                                tri = lwgeom_as_lwtriangle(lwgeom);
                                                if (state->pt == 0) {
                                                        state->path[state->pathlen++] = Int32GetDatum(state->ring+1);
                                                }
                                                if (state->pt <= 3) {
                                                        getPoint4d_p(tri->points, state->pt, &pt);
                                                        lwpoint = lwpoint_make(tri->srid,
                                                                        lwgeom_has_z(lwgeom),
                                                                        lwgeom_has_m(lwgeom),
                                                                        &pt);
                                                }
                                                if (state->pt > 3) {
                                                        state->pathlen--;
                                                }
                                                break;
                                        case POLYGONTYPE:
                                                poly = lwgeom_as_lwpoly(lwgeom);
                                                if (state->pt == poly->rings[state->ring]->npoints) {
                                                        state->pt = 0;
                                                        state->ring++;
                                                        state->pathlen--;
                                                }
                                                if (state->pt == 0 && state->ring < poly->nrings) {
                                                        /* handle new ring */
                                                        state->path[state->pathlen] = Int32GetDatum(state->ring+1);
                                                        state->pathlen++;
                                                }
                                                                        if (state->ring == poly->nrings) {
                                                } else {
                                                /* TODO should be able to directly get the point
                                                * into the point array of a fixed lwpoint
                                                */
                                                /* can't get the point directly from the ptarray because
                                                * it might be aligned wrong, so at least one memcpy
                                                * seems unavoidable
                                                * It might be possible to pass it directly to gserialized
                                                * depending how that works, it might effectively be gserialized
                                                * though a brief look at the code indicates not
                                                */
                                                        getPoint4d_p(poly->rings[state->ring], state->pt, &pt);
                                                        lwpoint = lwpoint_make(poly->srid,
                                                                        lwgeom_has_z(lwgeom),
                                                                        lwgeom_has_m(lwgeom),
                                                                        &pt);
                                                }
                                                break;
                                        case POINTTYPE:
                                                if (state->pt == 0) lwpoint = lwgeom_as_lwpoint(lwgeom);
                                                break;
                                        case LINETYPE:
                                                line = lwgeom_as_lwline(lwgeom);
                                                if (line->points && state->pt <= line->points->npoints) {
                                                        lwpoint = lwline_get_lwpoint((LWLINE*)lwgeom, state->pt);
                                                }
                                                break;
                                        case CIRCSTRINGTYPE:
                                                circ = lwgeom_as_lwcircstring(lwgeom);
                                                if (circ->points && state->pt <= circ->points->npoints) {
                                                        lwpoint = lwcircstring_get_lwpoint((LWCIRCSTRING*)lwgeom, state->pt);
                                                }
                                                break;
                                        default:
                                                ereport(ERROR, (errcode(ERRCODE_DATA_EXCEPTION),
                                                        errmsg("Invalid Geometry type %d passed to ST_DumpPoints()", lwgeom->type)));
                                }
                        }

                        /*
                         * At this point, lwpoint is either NULL, in which case
                         * we need to pop the geometry stack and get the next
                         * geometry, if any, or lwpoint is set and we construct
                         * a record type with the integer array of geometry
                         * indexes and the point number, and the actual point
                         * geometry itself
                         */

                        if (!lwpoint) {
                                /* no point, so pop the geom and look for more */
                                if (--state->stacklen == 0) SRF_RETURN_DONE(funcctx);
                                state->pathlen--;
                                continue;
                        } else {
                                /* write address of current geom/pt */
                                state->pt++;

                                state->path[state->pathlen] = Int32GetDatum(state->pt);
                                pathpt[0] = PointerGetDatum(construct_array(state->path, state->pathlen+1,
                                                INT4OID, state->typlen, state->byval, state->align));

                                pathpt[1] = PointerGetDatum(geometry_serialize((LWGEOM*)lwpoint));

                                tuple = heap_form_tuple(funcctx->tuple_desc, pathpt, isnull);
                                result = HeapTupleGetDatum(tuple);
                                SRF_RETURN_NEXT(funcctx, result);
                        }
                }

                lwcoll = (LWCOLLECTION*)node->geom;

                /* if a collection and we have more geoms */
                if (node->idx < lwcoll->ngeoms) {

                        if(state->stacklen >= MAXDEPTH)
                                elog(ERROR, "Unable to dump overly nested collection");

                        /* push the next geom on the path and the stack */
                        lwgeom = lwcoll->geoms[node->idx++];
                        state->path[state->pathlen++] = Int32GetDatum(node->idx);

                        node = &state->stack[state->stacklen++];
                        node->idx = 0;
                        node->geom = lwgeom;

                        state->pt = 0;
                        state->ring = 0;

                        /* loop back to beginning, which will then check whatever node we just pushed */
                        continue;
                }

                /* no more geometries in the current collection */
                if (--state->stacklen == 0) SRF_RETURN_DONE(funcctx);
                state->pathlen--;
        }
}

References dumpstate::align, dumpstate::byval, CIRCSTRINGTYPE, dumpnode::geom, LWCOLLECTION::geoms, getPoint4d_p(), dumpnode::idx, LINETYPE, lwalloc(), lwcircstring_get_lwpoint(), lwgeom_as_lwcircstring(), lwgeom_as_lwline(), lwgeom_as_lwpoint(), lwgeom_as_lwpoly(), lwgeom_as_lwtriangle(), lwgeom_from_gserialized(), lwgeom_has_m(), lwgeom_has_z(), lwgeom_is_collection(), lwgeom_is_empty(), lwline_get_lwpoint(), lwpoint_make(), MAXDEPTH, LWCOLLECTION::ngeoms, POINTARRAY::npoints, LWPOLY::nrings, dumpstate::path, dumpstate::pathlen, LWLINE::points, LWTRIANGLE::points, LWCIRCSTRING::points, POINTTYPE, POLYGONTYPE, dumpstate::pt, result, dumpstate::ring, LWPOLY::rings, dumpstate::root, LWTRIANGLE::srid, LWPOLY::srid, dumpstate::stack, dumpstate::stacklen, TRIANGLETYPE, LWGEOM::type, and dumpstate::typlen.

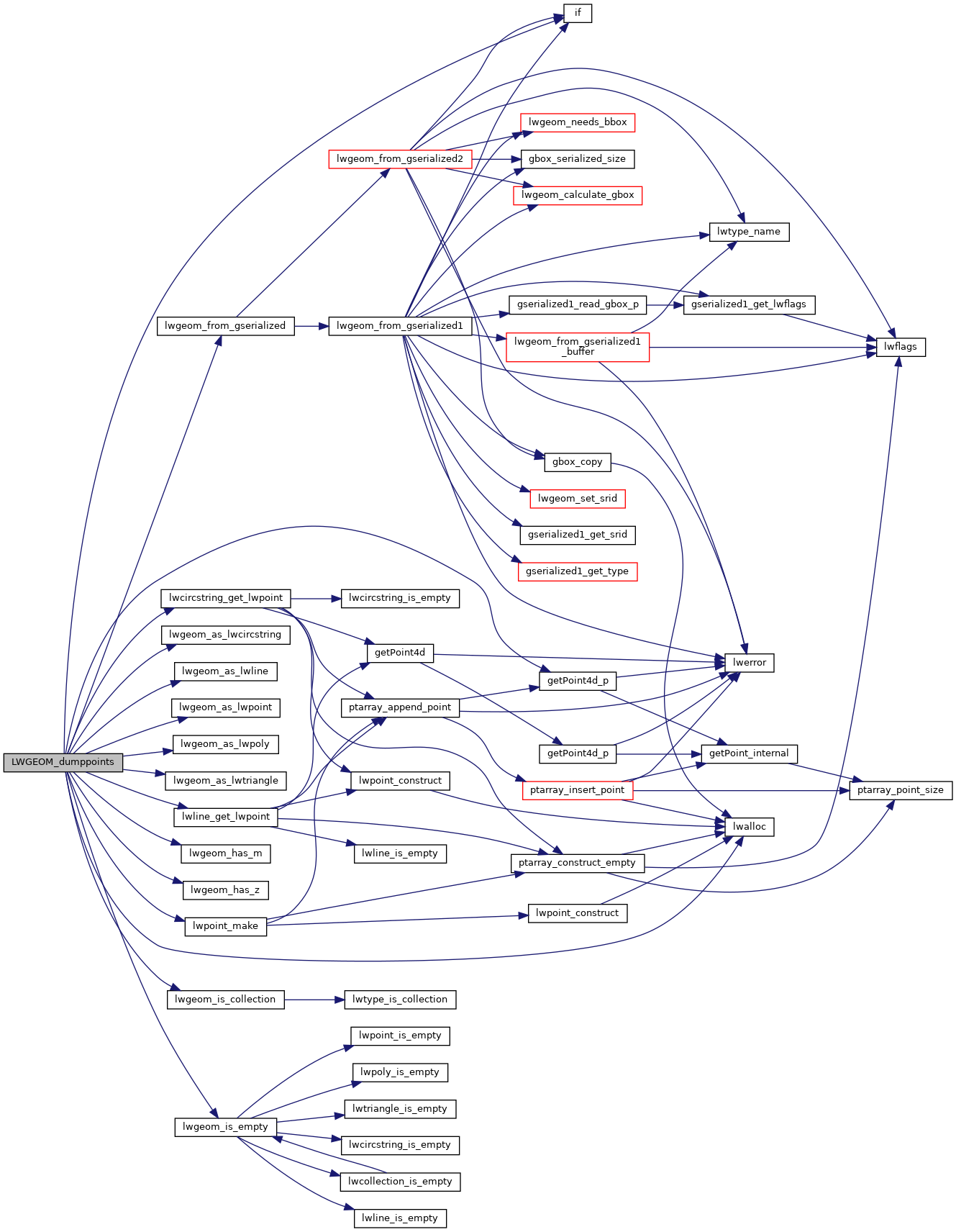

Here is the call graph for this function:
