◆ test_band_stats()

static void test_band_stats ( )
static

Definition at line 27 of file cu_band_stats.c.

27 {
28 rt_bandstats stats = NULL;
29 rt_histogram histogram = NULL;
30 double bin_width[] = {100};
31 double quantiles[] = {0.1, 0.3, 0.5, 0.7, 0.9};
32 double quantiles2[] = {0.66666667};
33 rt_quantile quantile = NULL;
34 uint32_t count = 0;
35
36 rt_raster raster;
37 rt_band band;
38 uint32_t x;
39 uint32_t xmax = 100;
40 uint32_t y;
41 uint32_t ymax = 100;
42 uint32_t max_run;
43 double nodata;
44
45 uint32_t values[] = {0, 91, 55, 86, 76, 41, 36, 97, 25, 63, 68, 2, 78, 15, 82, 47};
46 struct quantile_llist *qlls = NULL;
47 uint32_t qlls_count;
48
49 raster = rt_raster_new(xmax, ymax);
50 CU_ASSERT(raster != NULL);
51 band = cu_add_band(raster, PT_32BUI, 1, 0);
52 CU_ASSERT(band != NULL);
53
54 for (x = 0; x < xmax; x++) {
55 for (y = 0; y < ymax; y++) {
56 rt_band_set_pixel(band, x, y, x + y, NULL);
57 }
58 }
59
60 rt_band_get_nodata(band, &nodata);
61 CU_ASSERT_DOUBLE_EQUAL(nodata, 0, DBL_EPSILON);
62
63 stats = (rt_bandstats) rt_band_get_summary_stats(band, 1, 0, 1, NULL, NULL, NULL);
64 CU_ASSERT(stats != NULL);
65 CU_ASSERT_DOUBLE_EQUAL(stats->min, 1, DBL_EPSILON);
66 CU_ASSERT_DOUBLE_EQUAL(stats->max, 198, DBL_EPSILON);
67
68 quantile = (rt_quantile) rt_band_get_quantiles(stats, NULL, 0, &count);
69 CU_ASSERT(quantile != NULL);
70 rtdealloc(quantile);
71
72 histogram = (rt_histogram) rt_band_get_histogram(stats, 0, NULL, 0, 0, 0, 0, &count);
73 CU_ASSERT(histogram != NULL);
74 rtdealloc(histogram);
75
76 histogram = (rt_histogram) rt_band_get_histogram(stats, 0, NULL, 0, 1, 0, 0, &count);
77 CU_ASSERT(histogram != NULL);
78 rtdealloc(histogram);
79
80 histogram = (rt_histogram) rt_band_get_histogram(stats, 0, bin_width, 1, 0, 0, 0, &count);
81 CU_ASSERT(histogram != NULL);
82 rtdealloc(histogram);
83
84 rtdealloc(stats->values);
85 rtdealloc(stats);
86
87 stats = (rt_bandstats) rt_band_get_summary_stats(band, 1, 0.1, 1, NULL, NULL, NULL);
88 CU_ASSERT(stats != NULL);
89
90 quantile = (rt_quantile) rt_band_get_quantiles(stats, NULL, 0, &count);
91 CU_ASSERT(quantile != NULL);
92 rtdealloc(quantile);
93
94 quantile = (rt_quantile) rt_band_get_quantiles(stats, quantiles, 5, &count);
95 CU_ASSERT(quantile != NULL);
96 CU_ASSERT_EQUAL(count, 5);
97 rtdealloc(quantile);
98
99 histogram = (rt_histogram) rt_band_get_histogram(stats, 0, NULL, 0, 0, 0, 0, &count);
100 CU_ASSERT(histogram != NULL);
101 rtdealloc(histogram);
102
103 rtdealloc(stats->values);
104 rtdealloc(stats);
105
106 stats = (rt_bandstats) rt_band_get_summary_stats(band, 1, 0.15, 0, NULL, NULL, NULL);
107 CU_ASSERT(stats != NULL);
108 rtdealloc(stats);
109
110 stats = (rt_bandstats) rt_band_get_summary_stats(band, 1, 0.2, 0, NULL, NULL, NULL);
111 CU_ASSERT(stats != NULL);
112 rtdealloc(stats);
113
114 stats = (rt_bandstats) rt_band_get_summary_stats(band, 1, 0.25, 0, NULL, NULL, NULL);
115 CU_ASSERT(stats != NULL);
116 rtdealloc(stats);
117
118 stats = (rt_bandstats) rt_band_get_summary_stats(band, 0, 0, 1, NULL, NULL, NULL);
119 CU_ASSERT(stats != NULL);
120 CU_ASSERT_DOUBLE_EQUAL(stats->min, 0, DBL_EPSILON);
121 CU_ASSERT_DOUBLE_EQUAL(stats->max, 198, DBL_EPSILON);
122
123 quantile = (rt_quantile) rt_band_get_quantiles(stats, NULL, 0, &count);
124 CU_ASSERT(quantile != NULL);
125 rtdealloc(quantile);
126
127 rtdealloc(stats->values);
128 rtdealloc(stats);
129
130 stats = (rt_bandstats) rt_band_get_summary_stats(band, 0, 0.1, 1, NULL, NULL, NULL);
131 CU_ASSERT(stats != NULL);
132
133 quantile = (rt_quantile) rt_band_get_quantiles(stats, NULL, 0, &count);
134 CU_ASSERT(quantile != NULL);
135 rtdealloc(quantile);
136
137 rtdealloc(stats->values);
138 rtdealloc(stats);
139
140 cu_free_raster(raster);
141
142 xmax = 4;
143 ymax = 4;
144 raster = rt_raster_new(4, 4);
145 CU_ASSERT(raster != NULL);
146 band = cu_add_band(raster, PT_8BUI, 0, 0);
147 CU_ASSERT(band != NULL);
148 rt_band_set_nodata(band, 0, NULL);
149
150 for (x = 0; x < xmax; x++) {
151 for (y = 0; y < ymax; y++) {
152 rt_band_set_pixel(band, x, y, values[(x * ymax) + y], NULL);
153 }
154 }
155
156 rt_band_get_nodata(band, &nodata);
157 CU_ASSERT_DOUBLE_EQUAL(nodata, 0, DBL_EPSILON);
158
159 quantile = (rt_quantile) rt_band_get_quantiles_stream(
160 band, 1, 1, 15,
161 &qlls, &qlls_count,
162 quantiles2, 1,
163 &count);
164 CU_ASSERT(quantile != NULL);
165 CU_ASSERT_NOT_EQUAL(count, 0);
166 CU_ASSERT_NOT_EQUAL(qlls_count, 0);
167 CU_ASSERT_DOUBLE_EQUAL(quantile[0].value, 78, DBL_EPSILON);
168 rtdealloc(quantile);
169 quantile_llist_destroy(&qlls, qlls_count);
170 qlls = NULL;
171 qlls_count = 0;
172
173 cu_free_raster(raster);
174
175 xmax = 100;
176 ymax = 100;
177 raster = rt_raster_new(xmax, ymax);
178 CU_ASSERT(raster != NULL);
179 band = cu_add_band(raster, PT_64BF, 0, 0);
180 CU_ASSERT(band != NULL);
181 rt_band_set_nodata(band, 0, NULL);
182
183 for (x = 0; x < xmax; x++) {
184 for (y = 0; y < ymax; y++) {
185 rt_band_set_pixel(band, x, y, (((double) x * y) + (x + y) + (x + y * x)) / (x + y + 1), NULL);
186 }
187 }
188
189 rt_band_get_nodata(band, &nodata);
190 CU_ASSERT_DOUBLE_EQUAL(nodata, 0, DBL_EPSILON);
191
192 max_run = 5;
193 for (x = 0; x < max_run; x++) {
194 quantile = (rt_quantile) rt_band_get_quantiles_stream(
195 band, 1, 1, xmax * ymax * max_run,
196 &qlls, &qlls_count,
197 quantiles2, 1,
198 &count);
199 CU_ASSERT(quantile != NULL);
200 CU_ASSERT_NOT_EQUAL(count, 0);
201 CU_ASSERT_NOT_EQUAL(qlls_count, 0);
202 rtdealloc(quantile);
203 }
204
205 quantile_llist_destroy(&qlls, qlls_count);
206 qlls = NULL;
207 qlls_count = 0;
208
209 cu_free_raster(raster);
210}
rt_quantile
struct rt_quantile_t * rt_quantile
Definition librtcore.h:153
PT_32BUI
@ PT_32BUI
Definition librtcore.h:197
PT_64BF
@ PT_64BF
Definition librtcore.h:200
PT_8BUI
@ PT_8BUI
Definition librtcore.h:193
rt_raster_new
rt_raster rt_raster_new(uint32_t width, uint32_t height)
Construct a raster with given dimensions.
Definition rt_raster.c:52
rt_band_get_quantiles_stream
rt_quantile rt_band_get_quantiles_stream(rt_band band, int exclude_nodata_value, double sample, uint64_t cov_count, struct quantile_llist **qlls, uint32_t *qlls_count, double *quantiles, uint32_t quantiles_count, uint32_t *rtn_count)
Compute the default set of or requested quantiles for a coverage.
Definition rt_statistics.c:1011
rt_bandstats
struct rt_bandstats_t * rt_bandstats
Definition librtcore.h:151
quantile_llist_destroy
int quantile_llist_destroy(struct quantile_llist **list, uint32_t list_count)
Definition rt_statistics.c:879
rt_band_set_nodata
rt_errorstate rt_band_set_nodata(rt_band band, double val, int *converted)
Set nodata value.
Definition rt_band.c:892
rt_band_set_pixel
rt_errorstate rt_band_set_pixel(rt_band band, int x, int y, double val, int *converted)
Set single pixel's value.
Definition rt_band.c:1140
rt_band_get_nodata
rt_errorstate rt_band_get_nodata(rt_band band, double *nodata)
Get NODATA value.
Definition rt_band.c:2067
rt_band_get_histogram
rt_histogram rt_band_get_histogram(rt_bandstats stats, uint32_t bin_count, double *bin_widths, uint32_t bin_widths_count, int right, double min, double max, uint32_t *rtn_count)
Count the distribution of data.
Definition rt_statistics.c:413
rtdealloc
void rtdealloc(void *mem)
Definition rt_context.c:206
rt_band_get_quantiles
rt_quantile rt_band_get_quantiles(rt_bandstats stats, double *quantiles, int quantiles_count, uint32_t *rtn_count)
Compute the default set of or requested quantiles for a set of data the quantile formula used is same...
Definition rt_statistics.c:673
rt_band_get_summary_stats
rt_bandstats rt_band_get_summary_stats(rt_band band, int exclude_nodata_value, double sample, int inc_vals, uint64_t *cK, double *cM, double *cQ)
Compute summary statistics for a band.
Definition rt_statistics.c:111
rt_histogram
struct rt_histogram_t * rt_histogram
Definition librtcore.h:152
genraster.count
int count
Definition genraster.py:57
rtrowdump.raster
raster
Be careful!! Zeros function's input parameter can be a (height x width) array, not (width x height): ...
Definition rtrowdump.py:125
cu_add_band
rt_band cu_add_band(rt_raster raster, rt_pixtype pixtype, int hasnodata, double nodataval)
Definition raster/test/cunit/cu_tester.c:224
cu_free_raster
void cu_free_raster(rt_raster raster)
Definition raster/test/cunit/cu_tester.c:211
quantile_llist::count
uint32_t count
Definition librtcore.h:2601
quantile_llist::quantile
double quantile
Definition librtcore.h:2596
quantile_llist
Definition librtcore.h:2594
rt_band_t
Definition librtcore.h:2515
rt_bandstats_t::max
double max
Definition librtcore.h:2565
rt_bandstats_t::min
double min
Definition librtcore.h:2564
rt_bandstats_t::values
double * values
Definition librtcore.h:2570
rt_bandstats_t
Definition librtcore.h:2560
rt_histogram_t
Definition librtcore.h:2575
rt_quantile_t
Definition librtcore.h:2587
rt_raster_t
Definition librtcore.h:2486

References quantile_llist::count, cu_add_band(), cu_free_raster(), rt_bandstats_t::max, rt_bandstats_t::min, PT_32BUI, PT_64BF, PT_8BUI, quantile_llist::quantile, quantile_llist_destroy(), rt_band_get_histogram(), rt_band_get_nodata(), rt_band_get_quantiles(), rt_band_get_quantiles_stream(), rt_band_get_summary_stats(), rt_band_set_nodata(), rt_band_set_pixel(), rt_raster_new(), rtdealloc(), and rt_bandstats_t::values.

Referenced by band_stats_suite_setup().

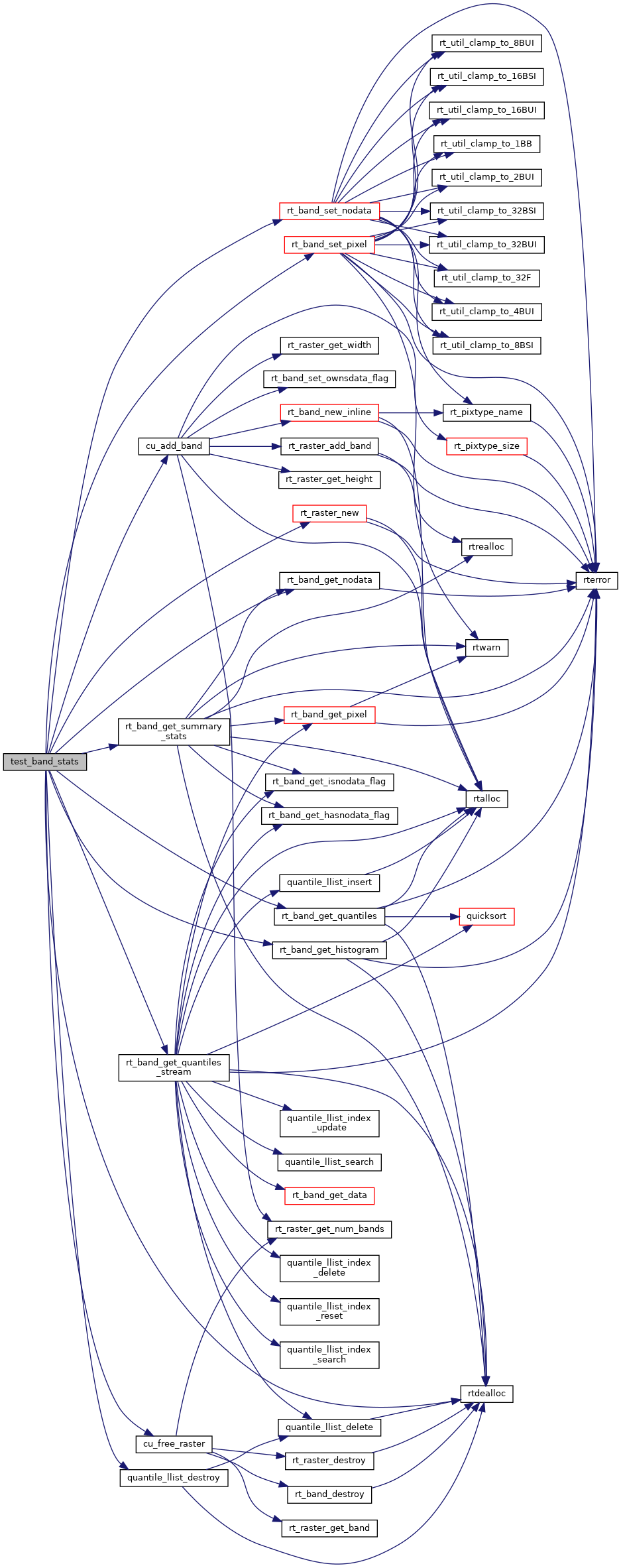

Here is the call graph for this function:
Here is the caller graph for this function:
