◆ lwline_locate_along()

static LWMPOINT * lwline_locate_along ( const LWLINE lwline,
double  m,
double  offset
)
static

Definition at line 110 of file lwlinearreferencing.c.

111{
112 POINTARRAY *opa = NULL;
113 LWMPOINT *mp = NULL;
114 LWGEOM *lwg = lwline_as_lwgeom(lwline);
115 int hasz, hasm, srid;
116
117 /* Return degenerates upwards */
118 if (!lwline)
119 return NULL;
120
121 /* Create empty return shell */
122 srid = lwgeom_get_srid(lwg);
123 hasz = lwgeom_has_z(lwg);
124 hasm = lwgeom_has_m(lwg);
125
126 if (hasm)
127 {
128 /* Find points along */
129 opa = ptarray_locate_along(lwline->points, m, offset);
130 }
131 else
132 {
133 LWLINE *lwline_measured = lwline_measured_from_lwline(lwline, 0.0, 1.0);
134 opa = ptarray_locate_along(lwline_measured->points, m, offset);
135 lwline_free(lwline_measured);
136 }
137
138 /* Return NULL as EMPTY */
139 if (!opa)
140 return lwmpoint_construct_empty(srid, hasz, hasm);
141
142 /* Convert pointarray into a multipoint */
143 mp = lwmpoint_construct(srid, opa);
144 ptarray_free(opa);
145 return mp;
146}
int32_t lwgeom_get_srid(const LWGEOM *geom)
Return SRID number.
Definition lwgeom.c:955
LWMPOINT * lwmpoint_construct(int32_t srid, const POINTARRAY *pa)
Definition lwmpoint.c:52
LWLINE * lwline_measured_from_lwline(const LWLINE *lwline, double m_start, double m_end)
Add a measure dimension to a line, interpolating linearly from the start to the end value.
Definition lwline.c:389
int lwgeom_has_z(const LWGEOM *geom)
Return LW_TRUE if geometry has Z ordinates.
Definition lwgeom.c:962
LWGEOM * lwline_as_lwgeom(const LWLINE *obj)
Definition lwgeom.c:367
void ptarray_free(POINTARRAY *pa)
Definition ptarray.c:327
LWMPOINT * lwmpoint_construct_empty(int32_t srid, char hasz, char hasm)
Definition lwmpoint.c:39
int lwgeom_has_m(const LWGEOM *geom)
Return LW_TRUE if geometry has M ordinates.
Definition lwgeom.c:969
void lwline_free(LWLINE *line)
Definition lwline.c:67
static POINTARRAY * ptarray_locate_along(const POINTARRAY *pa, double m, double offset)
POINTARRAY * points
Definition liblwgeom.h:483

References lwgeom_get_srid(), lwgeom_has_m(), lwgeom_has_z(), lwline_as_lwgeom(), lwline_free(), lwline_measured_from_lwline(), lwmpoint_construct(), lwmpoint_construct_empty(), LWLINE::points, ptarray_free(), and ptarray_locate_along().

Referenced by lwgeom_locate_along(), and lwmline_locate_along().

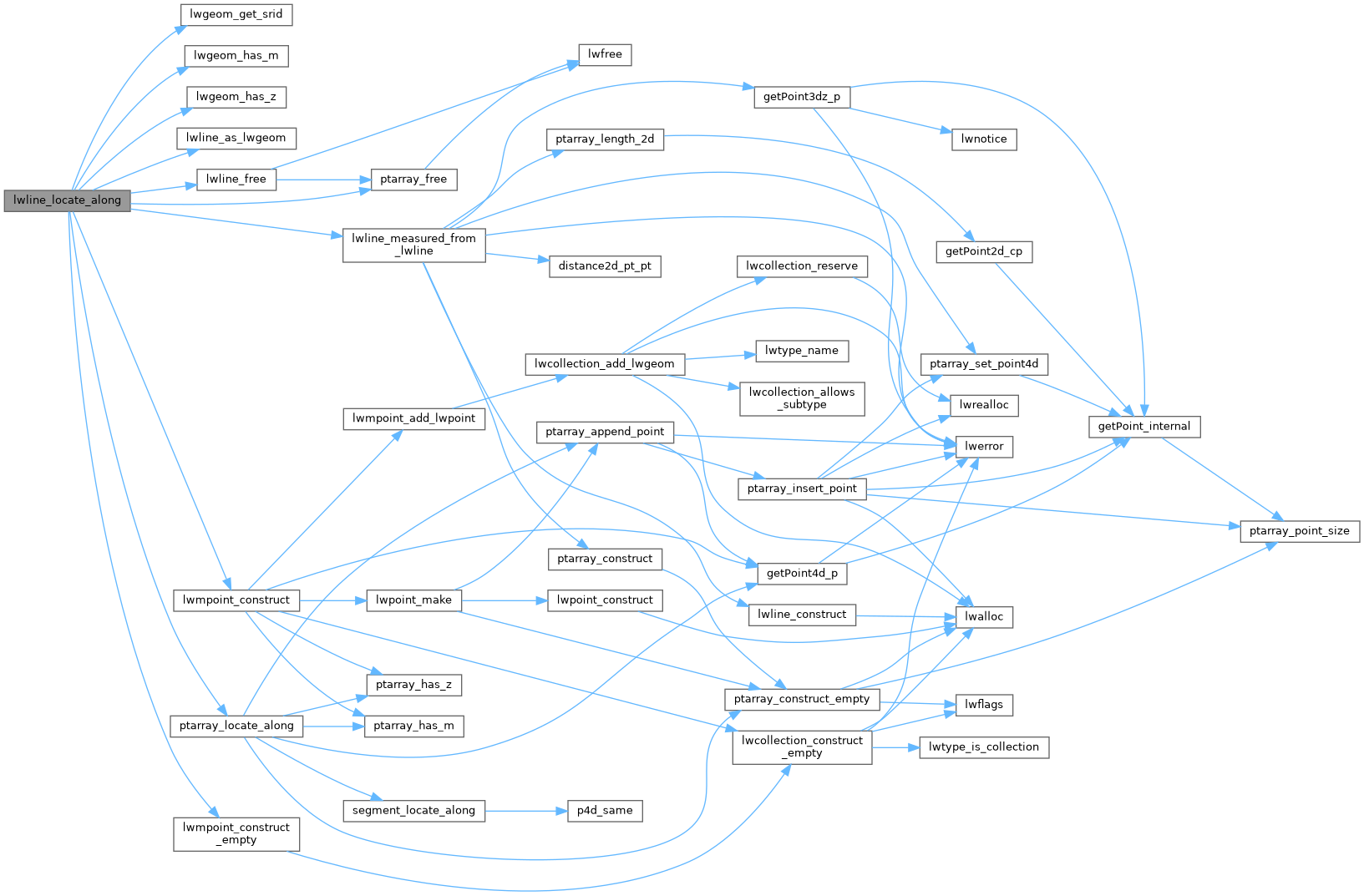

Here is the call graph for this function:

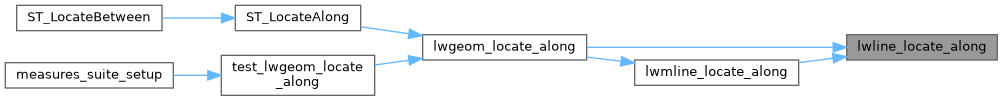

Here is the caller graph for this function:
