out_gml_test_geoms()

static void out_gml_test_geoms ( void  )

static

Definition at line 371 of file cu_out_gml.c.

{
        /* GML2 - Linestring */
        do_gml2_test(
            "LINESTRING(0 1,2 3,4 5)",
            "<gml:LineString><gml:coordinates>0,1 2,3 4,5</gml:coordinates></gml:LineString>",
            NULL, 0);

        /* GML3 - Linestring */
        do_gml3_test(
            "LINESTRING(0 1,2 3,4 5)",
            "<gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">0 1 2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve>",
            NULL, 0, 0);


        /* GML2 Polygon */
        do_gml2_test(
            "POLYGON((0 1,2 3,4 5,0 1))",
            "<gml:Polygon><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>0,1 2,3 4,5 0,1</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs></gml:Polygon>",
            NULL, 0);

        /* GML3 Polygon */
        do_gml3_test(
            "POLYGON((0 1,2 3,4 5,0 1))",
            "<gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon>",
            NULL, 0, 0);

        /* GML2 Polygon - with internal ring */
        do_gml2_test(
            "POLYGON((0 1,2 3,4 5,0 1),(6 7,8 9,10 11,6 7))",
            "<gml:Polygon><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>0,1 2,3 4,5 0,1</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs><gml:innerBoundaryIs><gml:LinearRing><gml:coordinates>6,7 8,9 10,11 6,7</gml:coordinates></gml:LinearRing></gml:innerBoundaryIs></gml:Polygon>",
            NULL, 0);

        /* GML3 Polygon - with internal ring */
        do_gml3_test(
            "POLYGON((0 1,2 3,4 5,0 1),(6 7,8 9,10 11,6 7))",
            "<gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior><gml:interior><gml:LinearRing><gml:posList srsDimension=\"2\">6 7 8 9 10 11 6 7</gml:posList></gml:LinearRing></gml:interior></gml:Polygon>",
            NULL, 0, 0);


        /* GML3 Triangle */
        do_gml3_test(
            "TRIANGLE((0 1,2 3,4 5,0 1))",
            "<gml:Triangle><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:Triangle>",
            NULL, 0, 0);


        /* GML2 MultiPoint */
        do_gml2_test(
            "MULTIPOINT(0 1,2 3)",
            "<gml:MultiPoint><gml:pointMember><gml:Point><gml:coordinates>0,1</gml:coordinates></gml:Point></gml:pointMember><gml:pointMember><gml:Point><gml:coordinates>2,3</gml:coordinates></gml:Point></gml:pointMember></gml:MultiPoint>",
            NULL, 0);

        /* GML3 MultiPoint */
        do_gml3_test(
            "MULTIPOINT(0 1,2 3)",
            "<gml:MultiPoint><gml:pointMember><gml:Point><gml:pos srsDimension=\"2\">0 1</gml:pos></gml:Point></gml:pointMember><gml:pointMember><gml:Point><gml:pos srsDimension=\"2\">2 3</gml:pos></gml:Point></gml:pointMember></gml:MultiPoint>",
            NULL, 0, 0);


        /* GML2 Multiline */
        do_gml2_test(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "<gml:MultiLineString><gml:lineStringMember><gml:LineString><gml:coordinates>0,1 2,3 4,5</gml:coordinates></gml:LineString></gml:lineStringMember><gml:lineStringMember><gml:LineString><gml:coordinates>6,7 8,9 10,11</gml:coordinates></gml:LineString></gml:lineStringMember></gml:MultiLineString>",
            NULL, 0);

        /* GML3 Multiline */
        do_gml3_test(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "<gml:MultiCurve><gml:curveMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">0 1 2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:curveMember><gml:curveMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">6 7 8 9 10 11</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:curveMember></gml:MultiCurve>",
            NULL, 0, 0);


        /* GML2 MultiPolygon */
        do_gml2_test(
            "MULTIPOLYGON(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<gml:MultiPolygon><gml:polygonMember><gml:Polygon><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>0,1 2,3 4,5 0,1</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs></gml:Polygon></gml:polygonMember><gml:polygonMember><gml:Polygon><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>6,7 8,9 10,11 6,7</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs></gml:Polygon></gml:polygonMember></gml:MultiPolygon>",
            NULL, 0);

        /* GML3 MultiPolygon */
        do_gml3_test(
            "MULTIPOLYGON(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<gml:MultiSurface><gml:surfaceMember><gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon></gml:surfaceMember><gml:surfaceMember><gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">6 7 8 9 10 11 6 7</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon></gml:surfaceMember></gml:MultiSurface>",
            NULL, 0, 0);


        /* GML2 - GeometryCollection */
        do_gml2_test(
            "GEOMETRYCOLLECTION(POINT(0 1),LINESTRING(2 3,4 5))",
            "<gml:MultiGeometry><gml:geometryMember><gml:Point><gml:coordinates>0,1</gml:coordinates></gml:Point></gml:geometryMember><gml:geometryMember><gml:LineString><gml:coordinates>2,3 4,5</gml:coordinates></gml:LineString></gml:geometryMember></gml:MultiGeometry>",
            NULL, 0);

        /* GML3 - GeometryCollection */
        do_gml3_test(
            "GEOMETRYCOLLECTION(POINT(0 1),LINESTRING(2 3,4 5))",
            "<gml:MultiGeometry><gml:geometryMember><gml:Point><gml:pos srsDimension=\"2\">0 1</gml:pos></gml:Point></gml:geometryMember><gml:geometryMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:geometryMember></gml:MultiGeometry>",
            NULL, 0, 0);


        /* GML2 - Nested GeometryCollection */
        do_gml2_test(
            "GEOMETRYCOLLECTION(POINT(0 1),GEOMETRYCOLLECTION(LINESTRING(2 3,4 5)))",
            "<gml:MultiGeometry><gml:geometryMember><gml:Point><gml:coordinates>0,1</gml:coordinates></gml:Point></gml:geometryMember><gml:geometryMember><gml:MultiGeometry><gml:geometryMember><gml:LineString><gml:coordinates>2,3 4,5</gml:coordinates></gml:LineString></gml:geometryMember></gml:MultiGeometry></gml:geometryMember></gml:MultiGeometry>",
            NULL, 0);

        /* GML3 - Nested GeometryCollection */
        do_gml3_test(
            "GEOMETRYCOLLECTION(POINT(0 1),GEOMETRYCOLLECTION(LINESTRING(2 3,4 5)))",
            "<gml:MultiGeometry><gml:geometryMember><gml:Point><gml:pos srsDimension=\"2\">0 1</gml:pos></gml:Point></gml:geometryMember><gml:geometryMember><gml:MultiGeometry><gml:geometryMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:geometryMember></gml:MultiGeometry></gml:geometryMember></gml:MultiGeometry>",
            NULL, 0, 0);

        /* GML2 - CircularString */
        do_gml2_unsupported(
            "CIRCULARSTRING(-2 0,0 2,2 0,0 2,2 4)",
            "lwgeom_to_gml2: 'CircularString' geometry type not supported");
        /* GML3 - CircularString */
    do_gml3_test(
                "CIRCULARSTRING(-2 0,0 2,2 0,0 2,2 4)",
                "<gml:Curve><gml:segments><gml:ArcString><gml:posList srsDimension=\"2\">-2 0 0 2 2 0 0 2 2 4</gml:posList></gml:ArcString></gml:segments></gml:Curve>",
                NULL, 0, 0 );

        /* GML2 - CompoundCurve */
        do_gml2_unsupported(
            "COMPOUNDCURVE(CIRCULARSTRING(0 0,1 1,1 0),(1 0,0 1))",
            "lwgeom_to_gml2: 'CompoundCurve' geometry type not supported");
        /* GML3 - CompoundCurve */

    do_gml3_test(
       "COMPOUNDCURVE(CIRCULARSTRING(0 0,1 1,1 0),(1 0,0 1))",
                "<gml:Curve><gml:segments><gml:ArcString><gml:posList srsDimension=\"2\">0 0 1 1 1 0</gml:posList></gml:ArcString><gml:LineStringSegment><gml:posList srsDimension=\"2\">1 0 0 1</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve>",
                NULL, 0, 0 );

        /* GML2 - CurvePolygon */
        do_gml2_unsupported(
            "CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0))",
            "lwgeom_to_gml2: 'CurvePolygon' geometry type not supported");

        /* GML3 - CurvePolygon */
    do_gml3_test(
        "CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0))",
                "<gml:Polygon><gml:exterior><gml:Ring><gml:curveMember><gml:Curve><gml:segments><gml:ArcString><gml:posList srsDimension=\"2\">-2 0 -1 -1 0 0 1 -1 2 0 0 2 -2 0</gml:posList></gml:ArcString></gml:segments></gml:Curve></gml:curveMember></gml:Ring></gml:exterior><gml:interior><gml:LinearRing><gml:posList srsDimension=\"2\">-1 0 0 0.5 1 0 0 1 -1 0</gml:posList></gml:LinearRing></gml:interior></gml:Polygon>",
                NULL, 1, 0 );
        do_gml3_test(
                "CURVEPOLYGON(COMPOUNDCURVE((763650.600000001 189057.100000001,7636.35 189045.199999999, 763650.548999999 189057.844000001,763650.600000001 189057.100000001)))",
                                 "<gml:Polygon><gml:exterior><gml:Ring><gml:curveMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">763650.6 189057.1 7636.35 189045.2 763650.549 189057.844 763650.6 189057.1</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:curveMember></gml:Ring></gml:exterior></gml:Polygon>",
                                NULL, 7, 0 );

        /* GML2 - MultiCurve */
        do_gml2_unsupported(
            "MULTICURVE((5 5,3 5,3 3,0 3),CIRCULARSTRING(0 0,2 1,2 2))",
            "lwgeom_to_gml2: 'MultiCurve' geometry type not supported");

        /* GML3 - MultiCurve */
    do_gml3_test(
         "MULTICURVE((5 5,3 5,3 3,0 3),CIRCULARSTRING(0 0,2 1,2 2))",
                "<gml:MultiCurve><gml:curveMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">5 5 3 5 3 3 0 3</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:curveMember><gml:curveMember><gml:Curve><gml:segments><gml:ArcString><gml:posList srsDimension=\"2\">0 0 2 1 2 2</gml:posList></gml:ArcString></gml:segments></gml:Curve></gml:curveMember></gml:MultiCurve>",
                NULL, 0, 0 );

        /* GML2 - MultiSurface */
        do_gml2_unsupported(
            "MULTISURFACE(CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0)),((7 8,10 10,6 14,4 11,7 8)))",
            "lwgeom_to_gml2: 'MultiSurface' geometry type not supported");

        /* GML3 - MultiSurface */
    do_gml3_test(
                "MULTISURFACE(CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0)),((7 8,10 10,6 14,4 11,7 8)))",
                "<gml:MultiSurface><gml:Polygon><gml:exterior><gml:Ring><gml:curveMember><gml:Curve><gml:segments><gml:ArcString><gml:posList srsDimension=\"2\">-2 0 -1 -1 0 0 1 -1 2 0 0 2 -2 0</gml:posList></gml:ArcString></gml:segments></gml:Curve></gml:curveMember></gml:Ring></gml:exterior><gml:interior><gml:LinearRing><gml:posList srsDimension=\"2\">-1 0 0 0.5 1 0 0 1 -1 0</gml:posList></gml:LinearRing></gml:interior></gml:Polygon><gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">7 8 10 10 6 14 4 11 7 8</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon></gml:MultiSurface>",
                NULL, 1, 0 );

        /* GML2 - PolyhedralSurface */
        do_gml2_unsupported(
            "POLYHEDRALSURFACE(((0 1,2 3,4 5,0 1)))",
            "Cannot convert PolyhedralSurface to GML2. Try ST_AsGML(3, <geometry>) to generate GML3.");

        /* GML2 - Tin */
        do_gml2_unsupported(
            "TIN(((0 1,2 3,4 5,0 1)))",
            "Cannot convert Tin to GML2. Try ST_AsGML(3, <geometry>) to generate GML3.");
}

References do_gml2_test(), do_gml2_unsupported(), and do_gml3_test().

Referenced by out_gml_suite_setup().

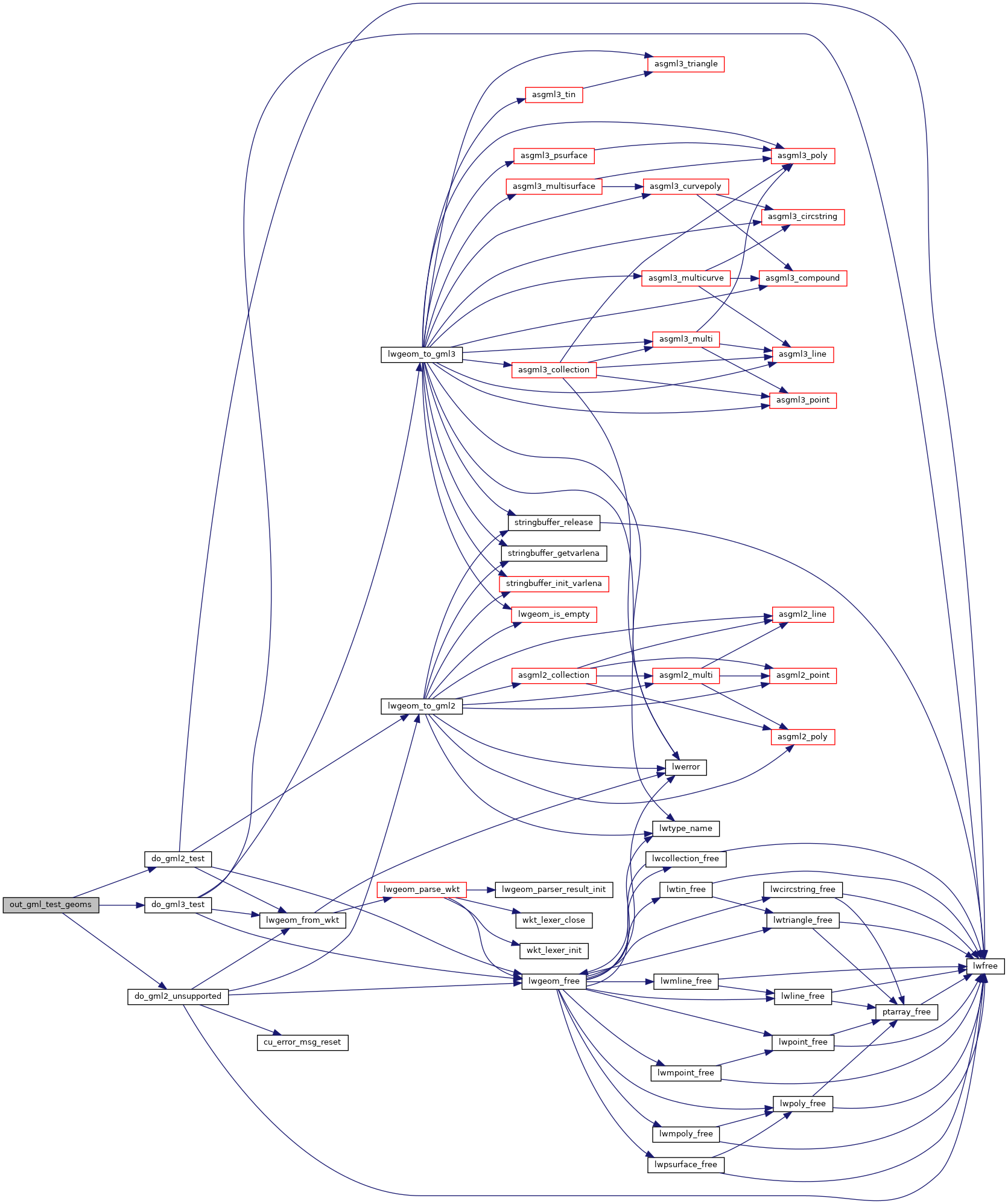

Here is the call graph for this function:

Here is the caller graph for this function:
