out_gml_test_srid()

static void out_gml_test_srid ( void  )

static

Definition at line 194 of file cu_out_gml.c.

{
        /* GML2 - Point with SRID */
        do_gml2_test(
            "POINT(0 1)",
            "<gml:Point srsName=\"EPSG:4326\"><gml:coordinates>0,1</gml:coordinates></gml:Point>",
            "EPSG:4326", 0);

        /* GML3 - Point with SRID */
        do_gml3_test(
            "POINT(0 1)",
            "<gml:Point srsName=\"EPSG:4326\"><gml:pos srsDimension=\"2\">0 1</gml:pos></gml:Point>",
            "EPSG:4326", 0, 0);


        /* GML2 - Linestring with SRID */
        do_gml2_test(
            "LINESTRING(0 1,2 3,4 5)",
            "<gml:LineString srsName=\"EPSG:4326\"><gml:coordinates>0,1 2,3 4,5</gml:coordinates></gml:LineString>",
            "EPSG:4326", 0);

        /* GML3 - Linestring with SRID */
        do_gml3_test(
            "LINESTRING(0 1,2 3,4 5)",
            "<gml:Curve srsName=\"EPSG:4326\"><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">0 1 2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve>",
            "EPSG:4326", 0, 0);

        /* GML3 - Linestring with SRID and short tag*/
        do_gml3_test_opts(
            "LINESTRING(0 1,2 3,4 5)",
            "<gml:LineString srsName=\"EPSG:4326\"><gml:posList>0 1 2 3 4 5</gml:posList></gml:LineString>",
            "EPSG:4326", 0, LW_GML_SHORTLINE);


        /* GML2 Polygon with SRID */
        do_gml2_test(
            "POLYGON((0 1,2 3,4 5,0 1))",
            "<gml:Polygon srsName=\"EPSG:4326\"><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>0,1 2,3 4,5 0,1</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs></gml:Polygon>",
            "EPSG:4326", 0);

        /* GML3 Polygon with SRID */
        do_gml3_test(
            "POLYGON((0 1,2 3,4 5,0 1))",
            "<gml:Polygon srsName=\"EPSG:4326\"><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon>",
            "EPSG:4326", 0, 0);


        /* GML2 MultiPoint with SRID */
        do_gml2_test(
            "MULTIPOINT(0 1,2 3)",
            "<gml:MultiPoint srsName=\"EPSG:4326\"><gml:pointMember><gml:Point><gml:coordinates>0,1</gml:coordinates></gml:Point></gml:pointMember><gml:pointMember><gml:Point><gml:coordinates>2,3</gml:coordinates></gml:Point></gml:pointMember></gml:MultiPoint>",
            "EPSG:4326", 0);

        /* GML3 MultiPoint with SRID */
        do_gml3_test(
            "MULTIPOINT(0 1,2 3)",
            "<gml:MultiPoint srsName=\"EPSG:4326\"><gml:pointMember><gml:Point><gml:pos srsDimension=\"2\">0 1</gml:pos></gml:Point></gml:pointMember><gml:pointMember><gml:Point><gml:pos srsDimension=\"2\">2 3</gml:pos></gml:Point></gml:pointMember></gml:MultiPoint>",
            "EPSG:4326", 0, 0);


        /* GML2 Multiline with SRID */
        do_gml2_test(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "<gml:MultiLineString srsName=\"EPSG:4326\"><gml:lineStringMember><gml:LineString><gml:coordinates>0,1 2,3 4,5</gml:coordinates></gml:LineString></gml:lineStringMember><gml:lineStringMember><gml:LineString><gml:coordinates>6,7 8,9 10,11</gml:coordinates></gml:LineString></gml:lineStringMember></gml:MultiLineString>",
            "EPSG:4326", 0);


        /* GML3 Multiline with SRID */
        do_gml3_test(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "<gml:MultiCurve srsName=\"EPSG:4326\"><gml:curveMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">0 1 2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:curveMember><gml:curveMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">6 7 8 9 10 11</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:curveMember></gml:MultiCurve>",
            "EPSG:4326", 0, 0);

        /* GML3 Multiline with SRID and LineString tag */
        do_gml3_test_opts(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "<gml:MultiCurve srsName=\"EPSG:4326\"><gml:curveMember><gml:LineString><gml:posList>0 1 2 3 4 5</gml:posList></gml:LineString></gml:curveMember><gml:curveMember><gml:LineString><gml:posList>6 7 8 9 10 11</gml:posList></gml:LineString></gml:curveMember></gml:MultiCurve>",
            "EPSG:4326", 0, LW_GML_SHORTLINE);


        /* GML2 MultiPolygon with SRID */
        do_gml2_test(
            "MULTIPOLYGON(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<gml:MultiPolygon srsName=\"EPSG:4326\"><gml:polygonMember><gml:Polygon><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>0,1 2,3 4,5 0,1</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs></gml:Polygon></gml:polygonMember><gml:polygonMember><gml:Polygon><gml:outerBoundaryIs><gml:LinearRing><gml:coordinates>6,7 8,9 10,11 6,7</gml:coordinates></gml:LinearRing></gml:outerBoundaryIs></gml:Polygon></gml:polygonMember></gml:MultiPolygon>",
            "EPSG:4326", 0);

        /* GML3 MultiPolygon with SRID */
        do_gml3_test(
            "MULTIPOLYGON(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<gml:MultiSurface srsName=\"EPSG:4326\"><gml:surfaceMember><gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon></gml:surfaceMember><gml:surfaceMember><gml:Polygon><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">6 7 8 9 10 11 6 7</gml:posList></gml:LinearRing></gml:exterior></gml:Polygon></gml:surfaceMember></gml:MultiSurface>",
            "EPSG:4326", 0, 0);

        /* GML3 PolyhedralSurface with SRID */
        do_gml3_test(
            "POLYHEDRALSURFACE(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<gml:PolyhedralSurface srsName=\"EPSG:4326\"><gml:polygonPatches><gml:PolygonPatch><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:PolygonPatch><gml:PolygonPatch><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">6 7 8 9 10 11 6 7</gml:posList></gml:LinearRing></gml:exterior></gml:PolygonPatch></gml:polygonPatches></gml:PolyhedralSurface>",
            "EPSG:4326", 0, 0);

        /* GML3 Tin with SRID */
        do_gml3_test(
            "TIN(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "<gml:Tin srsName=\"EPSG:4326\"><gml:trianglePatches><gml:Triangle><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">0 1 2 3 4 5 0 1</gml:posList></gml:LinearRing></gml:exterior></gml:Triangle><gml:Triangle><gml:exterior><gml:LinearRing><gml:posList srsDimension=\"2\">6 7 8 9 10 11 6 7</gml:posList></gml:LinearRing></gml:exterior></gml:Triangle></gml:trianglePatches></gml:Tin>",
            "EPSG:4326", 0, 0);


        /* GML2 GeometryCollection with SRID */
        do_gml2_test(
            "GEOMETRYCOLLECTION(POINT(0 1),LINESTRING(2 3,4 5))",
            "<gml:MultiGeometry srsName=\"EPSG:4326\"><gml:geometryMember><gml:Point><gml:coordinates>0,1</gml:coordinates></gml:Point></gml:geometryMember><gml:geometryMember><gml:LineString><gml:coordinates>2,3 4,5</gml:coordinates></gml:LineString></gml:geometryMember></gml:MultiGeometry>",
            "EPSG:4326", 0);

        /* GML3 GeometryCollection with SRID */
        do_gml3_test(
            "GEOMETRYCOLLECTION(POINT(0 1),LINESTRING(2 3,4 5))",
            "<gml:MultiGeometry srsName=\"EPSG:4326\"><gml:geometryMember><gml:Point><gml:pos srsDimension=\"2\">0 1</gml:pos></gml:Point></gml:geometryMember><gml:geometryMember><gml:Curve><gml:segments><gml:LineStringSegment><gml:posList srsDimension=\"2\">2 3 4 5</gml:posList></gml:LineStringSegment></gml:segments></gml:Curve></gml:geometryMember></gml:MultiGeometry>",
            "EPSG:4326", 0, 0);
}

References do_gml2_test(), do_gml3_test(), do_gml3_test_opts(), and LW_GML_SHORTLINE.

Referenced by out_gml_suite_setup().

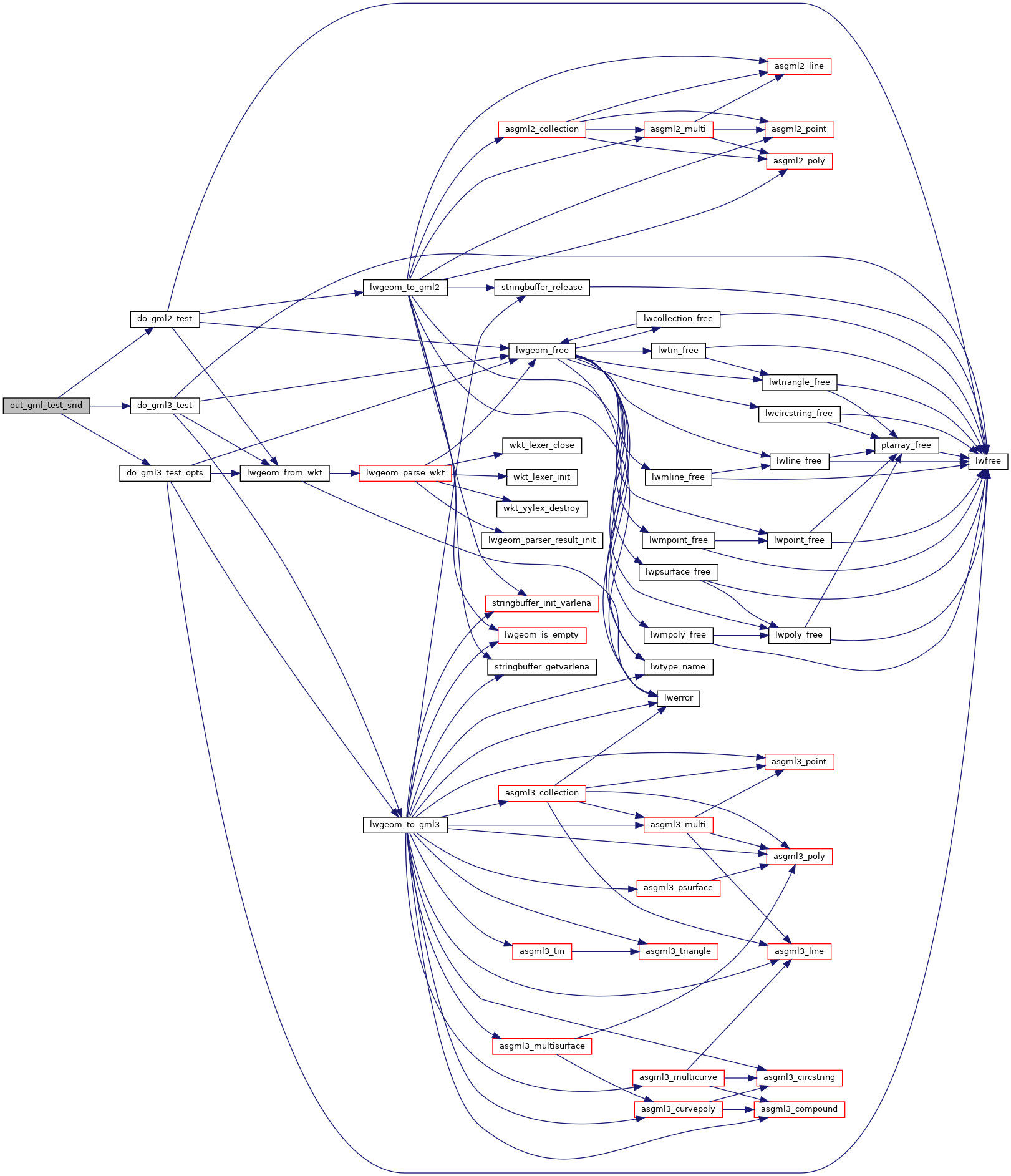

Here is the call graph for this function:

Here is the caller graph for this function:
