◆ test_edge_intersection()

static void test_edge_intersection ( void  )
static

Definition at line 401 of file cu_geodetic.c.

402{
403 GEOGRAPHIC_EDGE e1, e2;
404 GEOGRAPHIC_POINT g;
405 int rv;
406
407 /* Covers case, end-to-end intersection */
408 edge_set(50, -10.999999999999998224, -10.0, 50.0, &e1);
409 edge_set(-10.0, 50.0, -10.272779983831613393, -16.937003313332997578, &e2);
410 rv = edge_intersection(&e1, &e2, &g);
411 CU_ASSERT_EQUAL(rv, LW_TRUE);
412
413 /* Medford case, very short segment vs very long one */
414 e1.start.lat = 0.74123572595649878103;
415 e1.start.lon = -2.1496353191142714145;
416 e1.end.lat = 0.74123631950116664058;
417 e1.end.lon = -2.1496353248304860273;
418 e2.start.lat = 0.73856343764436815924;
419 e2.start.lon = -2.1461493501950630325;
420 e2.end.lat = 0.70971354024834598651;
421 e2.end.lon = 2.1082194552519770703;
422 rv = edge_intersection(&e1, &e2, &g);
423 CU_ASSERT_EQUAL(rv, LW_FALSE);
424
425 /* Again, this time with a less exact input edge. */
426 edge_set(-123.165031277506, 42.4696787216231, -123.165031605021, 42.4697127292275, &e1);
427 rv = edge_intersection(&e1, &e2, &g);
428 CU_ASSERT_EQUAL(rv, LW_FALSE);
429
430 /* Second Medford case, very short segment vs very long one
431 e1.start.lat = 0.73826546728290887156;
432 e1.start.lon = -2.14426380171833042;
433 e1.end.lat = 0.73826545883786642843;
434 e1.end.lon = -2.1442638997530165668;
435 e2.start.lat = 0.73775469118192538165;
436 e2.start.lon = -2.1436035534281718817;
437 e2.end.lat = 0.71021099548296817705;
438 e2.end.lon = 2.1065275171200439353;
439 rv = edge_intersection(e1, e2, &g);
440 CU_ASSERT_EQUAL(rv, LW_FALSE);
441 */
442
443 /* Intersection at (0 0) */
444 edge_set(-1.0, 0.0, 1.0, 0.0, &e1);
445 edge_set(0.0, -1.0, 0.0, 1.0, &e2);
446 rv = edge_intersection(&e1, &e2, &g);
447 point_rad2deg(&g);
448 CU_ASSERT_DOUBLE_EQUAL(g.lat, 0.0, 0.00001);
449 CU_ASSERT_DOUBLE_EQUAL(g.lon, 0.0, 0.00001);
450 CU_ASSERT_EQUAL(rv, LW_TRUE);
451
452 /* No intersection at (0 0) */
453 edge_set(-1.0, 0.0, 1.0, 0.0, &e1);
454 edge_set(0.0, -1.0, 0.0, -2.0, &e2);
455 rv = edge_intersection(&e1, &e2, &g);
456 CU_ASSERT_EQUAL(rv, LW_FALSE);
457
458 /* End touches middle of segment at (0 0) */
459 edge_set(-1.0, 0.0, 1.0, 0.0, &e1);
460 edge_set(0.0, -1.0, 0.0, 0.0, &e2);
461 rv = edge_intersection(&e1, &e2, &g);
462 point_rad2deg(&g);
463#if 0
464 printf("\n");
465 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e1.start.lon, e1.start.lat, e1.end.lon, e1.end.lat);
466 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e2.start.lon, e2.start.lat, e2.end.lon, e2.end.lat);
467 printf("g = (%.15g %.15g)\n", g.lon, g.lat);
468 printf("rv = %d\n", rv);
469#endif
470 CU_ASSERT_DOUBLE_EQUAL(g.lon, 0.0, 0.00001);
471 CU_ASSERT_EQUAL(rv, LW_TRUE);
472
473 /* End touches end of segment at (0 0) */
474 edge_set(0.0, 0.0, 1.0, 0.0, &e1);
475 edge_set(0.0, -1.0, 0.0, 0.0, &e2);
476 rv = edge_intersection(&e1, &e2, &g);
477 point_rad2deg(&g);
478#if 0
479 printf("\n");
480 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e1.start.lon, e1.start.lat, e1.end.lon, e1.end.lat);
481 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e2.start.lon, e2.start.lat, e2.end.lon, e2.end.lat);
482 printf("g = (%.15g %.15g)\n", g.lon, g.lat);
483 printf("rv = %d\n", rv);
484#endif
485 CU_ASSERT_DOUBLE_EQUAL(g.lat, 0.0, 0.00001);
486 CU_ASSERT_DOUBLE_EQUAL(g.lon, 0.0, 0.00001);
487 CU_ASSERT_EQUAL(rv, LW_TRUE);
488
489 /* Intersection at (180 0) */
490 edge_set(-179.0, -1.0, 179.0, 1.0, &e1);
491 edge_set(-179.0, 1.0, 179.0, -1.0, &e2);
492 rv = edge_intersection(&e1, &e2, &g);
493 point_rad2deg(&g);
494 CU_ASSERT_DOUBLE_EQUAL(g.lat, 0.0, 0.00001);
495 CU_ASSERT_DOUBLE_EQUAL(fabs(g.lon), 180.0, 0.00001);
496 CU_ASSERT_EQUAL(rv, LW_TRUE);
497
498 /* Intersection at (180 0) */
499 edge_set(-170.0, 0.0, 170.0, 0.0, &e1);
500 edge_set(180.0, -10.0, 180.0, 10.0, &e2);
501 rv = edge_intersection(&e1, &e2, &g);
502 point_rad2deg(&g);
503 CU_ASSERT_DOUBLE_EQUAL(g.lat, 0.0, 0.00001);
504 CU_ASSERT_DOUBLE_EQUAL(fabs(g.lon), 180.0, 0.00001);
505 CU_ASSERT_EQUAL(rv, LW_TRUE);
506
507 /* Intersection at north pole */
508 edge_set(-180.0, 80.0, 0.0, 80.0, &e1);
509 edge_set(90.0, 80.0, -90.0, 80.0, &e2);
510 rv = edge_intersection(&e1, &e2, &g);
511 point_rad2deg(&g);
512 CU_ASSERT_DOUBLE_EQUAL(g.lat, 90.0, 0.00001);
513 CU_ASSERT_EQUAL(rv, LW_TRUE);
514
515 /* Equal edges return true */
516 edge_set(45.0, 10.0, 50.0, 20.0, &e1);
517 edge_set(45.0, 10.0, 50.0, 20.0, &e2);
518 rv = edge_intersection(&e1, &e2, &g);
519 point_rad2deg(&g);
520 CU_ASSERT_EQUAL(rv, LW_TRUE);
521
522 /* Parallel edges (same great circle, different end points) return true */
523 edge_set(40.0, 0.0, 70.0, 0.0, &e1);
524 edge_set(60.0, 0.0, 50.0, 0.0, &e2);
525 rv = edge_intersection(&e1, &e2, &g);
526 point_rad2deg(&g);
527 CU_ASSERT_EQUAL(rv, 2); /* Hack, returning 2 as the 'co-linear' value */
528
529 /* End touches arc at north pole */
530 edge_set(-180.0, 80.0, 0.0, 80.0, &e1);
531 edge_set(90.0, 80.0, -90.0, 90.0, &e2);
532 rv = edge_intersection(&e1, &e2, &g);
533 point_rad2deg(&g);
534#if 0
535 printf("\n");
536 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e1.start.lon, e1.start.lat, e1.end.lon, e1.end.lat);
537 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e2.start.lon, e2.start.lat, e2.end.lon, e2.end.lat);
538 printf("g = (%.15g %.15g)\n", g.lon, g.lat);
539 printf("rv = %d\n", rv);
540#endif
541 CU_ASSERT_DOUBLE_EQUAL(g.lat, 90.0, 0.00001);
542 CU_ASSERT_EQUAL(rv, LW_TRUE);
543
544 /* End touches end at north pole */
545 edge_set(-180.0, 80.0, 0.0, 90.0, &e1);
546 edge_set(90.0, 80.0, -90.0, 90.0, &e2);
547 rv = edge_intersection(&e1, &e2, &g);
548 point_rad2deg(&g);
549#if 0
550 printf("\n");
551 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e1.start.lon, e1.start.lat, e1.end.lon, e1.end.lat);
552 printf("LINESTRING(%.15g %.15g, %.15g %.15g)\n", e2.start.lon, e2.start.lat, e2.end.lon, e2.end.lat);
553 printf("g = (%.15g %.15g)\n", g.lon, g.lat);
554 printf("rv = %d\n", rv);
555#endif
556 CU_ASSERT_DOUBLE_EQUAL(g.lat, 90.0, 0.00001);
557 CU_ASSERT_EQUAL(rv, LW_TRUE);
558
559}
point_rad2deg
static void point_rad2deg(GEOGRAPHIC_POINT *p)
Convert a point from radians to degrees.
Definition cu_geodetic.c:63
edge_set
static void edge_set(double lon1, double lat1, double lon2, double lat2, GEOGRAPHIC_EDGE *e)
Definition cu_geodetic.c:347
LW_FALSE
#define LW_FALSE
Definition liblwgeom.h:94
LW_TRUE
#define LW_TRUE
Return types for functions with status returns.
Definition liblwgeom.h:93
edge_intersection
int edge_intersection(const GEOGRAPHIC_EDGE *e1, const GEOGRAPHIC_EDGE *e2, GEOGRAPHIC_POINT *g)
Returns true if an intersection can be calculated, and places it in *g.
Definition lwgeodetic.c:1079
GEOGRAPHIC_EDGE::start
GEOGRAPHIC_POINT start
Definition lwgeodetic.h:64
GEOGRAPHIC_EDGE::end
GEOGRAPHIC_POINT end
Definition lwgeodetic.h:65
GEOGRAPHIC_EDGE
Two-point great circle segment from a to b.
Definition lwgeodetic.h:63
GEOGRAPHIC_POINT::lat
double lat
Definition lwgeodetic.h:56
GEOGRAPHIC_POINT::lon
double lon
Definition lwgeodetic.h:55
GEOGRAPHIC_POINT
Point in spherical coordinates on the world.
Definition lwgeodetic.h:54

References edge_intersection(), edge_set(), GEOGRAPHIC_EDGE::end, GEOGRAPHIC_POINT::lat, GEOGRAPHIC_POINT::lon, LW_FALSE, LW_TRUE, point_rad2deg(), and GEOGRAPHIC_EDGE::start.

Referenced by geodetic_suite_setup().

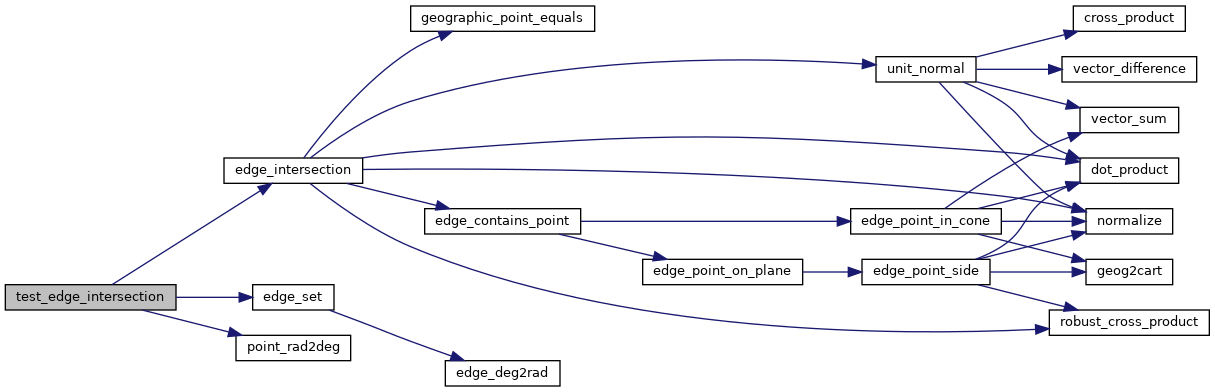

Here is the call graph for this function:
Here is the caller graph for this function:
