buffer()

Datum buffer

(

PG_FUNCTION_ARGS

)

Definition at line 989 of file postgis/lwgeom_geos.c.

{
        GEOSBufferParams *bufferparams;
        GEOSGeometry *g1, *g3 = NULL;
        GSERIALIZED *result;
        LWGEOM *lwg;
        int quadsegs = 8; /* the default */
        int singleside = 0; /* the default */
        enum
        {
            ENDCAP_ROUND = 1,
            ENDCAP_FLAT = 2,
            ENDCAP_SQUARE = 3
        };
        enum
        {
            JOIN_ROUND = 1,
            JOIN_MITRE = 2,
            JOIN_BEVEL = 3
        };
        const double DEFAULT_MITRE_LIMIT = 5.0;
        const int DEFAULT_ENDCAP_STYLE = ENDCAP_ROUND;
        const int DEFAULT_JOIN_STYLE = JOIN_ROUND;
        double mitreLimit = DEFAULT_MITRE_LIMIT;
        int endCapStyle = DEFAULT_ENDCAP_STYLE;
        int joinStyle  = DEFAULT_JOIN_STYLE;

        GSERIALIZED     *geom1 = PG_GETARG_GSERIALIZED_P(0);
        double size = PG_GETARG_FLOAT8(1);
        text *params_text;

        if (PG_NARGS() > 2)
        {
                params_text = PG_GETARG_TEXT_P(2);
        }
        else
        {
                params_text = cstring_to_text("");
        }

        /* Empty.Buffer() == Empty[polygon] */
        if ( gserialized_is_empty(geom1) )
        {
                lwg = lwpoly_as_lwgeom(lwpoly_construct_empty(
                        gserialized_get_srid(geom1),
                        0, 0)); // buffer wouldn't give back z or m anyway
                PG_RETURN_POINTER(geometry_serialize(lwg));
        }

        lwg = lwgeom_from_gserialized(geom1);

        if (!lwgeom_isfinite(lwg))
        {
                lwpgerror("Geometry contains invalid coordinates");
                PG_RETURN_NULL();
        }
        lwgeom_free(lwg);

        initGEOS(lwpgnotice, lwgeom_geos_error);

        g1 = POSTGIS2GEOS(geom1);
        if (!g1)
                HANDLE_GEOS_ERROR("First argument geometry could not be converted to GEOS");


        if (VARSIZE_ANY_EXHDR(params_text) > 0)
        {
                char *param;
                char *params = text_to_cstring(params_text);

                for (param=params; ; param=NULL)
                {
                        char *key, *val;
                        param = strtok(param, " ");
                        if (!param) break;
                        POSTGIS_DEBUGF(3, "Param: %s", param);

                        key = param;
                        val = strchr(key, '=');
                        if (!val || *(val + 1) == '\0')
                        {
                                lwpgerror("Missing value for buffer parameter %s", key);
                                break;
                        }
                        *val = '\0';
                        ++val;

                        POSTGIS_DEBUGF(3, "Param: %s : %s", key, val);

                        if ( !strcmp(key, "endcap") )
                        {
                                /* Supported end cap styles:
                                 *   "round", "flat", "square"
                                 */
                                if ( !strcmp(val, "round") )
                                {
                                        endCapStyle = ENDCAP_ROUND;
                                }
                                else if ( !strcmp(val, "flat") ||
                                          !strcmp(val, "butt")    )
                                {
                                        endCapStyle = ENDCAP_FLAT;
                                }
                                else if ( !strcmp(val, "square") )
                                {
                                        endCapStyle = ENDCAP_SQUARE;
                                }
                                else
                                {
                                        lwpgerror("Invalid buffer end cap "
                                                "style: %s (accept: "
                                                "'round', 'flat', 'butt' "
                                                "or 'square'"
                                                ")", val);
                                        break;
                                }

                        }
                        else if ( !strcmp(key, "join") )
                        {
                                if ( !strcmp(val, "round") )
                                {
                                        joinStyle = JOIN_ROUND;
                                }
                                else if ( !strcmp(val, "mitre") ||
                                          !strcmp(val, "miter")    )
                                {
                                        joinStyle = JOIN_MITRE;
                                }
                                else if ( !strcmp(val, "bevel") )
                                {
                                        joinStyle = JOIN_BEVEL;
                                }
                                else
                                {
                                        lwpgerror("Invalid buffer end cap "
                                                "style: %s (accept: "
                                                "'round', 'mitre', 'miter' "
                                                " or 'bevel'"
                                                ")", val);
                                        break;
                                }
                        }
                        else if ( !strcmp(key, "mitre_limit") ||
                                  !strcmp(key, "miter_limit")    )
                        {
                                /* mitreLimit is a float */
                                mitreLimit = atof(val);
                        }
                        else if ( !strcmp(key, "quad_segs") )
                        {
                                /* quadrant segments is an int */
                                quadsegs = atoi(val);
                        }
                        else if ( !strcmp(key, "side") )
                        {
                                if ( !strcmp(val, "both") )
                                {
                                        singleside = 0;
                                }
                                else if ( !strcmp(val, "left") )
                                {
                                        singleside = 1;
                                }
                                else if ( !strcmp(val, "right") )
                                {
                                        singleside = 1;
                                        size *= -1;
                                }
                                else
                                {
                                        lwpgerror("Invalid side parameter: %s (accept: 'right', 'left', 'both')", val);
                                        break;
                                }
                        }
                        else
                        {
                                lwpgerror(
                                    "Invalid buffer parameter: %s (accept: 'endcap', 'join', 'mitre_limit', 'miter_limit', 'quad_segs' and 'side')",
                                    key);
                                break;
                        }
                }
                pfree(params); /* was pstrduped */
        }


        POSTGIS_DEBUGF(3, "endCap:%d joinStyle:%d mitreLimit:%g",
                       endCapStyle, joinStyle, mitreLimit);

        bufferparams = GEOSBufferParams_create();
        if (bufferparams)
        {
                if (GEOSBufferParams_setEndCapStyle(bufferparams, endCapStyle) &&
                        GEOSBufferParams_setJoinStyle(bufferparams, joinStyle) &&
                        GEOSBufferParams_setMitreLimit(bufferparams, mitreLimit) &&
                        GEOSBufferParams_setQuadrantSegments(bufferparams, quadsegs) &&
                        GEOSBufferParams_setSingleSided(bufferparams, singleside))
                {
                        g3 = GEOSBufferWithParams(g1, bufferparams, size);
                }
                else
                {
                        lwpgerror("Error setting buffer parameters.");
                }
                GEOSBufferParams_destroy(bufferparams);
        }
        else
        {
                lwpgerror("Error setting buffer parameters.");
        }

        GEOSGeom_destroy(g1);

        if (!g3) HANDLE_GEOS_ERROR("GEOSBuffer");

        POSTGIS_DEBUGF(3, "result: %s", GEOSGeomToWKT(g3));

        GEOSSetSRID(g3, gserialized_get_srid(geom1));

        result = GEOS2POSTGIS(g3, gserialized_has_z(geom1));
        GEOSGeom_destroy(g3);

        if (!result)
        {
                elog(ERROR,"GEOS buffer() threw an error (result postgis geometry formation)!");
                PG_RETURN_NULL(); /* never get here */
        }

        PG_FREE_IF_COPY(geom1, 0);
        PG_RETURN_POINTER(result);
}

References GEOS2POSTGIS(), gserialized_get_srid(), gserialized_has_z(), gserialized_is_empty(), HANDLE_GEOS_ERROR, lwgeom_free(), lwgeom_from_gserialized(), lwgeom_geos_error(), lwgeom_isfinite(), lwpoly_as_lwgeom(), lwpoly_construct_empty(), POSTGIS2GEOS(), and result.

Referenced by add_overview_constraints(), add_raster_constraints(), analyze_table(), append_sql_to_buffer(), append_stringbuffer(), build_overview(), convert_raster(), copy_from(), copy_from_end(), create_index(), create_table(), do_test_s64_roundtrip(), do_test_u64_roundtrip(), drop_table(), dump_stringbuffer(), encode_ptarray(), encode_ptarray_initial(), flush_stringbuffer(), init_homogenizebuffer(), init_stringbuffer(), insert_records(), lwcollection_build_buffer(), lwcollection_homogenize(), lwgeom_to_wkb_buffer(), lwgeom_to_wkb_varlena(), lwgeom_to_wkb_write_buf(), main(), mvt_clip_and_validate(), mvt_clip_and_validate_geos(), mvt_geom(), process_rasters(), rtdealloc_stringbuffer(), spatial_index_read_extent(), ST_AsMVTGeom(), and vacuum_table().

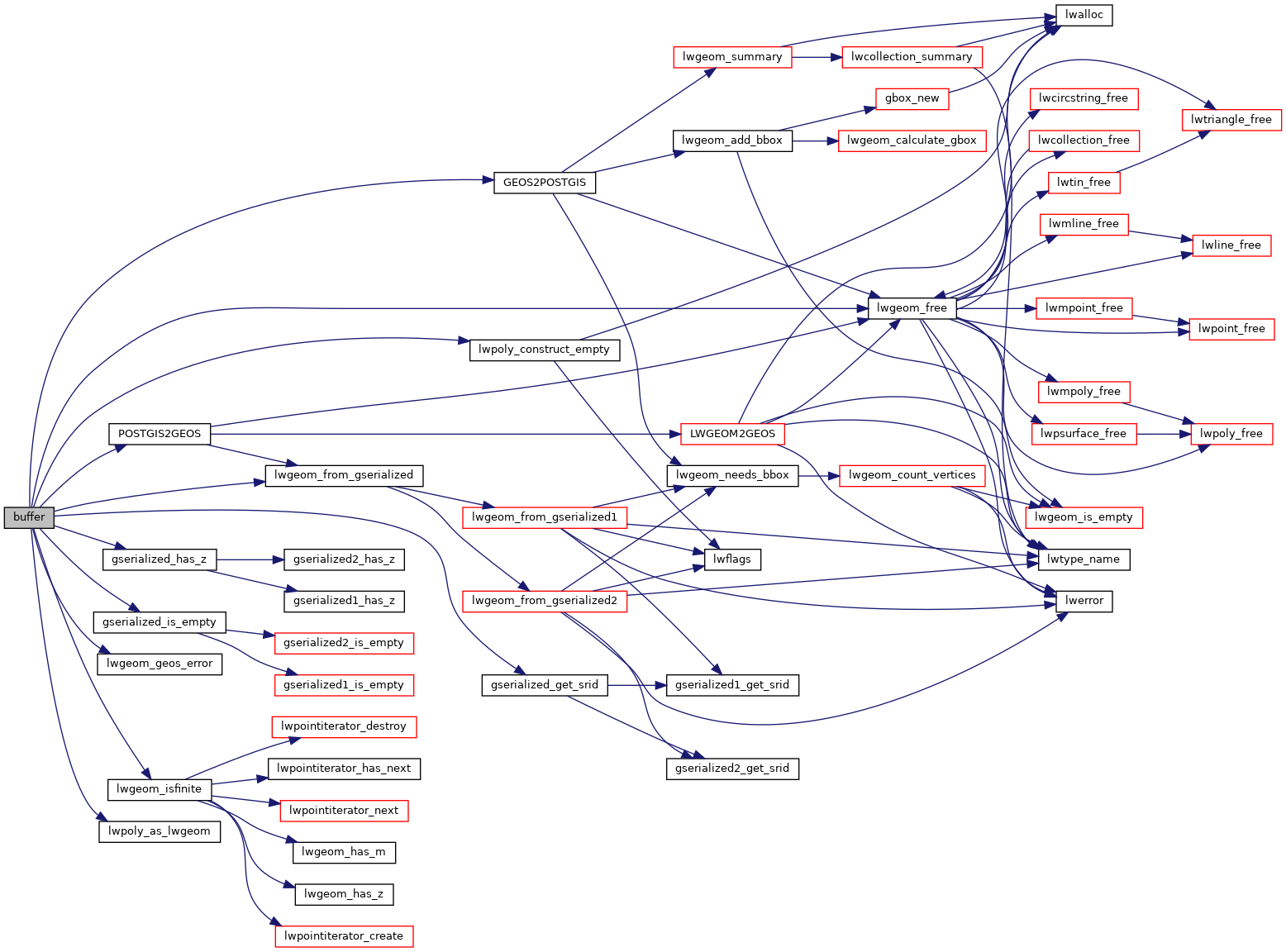

Here is the call graph for this function:

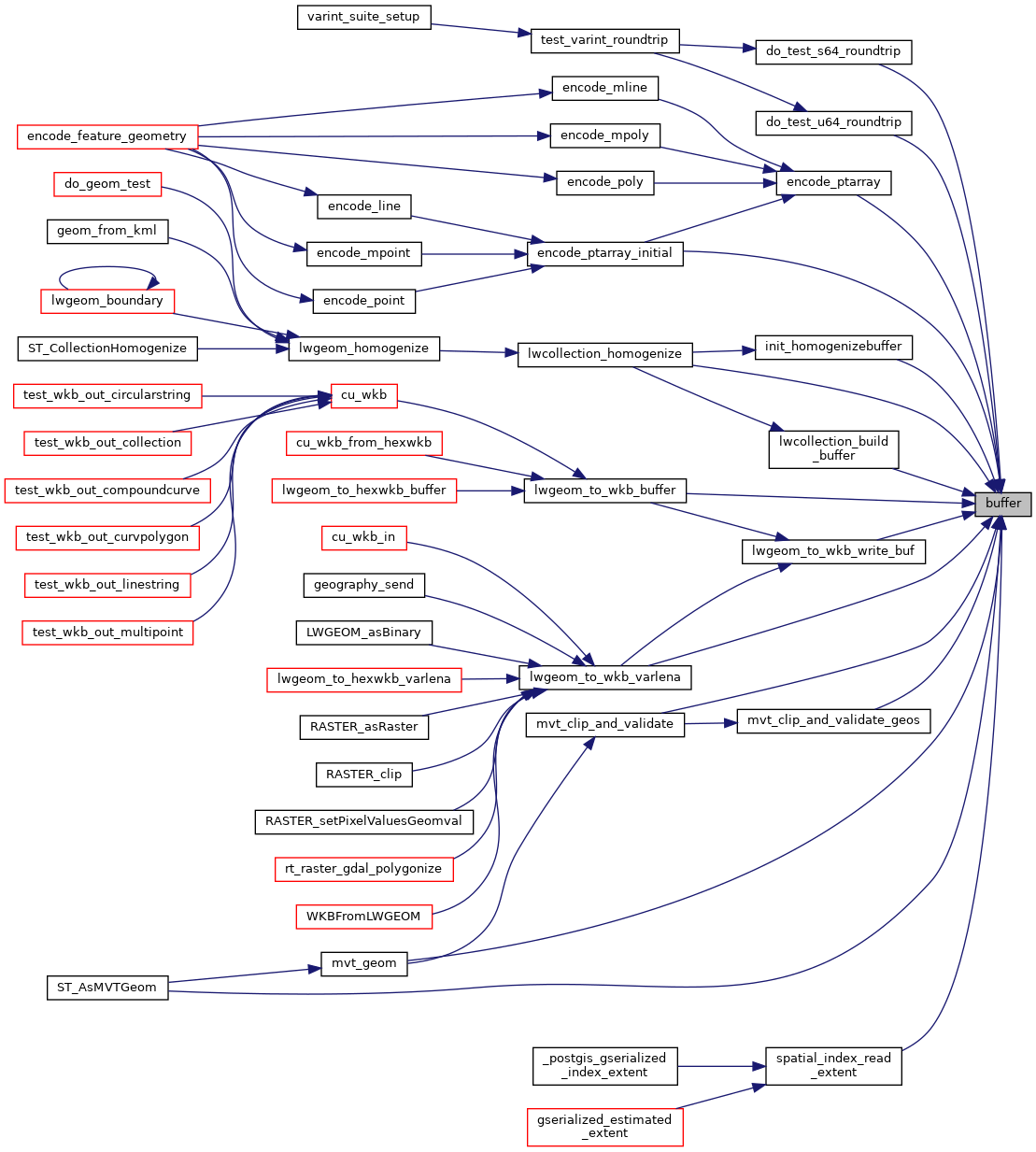

Here is the caller graph for this function:
