asgml3_tin()

static void asgml3_tin ( stringbuffer_t *  sb, const LWTIN *  tin, const GML_Options *  opts  )

static

Definition at line 740 of file lwout_gml.c.

{
        uint32_t i;

        /* Subgeoms don't get an SRS */
        GML_Options subopts = *opts;
        subopts.srs = 0;

        /* Open outmost tag */
        stringbuffer_aprintf(sb, "<%sTin", opts->prefix);
        if (opts->srs)
                stringbuffer_aprintf(sb, " srsName=\"%s\"", opts->srs);
        if (opts->id)
                stringbuffer_aprintf(sb, " %sid=\"%s\"", opts->prefix, opts->id);
        stringbuffer_append(sb, ">");

        stringbuffer_aprintf(sb, "<%strianglePatches>", opts->prefix);
        for (i=0; i<tin->ngeoms; i++)
        {
                asgml3_triangle(sb, tin->geoms[i], &subopts);
        }

        /* Close outmost tag */
        stringbuffer_aprintf(sb, "</%strianglePatches>", opts->prefix);
        stringbuffer_aprintf(sb, "</%sTin>", opts->prefix);
}

References asgml3_triangle(), LWTIN::geoms, LWTIN::ngeoms, GML_Options::srs, stringbuffer_append(), and stringbuffer_aprintf().

Referenced by lwgeom_to_gml3().

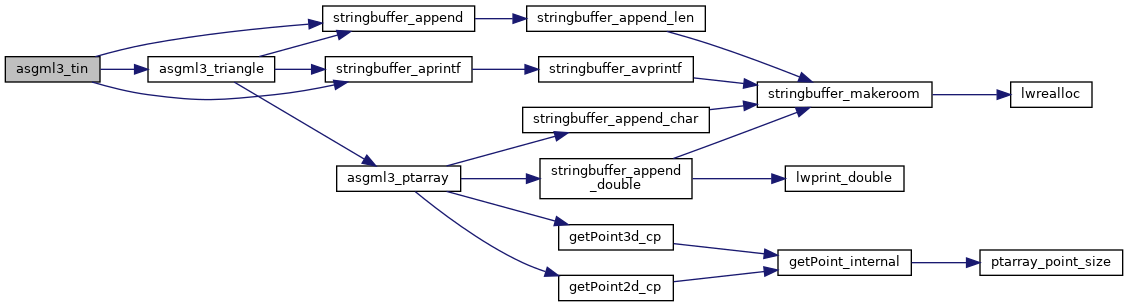

Here is the call graph for this function:

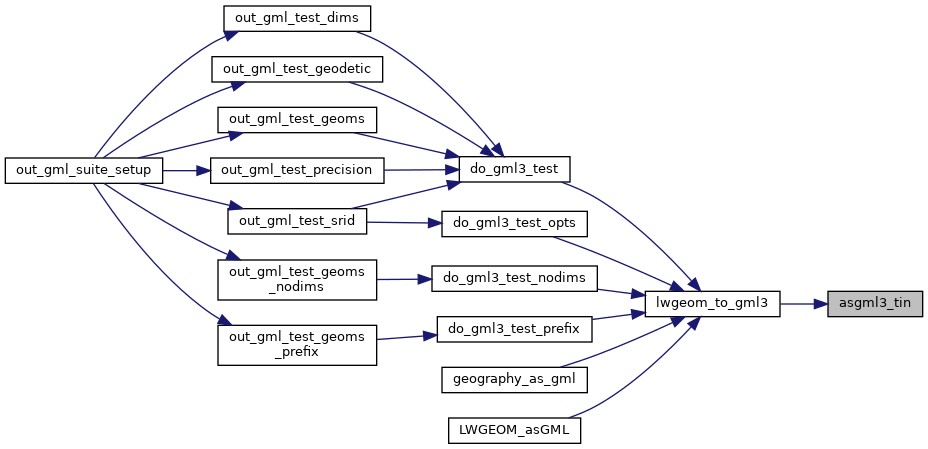

Here is the caller graph for this function:
