rt_raster_geopoint_to_cell()

rt_errorstate rt_raster_geopoint_to_cell	(	rt_raster	raster,
		double	xw,
		double	yw,
		double *	xr,
		double *	yr,
		double *	igt
	)

Convert an xw,yw map point to a xr,yr cell coordinate.

Convert an xw, yw map point to a xr, yr raster point.

Parameters

raster	: the raster to get info from
xw	: X ordinate of the geographical point
yw	: Y ordinate of the geographical point
xr	: output parameter, the pixel's column
yr	: output parameter, the pixel's row
igt	: input/output parameter, inverse geotransform matrix

Returns

ES_NONE if success, ES_ERROR if error

Definition at line 686 of file rt_raster.c.

  {
        double rnd = 0;
        rt_errorstate err;

        err = rt_raster_geopoint_to_rasterpoint(raster, xw, yw, xr, yr, igt);
        if (err != ES_NONE)
                return err;

        rnd = ROUND(*xr, 0);
        if (FLT_EQ(rnd, *xr))
                *xr = rnd;
        else
                *xr = floor(*xr);

        rnd = ROUND(*yr, 0);
        if (FLT_EQ(rnd, *yr))
                *yr = rnd;
        else
                *yr = floor(*yr);

        RASTER_DEBUGF(4, "Corrected GDALApplyGeoTransform (g -> c) for (%f, %f) = (%f, %f)",
                xw, yw, *xr, *yr);

        return ES_NONE;
}

References ES_NONE, FLT_EQ, RASTER_DEBUGF, ROUND, and rt_raster_geopoint_to_rasterpoint().

Referenced by RASTER_nearestValue(), RASTER_setPixelValuesGeomval(), RASTER_worldToRasterCoord(), rt_band_load_offline_data(), rt_raster_compute_skewed_raster(), rt_raster_from_two_rasters(), rt_raster_gdal_rasterize(), rt_raster_gdal_warp(), rt_raster_intersects(), rt_raster_intersects_algorithm(), rt_raster_same_alignment(), and test_raster_geopoint_to_cell().

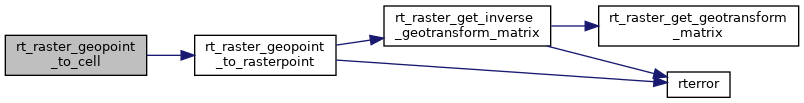

Here is the call graph for this function:

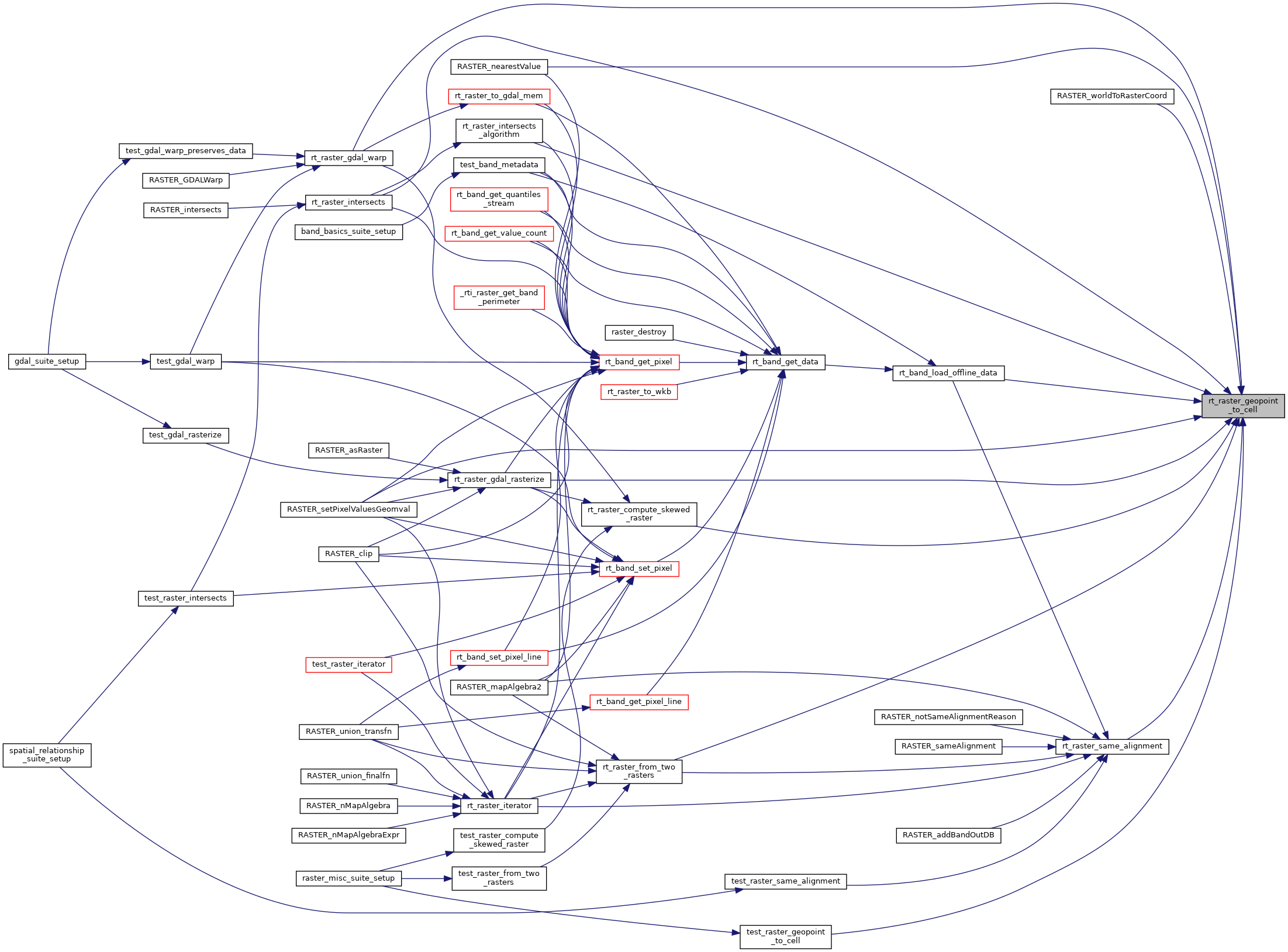

Here is the caller graph for this function:
