lw_dist2d_line_poly()

int lw_dist2d_line_poly	(	LWLINE *	line,
		LWPOLY *	poly,
		DISTPTS *	dl
	)

line to polygon calculation Brute force.

Test line-ring distance against each ring. If there's an intersection (distance==0) then return 0 (crosses boundary). Otherwise, test to see if any point is inside outer rings of polygon, but not in inner rings. If so, return 0 (line inside polygon), otherwise return min distance to a ring (could be outside polygon or inside a hole)

Definition at line 748 of file measures.c.

{
        POINTARRAY *pa = line->points;
        const POINT2D *pt = getPoint2d_cp(pa, 0);

        /* Line has a point outside poly. Check distance to outer ring only. */
        if (ptarray_contains_point(poly->rings[0], pt) == LW_OUTSIDE || dl->mode == DIST_MAX)
                return lw_dist2d_ptarray_ptarray(pa, poly->rings[0], dl);

        for (uint32_t i = 1; i < poly->nrings; i++)
        {
                if (!lw_dist2d_ptarray_ptarray(pa, poly->rings[i], dl))
                        return LW_FALSE;

                /* just a check if the answer is already given */
                if (dl->distance <= dl->tolerance && dl->mode == DIST_MIN)
                        return LW_TRUE;
        }

        /* It's inside a hole, then the actual distance is the min ring distance */
        for (uint32_t i = 1; i < poly->nrings; i++)
                if (ptarray_contains_point(poly->rings[i], pt) != LW_OUTSIDE)
                        return LW_TRUE;

        /* Not in hole, so inside polygon */
        if (dl->mode == DIST_MIN)
        {
                lw_dist2d_distpts_set(dl, 0.0, pt, pt);
        }
        return LW_TRUE;
}

References DIST_MAX, DIST_MIN, DISTPTS::distance, getPoint2d_cp(), lw_dist2d_distpts_set(), lw_dist2d_ptarray_ptarray(), LW_FALSE, LW_OUTSIDE, LW_TRUE, DISTPTS::mode, LWPOLY::nrings, LWLINE::points, ptarray_contains_point(), LWPOLY::rings, and DISTPTS::tolerance.

Referenced by lw_dist2d_distribute_bruteforce().

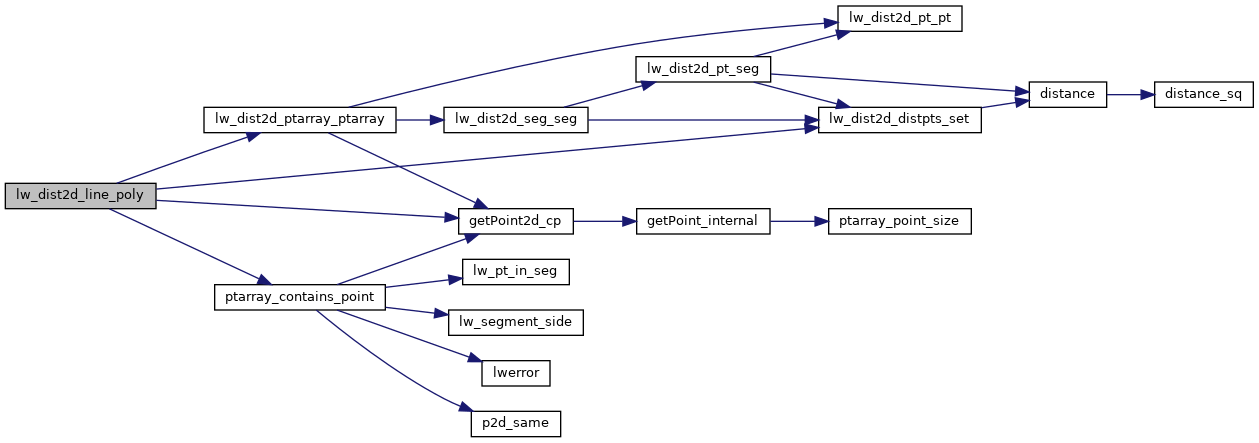

Here is the call graph for this function:

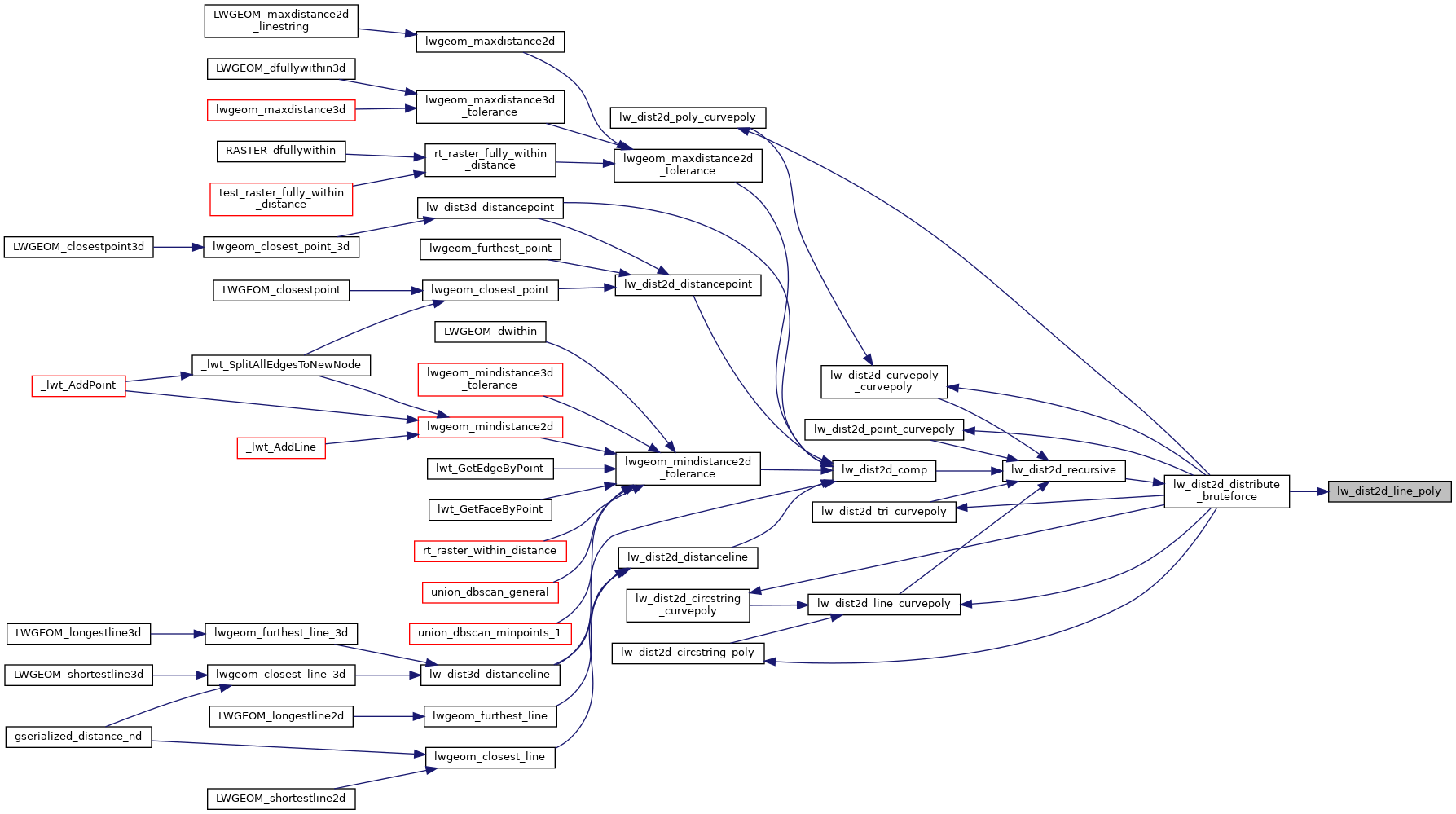

Here is the caller graph for this function:
