pgui_create_connection_window()

static void pgui_create_connection_window ( )

static

Definition at line 3223 of file shp2pgsql-gui.c.

{
        /* Default text width */
        static int text_width = 12;

        /* Vbox container */
        GtkWidget *vbox;

        /* Reusable label handle */
        GtkWidget *label;

        /* PgSQL section */
        GtkWidget *frame_pg, *table_pg;

        /* OK button */
        GtkWidget *button_okay;

        /* Create the main top level window with a 10px border */
        window_conn = gtk_window_new(GTK_WINDOW_TOPLEVEL);
        gtk_container_set_border_width(GTK_CONTAINER(window_conn), 10);
        gtk_window_set_title(GTK_WINDOW(window_conn), _("PostGIS connection"));
        gtk_window_set_position(GTK_WINDOW(window_conn), GTK_WIN_POS_CENTER);
        gtk_window_set_modal(GTK_WINDOW(window_conn), TRUE);

        /* Use a vbox as the base container */
        vbox = gtk_vbox_new(FALSE, 15);

        /*
        ** PostGIS info in a table
        */
        frame_pg = gtk_frame_new(_("PostGIS Connection"));
        table_pg = gtk_table_new(5, 3, TRUE);
        gtk_container_set_border_width (GTK_CONTAINER (table_pg), 8);
        gtk_table_set_col_spacings(GTK_TABLE(table_pg), 7);
        gtk_table_set_row_spacings(GTK_TABLE(table_pg), 3);

        /* User name row */
        label = gtk_label_new(_("Username:"));
        entry_pg_user = gtk_entry_new();
        gtk_table_attach_defaults(GTK_TABLE(table_pg), label, 0, 1, 0, 1 );
        gtk_table_attach_defaults(GTK_TABLE(table_pg), entry_pg_user, 1, 3, 0, 1 );

        /* Password row */
        label = gtk_label_new(_("Password:"));
        entry_pg_pass = gtk_entry_new();
        gtk_entry_set_visibility( GTK_ENTRY(entry_pg_pass), FALSE);
        gtk_table_attach_defaults(GTK_TABLE(table_pg), label, 0, 1, 1, 2 );
        gtk_table_attach_defaults(GTK_TABLE(table_pg), entry_pg_pass, 1, 3, 1, 2 );

        /* Host and port row */
        label = gtk_label_new(_("Server Host:"));
        entry_pg_host = gtk_entry_new();
        gtk_entry_set_width_chars(GTK_ENTRY(entry_pg_host), text_width);
        gtk_table_attach_defaults(GTK_TABLE(table_pg), label, 0, 1, 2, 3 );
        gtk_table_attach_defaults(GTK_TABLE(table_pg), entry_pg_host, 1, 2, 2, 3 );

        entry_pg_port = gtk_entry_new();
        gtk_entry_set_width_chars(GTK_ENTRY(entry_pg_port), 8);
        gtk_table_attach_defaults(GTK_TABLE(table_pg), entry_pg_port, 2, 3, 2, 3 );

        /* Database row */
        label = gtk_label_new(_("Database:"));
        entry_pg_db   = gtk_entry_new();
        gtk_table_attach_defaults(GTK_TABLE(table_pg), label, 0, 1, 3, 4 );
        gtk_table_attach_defaults(GTK_TABLE(table_pg), entry_pg_db, 1, 3, 3, 4 );

        /* Add table into containing frame */
        gtk_container_add(GTK_CONTAINER(frame_pg), table_pg);

        /* Add frame into containing vbox */
        gtk_container_add(GTK_CONTAINER(window_conn), vbox);

        /* Add the vbox into the window */
        gtk_container_add(GTK_CONTAINER(vbox), frame_pg);

        /* Create a simple "OK" button for the dialog */
        button_okay = gtk_button_new_with_label(_("OK"));
        gtk_container_add(GTK_CONTAINER(vbox), button_okay);
        g_signal_connect(G_OBJECT(button_okay), "clicked", G_CALLBACK(pgui_action_connection_okay), NULL);

        /* Hook the delete event so we don't destroy the dialog (only hide it) if cancelled */
        gtk_signal_connect(GTK_OBJECT(window_conn), "delete_event", GTK_SIGNAL_FUNC(pgui_event_popup_delete), NULL);

        return;
}

References _, entry_pg_db, entry_pg_host, entry_pg_pass, entry_pg_port, entry_pg_user, FALSE, pgui_action_connection_okay(), pgui_event_popup_delete(), TRUE, and window_conn.

Referenced by main().

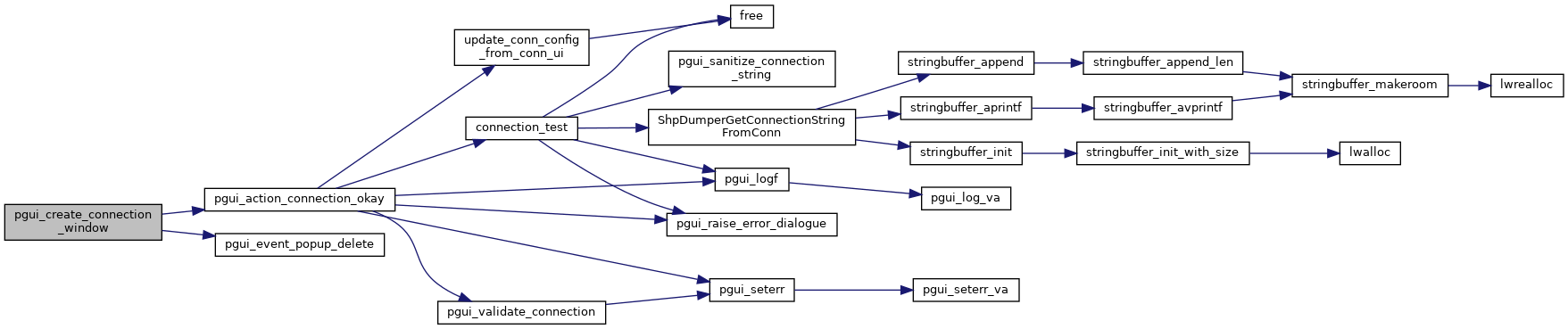

Here is the call graph for this function:

Here is the caller graph for this function:
