lwgeom_force_clockwise()

void lwgeom_force_clockwise ( LWGEOM *  lwgeom )

extern

Force Right-hand-rule on LWGEOM polygons.

Definition at line 38 of file lwgeom.c.

{
        LWCOLLECTION *coll;
        uint32_t i;

        switch (lwgeom->type)
        {
        case POLYGONTYPE:
                lwpoly_force_clockwise((LWPOLY *)lwgeom);
                return;

        case TRIANGLETYPE:
                lwtriangle_force_clockwise((LWTRIANGLE *)lwgeom);
                return;

                /* Not handle POLYHEDRALSURFACE and TIN
                   as they are supposed to be well oriented */
        case MULTIPOLYGONTYPE:
        case COLLECTIONTYPE:
                coll = (LWCOLLECTION *)lwgeom;
                for (i=0; i<coll->ngeoms; i++)
                        lwgeom_force_clockwise(coll->geoms[i]);
                return;
        }
}

References COLLECTIONTYPE, LWCOLLECTION::geoms, lwgeom_force_clockwise(), lwpoly_force_clockwise(), lwtriangle_force_clockwise(), MULTIPOLYGONTYPE, LWCOLLECTION::ngeoms, POLYGONTYPE, TRIANGLETYPE, and LWGEOM::type.

Referenced by lwgeom_force_clockwise(), LWGEOM_force_clockwise_poly(), parse_marc21(), and test_lwgeom_force_clockwise().

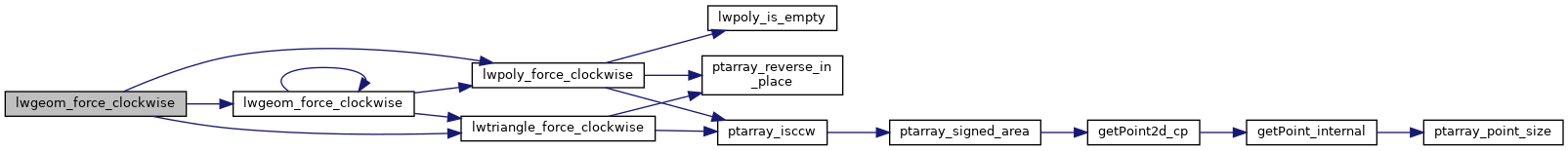

Here is the call graph for this function:

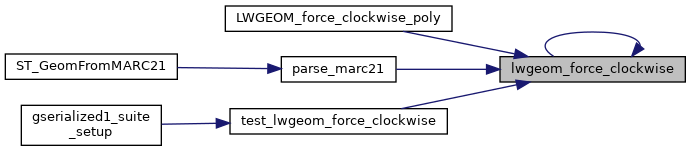

Here is the caller graph for this function:
