◆ SHPWriteObject()

int SHPAPI_CALL SHPWriteObject ( SHPHandle  psSHP,
int  nShapeId,
SHPObject *  psObject
)

Definition at line 1334 of file shpopen.c.

1336{
1337 SAOffset nRecordOffset;
1338 unsigned int nRecordSize=0;
1339 int i;
1340 uchar *pabyRec;
1341 int32 i32;
1342 int bAppendToLastRecord = FALSE;
1343 int bAppendToFile = FALSE;
1344
1345 psSHP->bUpdated = TRUE;
1346
1347/* -------------------------------------------------------------------- */
1348/* Ensure that shape object matches the type of the file it is */
1349/* being written to. */
1350/* -------------------------------------------------------------------- */
1351 assert( psObject->nSHPType == psSHP->nShapeType
1352 || psObject->nSHPType == SHPT_NULL );
1353
1354/* -------------------------------------------------------------------- */
1355/* Ensure that -1 is used for appends. Either blow an */
1356/* assertion, or if they are disabled, set the shapeid to -1 */
1357/* for appends. */
1358/* -------------------------------------------------------------------- */
1359 assert( nShapeId == -1
1360 || (nShapeId >= 0 && nShapeId < psSHP->nRecords) );
1361
1362 if( nShapeId != -1 && nShapeId >= psSHP->nRecords )
1363 nShapeId = -1;
1364
1365/* -------------------------------------------------------------------- */
1366/* Add the new entity to the in memory index. */
1367/* -------------------------------------------------------------------- */
1368 if( nShapeId == -1 && psSHP->nRecords+1 > psSHP->nMaxRecords )
1369 {
1370 int nNewMaxRecords = psSHP->nMaxRecords + psSHP->nMaxRecords / 3 + 100;
1371 unsigned int* panRecOffsetNew;
1372 unsigned int* panRecSizeNew;
1373
1374 panRecOffsetNew = STATIC_CAST(unsigned int *,
1375 SfRealloc(psSHP->panRecOffset,sizeof(unsigned int) * nNewMaxRecords ));
1376 if( panRecOffsetNew == SHPLIB_NULLPTR )
1377 return -1;
1378 psSHP->panRecOffset = panRecOffsetNew;
1379
1380 panRecSizeNew = STATIC_CAST(unsigned int *,
1381 SfRealloc(psSHP->panRecSize,sizeof(unsigned int) * nNewMaxRecords ));
1382 if( panRecSizeNew == SHPLIB_NULLPTR )
1383 return -1;
1384 psSHP->panRecSize = panRecSizeNew;
1385
1386 psSHP->nMaxRecords = nNewMaxRecords;
1387 }
1388
1389/* -------------------------------------------------------------------- */
1390/* Initialize record. */
1391/* -------------------------------------------------------------------- */
1392 pabyRec = STATIC_CAST(uchar *, malloc(psObject->nVertices * 4 * sizeof(double)
1393 + psObject->nParts * 8 + 128));
1394 if( pabyRec == SHPLIB_NULLPTR )
1395 return -1;
1396
1397/* -------------------------------------------------------------------- */
1398/* Extract vertices for a Polygon or Arc. */
1399/* -------------------------------------------------------------------- */
1400 if( psObject->nSHPType == SHPT_POLYGON
1401 || psObject->nSHPType == SHPT_POLYGONZ
1402 || psObject->nSHPType == SHPT_POLYGONM
1403 || psObject->nSHPType == SHPT_ARC
1404 || psObject->nSHPType == SHPT_ARCZ
1405 || psObject->nSHPType == SHPT_ARCM
1406 || psObject->nSHPType == SHPT_MULTIPATCH )
1407 {
1408 int32 nPoints, nParts;
1409
1410 nPoints = psObject->nVertices;
1411 nParts = psObject->nParts;
1412
1413 _SHPSetBounds( pabyRec + 12, psObject );
1414
1415 if( bBigEndian ) SwapWord( 4, &nPoints );
1416 if( bBigEndian ) SwapWord( 4, &nParts );
1417
1418 ByteCopy( &nPoints, pabyRec + 40 + 8, 4 );
1419 ByteCopy( &nParts, pabyRec + 36 + 8, 4 );
1420
1421 nRecordSize = 52;
1422
1423 /*
1424 * Write part start positions.
1425 */
1426 ByteCopy( psObject->panPartStart, pabyRec + 44 + 8,
1427 4 * psObject->nParts );
1428 for( i = 0; i < psObject->nParts; i++ )
1429 {
1430 if( bBigEndian ) SwapWord( 4, pabyRec + 44 + 8 + 4*i );
1431 nRecordSize += 4;
1432 }
1433
1434 /*
1435 * Write multipatch part types if needed.
1436 */
1437 if( psObject->nSHPType == SHPT_MULTIPATCH )
1438 {
1439 memcpy( pabyRec + nRecordSize, psObject->panPartType,
1440 4*psObject->nParts );
1441 for( i = 0; i < psObject->nParts; i++ )
1442 {
1443 if( bBigEndian ) SwapWord( 4, pabyRec + nRecordSize );
1444 nRecordSize += 4;
1445 }
1446 }
1447
1448 /*
1449 * Write the (x,y) vertex values.
1450 */
1451 for( i = 0; i < psObject->nVertices; i++ )
1452 {
1453 ByteCopy( psObject->padfX + i, pabyRec + nRecordSize, 8 );
1454 ByteCopy( psObject->padfY + i, pabyRec + nRecordSize + 8, 8 );
1455
1456 if( bBigEndian )
1457 SwapWord( 8, pabyRec + nRecordSize );
1458
1459 if( bBigEndian )
1460 SwapWord( 8, pabyRec + nRecordSize + 8 );
1461
1462 nRecordSize += 2 * 8;
1463 }
1464
1465 /*
1466 * Write the Z coordinates (if any).
1467 */
1468 if( psObject->nSHPType == SHPT_POLYGONZ
1469 || psObject->nSHPType == SHPT_ARCZ
1470 || psObject->nSHPType == SHPT_MULTIPATCH )
1471 {
1472 ByteCopy( &(psObject->dfZMin), pabyRec + nRecordSize, 8 );
1473 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1474 nRecordSize += 8;
1475
1476 ByteCopy( &(psObject->dfZMax), pabyRec + nRecordSize, 8 );
1477 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1478 nRecordSize += 8;
1479
1480 for( i = 0; i < psObject->nVertices; i++ )
1481 {
1482 ByteCopy( psObject->padfZ + i, pabyRec + nRecordSize, 8 );
1483 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1484 nRecordSize += 8;
1485 }
1486 }
1487
1488 /*
1489 * Write the M values, if any.
1490 */
1491 if( psObject->bMeasureIsUsed
1492 && (psObject->nSHPType == SHPT_POLYGONM
1493 || psObject->nSHPType == SHPT_ARCM
1494#ifndef DISABLE_MULTIPATCH_MEASURE
1495 || psObject->nSHPType == SHPT_MULTIPATCH
1496#endif
1497 || psObject->nSHPType == SHPT_POLYGONZ
1498 || psObject->nSHPType == SHPT_ARCZ) )
1499 {
1500 ByteCopy( &(psObject->dfMMin), pabyRec + nRecordSize, 8 );
1501 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1502 nRecordSize += 8;
1503
1504 ByteCopy( &(psObject->dfMMax), pabyRec + nRecordSize, 8 );
1505 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1506 nRecordSize += 8;
1507
1508 for( i = 0; i < psObject->nVertices; i++ )
1509 {
1510 ByteCopy( psObject->padfM + i, pabyRec + nRecordSize, 8 );
1511 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1512 nRecordSize += 8;
1513 }
1514 }
1515 }
1516
1517/* -------------------------------------------------------------------- */
1518/* Extract vertices for a MultiPoint. */
1519/* -------------------------------------------------------------------- */
1520 else if( psObject->nSHPType == SHPT_MULTIPOINT
1521 || psObject->nSHPType == SHPT_MULTIPOINTZ
1522 || psObject->nSHPType == SHPT_MULTIPOINTM )
1523 {
1524 int32 nPoints;
1525
1526 nPoints = psObject->nVertices;
1527
1528 _SHPSetBounds( pabyRec + 12, psObject );
1529
1530 if( bBigEndian ) SwapWord( 4, &nPoints );
1531 ByteCopy( &nPoints, pabyRec + 44, 4 );
1532
1533 for( i = 0; i < psObject->nVertices; i++ )
1534 {
1535 ByteCopy( psObject->padfX + i, pabyRec + 48 + i*16, 8 );
1536 ByteCopy( psObject->padfY + i, pabyRec + 48 + i*16 + 8, 8 );
1537
1538 if( bBigEndian ) SwapWord( 8, pabyRec + 48 + i*16 );
1539 if( bBigEndian ) SwapWord( 8, pabyRec + 48 + i*16 + 8 );
1540 }
1541
1542 nRecordSize = 48 + 16 * psObject->nVertices;
1543
1544 if( psObject->nSHPType == SHPT_MULTIPOINTZ )
1545 {
1546 ByteCopy( &(psObject->dfZMin), pabyRec + nRecordSize, 8 );
1547 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1548 nRecordSize += 8;
1549
1550 ByteCopy( &(psObject->dfZMax), pabyRec + nRecordSize, 8 );
1551 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1552 nRecordSize += 8;
1553
1554 for( i = 0; i < psObject->nVertices; i++ )
1555 {
1556 ByteCopy( psObject->padfZ + i, pabyRec + nRecordSize, 8 );
1557 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1558 nRecordSize += 8;
1559 }
1560 }
1561
1562 if( psObject->bMeasureIsUsed
1563 && (psObject->nSHPType == SHPT_MULTIPOINTZ
1564 || psObject->nSHPType == SHPT_MULTIPOINTM) )
1565 {
1566 ByteCopy( &(psObject->dfMMin), pabyRec + nRecordSize, 8 );
1567 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1568 nRecordSize += 8;
1569
1570 ByteCopy( &(psObject->dfMMax), pabyRec + nRecordSize, 8 );
1571 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1572 nRecordSize += 8;
1573
1574 for( i = 0; i < psObject->nVertices; i++ )
1575 {
1576 ByteCopy( psObject->padfM + i, pabyRec + nRecordSize, 8 );
1577 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1578 nRecordSize += 8;
1579 }
1580 }
1581 }
1582
1583/* -------------------------------------------------------------------- */
1584/* Write point. */
1585/* -------------------------------------------------------------------- */
1586 else if( psObject->nSHPType == SHPT_POINT
1587 || psObject->nSHPType == SHPT_POINTZ
1588 || psObject->nSHPType == SHPT_POINTM )
1589 {
1590 ByteCopy( psObject->padfX, pabyRec + 12, 8 );
1591 ByteCopy( psObject->padfY, pabyRec + 20, 8 );
1592
1593 if( bBigEndian ) SwapWord( 8, pabyRec + 12 );
1594 if( bBigEndian ) SwapWord( 8, pabyRec + 20 );
1595
1596 nRecordSize = 28;
1597
1598 if( psObject->nSHPType == SHPT_POINTZ )
1599 {
1600 ByteCopy( psObject->padfZ, pabyRec + nRecordSize, 8 );
1601 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1602 nRecordSize += 8;
1603 }
1604
1605 if( psObject->bMeasureIsUsed
1606 && (psObject->nSHPType == SHPT_POINTZ
1607 || psObject->nSHPType == SHPT_POINTM) )
1608 {
1609 ByteCopy( psObject->padfM, pabyRec + nRecordSize, 8 );
1610 if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
1611 nRecordSize += 8;
1612 }
1613 }
1614
1615/* -------------------------------------------------------------------- */
1616/* Not much to do for null geometries. */
1617/* -------------------------------------------------------------------- */
1618 else if( psObject->nSHPType == SHPT_NULL )
1619 {
1620 nRecordSize = 12;
1621 }
1622
1623 else
1624 {
1625 /* unknown type */
1626 assert( FALSE );
1627 }
1628
1629/* -------------------------------------------------------------------- */
1630/* Establish where we are going to put this record. If we are */
1631/* rewriting the last record of the file, then we can update it in */
1632/* place. Otherwise if rewriting an existing record, and it will */
1633/* fit, then put it back where the original came from. Otherwise */
1634/* write at the end. */
1635/* -------------------------------------------------------------------- */
1636 if( nShapeId != -1 && psSHP->panRecOffset[nShapeId] +
1637 psSHP->panRecSize[nShapeId] + 8 == psSHP->nFileSize )
1638 {
1639 nRecordOffset = psSHP->panRecOffset[nShapeId];
1640 bAppendToLastRecord = TRUE;
1641 }
1642 else if( nShapeId == -1 || psSHP->panRecSize[nShapeId] < nRecordSize-8 )
1643 {
1644 if( psSHP->nFileSize > UINT_MAX - nRecordSize)
1645 {
1646 char str[128];
1647 snprintf( str, sizeof(str), "Failed to write shape object. "
1648 "File size cannot reach %u + %u.",
1649 psSHP->nFileSize, nRecordSize );
1650 str[sizeof(str)-1] = '\0';
1651 psSHP->sHooks.Error( str );
1652 free( pabyRec );
1653 return -1;
1654 }
1655
1656 bAppendToFile = TRUE;
1657 nRecordOffset = psSHP->nFileSize;
1658 }
1659 else
1660 {
1661 nRecordOffset = psSHP->panRecOffset[nShapeId];
1662 }
1663
1664/* -------------------------------------------------------------------- */
1665/* Set the shape type, record number, and record size. */
1666/* -------------------------------------------------------------------- */
1667 i32 = (nShapeId < 0) ? psSHP->nRecords+1 : nShapeId+1; /* record # */
1668 if( !bBigEndian ) SwapWord( 4, &i32 );
1669 ByteCopy( &i32, pabyRec, 4 );
1670
1671 i32 = (nRecordSize-8)/2; /* record size */
1672 if( !bBigEndian ) SwapWord( 4, &i32 );
1673 ByteCopy( &i32, pabyRec + 4, 4 );
1674
1675 i32 = psObject->nSHPType; /* shape type */
1676 if( bBigEndian ) SwapWord( 4, &i32 );
1677 ByteCopy( &i32, pabyRec + 8, 4 );
1678
1679/* -------------------------------------------------------------------- */
1680/* Write out record. */
1681/* -------------------------------------------------------------------- */
1682
1683/* -------------------------------------------------------------------- */
1684/* Guard FSeek with check for whether we're already at position; */
1685/* no-op FSeeks defeat network filesystems' write buffering. */
1686/* -------------------------------------------------------------------- */
1687/* TOOK OUT GUARD cause causing mingw64 to fail, see https://trac.osgeo.org/postgis/ticket/4603 */
1688 //if ( psSHP->sHooks.FTell( psSHP->fpSHP ) != nRecordOffset ) {
1689 if( psSHP->sHooks.FSeek( psSHP->fpSHP, nRecordOffset, 0 ) != 0 )
1690 {
1691 char szErrorMsg[200];
1692
1693 snprintf( szErrorMsg, sizeof(szErrorMsg),
1694 "Error in psSHP->sHooks.FSeek() while writing object to .shp file: %s",
1695 strerror(errno) );
1696 szErrorMsg[sizeof(szErrorMsg)-1] = '\0';
1697 psSHP->sHooks.Error( szErrorMsg );
1698
1699 free( pabyRec );
1700 return -1;
1701 }
1702 //}
1703 if( psSHP->sHooks.FWrite( pabyRec, nRecordSize, 1, psSHP->fpSHP ) < 1 )
1704 {
1705 char szErrorMsg[200];
1706
1707 snprintf( szErrorMsg, sizeof(szErrorMsg),
1708 "Error in psSHP->sHooks.FWrite() while writing object of %u bytes to .shp file: %s",
1709 nRecordSize, strerror(errno) );
1710 szErrorMsg[sizeof(szErrorMsg)-1] = '\0';
1711 psSHP->sHooks.Error( szErrorMsg );
1712
1713 free( pabyRec );
1714 return -1;
1715 }
1716
1717 free( pabyRec );
1718
1719 if( bAppendToLastRecord )
1720 {
1721 psSHP->nFileSize = psSHP->panRecOffset[nShapeId] + nRecordSize;
1722 }
1723 else if( bAppendToFile )
1724 {
1725 if( nShapeId == -1 )
1726 nShapeId = psSHP->nRecords++;
1727
1728 psSHP->panRecOffset[nShapeId] = psSHP->nFileSize;
1729 psSHP->nFileSize += nRecordSize;
1730 }
1731 psSHP->panRecSize[nShapeId] = nRecordSize-8;
1732
1733/* -------------------------------------------------------------------- */
1734/* Expand file wide bounds based on this shape. */
1735/* -------------------------------------------------------------------- */
1736 if( psSHP->adBoundsMin[0] == 0.0
1737 && psSHP->adBoundsMax[0] == 0.0
1738 && psSHP->adBoundsMin[1] == 0.0
1739 && psSHP->adBoundsMax[1] == 0.0 )
1740 {
1741 if( psObject->nSHPType == SHPT_NULL || psObject->nVertices == 0 )
1742 {
1743 psSHP->adBoundsMin[0] = psSHP->adBoundsMax[0] = 0.0;
1744 psSHP->adBoundsMin[1] = psSHP->adBoundsMax[1] = 0.0;
1745 psSHP->adBoundsMin[2] = psSHP->adBoundsMax[2] = 0.0;
1746 psSHP->adBoundsMin[3] = psSHP->adBoundsMax[3] = 0.0;
1747 }
1748 else
1749 {
1750 psSHP->adBoundsMin[0] = psSHP->adBoundsMax[0] = psObject->padfX[0];
1751 psSHP->adBoundsMin[1] = psSHP->adBoundsMax[1] = psObject->padfY[0];
1752 psSHP->adBoundsMin[2] = psSHP->adBoundsMax[2] = psObject->padfZ ? psObject->padfZ[0] : 0.0;
1753 psSHP->adBoundsMin[3] = psSHP->adBoundsMax[3] = psObject->padfM ? psObject->padfM[0] : 0.0;
1754 }
1755 }
1756
1757 for( i = 0; i < psObject->nVertices; i++ )
1758 {
1759 psSHP->adBoundsMin[0] = MIN(psSHP->adBoundsMin[0],psObject->padfX[i]);
1760 psSHP->adBoundsMin[1] = MIN(psSHP->adBoundsMin[1],psObject->padfY[i]);
1761 psSHP->adBoundsMax[0] = MAX(psSHP->adBoundsMax[0],psObject->padfX[i]);
1762 psSHP->adBoundsMax[1] = MAX(psSHP->adBoundsMax[1],psObject->padfY[i]);
1763 if( psObject->padfZ )
1764 {
1765 psSHP->adBoundsMin[2] = MIN(psSHP->adBoundsMin[2],psObject->padfZ[i]);
1766 psSHP->adBoundsMax[2] = MAX(psSHP->adBoundsMax[2],psObject->padfZ[i]);
1767 }
1768 if( psObject->padfM )
1769 {
1770 psSHP->adBoundsMin[3] = MIN(psSHP->adBoundsMin[3],psObject->padfM[i]);
1771 psSHP->adBoundsMax[3] = MAX(psSHP->adBoundsMax[3],psObject->padfM[i]);
1772 }
1773 }
1774
1775 return( nShapeId );
1776}
str
#define str(s)
Definition lwgeom_functions_basic.c:44
malloc
void * malloc(YYSIZE_T)
free
void free(void *)
SHPT_ARCZ
#define SHPT_ARCZ
Definition shapefil.h:354
SHPT_MULTIPATCH
#define SHPT_MULTIPATCH
Definition shapefil.h:361
SHPT_NULL
#define SHPT_NULL
Definition shapefil.h:348
SHPT_ARCM
#define SHPT_ARCM
Definition shapefil.h:358
SHPT_POLYGONM
#define SHPT_POLYGONM
Definition shapefil.h:359
SHPT_ARC
#define SHPT_ARC
Definition shapefil.h:350
SHPT_POLYGON
#define SHPT_POLYGON
Definition shapefil.h:351
DISABLE_MULTIPATCH_MEASURE
#define DISABLE_MULTIPATCH_MEASURE
Definition shapefil.h:207
SHPT_MULTIPOINT
#define SHPT_MULTIPOINT
Definition shapefil.h:352
SHPT_POINTZ
#define SHPT_POINTZ
Definition shapefil.h:353
SHPT_MULTIPOINTZ
#define SHPT_MULTIPOINTZ
Definition shapefil.h:356
SHPT_MULTIPOINTM
#define SHPT_MULTIPOINTM
Definition shapefil.h:360
SHPT_POINTM
#define SHPT_POINTM
Definition shapefil.h:357
SHPT_POINT
#define SHPT_POINT
Definition shapefil.h:349
SHPT_POLYGONZ
#define SHPT_POLYGONZ
Definition shapefil.h:355
SAOffset
unsigned long SAOffset
Definition shapefil.h:286
SfRealloc
static void * SfRealloc(void *pMem, int nNewSize)
Definition shpopen.c:131
bBigEndian
static int bBigEndian
Definition shpopen.c:93
nShapeId
psObject nShapeId
Definition shpopen.c:1210
int32
unsigned int int32
Definition shpopen.c:54
MIN
#define MIN(a, b)
Definition shpopen.c:64
uchar
unsigned char uchar
Definition shpopen.c:49
SwapWord
static void SwapWord(int length, void *wordP)
Definition shpopen.c:110
STATIC_CAST
#define STATIC_CAST(type, x)
Definition shpopen.c:100
TRUE
#define TRUE
Definition shpopen.c:59
FALSE
#define FALSE
Definition shpopen.c:58
_SHPSetBounds
static void _SHPSetBounds(uchar *pabyRec, SHPObject *psShape)
Definition shpopen.c:1136
SHPLIB_NULLPTR
#define SHPLIB_NULLPTR
Definition shpopen.c:101
ByteCopy
#define ByteCopy(a, b, c)
Definition shpopen.c:62
MAX
#define MAX(a, b)
Definition shpopen.c:65
SAHooks::Error
void(* Error)(const char *message)
Definition shapefil.h:299
SAHooks::FWrite
SAOffset(* FWrite)(void *p, SAOffset size, SAOffset nmemb, SAFile file)
Definition shapefil.h:292
SAHooks::FSeek
SAOffset(* FSeek)(SAFile file, SAOffset offset, int whence)
Definition shapefil.h:293
SHPInfo::nShapeType
int nShapeType
Definition shapefil.h:320
SHPInfo::fpSHP
SAFile fpSHP
Definition shapefil.h:317
SHPInfo::nMaxRecords
int nMaxRecords
Definition shapefil.h:325
SHPInfo::panRecSize
unsigned int * panRecSize
Definition shapefil.h:327
SHPInfo::sHooks
SAHooks sHooks
Definition shapefil.h:315
SHPInfo::adBoundsMin
double adBoundsMin[4]
Definition shapefil.h:329
SHPInfo::nRecords
int nRecords
Definition shapefil.h:324
SHPInfo::bUpdated
int bUpdated
Definition shapefil.h:332
SHPInfo::nFileSize
unsigned int nFileSize
Definition shapefil.h:322
SHPInfo::panRecOffset
unsigned int * panRecOffset
Definition shapefil.h:326
SHPInfo::adBoundsMax
double adBoundsMax[4]
Definition shapefil.h:330
tagSHPObject::padfX
double * padfX
Definition shapefil.h:390
tagSHPObject::panPartType
int * panPartType
Definition shapefil.h:387
tagSHPObject::padfY
double * padfY
Definition shapefil.h:391
tagSHPObject::dfMMax
double dfMMax
Definition shapefil.h:403
tagSHPObject::padfZ
double * padfZ
Definition shapefil.h:392
tagSHPObject::dfZMax
double dfZMax
Definition shapefil.h:402
tagSHPObject::panPartStart
int * panPartStart
Definition shapefil.h:386
tagSHPObject::padfM
double * padfM
Definition shapefil.h:393
tagSHPObject::dfMMin
double dfMMin
Definition shapefil.h:398
tagSHPObject::dfZMin
double dfZMin
Definition shapefil.h:397
tagSHPObject::bMeasureIsUsed
int bMeasureIsUsed
Definition shapefil.h:405

References _SHPSetBounds(), SHPInfo::adBoundsMax, SHPInfo::adBoundsMin, bBigEndian, tagSHPObject::bMeasureIsUsed, SHPInfo::bUpdated, ByteCopy, tagSHPObject::dfMMax, tagSHPObject::dfMMin, tagSHPObject::dfZMax, tagSHPObject::dfZMin, DISABLE_MULTIPATCH_MEASURE, SAHooks::Error, FALSE, SHPInfo::fpSHP, free(), SAHooks::FSeek, SAHooks::FWrite, malloc(), MAX, MIN, SHPInfo::nFileSize, SHPInfo::nMaxRecords, tagSHPObject::nParts, SHPInfo::nRecords, nShapeId, SHPInfo::nShapeType, tagSHPObject::nSHPType, tagSHPObject::nVertices, tagSHPObject::padfM, tagSHPObject::padfX, tagSHPObject::padfY, tagSHPObject::padfZ, tagSHPObject::panPartStart, tagSHPObject::panPartType, SHPInfo::panRecOffset, SHPInfo::panRecSize, SfRealloc(), SHPInfo::sHooks, SHPLIB_NULLPTR, SHPT_ARC, SHPT_ARCM, SHPT_ARCZ, SHPT_MULTIPATCH, SHPT_MULTIPOINT, SHPT_MULTIPOINTM, SHPT_MULTIPOINTZ, SHPT_NULL, SHPT_POINT, SHPT_POINTM, SHPT_POINTZ, SHPT_POLYGON, SHPT_POLYGONM, SHPT_POLYGONZ, STATIC_CAST, str, SwapWord(), and TRUE.

Referenced by ShpLoaderGenerateShapeRow().

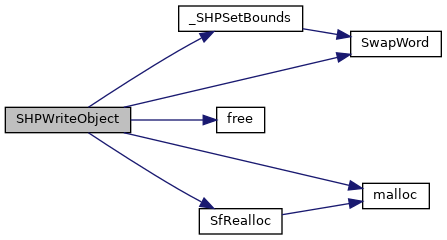

Here is the call graph for this function:
Here is the caller graph for this function:
