rt_raster_get_envelope_geom()

rt_errorstate rt_raster_get_envelope_geom	(	rt_raster	raster,
		LWGEOM **	env
	)

Get raster's envelope as a geometry.

Parameters

raster	: the raster to get info from
**env	: pointer to envelope geom

Returns

ES_NONE if success, ES_ERROR if error

Parameters

raster	: the raster to get info from
**env	: pointer to envelope

Returns

ES_NONE if success, ES_ERROR if error

Definition at line 705 of file rt_geometry.c.

                                                            {
        double gt[6] = {0.0};
        int32_t srid = SRID_UNKNOWN;

        POINTARRAY *pts = NULL;
        POINT4D p4d;

        assert(env != NULL);
        *env = NULL;

        /* raster is NULL, envelope is NULL */
        if (raster == NULL)
                return ES_NONE;

        /* raster metadata */
        srid = rt_raster_get_srid(raster);
        rt_raster_get_geotransform_matrix(raster, gt);

        RASTER_DEBUGF(
                3,
                "rt_raster_get_envelope: raster is %dx%d",
                raster->width,
                raster->height
        );

        /* return point or line since at least one of the two dimensions is 0 */
        if ((!raster->width) || (!raster->height)) {
                p4d.x = gt[0];
                p4d.y = gt[3];

                /* return point */
                if (!raster->width && !raster->height) {
                        LWPOINT *point = lwpoint_make2d(srid, p4d.x, p4d.y);
                        *env = lwpoint_as_lwgeom(point);
                }
                /* return linestring */
                else {
                        LWLINE *line = NULL;
                        pts = ptarray_construct_empty(0, 0, 2);

                        /* first point of line */
                        ptarray_append_point(pts, &p4d, LW_TRUE);

                        /* second point of line */
                        if (rt_raster_cell_to_geopoint(
                                raster,
                                rt_raster_get_width(raster), rt_raster_get_height(raster),
                                &p4d.x, &p4d.y,
                                gt
                        ) != ES_NONE) {
                                rterror("rt_raster_get_envelope: Could not get second point for linestring");
                                return ES_ERROR;
                        }
                        ptarray_append_point(pts, &p4d, LW_TRUE);
                        line = lwline_construct(srid, NULL, pts);

                        *env = lwline_as_lwgeom(line);
                }

                return ES_NONE;
        }
        else {
                rt_envelope rtenv;
                int err = ES_NONE;
                POINTARRAY **rings = NULL;
                LWPOLY* poly = NULL;

                /* only one ring */
                rings = (POINTARRAY **) rtalloc(sizeof (POINTARRAY*));
                if (!rings) {
                        rterror("rt_raster_get_envelope_geom: Could not allocate memory for polygon ring");
                        return ES_ERROR;
                }
                rings[0] = ptarray_construct(0, 0, 5);
                if (!rings[0]) {
                        rterror("rt_raster_get_envelope_geom: Could not construct point array");
                        return ES_ERROR;
                }
                pts = rings[0];

                err = rt_raster_get_envelope(raster, &rtenv);
                if (err != ES_NONE) {
                        rterror("rt_raster_get_envelope_geom: Could not get raster envelope");
                        return err;
                }

                /* build ring */

                /* minx, maxy */
                p4d.x = rtenv.MinX;
                p4d.y = rtenv.MaxY;
                ptarray_set_point4d(pts, 0, &p4d);
                ptarray_set_point4d(pts, 4, &p4d);

                /* maxx, maxy */
                p4d.x = rtenv.MaxX;
                p4d.y = rtenv.MaxY;
                ptarray_set_point4d(pts, 1, &p4d);

                /* maxx, miny */
                p4d.x = rtenv.MaxX;
                p4d.y = rtenv.MinY;
                ptarray_set_point4d(pts, 2, &p4d);

                /* minx, miny */
                p4d.x = rtenv.MinX;
                p4d.y = rtenv.MinY;
                ptarray_set_point4d(pts, 3, &p4d);

                poly = lwpoly_construct(srid, 0, 1, rings);
                *env = lwpoly_as_lwgeom(poly);
        }

        return ES_NONE;
}

References ES_ERROR, ES_NONE, LW_TRUE, lwline_as_lwgeom(), lwline_construct(), lwpoint_as_lwgeom(), lwpoint_make2d(), lwpoly_as_lwgeom(), lwpoly_construct(), rt_envelope::MaxX, rt_envelope::MaxY, rt_envelope::MinX, rt_envelope::MinY, ptarray_append_point(), ptarray_construct(), ptarray_construct_empty(), ptarray_set_point4d(), RASTER_DEBUGF, rt_raster_cell_to_geopoint(), rt_raster_get_envelope(), rt_raster_get_geotransform_matrix(), rt_raster_get_height(), rt_raster_get_srid(), rt_raster_get_width(), rtalloc(), rterror(), SRID_UNKNOWN, POINT4D::x, and POINT4D::y.

Referenced by RASTER_envelope(), and test_raster_envelope_geom().

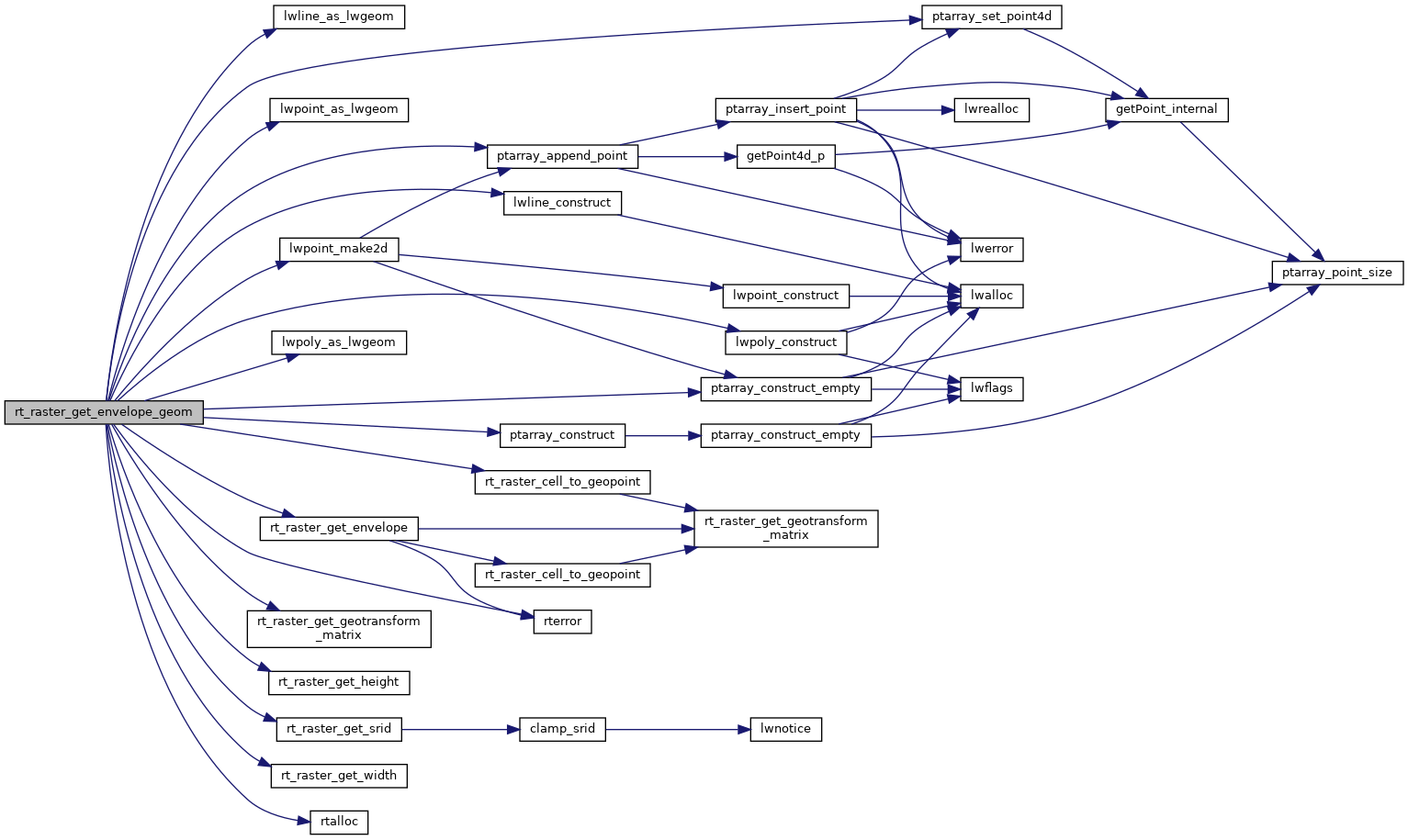

Here is the call graph for this function:

Here is the caller graph for this function:
