RASTER_tile()

Datum RASTER_tile

(

PG_FUNCTION_ARGS

)

Definition at line 948 of file rtpg_create.c.

{
        FuncCallContext *funcctx;
        int call_cntr;
        int max_calls;
        int i = 0;
        int j = 0;

        struct tile_arg_t {

                struct {
                        rt_raster raster;
                        double gt[6];
                        int32_t srid;
                        int width;
                        int height;
                } raster;

                struct {
                        int width;
                        int height;

                        int nx;
                        int ny;
                } tile;

                int numbands;
                int *nbands;

                struct {
                        int pad;
                        double hasnodata;
                        double nodataval;
                } pad;
        };
        struct tile_arg_t *arg1 = NULL;
        struct tile_arg_t *arg2 = NULL;

        if (SRF_IS_FIRSTCALL()) {
                MemoryContext oldcontext;
                rt_pgraster *pgraster = NULL;
                int numbands;

                ArrayType *array;
                Oid etype;
                Datum *e;
                bool *nulls;

                int16 typlen;
                bool typbyval;
                char typalign;

                POSTGIS_RT_DEBUG(2, "RASTER_tile: first call");

                /* create a function context for cross-call persistence */
                funcctx = SRF_FIRSTCALL_INIT();

                /* switch to memory context appropriate for multiple function calls */
                oldcontext = MemoryContextSwitchTo(funcctx->multi_call_memory_ctx);

                /* Get input arguments */
                if (PG_ARGISNULL(0)) {
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }

                /* allocate arg1 */
                arg1 = palloc(sizeof(struct tile_arg_t));
                if (arg1 == NULL) {
                        MemoryContextSwitchTo(oldcontext);
                        elog(ERROR, "RASTER_tile: Could not allocate memory for arguments");
                        SRF_RETURN_DONE(funcctx);
                }

                pgraster = (rt_pgraster *) PG_DETOAST_DATUM_COPY(PG_GETARG_DATUM(0));
                arg1->raster.raster = rt_raster_deserialize(pgraster, FALSE);
                if (!arg1->raster.raster) {
                        ereport(ERROR, (
                                errcode(ERRCODE_OUT_OF_MEMORY),
                                errmsg("Could not deserialize raster")
                        ));
                        pfree(arg1);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }

                /* raster has bands */
                numbands = rt_raster_get_num_bands(arg1->raster.raster);
                /*
                if (!numbands) {
                        elog(NOTICE, "Raster provided has no bands");
                        rt_raster_destroy(arg1->raster.raster);
                        pfree(arg1);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }
                */

                /* width (1) */
                if (PG_ARGISNULL(1)) {
                        elog(NOTICE, "Width cannot be NULL. Returning NULL");
                        rt_raster_destroy(arg1->raster.raster);
                        pfree(arg1);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }
                arg1->tile.width = PG_GETARG_INT32(1);
                if (arg1->tile.width < 1) {
                        elog(NOTICE, "Width must be greater than zero. Returning NULL");
                        rt_raster_destroy(arg1->raster.raster);
                        pfree(arg1);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }

                /* height (2) */
                if (PG_ARGISNULL(2)) {
                        elog(NOTICE, "Height cannot be NULL. Returning NULL");
                        rt_raster_destroy(arg1->raster.raster);
                        pfree(arg1);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }
                arg1->tile.height = PG_GETARG_INT32(2);
                if (arg1->tile.height < 1) {
                        elog(NOTICE, "Height must be greater than zero. Returning NULL");
                        rt_raster_destroy(arg1->raster.raster);
                        pfree(arg1);
                        PG_FREE_IF_COPY(pgraster, 0);
                        MemoryContextSwitchTo(oldcontext);
                        SRF_RETURN_DONE(funcctx);
                }

                /* nband, array (3) */
                if (numbands && !PG_ARGISNULL(3)) {
                        array = PG_GETARG_ARRAYTYPE_P(3);
                        etype = ARR_ELEMTYPE(array);
                        get_typlenbyvalalign(etype, &typlen, &typbyval, &typalign);

                        switch (etype) {
                                case INT2OID:
                                case INT4OID:
                                        break;
                                default:
                                        rt_raster_destroy(arg1->raster.raster);
                                        pfree(arg1);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        elog(ERROR, "RASTER_tile: Invalid data type for band indexes");
                                        SRF_RETURN_DONE(funcctx);
                                        break;
                        }

                        deconstruct_array(array, etype, typlen, typbyval, typalign, &e, &nulls, &(arg1->numbands));

                        arg1->nbands = palloc(sizeof(int) * arg1->numbands);
                        if (arg1->nbands == NULL) {
                                rt_raster_destroy(arg1->raster.raster);
                                pfree(arg1);
                                PG_FREE_IF_COPY(pgraster, 0);
                                MemoryContextSwitchTo(oldcontext);
                                elog(ERROR, "RASTER_tile: Could not allocate memory for band indexes");
                                SRF_RETURN_DONE(funcctx);
                        }

                        for (i = 0, j = 0; i < arg1->numbands; i++) {
                                if (nulls[i]) continue;

                                switch (etype) {
                                        case INT2OID:
                                                arg1->nbands[j] = DatumGetInt16(e[i]) - 1;
                                                break;
                                        case INT4OID:
                                                arg1->nbands[j] = DatumGetInt32(e[i]) - 1;
                                                break;
                                }

                                j++;
                        }

                        if (j < arg1->numbands) {
                                arg1->nbands = repalloc(arg1->nbands, sizeof(int) * j);
                                if (arg1->nbands == NULL) {
                                        rt_raster_destroy(arg1->raster.raster);
                                        pfree(arg1);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        elog(ERROR, "RASTER_tile: Could not reallocate memory for band indexes");
                                        SRF_RETURN_DONE(funcctx);
                                }

                                arg1->numbands = j;
                        }

                        /* validate nbands */
                        for (i = 0; i < arg1->numbands; i++) {
                                if (!rt_raster_has_band(arg1->raster.raster, arg1->nbands[i])) {
                                        elog(NOTICE, "Band at index %d not found in raster", arg1->nbands[i] + 1);
                                        rt_raster_destroy(arg1->raster.raster);
                                        pfree(arg1->nbands);
                                        pfree(arg1);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        SRF_RETURN_DONE(funcctx);
                                }
                        }
                }
                else {
                        arg1->numbands = numbands;

                        if (numbands) {
                                arg1->nbands = palloc(sizeof(int) * arg1->numbands);

                                if (arg1->nbands == NULL) {
                                        rt_raster_destroy(arg1->raster.raster);
                                        pfree(arg1);
                                        PG_FREE_IF_COPY(pgraster, 0);
                                        MemoryContextSwitchTo(oldcontext);
                                        elog(ERROR, "RASTER_dumpValues: Could not allocate memory for pixel values");
                                        SRF_RETURN_DONE(funcctx);
                                }

                                for (i = 0; i < arg1->numbands; i++) {
                                        arg1->nbands[i] = i;
                                        POSTGIS_RT_DEBUGF(4, "arg1->nbands[%d] = %d", arg1->nbands[i], i);
                                }
                        }
                }

                /* pad (4) and padnodata (5) */
                if (!PG_ARGISNULL(4)) {
                        arg1->pad.pad = PG_GETARG_BOOL(4) ? 1 : 0;

                        if (arg1->pad.pad && !PG_ARGISNULL(5)) {
                                arg1->pad.hasnodata = 1;
                                arg1->pad.nodataval = PG_GETARG_FLOAT8(5);
                        }
                        else {
                                arg1->pad.hasnodata = 0;
                                arg1->pad.nodataval = 0;
                        }
                }
                else {
                        arg1->pad.pad = 0;
                        arg1->pad.hasnodata = 0;
                        arg1->pad.nodataval = 0;
                }

                /* store some additional metadata */
                arg1->raster.srid = rt_raster_get_srid(arg1->raster.raster);
                arg1->raster.width = rt_raster_get_width(arg1->raster.raster);
                arg1->raster.height = rt_raster_get_height(arg1->raster.raster);
                rt_raster_get_geotransform_matrix(arg1->raster.raster, arg1->raster.gt);

                /* determine maximum number of tiles from raster */
                arg1->tile.nx = ceil(arg1->raster.width / (double) arg1->tile.width);
                arg1->tile.ny = ceil(arg1->raster.height / (double) arg1->tile.height);
                POSTGIS_RT_DEBUGF(4, "# of tiles (x, y) = (%d, %d)", arg1->tile.nx, arg1->tile.ny);

                /* Store needed information */
                funcctx->user_fctx = arg1;

                /* total number of tuples to be returned */
                funcctx->max_calls = (arg1->tile.nx * arg1->tile.ny);

                MemoryContextSwitchTo(oldcontext);
        }

        /* stuff done on every call of the function */
        funcctx = SRF_PERCALL_SETUP();

        call_cntr = funcctx->call_cntr;
        max_calls = funcctx->max_calls;
        arg2 = funcctx->user_fctx;

        /* do when there is more left to send */
        if (call_cntr < max_calls) {
                rt_pgraster *pgtile = NULL;
                rt_raster tile = NULL;
                rt_band _band = NULL;
                rt_band band = NULL;
                rt_pixtype pixtype = PT_END;
                int hasnodata = 0;
                double nodataval = 0;
                int width = 0;
                int height = 0;

                int k = 0;
                int tx = 0;
                int ty = 0;
                int rx = 0;
                int ry = 0;
                int ex = 0; /* edge tile on right */
                int ey = 0; /* edge tile on bottom */
                double ulx = 0;
                double uly = 0;
                uint16_t len = 0;
                void *vals = NULL;
                uint16_t nvals;

                POSTGIS_RT_DEBUGF(3, "call number %d", call_cntr);

                /*
                        find offset based upon tile #

                        0 1 2
                        3 4 5
                        6 7 8
                */
                ty = call_cntr / arg2->tile.nx;
                tx = call_cntr % arg2->tile.nx;
                POSTGIS_RT_DEBUGF(4, "tile (x, y) = (%d, %d)", tx, ty);

                /* edge tile? only important if padding is false */
                if (!arg2->pad.pad) {
                        if (ty + 1 == arg2->tile.ny)
                                ey = 1;
                        if (tx + 1 == arg2->tile.nx)
                                ex = 1;
                }

                /* upper-left of tile in raster coordinates */
                rx = tx * arg2->tile.width;
                ry = ty * arg2->tile.height;
                POSTGIS_RT_DEBUGF(4, "raster coordinates = %d, %d", rx, ry);

                /* determine tile width and height */
                /* default to user-defined */
                width = arg2->tile.width;
                height = arg2->tile.height;

                /* override user-defined if edge tile (only possible if padding is false */
                if (ex || ey) {
                        /* right edge */
                        if (ex)
                                width = arg2->raster.width - rx;
                        /* bottom edge */
                        if (ey)
                                height = arg2->raster.height - ry;
                }

                /* create empty raster */
                tile = rt_raster_new(width, height);
                rt_raster_set_geotransform_matrix(tile, arg2->raster.gt);
                rt_raster_set_srid(tile, arg2->raster.srid);

                /* upper-left of tile in spatial coordinates */
                if (rt_raster_cell_to_geopoint(arg2->raster.raster, rx, ry, &ulx, &uly, arg2->raster.gt) != ES_NONE) {
                        rt_raster_destroy(tile);
                        rt_raster_destroy(arg2->raster.raster);
                        if (arg2->numbands) pfree(arg2->nbands);
                        pfree(arg2);
                        elog(ERROR, "RASTER_tile: Could not compute the coordinates of the upper-left corner of the output tile");
                        SRF_RETURN_DONE(funcctx);
                }
                rt_raster_set_offsets(tile, ulx, uly);
                POSTGIS_RT_DEBUGF(4, "spatial coordinates = %f, %f", ulx, uly);

                /* compute length of pixel line to read */
                len = arg2->tile.width;
                if (rx + arg2->tile.width >= arg2->raster.width)
                        len = arg2->raster.width - rx;
                POSTGIS_RT_DEBUGF(3, "read line len = %d", len);

                /* copy bands to tile */
                for (i = 0; i < arg2->numbands; i++) {
                        POSTGIS_RT_DEBUGF(4, "copying band %d to tile %d", arg2->nbands[i], call_cntr);

                        _band = rt_raster_get_band(arg2->raster.raster, arg2->nbands[i]);
                        if (_band == NULL) {
                                int nband = arg2->nbands[i] + 1;
                                rt_raster_destroy(tile);
                                rt_raster_destroy(arg2->raster.raster);
                                pfree(arg2->nbands);
                                pfree(arg2);
                                elog(ERROR, "RASTER_tile: Could not get band %d from source raster", nband);
                                SRF_RETURN_DONE(funcctx);
                        }

                        pixtype = rt_band_get_pixtype(_band);
                        hasnodata = rt_band_get_hasnodata_flag(_band);
                        if (hasnodata)
                                rt_band_get_nodata(_band, &nodataval);
                        else if (arg2->pad.pad && arg2->pad.hasnodata) {
                                hasnodata = 1;
                                nodataval = arg2->pad.nodataval;
                        }
                        else
                                nodataval = rt_band_get_min_value(_band);

                        /* inline band */
                        if (!rt_band_is_offline(_band)) {
                                if (rt_raster_generate_new_band(tile, pixtype, nodataval, hasnodata, nodataval, i) < 0) {
                                        rt_raster_destroy(tile);
                                        rt_raster_destroy(arg2->raster.raster);
                                        pfree(arg2->nbands);
                                        pfree(arg2);
                                        elog(ERROR, "RASTER_tile: Could not add new band to output tile");
                                        SRF_RETURN_DONE(funcctx);
                                }
                                band = rt_raster_get_band(tile, i);
                                if (band == NULL) {
                                        rt_raster_destroy(tile);
                                        rt_raster_destroy(arg2->raster.raster);
                                        pfree(arg2->nbands);
                                        pfree(arg2);
                                        elog(ERROR, "RASTER_tile: Could not get newly added band from output tile");
                                        SRF_RETURN_DONE(funcctx);
                                }

                                /* if isnodata, set flag and continue */
                                if (rt_band_get_isnodata_flag(_band)) {
                                        rt_band_set_isnodata_flag(band, 1);
                                        continue;
                                }

                                /* copy data */
                                for (j = 0; j < arg2->tile.height; j++) {
                                        k = ry + j;

                                        if (k >= arg2->raster.height) {
                                                POSTGIS_RT_DEBUGF(4, "row %d is beyond extent of source raster. skipping", k);
                                                continue;
                                        }

                                        POSTGIS_RT_DEBUGF(4, "getting pixel line %d, %d for %d pixels", rx, k, len);
                                        if (rt_band_get_pixel_line(_band, rx, k, len, &vals, &nvals) != ES_NONE) {
                                                rt_raster_destroy(tile);
                                                rt_raster_destroy(arg2->raster.raster);
                                                pfree(arg2->nbands);
                                                pfree(arg2);
                                                elog(ERROR, "RASTER_tile: Could not get pixel line from source raster");
                                                SRF_RETURN_DONE(funcctx);
                                        }

                                        if (nvals && rt_band_set_pixel_line(band, 0, j, vals, nvals) != ES_NONE) {
                                                rt_raster_destroy(tile);
                                                rt_raster_destroy(arg2->raster.raster);
                                                pfree(arg2->nbands);
                                                pfree(arg2);
                                                elog(ERROR, "RASTER_tile: Could not set pixel line of output tile");
                                                SRF_RETURN_DONE(funcctx);
                                        }
                                }
                        }
                        /* offline */
                        else {
                                uint8_t bandnum = 0;
                                rt_band_get_ext_band_num(_band, &bandnum);

                                band = rt_band_new_offline(
                                        width, height,
                                        pixtype,
                                        hasnodata, nodataval,
                                        bandnum, rt_band_get_ext_path(_band)
                                );

                                if (band == NULL) {
                                        rt_raster_destroy(tile);
                                        rt_raster_destroy(arg2->raster.raster);
                                        pfree(arg2->nbands);
                                        pfree(arg2);
                                        elog(ERROR, "RASTER_tile: Could not create new offline band for output tile");
                                        SRF_RETURN_DONE(funcctx);
                                }

                                if (rt_raster_add_band(tile, band, i) < 0) {
                                        rt_band_destroy(band);
                                        rt_raster_destroy(tile);
                                        rt_raster_destroy(arg2->raster.raster);
                                        pfree(arg2->nbands);
                                        pfree(arg2);
                                        elog(ERROR, "RASTER_tile: Could not add new offline band to output tile");
                                        SRF_RETURN_DONE(funcctx);
                                }
                        }
                }

                pgtile = rt_raster_serialize(tile);
                rt_raster_destroy(tile);
                if (!pgtile) {
                        rt_raster_destroy(arg2->raster.raster);
                        if (arg2->numbands) pfree(arg2->nbands);
                        pfree(arg2);
                        SRF_RETURN_DONE(funcctx);
                }

                SET_VARSIZE(pgtile, pgtile->size);
                SRF_RETURN_NEXT(funcctx, PointerGetDatum(pgtile));
        }
        /* do when there is no more left */
        else {
                rt_raster_destroy(arg2->raster.raster);
                if (arg2->numbands) pfree(arg2->nbands);
                pfree(arg2);
                SRF_RETURN_DONE(funcctx);
        }
}

References ES_NONE, FALSE, POSTGIS_RT_DEBUG, POSTGIS_RT_DEBUGF, PT_END, rt_band_destroy(), rt_band_get_ext_band_num(), rt_band_get_ext_path(), rt_band_get_hasnodata_flag(), rt_band_get_isnodata_flag(), rt_band_get_min_value(), rt_band_get_nodata(), rt_band_get_pixel_line(), rt_band_get_pixtype(), rt_band_is_offline(), rt_band_new_offline(), rt_band_set_isnodata_flag(), rt_band_set_pixel_line(), rt_raster_add_band(), rt_raster_cell_to_geopoint(), rt_raster_deserialize(), rt_raster_destroy(), rt_raster_generate_new_band(), rt_raster_get_band(), rt_raster_get_geotransform_matrix(), rt_raster_get_height(), rt_raster_get_num_bands(), rt_raster_get_srid(), rt_raster_get_width(), rt_raster_has_band(), rt_raster_new(), rt_raster_serialize(), rt_raster_set_geotransform_matrix(), rt_raster_set_offsets(), rt_raster_set_srid(), and rt_raster_serialized_t::size.

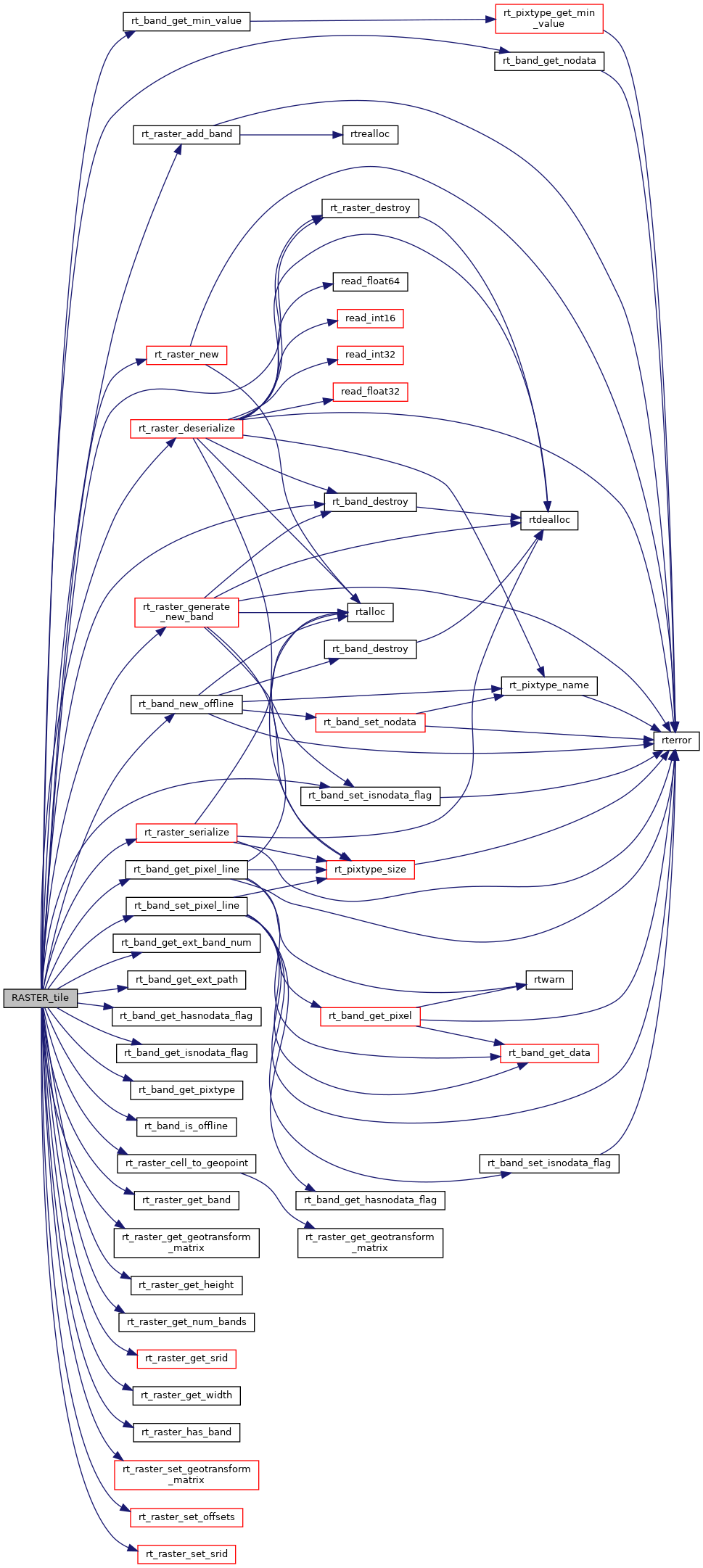

Here is the call graph for this function:
