pgui_create_export_table_table()

static void pgui_create_export_table_table ( GtkWidget *  export_list_frame )

static

Definition at line 3080 of file shp2pgsql-gui.c.

{
        GtkWidget *vbox_tree;
        GtkWidget *sw;
        gint *column_indexes;

        gtk_container_set_border_width (GTK_CONTAINER (export_list_frame), 0);

        vbox_tree = gtk_vbox_new(FALSE, 15);
        gtk_container_set_border_width(GTK_CONTAINER(vbox_tree), 5);
        gtk_container_add(GTK_CONTAINER(export_list_frame), vbox_tree);

        /* Setup a model */
        export_table_list_store = gtk_list_store_new(EXPORT_N_COLUMNS,
                                         G_TYPE_POINTER,
                                         G_TYPE_STRING,
                                         G_TYPE_STRING,
                                         G_TYPE_STRING,
                                         GTK_TYPE_TREE_MODEL,
                                         G_TYPE_STRING,
                                         G_TYPE_BOOLEAN);

        /* Create the view and such */
        export_tree = gtk_tree_view_new_with_model(GTK_TREE_MODEL(export_table_list_store));

        /* GTK has a slightly brain-dead API in that you can't directly find
           the column being used by a GtkCellRenderer when using the same
           callback to handle multiple fields; hence we manually store this
           information here and pass a pointer to the column index into
           the signal handler */
        column_indexes = g_malloc(sizeof(gint) * EXPORT_N_COLUMNS);

        /* Make the tree view in a scrollable window */
        sw = gtk_scrolled_window_new(NULL, NULL);
        gtk_scrolled_window_set_policy (GTK_SCROLLED_WINDOW(sw), GTK_POLICY_NEVER, GTK_POLICY_AUTOMATIC);
        gtk_scrolled_window_set_shadow_type (GTK_SCROLLED_WINDOW(sw), GTK_SHADOW_ETCHED_IN);
        gtk_widget_set_size_request(sw, -1, 150);

        gtk_box_pack_start(GTK_BOX(vbox_tree), sw, TRUE, TRUE, 0);
        gtk_container_add(GTK_CONTAINER (sw), export_tree);

        /* Place the "Add Table" button below the list view */
        add_table_button = gtk_button_new_with_label(_("Add Table"));
        gtk_container_add (GTK_CONTAINER (vbox_tree), add_table_button);

        /* Schema Field */
        export_schema_renderer = gtk_cell_renderer_text_new();
        g_object_set(export_schema_renderer, "editable", FALSE, NULL);
        column_indexes[EXPORT_SCHEMA_COLUMN] = EXPORT_SCHEMA_COLUMN;
        g_signal_connect(G_OBJECT(export_schema_renderer), "edited", G_CALLBACK(pgui_action_handle_loader_edit), &column_indexes[EXPORT_SCHEMA_COLUMN]);
        export_schema_column = gtk_tree_view_column_new_with_attributes(_("Schema"),
                        export_schema_renderer,
                        "text",
                        EXPORT_SCHEMA_COLUMN,
                        NULL);
        g_object_set(export_schema_column, "resizable", TRUE, "expand", TRUE, "sizing", GTK_TREE_VIEW_COLUMN_AUTOSIZE, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(export_tree), export_schema_column);

        /* Table Field */
        export_table_renderer = gtk_cell_renderer_text_new();
        g_object_set(export_table_renderer, "editable", FALSE, NULL);
        column_indexes[EXPORT_TABLE_COLUMN] = EXPORT_TABLE_COLUMN;
        g_signal_connect(G_OBJECT(export_table_renderer), "edited", G_CALLBACK(pgui_action_handle_loader_edit), &column_indexes[EXPORT_TABLE_COLUMN]);
        export_table_column = gtk_tree_view_column_new_with_attributes(_("Table"),
                       export_table_renderer,
                       "text",
                       EXPORT_TABLE_COLUMN,
                       NULL);
        g_object_set(export_table_column, "resizable", TRUE, "expand", TRUE, "sizing", GTK_TREE_VIEW_COLUMN_AUTOSIZE, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(export_tree), export_table_column);

        /* Geo column field */
        export_geom_column_combo = gtk_combo_box_new();
        export_geom_column_renderer = gtk_cell_renderer_combo_new();
        gtk_cell_layout_pack_start(GTK_CELL_LAYOUT(export_geom_column_combo),
                                   export_geom_column_renderer, TRUE);
        g_object_set(export_geom_column_renderer,
                     "editable", TRUE,
                     "has-entry", FALSE,
                     "text-column", TABLECHOOSER_GEOCOL_COMBO_TEXT,
                     NULL);
        export_geom_column = gtk_tree_view_column_new_with_attributes(_("Geo Column"),
                       export_geom_column_renderer,
                       "model",
                       EXPORT_GEOMETRY_LISTSTORE_COLUMN,
                       "text",
                       EXPORT_GEOMETRY_COLUMN,
                       NULL);
        g_object_set(export_geom_column, "resizable", TRUE, "sizing", GTK_TREE_VIEW_COLUMN_AUTOSIZE, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(export_tree), export_geom_column);
        g_signal_connect (G_OBJECT(export_geom_column_renderer), "changed", G_CALLBACK(pgui_action_handle_table_geocol_combo), NULL);

        /* Filename Field */
        export_filename_renderer = gtk_cell_renderer_text_new();
        g_object_set(export_filename_renderer, "editable", TRUE, NULL);
        column_indexes[EXPORT_FILENAME_COLUMN] = EXPORT_FILENAME_COLUMN;
        g_signal_connect(G_OBJECT(export_filename_renderer), "edited", G_CALLBACK(pgui_action_handle_dumper_edit), &column_indexes[EXPORT_FILENAME_COLUMN]);
        export_filename_column = gtk_tree_view_column_new_with_attributes(_("Filename"),
                       export_filename_renderer,
                       "text",
                       EXPORT_FILENAME_COLUMN,
                       NULL);
        g_object_set(export_filename_column, "resizable", TRUE, "expand", TRUE, "sizing", GTK_TREE_VIEW_COLUMN_AUTOSIZE, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(export_tree), export_filename_column);

        /* Remove Field */
        export_remove_renderer = gtk_cell_renderer_toggle_new();
        g_object_set(export_remove_renderer, "activatable", TRUE, NULL);
        g_signal_connect(G_OBJECT(export_remove_renderer), "toggled", G_CALLBACK (pgui_action_handle_table_remove), NULL);
        export_remove_column = gtk_tree_view_column_new_with_attributes("Rm",
                        export_remove_renderer, NULL);
        g_object_set(export_remove_column, "resizable", TRUE, "expand", FALSE, "fixed-width", 64, "sizing", GTK_TREE_VIEW_COLUMN_FIXED, NULL);
        gtk_tree_view_append_column(GTK_TREE_VIEW(export_tree), export_remove_column);

        g_signal_connect (G_OBJECT (add_table_button), "clicked", G_CALLBACK (pgui_action_open_table_dialog), NULL);
}

References _, add_table_button, export_filename_column, EXPORT_FILENAME_COLUMN, export_filename_renderer, export_geom_column, export_geom_column_combo, export_geom_column_renderer, EXPORT_GEOMETRY_COLUMN, EXPORT_GEOMETRY_LISTSTORE_COLUMN, EXPORT_N_COLUMNS, export_remove_column, export_remove_renderer, export_schema_column, EXPORT_SCHEMA_COLUMN, export_schema_renderer, export_table_column, EXPORT_TABLE_COLUMN, export_table_list_store, export_table_renderer, export_tree, FALSE, pgui_action_handle_dumper_edit(), pgui_action_handle_loader_edit(), pgui_action_handle_table_geocol_combo(), pgui_action_handle_table_remove(), pgui_action_open_table_dialog(), TABLECHOOSER_GEOCOL_COMBO_TEXT, and TRUE.

Referenced by pgui_create_main_window().

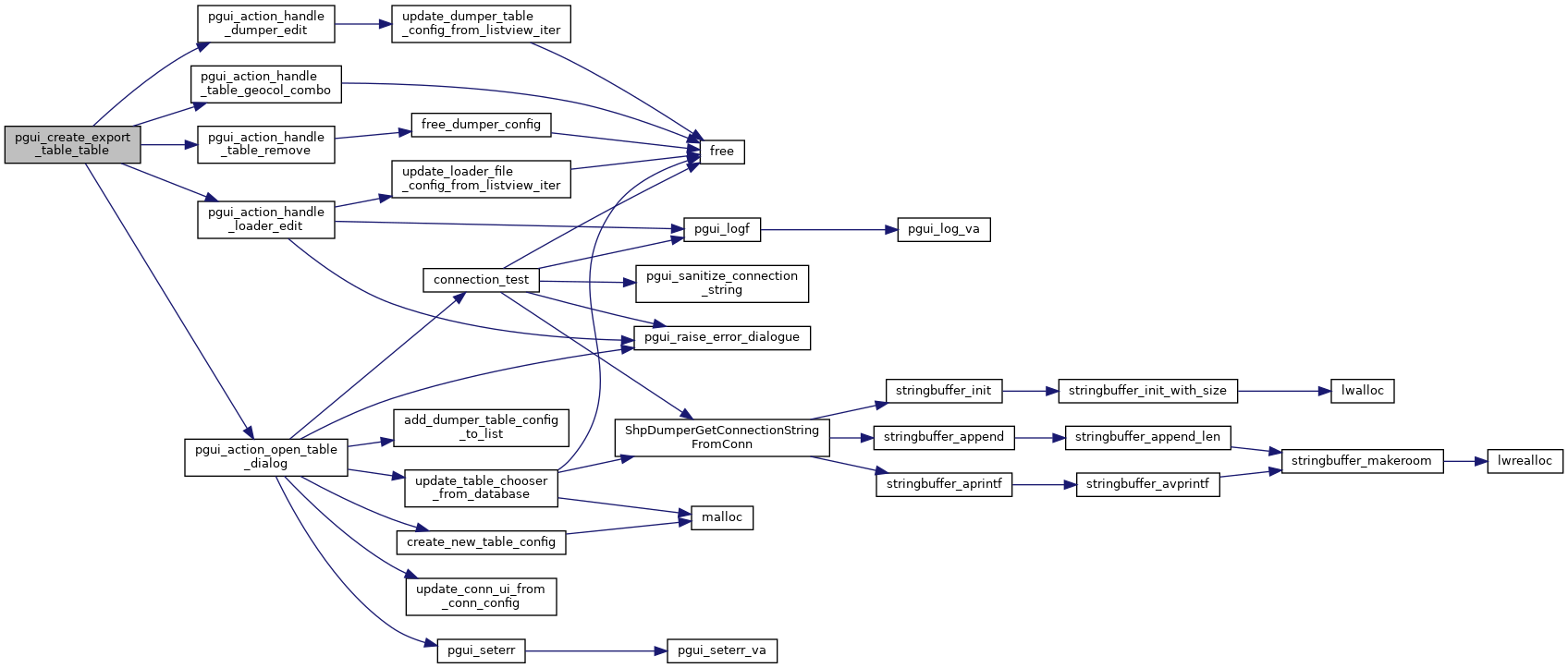

Here is the call graph for this function:

Here is the caller graph for this function:
