PostGIS  3.7.0dev-r@@SVN_REVISION@@

◆ gserialized_joinsel_internal()

double gserialized_joinsel_internal ( PlannerInfo *  root,
List *  args,
JoinType  jointype,
int  mode
)

Definition at line 1266 of file gserialized_estimate.c.

1267 {
1268  float8 selectivity;
1269  Oid relid1, relid2;
1270  ND_STATS *stats1, *stats2;
1271  Node *arg1 = (Node*) linitial(args);
1272  Node *arg2 = (Node*) lsecond(args);
1273  Var *var1 = (Var*) arg1;
1274  Var *var2 = (Var*) arg2;
1275
1276  POSTGIS_DEBUGF(2, "%s: entered function", __func__);
1277
1278  /* We only do column joins right now, no functional joins */
1279  /* TODO: handle g1 && ST_Expand(g2) */
1280  if (!IsA(arg1, Var) || !IsA(arg2, Var))
1281  {
1282  POSTGIS_DEBUGF(1, "%s called with arguments that are not column references", __func__);
1283  return DEFAULT_ND_JOINSEL;
1284  }
1285
1286  /* What are the Oids of our tables/relations? */
1287  relid1 = rt_fetch(var1->varno, root->parse->rtable)->relid;
1288  relid2 = rt_fetch(var2->varno, root->parse->rtable)->relid;
1289
1290  /* Pull the stats from the stats system. */
1291  stats1 = pg_get_nd_stats(relid1, var1->varattno, mode, false);
1292  stats2 = pg_get_nd_stats(relid2, var2->varattno, mode, false);
1293
1294  /* If we can't get stats, we have to stop here! */
1295  if (!stats1)
1296  {
1297  POSTGIS_DEBUGF(2, "%s: cannot find stats for \"%s\"", __func__, get_rel_name(relid2) ? get_rel_name(relid2) : "NULL");
1298  return DEFAULT_ND_JOINSEL;
1299  }
1300  else if (!stats2)
1301  {
1302  POSTGIS_DEBUGF(2, "%s: cannot find stats for \"%s\"", __func__, get_rel_name(relid2) ? get_rel_name(relid2) : "NULL");
1303  return DEFAULT_ND_JOINSEL;
1304  }
1305
1306  selectivity = estimate_join_selectivity(stats1, stats2);
1307  POSTGIS_DEBUGF(2, "got selectivity %g", selectivity);
1308  pfree(stats1);
1309  pfree(stats2);
1310  return selectivity;
1311 }
static ND_STATS * pg_get_nd_stats(const Oid table_oid, AttrNumber att_num, int mode, bool only_parent)
Pull the stats object from the PgSQL system catalogs.
#define DEFAULT_ND_JOINSEL
static float8 estimate_join_selectivity(const ND_STATS *s1, const ND_STATS *s2)
Given two statistics histograms, what is the selectivity of a join driven by the && or &&& operator?
args
Definition: ovdump.py:45
N-dimensional statistics structure.

References ovdump::args, DEFAULT_ND_JOINSEL, estimate_join_selectivity(), and pg_get_nd_stats().

Referenced by gserialized_gist_joinsel(), and postgis_index_supportfn().

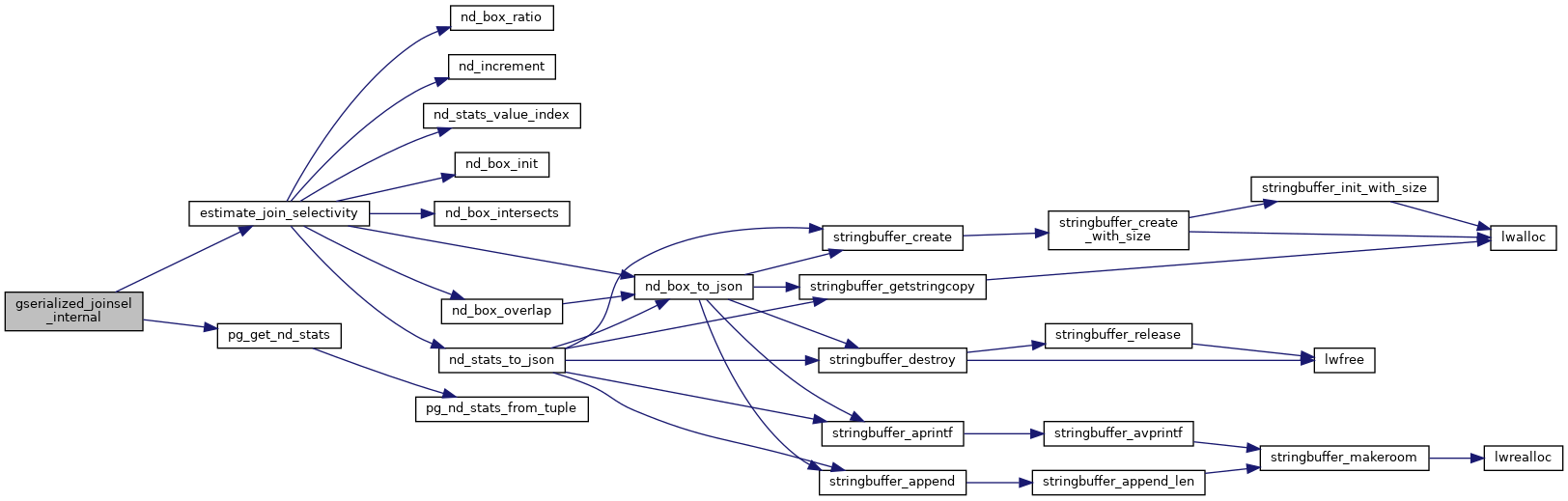

Here is the call graph for this function:

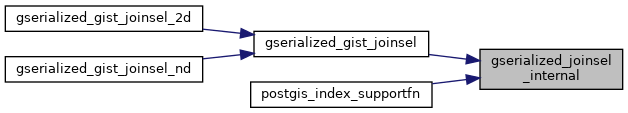

Here is the caller graph for this function:
