PostGIS  3.7.0dev-r@@SVN_REVISION@@

◆ RASTER_colorMap()

Datum RASTER_colorMap ( PG_FUNCTION_ARGS  )

Definition at line 4227 of file rtpg_mapalgebra.c.

4228 {
4229  rt_pgraster *pgraster = NULL;
4230  rtpg_colormap_arg arg = NULL;
4231  char *junk = NULL;
4232  rt_raster raster = NULL;
4233
4234  POSTGIS_RT_DEBUG(3, "RASTER_colorMap: Starting");
4235
4236  /* pgraster is NULL, return NULL */
4237  if (PG_ARGISNULL(0))
4238  PG_RETURN_NULL();
4239
4240  /* init arg */
4241  arg = rtpg_colormap_arg_init();
4242  if (arg == NULL) {
4243  elog(ERROR, "RASTER_colorMap: Could not initialize argument structure");
4244  PG_RETURN_NULL();
4245  }
4246
4247  /* raster (0) */
4248  pgraster = (rt_pgraster *) PG_DETOAST_DATUM(PG_GETARG_DATUM(0));
4249
4250  /* raster object */
4251  arg->raster = rt_raster_deserialize(pgraster, FALSE);
4252  if (!arg->raster) {
4253  rtpg_colormap_arg_destroy(arg);
4254  PG_FREE_IF_COPY(pgraster, 0);
4255  elog(ERROR, "RASTER_colorMap: Could not deserialize raster");
4256  PG_RETURN_NULL();
4257  }
4258
4259  /* nband (1) */
4260  if (!PG_ARGISNULL(1))
4261  arg->nband = PG_GETARG_INT32(1);
4262  POSTGIS_RT_DEBUGF(4, "nband = %d", arg->nband);
4263
4264  /* check that band works */
4265  if (!rt_raster_has_band(arg->raster, arg->nband - 1)) {
4266  elog(NOTICE, "Raster does not have band at index %d. Returning empty raster", arg->nband);
4267
4268  raster = rt_raster_clone(arg->raster, 0);
4269  if (raster == NULL) {
4270  rtpg_colormap_arg_destroy(arg);
4271  PG_FREE_IF_COPY(pgraster, 0);
4272  elog(ERROR, "RASTER_colorMap: Could not create empty raster");
4273  PG_RETURN_NULL();
4274  }
4275
4276  rtpg_colormap_arg_destroy(arg);
4277  PG_FREE_IF_COPY(pgraster, 0);
4278
4279  pgraster = rt_raster_serialize(raster);
4280  rt_raster_destroy(raster);
4281  if (pgraster == NULL)
4282  PG_RETURN_NULL();
4283
4284  SET_VARSIZE(pgraster, ((rt_pgraster*) pgraster)->size);
4285  PG_RETURN_POINTER(pgraster);
4286  }
4287
4288  /* get band */
4289  arg->band = rt_raster_get_band(arg->raster, arg->nband - 1);
4290  if (arg->band == NULL) {
4291  int nband = arg->nband;
4292  rtpg_colormap_arg_destroy(arg);
4293  PG_FREE_IF_COPY(pgraster, 0);
4294  elog(ERROR, "RASTER_colorMap: Could not get band at index %d", nband);
4295  PG_RETURN_NULL();
4296  }
4297
4298  /* method (3) */
4299  if (!PG_ARGISNULL(3)) {
4300  char *method = NULL;
4301  char *tmp = text_to_cstring(PG_GETARG_TEXT_P(3));
4302  POSTGIS_RT_DEBUGF(4, "raw method = %s", tmp);
4303
4304  method = rtpg_trim(tmp);
4305  pfree(tmp);
4306  method = rtpg_strtoupper(method);
4307
4308  if (strcmp(method, "INTERPOLATE") == 0)
4309  arg->colormap->method = CM_INTERPOLATE;
4310  else if (strcmp(method, "EXACT") == 0)
4311  arg->colormap->method = CM_EXACT;
4312  else if (strcmp(method, "NEAREST") == 0)
4313  arg->colormap->method = CM_NEAREST;
4314  else {
4315  elog(NOTICE, "Unknown value provided for method. Defaulting to INTERPOLATE");
4316  arg->colormap->method = CM_INTERPOLATE;
4317  }
4318  }
4319  /* default to INTERPOLATE */
4320  else
4321  arg->colormap->method = CM_INTERPOLATE;
4322  POSTGIS_RT_DEBUGF(4, "method = %d", arg->colormap->method);
4323
4324  /* colormap (2) */
4325  if (PG_ARGISNULL(2)) {
4326  rtpg_colormap_arg_destroy(arg);
4327  PG_FREE_IF_COPY(pgraster, 0);
4328  elog(ERROR, "RASTER_colorMap: Value must be provided for colormap");
4329  PG_RETURN_NULL();
4330  }
4331  else {
4332  char *tmp = NULL;
4333  char *colormap = text_to_cstring(PG_GETARG_TEXT_P(2));
4334  char *_entry;
4335  char *_element;
4336  uint32_t i = 0;
4337  uint32_t j = 0;
4338
4339  POSTGIS_RT_DEBUGF(4, "colormap = %s", colormap);
4340
4341  /* empty string */
4342  if (!strlen(colormap)) {
4343  rtpg_colormap_arg_destroy(arg);
4344  PG_FREE_IF_COPY(pgraster, 0);
4345  elog(ERROR, "RASTER_colorMap: Value must be provided for colormap");
4346  PG_RETURN_NULL();
4347  }
4348
4349  arg->entry = rtpg_strsplit(colormap, "\n", &(arg->nentry));
4350  pfree(colormap);
4351  if (arg->nentry < 1) {
4352  rtpg_colormap_arg_destroy(arg);
4353  PG_FREE_IF_COPY(pgraster, 0);
4354  elog(ERROR, "RASTER_colorMap: Could not process the value provided for colormap");
4355  PG_RETURN_NULL();
4356  }
4357
4358  /* allocate the max # of colormap entries */
4359  arg->colormap->entry = palloc(sizeof(struct rt_colormap_entry_t) * arg->nentry);
4360  if (arg->colormap->entry == NULL) {
4361  rtpg_colormap_arg_destroy(arg);
4362  PG_FREE_IF_COPY(pgraster, 0);
4363  elog(ERROR, "RASTER_colorMap: Could not allocate memory for colormap entries");
4364  PG_RETURN_NULL();
4365  }
4366  memset(arg->colormap->entry, 0, sizeof(struct rt_colormap_entry_t) * arg->nentry);
4367
4368  /* each entry */
4369  for (i = 0; i < arg->nentry; i++) {
4370  /* substitute space for other delimiters */
4371  tmp = rtpg_strreplace(arg->entry[i], ":", " ", NULL);
4372  _entry = rtpg_strreplace(tmp, ",", " ", NULL);
4373  pfree(tmp);
4374  tmp = rtpg_strreplace(_entry, "\t", " ", NULL);
4375  pfree(_entry);
4376  _entry = rtpg_trim(tmp);
4377  pfree(tmp);
4378
4379  POSTGIS_RT_DEBUGF(4, "Processing entry[%d] = %s", i, arg->entry[i]);
4380  POSTGIS_RT_DEBUGF(4, "Cleaned entry[%d] = %s", i, _entry);
4381
4382  /* empty entry, continue */
4383  if (!strlen(_entry)) {
4384  POSTGIS_RT_DEBUGF(3, "Skipping empty entry[%d]", i);
4385  pfree(_entry);
4386  continue;
4387  }
4388
4389  arg->element = rtpg_strsplit(_entry, " ", &(arg->nelement));
4390  pfree(_entry);
4391  if (arg->nelement < 2) {
4392  rtpg_colormap_arg_destroy(arg);
4393  PG_FREE_IF_COPY(pgraster, 0);
4394  elog(ERROR, "RASTER_colorMap: Could not process colormap entry %d", i + 1);
4395  PG_RETURN_NULL();
4396  }
4397  else if (arg->nelement > 5) {
4398  elog(NOTICE, "More than five elements in colormap entry %d. Using at most five elements", i + 1);
4399  arg->nelement = 5;
4400  }
4401
4402  /* smallest # of colors */
4403  if (((int)arg->nelement - 1) < arg->colormap->ncolor)
4404  arg->colormap->ncolor = arg->nelement - 1;
4405
4406  /* each element of entry */
4407  for (j = 0; j < arg->nelement; j++) {
4408
4409  _element = rtpg_trim(arg->element[j]);
4410  _element = rtpg_strtoupper(_element);
4411  POSTGIS_RT_DEBUGF(4, "Processing entry[%d][%d] = %s", i, j, arg->element[j]);
4412  POSTGIS_RT_DEBUGF(4, "Cleaned entry[%d][%d] = %s", i, j, _element);
4413
4414  /* first element is ALWAYS a band value, percentage OR "nv" string */
4415  if (j == 0) {
4416  char *percent = NULL;
4417
4418  /* NODATA */
4419  if (
4420  strcmp(_element, "NV") == 0 ||
4421  strcmp(_element, "NULL") == 0 ||
4422  strcmp(_element, "NODATA") == 0
4423  ) {
4424  POSTGIS_RT_DEBUG(4, "Processing NODATA string");
4425
4426  if (arg->nodataentry > -1) {
4427  elog(NOTICE, "More than one NODATA entry found. Using only the first one");
4428  }
4429  else {
4430  arg->colormap->entry[arg->colormap->nentry].isnodata = 1;
4431  /* no need to set value as value comes from band's NODATA */
4432  arg->colormap->entry[arg->colormap->nentry].value = 0;
4433  }
4434  }
4435  /* percent value */
4436  else if ((percent = strchr(_element, '%')) != NULL) {
4437  double value;
4438  POSTGIS_RT_DEBUG(4, "Processing percent string");
4439
4440  /* get the band stats */
4441  if (arg->bandstats == NULL) {
4442  POSTGIS_RT_DEBUG(4, "Getting band stats");
4443
4444  arg->bandstats = rt_band_get_summary_stats(arg->band, 1, 1, 0, NULL, NULL, NULL);
4445  if (arg->bandstats == NULL) {
4446  pfree(_element);
4447  rtpg_colormap_arg_destroy(arg);
4448  PG_FREE_IF_COPY(pgraster, 0);
4449  elog(ERROR, "RASTER_colorMap: Could not get band's summary stats to process percentages");
4450  PG_RETURN_NULL();
4451  }
4452  }
4453
4454  /* get the string before the percent char */
4455  tmp = palloc(sizeof(char) * (percent - _element + 1));
4456  if (tmp == NULL) {
4457  pfree(_element);
4458  rtpg_colormap_arg_destroy(arg);
4459  PG_FREE_IF_COPY(pgraster, 0);
4460  elog(ERROR, "RASTER_colorMap: Could not allocate memory for value of percentage");
4461  PG_RETURN_NULL();
4462  }
4463
4464  memcpy(tmp, _element, percent - _element);
4465  tmp[percent - _element] = '\0';
4466  POSTGIS_RT_DEBUGF(4, "Percent value = %s", tmp);
4467
4468  /* get percentage value */
4469  errno = 0;
4470  value = strtod(tmp, NULL);
4471  pfree(tmp);
4472  if (errno != 0 || _element == junk) {
4473  pfree(_element);
4474  rtpg_colormap_arg_destroy(arg);
4475  PG_FREE_IF_COPY(pgraster, 0);
4476  elog(ERROR, "RASTER_colorMap: Could not process percent string to value");
4477  PG_RETURN_NULL();
4478  }
4479
4480  /* check percentage */
4481  if (value < 0.) {
4482  elog(NOTICE, "Percentage values cannot be less than zero. Defaulting to zero");
4483  value = 0.;
4484  }
4485  else if (value > 100.) {
4486  elog(NOTICE, "Percentage values cannot be greater than 100. Defaulting to 100");
4487  value = 100.;
4488  }
4489
4490  /* get the true pixel value */
4491  /* TODO: should the percentage be quantile based? */
4492  arg->colormap->entry[arg->colormap->nentry].value = ((value / 100.) * (arg->bandstats->max - arg->bandstats->min)) + arg->bandstats->min;
4493  }
4494  /* straight value */
4495  else {
4496  errno = 0;
4497  arg->colormap->entry[arg->colormap->nentry].value = strtod(_element, &junk);
4498  if (errno != 0 || _element == junk) {
4499  pfree(_element);
4500  rtpg_colormap_arg_destroy(arg);
4501  PG_FREE_IF_COPY(pgraster, 0);
4502  elog(ERROR, "RASTER_colorMap: Could not process string to value");
4503  PG_RETURN_NULL();
4504  }
4505  }
4506
4507  }
4508  /* RGB values (0 - 255) */
4509  else {
4510  int value = 0;
4511
4512  errno = 0;
4513  value = (int) strtod(_element, &junk);
4514  if (errno != 0 || _element == junk) {
4515  pfree(_element);
4516  rtpg_colormap_arg_destroy(arg);
4517  PG_FREE_IF_COPY(pgraster, 0);
4518  elog(ERROR, "RASTER_colorMap: Could not process string to value");
4519  PG_RETURN_NULL();
4520  }
4521
4522  if (value > 255) {
4523  elog(NOTICE, "RGBA value cannot be greater than 255. Defaulting to 255");
4524  value = 255;
4525  }
4526  else if (value < 0) {
4527  elog(NOTICE, "RGBA value cannot be less than zero. Defaulting to zero");
4528  value = 0;
4529  }
4530  arg->colormap->entry[arg->colormap->nentry].color[j - 1] = value;
4531  }
4532
4533  pfree(_element);
4534  }
4535
4536  POSTGIS_RT_DEBUGF(4, "colormap->entry[%d] (isnodata, value, R, G, B, A) = (%d, %f, %d, %d, %d, %d)",
4537  arg->colormap->nentry,
4538  arg->colormap->entry[arg->colormap->nentry].isnodata,
4539  arg->colormap->entry[arg->colormap->nentry].value,
4540  arg->colormap->entry[arg->colormap->nentry].color[0],
4541  arg->colormap->entry[arg->colormap->nentry].color[1],
4542  arg->colormap->entry[arg->colormap->nentry].color[2],
4543  arg->colormap->entry[arg->colormap->nentry].color[3]
4544  );
4545
4546  arg->colormap->nentry++;
4547  }
4548
4549  POSTGIS_RT_DEBUGF(4, "colormap->nentry = %d", arg->colormap->nentry);
4550  POSTGIS_RT_DEBUGF(4, "colormap->ncolor = %d", arg->colormap->ncolor);
4551  }
4552
4553  /* call colormap */
4554  raster = rt_raster_colormap(arg->raster, arg->nband - 1, arg->colormap);
4555  if (raster == NULL) {
4556  rtpg_colormap_arg_destroy(arg);
4557  PG_FREE_IF_COPY(pgraster, 0);
4558  elog(ERROR, "RASTER_colorMap: Could not create new raster with applied colormap");
4559  PG_RETURN_NULL();
4560  }
4561
4562  rtpg_colormap_arg_destroy(arg);
4563  PG_FREE_IF_COPY(pgraster, 0);
4564  pgraster = rt_raster_serialize(raster);
4565  rt_raster_destroy(raster);
4566
4567  POSTGIS_RT_DEBUG(3, "RASTER_colorMap: Done");
4568
4569  if (pgraster == NULL)
4570  PG_RETURN_NULL();
4571
4572  SET_VARSIZE(pgraster, ((rt_pgraster*) pgraster)->size);
4573  PG_RETURN_POINTER(pgraster);
4574 }
FALSE
#define FALSE
Definition: dbfopen.c:72
rt_raster_colormap
rt_raster rt_raster_colormap(rt_raster raster, int nband, rt_colormap colormap)
Returns a new raster with up to four 8BUI bands (RGBA) from applying a colormap to the user-specified...
Definition: rt_mapalgebra.c:1534
rt_raster_destroy
void rt_raster_destroy(rt_raster raster)
Release memory associated to a raster.
Definition: rt_raster.c:86
rt_raster_has_band
int rt_raster_has_band(rt_raster raster, int nband)
Return TRUE if the raster has a band of this number.
Definition: rt_raster.c:1253
rt_raster_serialize
void * rt_raster_serialize(rt_raster raster)
Return this raster in serialized form.
Definition: rt_serialize.c:521
rt_raster_clone
rt_raster rt_raster_clone(rt_raster raster, uint8_t deep)
Clone an existing raster.
Definition: rt_raster.c:1446
rt_band_get_summary_stats
rt_bandstats rt_band_get_summary_stats(rt_band band, int exclude_nodata_value, double sample, int inc_vals, uint64_t *cK, double *cM, double *cQ)
Compute summary statistics for a band.
Definition: rt_statistics.c:110
rt_raster_deserialize
rt_raster rt_raster_deserialize(void *serialized, int header_only)
Return a raster from a serialized form.
Definition: rt_serialize.c:725
rt_raster_get_band
rt_band rt_raster_get_band(rt_raster raster, int bandNum)
Return Nth band, or NULL if unavailable.
Definition: rt_raster.c:385
genraster.value
int value
Definition: genraster.py:62
pixval.nband
nband
Definition: pixval.py:54
rtrowdump.raster
raster
Be careful!! Zeros function's input parameter can be a (height x width) array, not (width x height): ...
Definition: rtrowdump.py:121
rtpg_strtoupper
char * rtpg_strtoupper(char *str)
Definition: rtpg_internal.c:100
rtpg_trim
char * rtpg_trim(const char *input)
Definition: rtpg_internal.c:226
rtpg_strsplit
char ** rtpg_strsplit(const char *str, const char *delimiter, uint32_t *n)
Definition: rtpg_internal.c:142
rtpg_strreplace
char * rtpg_strreplace(const char *str, const char *oldstr, const char *newstr, int *count)
Definition: rtpg_internal.c:55
rtpg_colormap_arg_init
static rtpg_colormap_arg rtpg_colormap_arg_init(void)
Definition: rtpg_mapalgebra.c:4160
rtpg_colormap_arg_destroy
static void rtpg_colormap_arg_destroy(rtpg_colormap_arg arg)
Definition: rtpg_mapalgebra.c:4194
POSTGIS_RT_DEBUG
#define POSTGIS_RT_DEBUG(level, msg)
Definition: rtpostgis.h:65
POSTGIS_RT_DEBUGF
#define POSTGIS_RT_DEBUGF(level, msg,...)
Definition: rtpostgis.h:69
rt_bandstats_t::max
double max
Definition: librtcore.h:2553
rt_bandstats_t::min
double min
Definition: librtcore.h:2552
rt_colormap_entry_t::color
uint8_t color[4]
Definition: librtcore.h:2688
rt_colormap_entry_t::value
double value
Definition: librtcore.h:2687
rt_colormap_entry_t::isnodata
int isnodata
Definition: librtcore.h:2686
rt_colormap_entry_t
Definition: librtcore.h:2685
rt_colormap_t::entry
rt_colormap_entry entry
Definition: librtcore.h:2700
rt_colormap_t::ncolor
int ncolor
Definition: librtcore.h:2698
rt_colormap_t::nentry
uint16_t nentry
Definition: librtcore.h:2699
rt_colormap_t::method
enum rt_colormap_t::@13 method
rt_raster_serialized_t
Struct definitions.
Definition: librtcore.h:2440
rt_raster_t
Definition: librtcore.h:2474
rtpg_colormap_arg_t::nband
int nband
Definition: rtpg_mapalgebra.c:4146
rtpg_colormap_arg_t::entry
char ** entry
Definition: rtpg_mapalgebra.c:4153
rtpg_colormap_arg_t::band
rt_band band
Definition: rtpg_mapalgebra.c:4147
rtpg_colormap_arg_t::nelement
uint32_t nelement
Definition: rtpg_mapalgebra.c:4156
rtpg_colormap_arg_t::element
char ** element
Definition: rtpg_mapalgebra.c:4155
rtpg_colormap_arg_t::nodataentry
int nodataentry
Definition: rtpg_mapalgebra.c:4151
rtpg_colormap_arg_t::nentry
uint32_t nentry
Definition: rtpg_mapalgebra.c:4154
rtpg_colormap_arg_t::colormap
rt_colormap colormap
Definition: rtpg_mapalgebra.c:4150
rtpg_colormap_arg_t::raster
rt_raster raster
Definition: rtpg_mapalgebra.c:4145
rtpg_colormap_arg_t::bandstats
rt_bandstats bandstats
Definition: rtpg_mapalgebra.c:4148
rtpg_colormap_arg_t
Definition: rtpg_mapalgebra.c:4144

References rtpg_colormap_arg_t::band, rtpg_colormap_arg_t::bandstats, rt_colormap_entry_t::color, rtpg_colormap_arg_t::colormap, rtpg_colormap_arg_t::element, rt_colormap_t::entry, rtpg_colormap_arg_t::entry, FALSE, rt_colormap_entry_t::isnodata, rt_bandstats_t::max, rt_colormap_t::method, rt_bandstats_t::min, rtpg_colormap_arg_t::nband, pixval::nband, rt_colormap_t::ncolor, rtpg_colormap_arg_t::nelement, rt_colormap_t::nentry, rtpg_colormap_arg_t::nentry, rtpg_colormap_arg_t::nodataentry, POSTGIS_RT_DEBUG, POSTGIS_RT_DEBUGF, rtpg_colormap_arg_t::raster, rtrowdump::raster, rt_band_get_summary_stats(), rt_raster_clone(), rt_raster_colormap(), rt_raster_deserialize(), rt_raster_destroy(), rt_raster_get_band(), rt_raster_has_band(), rt_raster_serialize(), rtpg_colormap_arg_destroy(), rtpg_colormap_arg_init(), rtpg_strreplace(), rtpg_strsplit(), rtpg_strtoupper(), rtpg_trim(), rt_colormap_entry_t::value, and genraster::value.

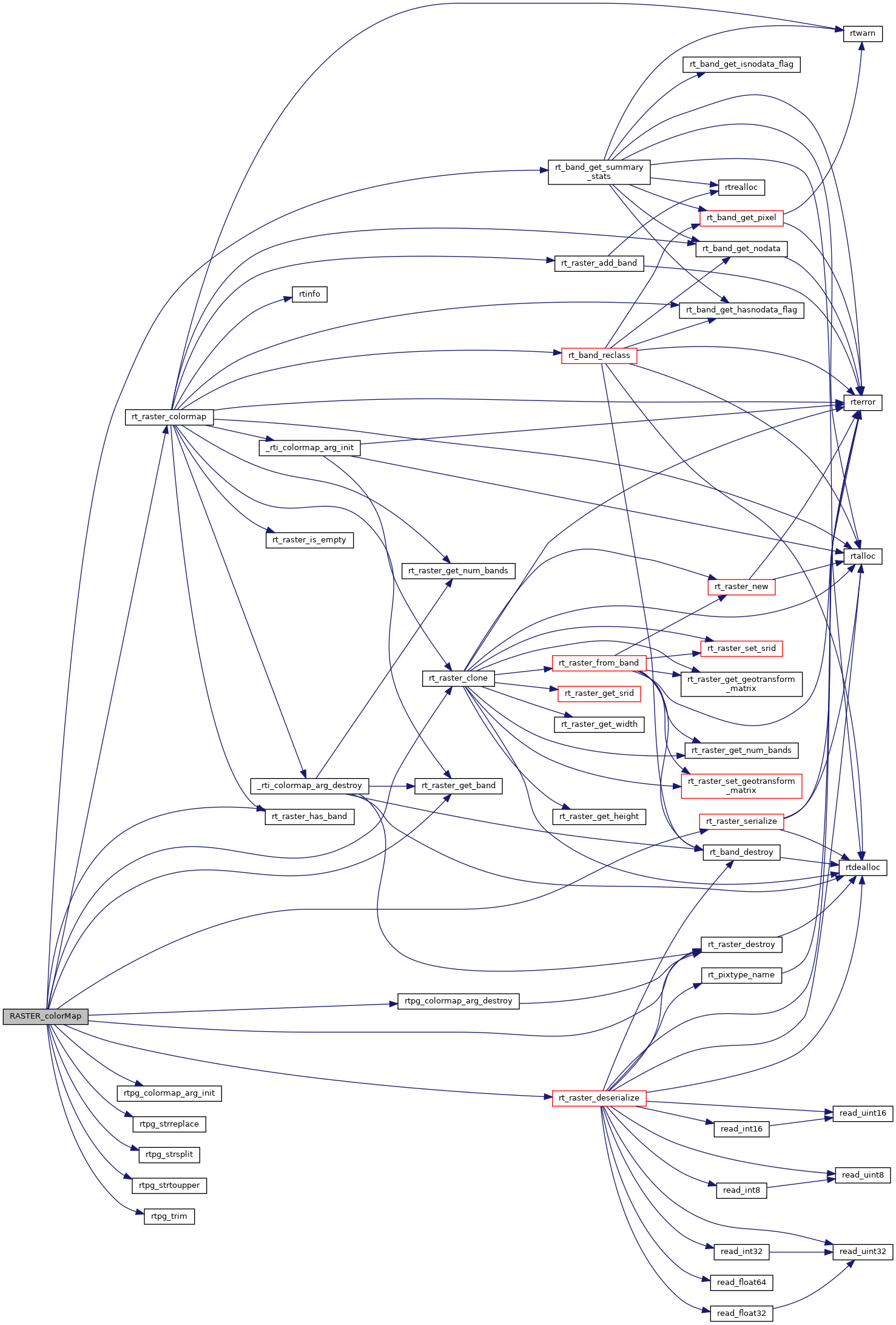

Here is the call graph for this function:
