rt_raster_gdal_warp()

rt_raster rt_raster_gdal_warp	(	rt_raster	raster,
		const char *	src_srs,
		const char *	dst_srs,
		double *	scale_x,
		double *	scale_y,
		int *	width,
		int *	height,
		double *	ul_xw,
		double *	ul_yw,
		double *	grid_xw,
		double *	grid_yw,
		double *	skew_x,
		double *	skew_y,
		GDALResampleAlg	resample_alg,
		double	max_err
	)

Return a warped raster using GDAL Warp API.

Parameters

raster	: raster to transform
src_srs	: the raster's coordinate system in OGC WKT
dst_srs	: the warped raster's coordinate system in OGC WKT
scale_x	: the x size of pixels of the warped raster's pixels in units of dst_srs
scale_y	: the y size of pixels of the warped raster's pixels in units of dst_srs
width	: the number of columns of the warped raster. note that width/height CANNOT be used with scale_x/scale_y
height	: the number of rows of the warped raster. note that width/height CANNOT be used with scale_x/scale_y
ul_xw	: the X value of upper-left corner of the warped raster in units of dst_srs
ul_yw	: the Y value of upper-left corner of the warped raster in units of dst_srs
grid_xw	: the X value of point on a grid to align warped raster to in units of dst_srs
grid_yw	: the Y value of point on a grid to align warped raster to in units of dst_srs
skew_x	: the X skew of the warped raster in units of dst_srs
skew_y	: the Y skew of the warped raster in units of dst_srs
resample_alg	: the resampling algorithm
max_err	: maximum error measured in input pixels permitted (0.0 for exact calculations)

Returns

the warped raster or NULL

Definition at line 177 of file rt_warp.c.

  {
        CPLErr cplerr;
        char *dst_options[] = {"SUBCLASS=VRTWarpedDataset", NULL};
        _rti_warp_arg arg = NULL;

        GDALRasterBandH band;
        rt_band rtband = NULL;
        rt_pixtype pt = PT_END;
        GDALDataType gdal_pt = GDT_Unknown;
        double nodata = 0.0;

        double _gt[6] = {0};
        double dst_extent[4];
        rt_envelope extent;

        int _dim[2] = {0};
        double _skew[2] = {0};
        double _scale[2] = {0};
        int ul_user = 0;

        rt_raster rast = NULL;
        int i = 0;
        int numBands = 0;

        /* flag indicating that the spatial info is being substituted */
        int subspatial = 0;

        RASTER_DEBUG(3, "starting");

        assert(NULL != raster);

        /* internal variables */
        arg = _rti_warp_arg_init();
        if (arg == NULL) {
                rterror("rt_raster_gdal_warp: Could not initialize internal variables");
                return NULL;
        }

        /*
                max_err must be gte zero

                the value 0.125 is the default used in gdalwarp.cpp on line 283
        */
        if (max_err < 0.) max_err = 0.125;
        RASTER_DEBUGF(4, "max_err = %f", max_err);

        /* handle srs */
        if (src_srs != NULL) {
                /* reprojection taking place */
                if (dst_srs != NULL && strcmp(src_srs, dst_srs) != 0) {
                        RASTER_DEBUG(4, "Warp operation does include a reprojection");
                        arg->src.srs = rt_util_gdal_convert_sr(src_srs, 0);
                        arg->dst.srs = rt_util_gdal_convert_sr(dst_srs, 0);

                        if (arg->src.srs == NULL || arg->dst.srs == NULL) {
                                rterror("rt_raster_gdal_warp: Could not convert srs values to GDAL accepted format");
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }
                }
                /* no reprojection, a stub just for clarity */
                else {
                        RASTER_DEBUG(4, "Warp operation does NOT include reprojection");
                }
        }
        else if (dst_srs != NULL) {
                /* dst_srs provided but not src_srs */
                rterror("rt_raster_gdal_warp: SRS required for input raster if SRS provided for warped raster");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* load raster into a GDAL MEM dataset */
        arg->src.ds = rt_raster_to_gdal_mem(raster, arg->src.srs, NULL, NULL, 0, &(arg->src.drv), &(arg->src.destroy_drv));
        if (NULL == arg->src.ds) {
                rterror("rt_raster_gdal_warp: Could not convert raster to GDAL MEM format");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }
        RASTER_DEBUG(3, "raster loaded into GDAL MEM dataset");

        /* special case when src_srs and dst_srs is NULL and raster's geotransform matrix is default */
        if (
                src_srs == NULL && dst_srs == NULL &&
                rt_raster_get_srid(raster) == SRID_UNKNOWN
        ) {
                double gt[6];

#if POSTGIS_DEBUG_LEVEL > 3
                GDALGetGeoTransform(arg->src.ds, gt);
                RASTER_DEBUGF(3, "GDAL MEM geotransform: %f, %f, %f, %f, %f, %f",
                        gt[0], gt[1], gt[2], gt[3], gt[4], gt[5]);
#endif

                /* default geotransform */
                rt_raster_get_geotransform_matrix(raster, gt);
                RASTER_DEBUGF(3, "raster geotransform: %f, %f, %f, %f, %f, %f",
                        gt[0], gt[1], gt[2], gt[3], gt[4], gt[5]);

                /* substitute spatial info (lack of) with a real one EPSG:32731 (WGS84/UTM zone 31s) */
                if (FLT_EQ(gt[0], 0.0) && FLT_EQ(gt[3], 0.0) && FLT_EQ(gt[1], 1.0) && FLT_EQ(gt[5], -1.0) &&
                    FLT_EQ(gt[2], 0.0) && FLT_EQ(gt[4], 0.0))
                {
                        double ngt[6] = {166021.4431, 0.1, 0, 10000000.0000, 0, -0.1};

                        rtwarn("Raster has default geotransform. Adjusting metadata for use of GDAL Warp API");

                        subspatial = 1;

                        GDALSetGeoTransform(arg->src.ds, ngt);
                        GDALFlushCache(arg->src.ds);

                        /* EPSG:32731 */
                        arg->src.srs = rt_util_gdal_convert_sr("EPSG:32731", 0);
                        arg->dst.srs = rt_util_gdal_convert_sr("EPSG:32731", 0);

#if POSTGIS_DEBUG_LEVEL > 3
                        GDALGetGeoTransform(arg->src.ds, gt);
                        RASTER_DEBUGF(3, "GDAL MEM geotransform: %f, %f, %f, %f, %f, %f",
                                gt[0], gt[1], gt[2], gt[3], gt[4], gt[5]);
#endif
                }
        }

        /* set transform options */
        if (arg->src.srs != NULL || arg->dst.srs != NULL) {
                arg->transform.option.len = 2;
                arg->transform.option.item = rtalloc(sizeof(char *) * (arg->transform.option.len + 1));
                if (NULL == arg->transform.option.item) {
                        rterror("rt_raster_gdal_warp: Could not allocation memory for transform options");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }
                memset(arg->transform.option.item, 0, sizeof(char *) * (arg->transform.option.len + 1));

                for (i = 0; i < arg->transform.option.len; i++) {
                        const char *srs = i ? arg->dst.srs : arg->src.srs;
                        const char *lbl = i ? "DST_SRS=" : "SRC_SRS=";
                        size_t sz = sizeof(char) * (strlen(lbl) + 1);
                        if ( srs ) sz += strlen(srs);
                        arg->transform.option.item[i] = (char *) rtalloc(sz);
                        if (NULL == arg->transform.option.item[i]) {
                                rterror("rt_raster_gdal_warp: Could not allocation memory for transform options");
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }
                        sprintf(arg->transform.option.item[i], "%s%s", lbl, srs ? srs : "");
                        RASTER_DEBUGF(4, "arg->transform.option.item[%d] = %s", i, arg->transform.option.item[i]);
                }
        }
        else
                arg->transform.option.len = 0;

        /* transformation object for building dst dataset */
        arg->transform.arg.transform = GDALCreateGenImgProjTransformer2(arg->src.ds, NULL, arg->transform.option.item);
        if (NULL == arg->transform.arg.transform) {
                rterror("rt_raster_gdal_warp: Could not create GDAL transformation object for output dataset creation");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* get approximate output georeferenced bounds and resolution */
        cplerr = GDALSuggestedWarpOutput2(
                arg->src.ds, GDALGenImgProjTransform,
                arg->transform.arg.transform, _gt, &(_dim[0]), &(_dim[1]), dst_extent, 0);
        if (cplerr != CE_None) {
                rterror("rt_raster_gdal_warp: Could not get GDAL suggested warp output for output dataset creation");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }
        GDALDestroyGenImgProjTransformer(arg->transform.arg.transform);
        arg->transform.arg.transform = NULL;

        /*
                don't use suggested dimensions as use of suggested scales
                on suggested extent will result in suggested dimensions
        */
        _dim[0] = 0;
        _dim[1] = 0;

        RASTER_DEBUGF(3, "Suggested geotransform: %f, %f, %f, %f, %f, %f",
                _gt[0], _gt[1], _gt[2], _gt[3], _gt[4], _gt[5]);

        /* store extent in easier-to-use object */
        extent.MinX = dst_extent[0];
        extent.MinY = dst_extent[1];
        extent.MaxX = dst_extent[2];
        extent.MaxY = dst_extent[3];

        extent.UpperLeftX = dst_extent[0];
        extent.UpperLeftY = dst_extent[3];

        RASTER_DEBUGF(3, "Suggested extent: %f, %f, %f, %f",
                extent.MinX, extent.MinY, extent.MaxX, extent.MaxY);

        /* scale and width/height are mutually exclusive */
        if (
                ((NULL != scale_x) || (NULL != scale_y)) &&
                ((NULL != width) || (NULL != height))
        ) {
                rterror("rt_raster_gdal_warp: Scale X/Y and width/height are mutually exclusive.  Only provide one");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* user-defined width */
        if (NULL != width) {
                _dim[0] = abs(*width);
                _scale[0] = fabs((extent.MaxX - extent.MinX) / ((double) _dim[0]));
        }
        /* user-defined height */
        if (NULL != height) {
                _dim[1] = abs(*height);
                _scale[1] = fabs((extent.MaxY - extent.MinY) / ((double) _dim[1]));
        }

        /* user-defined scale */
        if (
                ((NULL != scale_x) && (FLT_NEQ(*scale_x, 0.0))) &&
                ((NULL != scale_y) && (FLT_NEQ(*scale_y, 0.0)))
        ) {
                _scale[0] = fabs(*scale_x);
                _scale[1] = fabs(*scale_y);

                /* special override since we changed the original GT scales */
                if (subspatial) {
                        /*
                        _scale[0] *= 10;
                        _scale[1] *= 10;
                        */
                        _scale[0] /= 10;
                        _scale[1] /= 10;
                }
        }
        else if (
                ((NULL != scale_x) && (NULL == scale_y)) ||
                ((NULL == scale_x) && (NULL != scale_y))
        ) {
                rterror("rt_raster_gdal_warp: Both X and Y scale values must be provided for scale");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* scale not defined, use suggested */
        if (FLT_EQ(_scale[0], 0.0) && FLT_EQ(_scale[1], 0.0))
        {
                _scale[0] = fabs(_gt[1]);
                _scale[1] = fabs(_gt[5]);
        }

        RASTER_DEBUGF(4, "Using scale: %f x %f", _scale[0], -1 * _scale[1]);

        /* user-defined skew */
        if (NULL != skew_x) {
                _skew[0] = *skew_x;

                /*
                        negative scale-x affects skew
                        for now, force skew to be in left-right, top-down orientation
                */
                if (
                        NULL != scale_x &&
                        *scale_x < 0.
                ) {
                        _skew[0] *= -1;
                }
        }
        if (NULL != skew_y) {
                _skew[1] = *skew_y;

                /*
                        positive scale-y affects skew
                        for now, force skew to be in left-right, top-down orientation
                */
                if (
                        NULL != scale_y &&
                        *scale_y > 0.
                ) {
                        _skew[1] *= -1;
                }
        }

        RASTER_DEBUGF(4, "Using skew: %f x %f", _skew[0], _skew[1]);

        /* reprocess extent if skewed */
        if (FLT_NEQ(_skew[0], 0.0) || FLT_NEQ(_skew[1], 0.0))
        {
                rt_raster skewedrast;

                RASTER_DEBUG(3, "Computing skewed extent's envelope");

                skewedrast = rt_raster_compute_skewed_raster(
                        extent,
                        _skew,
                        _scale,
                        0.01
                );
                if (skewedrast == NULL) {
                        rterror("rt_raster_gdal_warp: Could not compute skewed raster");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }

                if (_dim[0] == 0)
                        _dim[0] = skewedrast->width;
                if (_dim[1] == 0)
                        _dim[1] = skewedrast->height;

                extent.UpperLeftX = skewedrast->ipX;
                extent.UpperLeftY = skewedrast->ipY;

                rt_raster_destroy(skewedrast);
        }

        /* dimensions not defined, compute */
        if (!_dim[0])
                _dim[0] = (int) fmax((fabs(extent.MaxX - extent.MinX) + (_scale[0] / 2.)) / _scale[0], 1);
        if (!_dim[1])
                _dim[1] = (int) fmax((fabs(extent.MaxY - extent.MinY) + (_scale[1] / 2.)) / _scale[1], 1);

        /* temporary raster */
        rast = rt_raster_new(_dim[0], _dim[1]);
        if (rast == NULL) {
                rterror("rt_raster_gdal_warp: Out of memory allocating temporary raster");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* set raster's spatial attributes */
        rt_raster_set_offsets(rast, extent.UpperLeftX, extent.UpperLeftY);
        rt_raster_set_scale(rast, _scale[0], -1 * _scale[1]);
        rt_raster_set_skews(rast, _skew[0], _skew[1]);

        rt_raster_get_geotransform_matrix(rast, _gt);
        RASTER_DEBUGF(3, "Temp raster's geotransform: %f, %f, %f, %f, %f, %f",
                _gt[0], _gt[1], _gt[2], _gt[3], _gt[4], _gt[5]);
        RASTER_DEBUGF(3, "Temp raster's dimensions (width x height): %d x %d",
                _dim[0], _dim[1]);

        /* user-defined upper-left corner */
        if (
                NULL != ul_xw &&
                NULL != ul_yw
        ) {
                ul_user = 1;

                RASTER_DEBUGF(4, "Using user-specified upper-left corner: %f, %f", *ul_xw, *ul_yw);

                /* set upper-left corner */
                rt_raster_set_offsets(rast, *ul_xw, *ul_yw);
                extent.UpperLeftX = *ul_xw;
                extent.UpperLeftY = *ul_yw;
        }
        else if (
                ((NULL != ul_xw) && (NULL == ul_yw)) ||
                ((NULL == ul_xw) && (NULL != ul_yw))
        ) {
                rterror("rt_raster_gdal_warp: Both X and Y upper-left corner values must be provided");
                rt_raster_destroy(rast);
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* alignment only considered if upper-left corner not provided */
        if (
                !ul_user && (
                        (NULL != grid_xw) || (NULL != grid_yw)
                )
        ) {

                if (
                        ((NULL != grid_xw) && (NULL == grid_yw)) ||
                        ((NULL == grid_xw) && (NULL != grid_yw))
                ) {
                        rterror("rt_raster_gdal_warp: Both X and Y alignment values must be provided");
                        rt_raster_destroy(rast);
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }

                RASTER_DEBUGF(4, "Aligning extent to user-specified grid: %f, %f", *grid_xw, *grid_yw);

                do {
                        double _r[2] = {0};
                        double _w[2] = {0};

                        /* raster is already aligned */
                        if (FLT_EQ(*grid_xw, extent.UpperLeftX) && FLT_EQ(*grid_yw, extent.UpperLeftY)) {
                                RASTER_DEBUG(3, "Skipping raster alignment as it is already aligned to grid");
                                break;
                        }

                        extent.UpperLeftX = rast->ipX;
                        extent.UpperLeftY = rast->ipY;
                        rt_raster_set_offsets(rast, *grid_xw, *grid_yw);

                        /* process upper-left corner */
                        if (rt_raster_geopoint_to_cell(
                                rast,
                                extent.UpperLeftX, extent.UpperLeftY,
                                &(_r[0]), &(_r[1]),
                                NULL
                        ) != ES_NONE) {
                                rterror("rt_raster_gdal_warp: Could not compute raster pixel for spatial coordinates");
                                rt_raster_destroy(rast);
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }

                        if (rt_raster_cell_to_geopoint(
                                rast,
                                _r[0], _r[1],
                                &(_w[0]), &(_w[1]),
                                NULL
                        ) != ES_NONE) {
                                rterror("rt_raster_gdal_warp: Could not compute spatial coordinates for raster pixel");

                                rt_raster_destroy(rast);
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }

                        /* shift occurred */
                        if (FLT_NEQ(_w[0], extent.UpperLeftX)) {
                                if (NULL == width)
                                        rast->width++;
                                else if (NULL == scale_x) {
                                        double _c[2] = {0};

                                        rt_raster_set_offsets(rast, extent.UpperLeftX, extent.UpperLeftY);

                                        /* get upper-right corner */
                                        if (rt_raster_cell_to_geopoint(
                                                rast,
                                                rast->width, 0,
                                                &(_c[0]), &(_c[1]),
                                                NULL
                                        ) != ES_NONE) {
                                                rterror("rt_raster_gdal_warp: Could not compute spatial coordinates for raster pixel");
                                                rt_raster_destroy(rast);
                                                _rti_warp_arg_destroy(arg);
                                                return NULL;
                                        }

                                        rast->scaleX = fabs((_c[0] - _w[0]) / ((double) rast->width));
                                }
                        }
                        if (FLT_NEQ(_w[1], extent.UpperLeftY)) {
                                if (NULL == height)
                                        rast->height++;
                                else if (NULL == scale_y) {
                                        double _c[2] = {0};

                                        rt_raster_set_offsets(rast, extent.UpperLeftX, extent.UpperLeftY);

                                        /* get upper-right corner */
                                        if (rt_raster_cell_to_geopoint(
                                                rast,
                                                0, rast->height,
                                                &(_c[0]), &(_c[1]),
                                                NULL
                                        ) != ES_NONE) {
                                                rterror("rt_raster_gdal_warp: Could not compute spatial coordinates for raster pixel");

                                                rt_raster_destroy(rast);
                                                _rti_warp_arg_destroy(arg);
                                                return NULL;
                                        }

                                        rast->scaleY = -1 * fabs((_c[1] - _w[1]) / ((double) rast->height));
                                }
                        }

                        rt_raster_set_offsets(rast, _w[0], _w[1]);
                        RASTER_DEBUGF(4, "aligned offsets: %f x %f", _w[0], _w[1]);
                }
                while (0);
        }

        /*
                after this point, rt_envelope extent is no longer used
        */

        /* get key attributes from rast */
        _dim[0] = rast->width;
        _dim[1] = rast->height;
        rt_raster_get_geotransform_matrix(rast, _gt);

        /* scale-x is negative or scale-y is positive */
        if ((
                (NULL != scale_x) && (*scale_x < 0.)
        ) || (
                (NULL != scale_y) && (*scale_y > 0)
        )) {
                double _w[2] = {0};

                /* negative scale-x */
                if (
                        (NULL != scale_x) &&
                        (*scale_x < 0.)
                ) {
                        if (rt_raster_cell_to_geopoint(
                                rast,
                                rast->width, 0,
                                &(_w[0]), &(_w[1]),
                                NULL
                        ) != ES_NONE) {
                                rterror("rt_raster_gdal_warp: Could not compute spatial coordinates for raster pixel");
                                rt_raster_destroy(rast);
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }

                        _gt[0] = _w[0];
                        _gt[1] = *scale_x;

                        /* check for skew */
                        if (NULL != skew_x && FLT_NEQ(*skew_x, 0.0))
                                _gt[2] = *skew_x;
                }
                /* positive scale-y */
                if (
                        (NULL != scale_y) &&
                        (*scale_y > 0)
                ) {
                        if (rt_raster_cell_to_geopoint(
                                rast,
                                0, rast->height,
                                &(_w[0]), &(_w[1]),
                                NULL
                        ) != ES_NONE) {
                                rterror("rt_raster_gdal_warp: Could not compute spatial coordinates for raster pixel");
                                rt_raster_destroy(rast);
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }

                        _gt[3] = _w[1];
                        _gt[5] = *scale_y;

                        /* check for skew */
                        if (NULL != skew_y && FLT_NEQ(*skew_y, 0.0))
                                _gt[4] = *skew_y;
                }
        }

        rt_raster_destroy(rast);
        rast = NULL;

        RASTER_DEBUGF(3, "Applied geotransform: %f, %f, %f, %f, %f, %f",
                _gt[0], _gt[1], _gt[2], _gt[3], _gt[4], _gt[5]);
        RASTER_DEBUGF(3, "Raster dimensions (width x height): %d x %d",
                _dim[0], _dim[1]);

        if ( _dim[0] == 0 || _dim[1] == 0 ) {
                rterror("rt_raster_gdal_warp: The width (%d) or height (%d) of the warped raster is zero", _dim[0], _dim[1]);
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* load VRT driver */
        if (!rt_util_gdal_driver_registered("VRT")) {
                RASTER_DEBUG(3, "Registering VRT driver");
                GDALRegister_VRT();
                arg->dst.destroy_drv = 1;
        }
        arg->dst.drv = GDALGetDriverByName("VRT");
        if (NULL == arg->dst.drv) {
                rterror("rt_raster_gdal_warp: Could not load the output GDAL VRT driver");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* create dst dataset */
        arg->dst.ds = GDALCreate(arg->dst.drv, "", _dim[0], _dim[1], 0, GDT_Byte, dst_options);
        if (NULL == arg->dst.ds) {
                rterror("rt_raster_gdal_warp: Could not create GDAL VRT dataset");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* set dst srs */
        if (arg->dst.srs != NULL) {
                cplerr = GDALSetProjection(arg->dst.ds, arg->dst.srs);
                if (cplerr != CE_None) {
                        rterror("rt_raster_gdal_warp: Could not set projection");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }
                RASTER_DEBUGF(3, "Applied SRS: %s", GDALGetProjectionRef(arg->dst.ds));
        }

        /* set dst geotransform */
        cplerr = GDALSetGeoTransform(arg->dst.ds, _gt);
        if (cplerr != CE_None) {
                rterror("rt_raster_gdal_warp: Could not set geotransform");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* add bands to dst dataset */
        numBands = rt_raster_get_num_bands(raster);
        for (i = 0; i < numBands; i++) {
                rtband = rt_raster_get_band(raster, i);
                if (NULL == rtband) {
                        rterror("rt_raster_gdal_warp: Could not get band %d for adding to VRT dataset", i);
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }

                pt = rt_band_get_pixtype(rtband);
                gdal_pt = rt_util_pixtype_to_gdal_datatype(pt);
                if (gdal_pt == GDT_Unknown)
                        rtwarn("rt_raster_gdal_warp: Unknown pixel type for band %d", i);

                cplerr = GDALAddBand(arg->dst.ds, gdal_pt, NULL);
                if (cplerr != CE_None) {
                        rterror("rt_raster_gdal_warp: Could not add band to VRT dataset");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }

                /* get band to write data to */
                band = NULL;
                band = GDALGetRasterBand(arg->dst.ds, i + 1);
                if (NULL == band) {
                        rterror("rt_raster_gdal_warp: Could not get GDAL band for additional processing");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }

                /* set nodata */
                if (rt_band_get_hasnodata_flag(rtband) != FALSE) {
                        rt_band_get_nodata(rtband, &nodata);
                        if (GDALSetRasterNoDataValue(band, nodata) != CE_None)
                                rtwarn("rt_raster_gdal_warp: Could not set nodata value for band %d", i);
                        RASTER_DEBUGF(3, "nodata value set to %f", GDALGetRasterNoDataValue(band, NULL));
                }
        }

        /* create transformation object */
        arg->transform.arg.transform = arg->transform.arg.imgproj = GDALCreateGenImgProjTransformer2(
                arg->src.ds, arg->dst.ds,
                arg->transform.option.item
        );
        if (NULL == arg->transform.arg.transform) {
                rterror("rt_raster_gdal_warp: Could not create GDAL transformation object");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }
        arg->transform.func = GDALGenImgProjTransform;

        /* use approximate transformation object */
        if (max_err > 0.0) {
                arg->transform.arg.transform = arg->transform.arg.approx = GDALCreateApproxTransformer(
                        GDALGenImgProjTransform,
                        arg->transform.arg.imgproj, max_err
                );
                if (NULL == arg->transform.arg.transform) {
                        rterror("rt_raster_gdal_warp: Could not create GDAL approximate transformation object");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }

                arg->transform.func = GDALApproxTransform;
        }

        /* warp options */
        arg->wopts = GDALCreateWarpOptions();
        if (NULL == arg->wopts) {
                rterror("rt_raster_gdal_warp: Could not create GDAL warp options object");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }

        /* set options */
        arg->wopts->eResampleAlg = resample_alg;
        arg->wopts->hSrcDS = arg->src.ds;
        arg->wopts->hDstDS = arg->dst.ds;
        arg->wopts->pfnTransformer = arg->transform.func;
        arg->wopts->pTransformerArg = arg->transform.arg.transform;
        arg->wopts->papszWarpOptions = (char **) CPLMalloc(sizeof(char *) * 2);

        arg->wopts->papszWarpOptions[0] = (char *) CPLMalloc(sizeof(char) * (strlen("INIT_DEST=NO_DATA") + 1));
        strcpy(arg->wopts->papszWarpOptions[0], "INIT_DEST=NO_DATA");
        arg->wopts->papszWarpOptions[1] = NULL;

        /* set band mapping */
        arg->wopts->nBandCount = numBands;
        arg->wopts->panSrcBands = (int *) CPLMalloc(sizeof(int) * arg->wopts->nBandCount);
        arg->wopts->panDstBands = (int *) CPLMalloc(sizeof(int) * arg->wopts->nBandCount);
        for (i = 0; i < arg->wopts->nBandCount; i++)
                arg->wopts->panDstBands[i] = arg->wopts->panSrcBands[i] = i + 1;

        /*
        * https://trac.osgeo.org/postgis/ticket/5881
        * In order to call GDALWarp with BAND_INIT=NO_DATA we need to ensure
        * that the src and dst rasters have nodata values and they are
        * matched up nicely. This block used by tested with the hasnodata
        * check on all src raster bands, but now we just do it every time
        * because that makes sense (any warped raster is likely to have
        * empty corners on output, and those corners need to be filled with
        * some kind of NODATA value).
        */
        {
                RASTER_DEBUG(3, "Setting nodata mapping");
                arg->wopts->padfSrcNoDataReal = (double *) CPLMalloc(numBands * sizeof(double));
                arg->wopts->padfDstNoDataReal = (double *) CPLMalloc(numBands * sizeof(double));
                arg->wopts->padfSrcNoDataImag = (double *) CPLMalloc(numBands * sizeof(double));
                arg->wopts->padfDstNoDataImag = (double *) CPLMalloc(numBands * sizeof(double));
                if (
                        NULL == arg->wopts->padfSrcNoDataReal ||
                        NULL == arg->wopts->padfDstNoDataReal ||
                        NULL == arg->wopts->padfSrcNoDataImag ||
                        NULL == arg->wopts->padfDstNoDataImag
                ) {
                        rterror("rt_raster_gdal_warp: Out of memory allocating nodata mapping");
                        _rti_warp_arg_destroy(arg);
                        return NULL;
                }
                for (i = 0; i < numBands; i++) {
                        band = rt_raster_get_band(raster, i);
                        if (!band) {
                                rterror("rt_raster_gdal_warp: Could not process bands for nodata values");
                                _rti_warp_arg_destroy(arg);
                                return NULL;
                        }

                        if (!rt_band_get_hasnodata_flag(band)) {
                                /*
                                        based on line 1004 of gdalwarp.cpp
                                        the problem is that there is a chance that this number is a legitimate value
                                */
                                arg->wopts->padfSrcNoDataReal[i] = -123456.789;
                        }
                        else {
                                rt_band_get_nodata(band, &(arg->wopts->padfSrcNoDataReal[i]));
                        }

                        arg->wopts->padfDstNoDataReal[i] = arg->wopts->padfSrcNoDataReal[i];
                        arg->wopts->padfDstNoDataImag[i] = arg->wopts->padfSrcNoDataImag[i] = 0.0;
                        RASTER_DEBUGF(4, "Mapped nodata value for band %d: %f (%f) => %f (%f)",
                                i,
                                arg->wopts->padfSrcNoDataReal[i], arg->wopts->padfSrcNoDataImag[i],
                                arg->wopts->padfDstNoDataReal[i], arg->wopts->padfDstNoDataImag[i]
                        );
                }
        }

        /* warp raster */
        RASTER_DEBUG(3, "Warping raster");
        cplerr = GDALInitializeWarpedVRT(arg->dst.ds, arg->wopts);
        if (cplerr != CE_None) {
                rterror("rt_raster_gdal_warp: Could not warp raster");
                _rti_warp_arg_destroy(arg);
                return NULL;
        }
        /*
        GDALSetDescription(arg->dst.ds, "/tmp/warped.vrt");
        */
        GDALFlushCache(arg->dst.ds);
        RASTER_DEBUG(3, "Raster warped");

        /* convert gdal dataset to raster */
        RASTER_DEBUG(3, "Converting GDAL dataset to raster");
        rast = rt_raster_from_gdal_dataset(arg->dst.ds);

        _rti_warp_arg_destroy(arg);

        if (NULL == rast) {
                rterror("rt_raster_gdal_warp: Could not warp raster");
                return NULL;
        }

        /* substitute spatial, reset back to default */
        if (subspatial) {
                double gt[6] = {0, 1, 0, 0, 0, -1};
                /* See http://trac.osgeo.org/postgis/ticket/2911 */
                /* We should probably also tweak rotation here */
                /* NOTE: the times 10 is because it was divided by 10 in a section above,
                 *       I'm not sure the above division was needed */
                gt[1] = _scale[0] * 10;
                gt[5] = -1 * _scale[1] * 10;

                rt_raster_set_geotransform_matrix(rast, gt);
                rt_raster_set_srid(rast, SRID_UNKNOWN);
        }

        RASTER_DEBUG(3, "done");

        return rast;
}

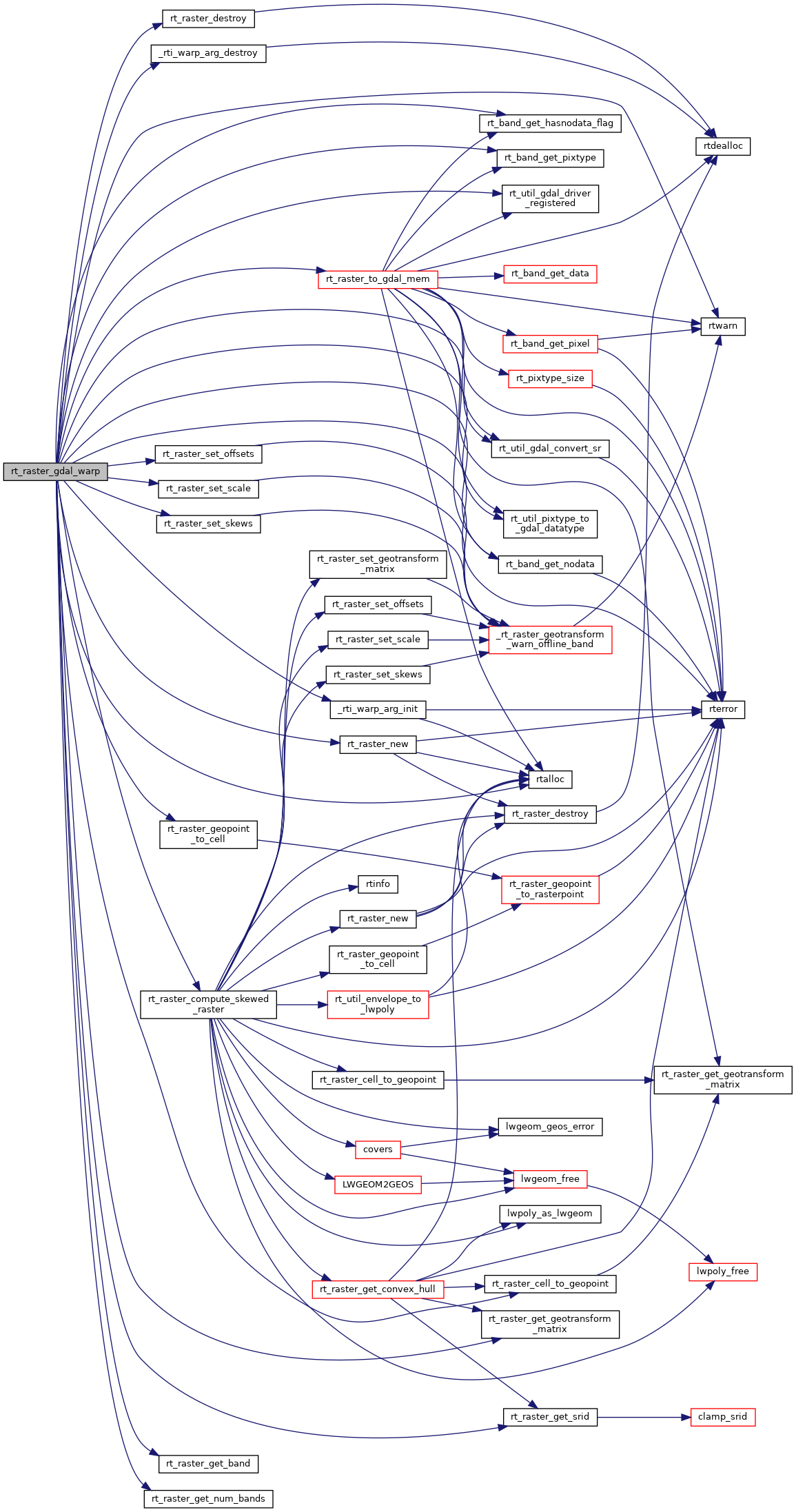

References _rti_warp_arg_destroy(), _rti_warp_arg_init(), ovdump::band, _rti_warp_arg_t::destroy_drv, _rti_warp_arg_t::drv, _rti_warp_arg_t::ds, _rti_warp_arg_t::dst, ES_NONE, FALSE, FLT_EQ, FLT_NEQ, window::gt, rt_raster_t::height, rt_raster_t::ipX, rt_raster_t::ipY, rt_envelope::MaxX, rt_envelope::MaxY, rt_envelope::MinX, rt_envelope::MinY, PT_END, rtpixdump::rast, rtrowdump::raster, RASTER_DEBUG, RASTER_DEBUGF, rt_band_get_hasnodata_flag(), rt_band_get_nodata(), rt_band_get_pixtype(), rt_raster_cell_to_geopoint(), rt_raster_compute_skewed_raster(), rt_raster_destroy(), rt_raster_geopoint_to_cell(), rt_raster_get_band(), rt_raster_get_geotransform_matrix(), rt_raster_get_num_bands(), rt_raster_get_srid(), rt_raster_new(), rt_raster_set_offsets(), rt_raster_set_scale(), rt_raster_set_skews(), rt_raster_to_gdal_mem(), rt_util_gdal_convert_sr(), rt_util_gdal_driver_registered(), rt_util_pixtype_to_gdal_datatype(), rtalloc(), rterror(), rtwarn(), _rti_warp_arg_t::src, SRID_UNKNOWN, _rti_warp_arg_t::srs, _rti_warp_arg_t::transform, rt_envelope::UpperLeftX, rt_envelope::UpperLeftY, rt_raster_t::width, and _rti_warp_arg_t::wopts.

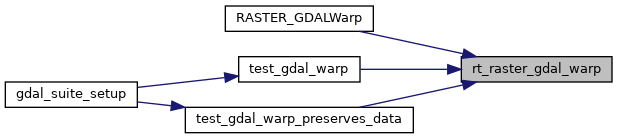

Referenced by RASTER_GDALWarp(), test_gdal_warp(), and test_gdal_warp_preserves_data().

Here is the call graph for this function:

Here is the caller graph for this function:
