◆ triangle_parse()

void triangle_parse ( void  )

Definition at line 14 of file cu_surface.c.

15 {
16  LWGEOM *geom;
17  GSERIALIZED *g;
18  char *tmp;
19
20  cu_error_msg_reset(); /* Because i don't trust that much prior tests... ;) */
21
22  /* 2 dims */
23  geom = lwgeom_from_wkt("TRIANGLE((0 1,2 3,4 5,0 1))", LW_PARSER_CHECK_NONE);
24  CU_ASSERT_EQUAL(strlen(cu_error_msg), 0);
25  CU_ASSERT_EQUAL(geom->type, TRIANGLETYPE);
26  tmp = lwgeom_to_ewkt(geom);
27  ASSERT_STRING_EQUAL("TRIANGLE((0 1,2 3,4 5,0 1))", tmp);
28  lwfree(tmp);
29  lwgeom_free(geom);
30  /* 3DM */
31  geom = lwgeom_from_wkt("TRIANGLEM((0 1 2,3 4 5,6 7 8,0 1 2))", LW_PARSER_CHECK_NONE);
32  CU_ASSERT_EQUAL(strlen(cu_error_msg), 0);
33  CU_ASSERT_EQUAL(geom->type, TRIANGLETYPE);
34  tmp = lwgeom_to_ewkt(geom);
35  ASSERT_STRING_EQUAL("TRIANGLEM((0 1 2,3 4 5,6 7 8,0 1 2))", tmp);
36  lwfree(tmp);
37  lwgeom_free(geom);
38
39  /* ERROR: a missing Z values */
40  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,6 7,0 1 2))", LW_PARSER_CHECK_NONE);
41  ASSERT_STRING_EQUAL("can not mix dimensionality in a geometry", cu_error_msg);
42  cu_error_msg_reset();
43  lwgeom_free(geom);
44
45  /* ERROR: non closed rings */
46  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,6 7 8,0 0 2))", LW_PARSER_CHECK_NONE);
47  ASSERT_STRING_EQUAL("geometry contains non-closed rings", cu_error_msg);
48  cu_error_msg_reset();
49  lwgeom_free(geom);
50
51  /* ERROR: non closed face in Z dim */
52  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,6 7 8,0 1 3))", LW_PARSER_CHECK_NONE);
53  ASSERT_STRING_EQUAL("geometry contains non-closed rings", cu_error_msg);
54  cu_error_msg_reset();
55  lwgeom_free(geom);
56
57  /* ERROR: non closed face in Z dim, with a 4D geom */
58  geom = lwgeom_from_wkt("TRIANGLE((0 1 2 3,4 5 6 7,8 9 10 11,0 1 3 3))", LW_PARSER_CHECK_NONE);
59  ASSERT_STRING_EQUAL("geometry contains non-closed rings", cu_error_msg);
60  cu_error_msg_reset();
61  lwgeom_free(geom);
62
63  /* ERROR: only 3 points in a face */
64  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,0 1 2))", LW_PARSER_CHECK_NONE);
65  ASSERT_STRING_EQUAL("triangle must have exactly 4 points", cu_error_msg);
66  cu_error_msg_reset();
67  lwgeom_free(geom);
68
69  /* ERROR: more than 4 points in a face */
70  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,6 7 8,9 10 11,0 1 2))", LW_PARSER_CHECK_NONE);
71  ASSERT_STRING_EQUAL("triangle must have exactly 4 points", cu_error_msg);
72  cu_error_msg_reset();
73  lwgeom_free(geom);
74
75  /* ERROR: no interior rings allowed */
76  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,6 7 8,0 1 2),(9 10 11,12 13 14,15 16 17,9 10 11)", LW_PARSER_CHECK_NONE);
77  ASSERT_STRING_EQUAL("parse error - invalid geometry", cu_error_msg);
78  cu_error_msg_reset();
79  lwgeom_free(geom);
80
81  /* EMPTY face */
82  geom = lwgeom_from_wkt("TRIANGLE EMPTY", LW_PARSER_CHECK_NONE);
83  CU_ASSERT_EQUAL(strlen(cu_error_msg), 0);
84  CU_ASSERT_EQUAL(geom->type, TRIANGLETYPE);
85  tmp = lwgeom_to_wkt(geom, LW_PARSER_CHECK_NONE, 0, 0);
86  ASSERT_STRING_EQUAL("TRIANGLE EMPTY", tmp);
87  lwfree(tmp);
88  lwgeom_free(geom);
89
90  /* explicit SRID */
91  geom = lwgeom_from_wkt("SRID=4326;TRIANGLE((0 1 2,3 4 5,6 7 8,0 1 2))", LW_PARSER_CHECK_NONE);
92  CU_ASSERT_EQUAL(strlen(cu_error_msg), 0);
93  CU_ASSERT_EQUAL(geom->type, TRIANGLETYPE);
94  CU_ASSERT_EQUAL(geom->srid, 4326);
95  tmp = lwgeom_to_ewkt(geom);
96  ASSERT_STRING_EQUAL("SRID=4326;TRIANGLE((0 1 2,3 4 5,6 7 8,0 1 2))", tmp);
97  lwfree(tmp);
98  lwgeom_free(geom);
99
100  /* geography support */
101  geom = lwgeom_from_wkt("TRIANGLE((0 1 2,3 4 5,6 7 8,0 1 2))", LW_PARSER_CHECK_NONE);
102  g = gserialized_from_lwgeom(geom, 0);
103  CU_ASSERT_EQUAL(gserialized_get_type(g), TRIANGLETYPE);
104  lwgeom_free(geom);
105  lwfree(g);
106 }
gserialized_get_type
uint32_t gserialized_get_type(const GSERIALIZED *g)
Extract the geometry type from the serialized form (it hides in the anonymous data area,...
Definition: gserialized.c:118
gserialized_from_lwgeom
GSERIALIZED * gserialized_from_lwgeom(LWGEOM *geom, size_t *size)
Allocate a new GSERIALIZED from an LWGEOM.
Definition: gserialized.c:251
cu_error_msg_reset
void cu_error_msg_reset()
Definition: liblwgeom/cunit/cu_tester.c:307
cu_error_msg
char cu_error_msg[MAX_CUNIT_ERROR_LENGTH+1]
Definition: liblwgeom/cunit/cu_tester.c:19
ASSERT_STRING_EQUAL
#define ASSERT_STRING_EQUAL(o, e)
Definition: liblwgeom/cunit/cu_tester.h:94
lwgeom_free
void lwgeom_free(LWGEOM *geom)
Definition: lwgeom.c:1218
LW_PARSER_CHECK_NONE
#define LW_PARSER_CHECK_NONE
Definition: liblwgeom.h:2146
lwgeom_to_ewkt
char * lwgeom_to_ewkt(const LWGEOM *lwgeom)
Return an allocated string.
Definition: lwgeom.c:565
lwfree
void lwfree(void *mem)
Definition: lwutil.c:248
lwgeom_to_wkt
char * lwgeom_to_wkt(const LWGEOM *geom, uint8_t variant, int precision, size_t *size_out)
WKT emitter function.
Definition: lwout_wkt.c:708
lwgeom_from_wkt
LWGEOM * lwgeom_from_wkt(const char *wkt, const char check)
Definition: lwin_wkt.c:940
TRIANGLETYPE
#define TRIANGLETYPE
Definition: liblwgeom.h:115
LWGEOM::type
uint8_t type
Definition: liblwgeom.h:462
LWGEOM::srid
int32_t srid
Definition: liblwgeom.h:460

References ASSERT_STRING_EQUAL, cu_error_msg, cu_error_msg_reset(), gserialized_from_lwgeom(), gserialized_get_type(), LW_PARSER_CHECK_NONE, lwfree(), lwgeom_free(), lwgeom_from_wkt(), lwgeom_to_ewkt(), lwgeom_to_wkt(), LWGEOM::srid, TRIANGLETYPE, and LWGEOM::type.

Referenced by surface_suite_setup().

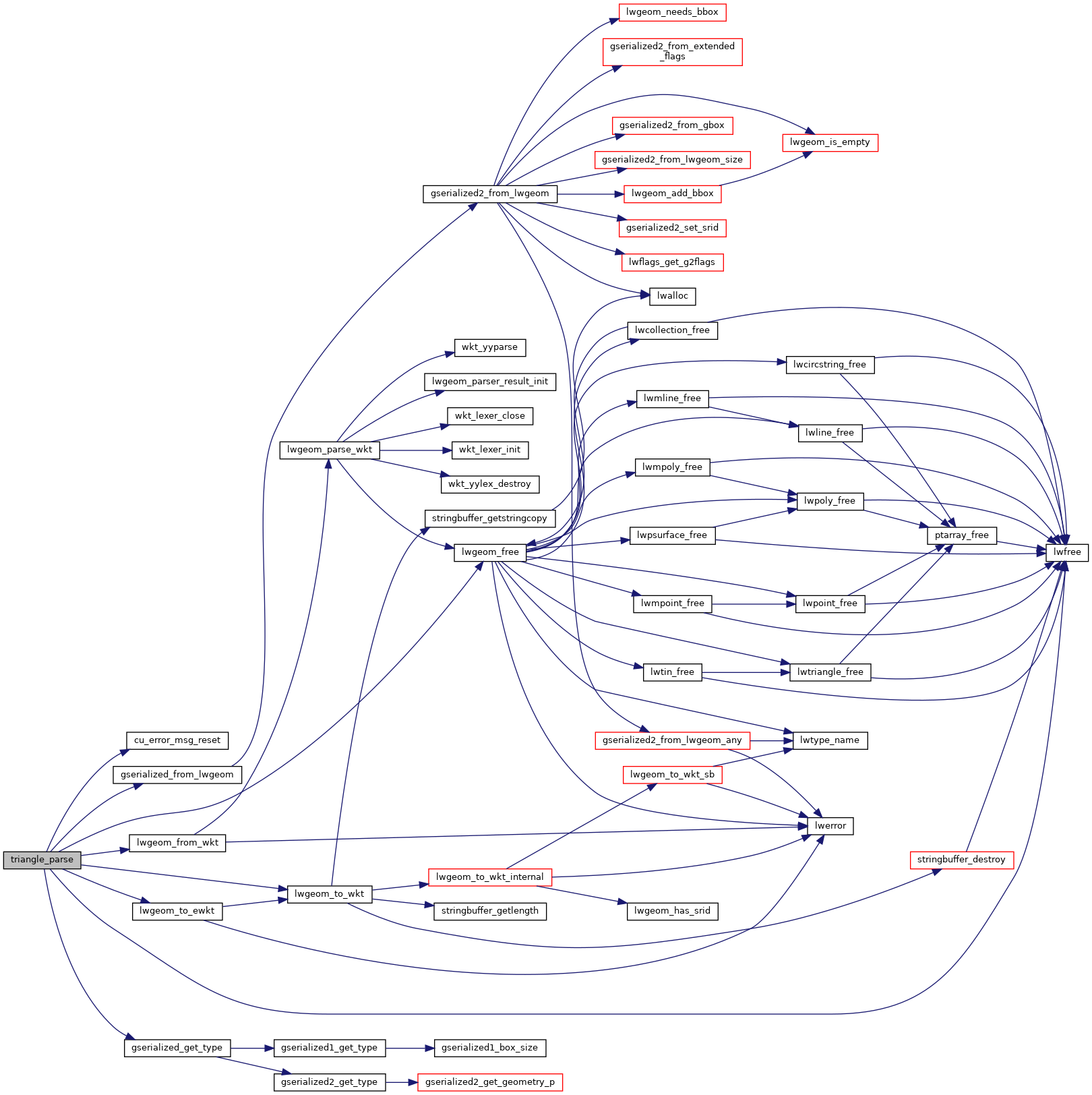

Here is the call graph for this function:
Here is the caller graph for this function:
