◆ lw_dist2d_point_line()

int lw_dist2d_point_line ( LWPOINT *  point,
LWLINE *  line,
DISTPTS *  dl
)

point to line calculation

Definition at line 610 of file measures.c.

611 {
612  const POINT2D *p = getPoint2d_cp(point->point, 0);
613  return lw_dist2d_pt_ptarray(p, line->points, dl);
614 }
getPoint2d_cp
static const POINT2D * getPoint2d_cp(const POINTARRAY *pa, uint32_t n)
Returns a POINT2D pointer into the POINTARRAY serialized_ptlist, suitable for reading from.
Definition: lwinline.h:97
lw_dist2d_pt_ptarray
int lw_dist2d_pt_ptarray(const POINT2D *p, POINTARRAY *pa, DISTPTS *dl)
search all the segments of pointarray to see which one is closest to p1 Returns minimum distance betw...
Definition: measures.c:1134
LWLINE::points
POINTARRAY * points
Definition: liblwgeom.h:483
LWPOINT::point
POINTARRAY * point
Definition: liblwgeom.h:471

References getPoint2d_cp(), lw_dist2d_pt_ptarray(), LWPOINT::point, and LWLINE::points.

Referenced by lw_dist2d_distribute_bruteforce().

Here is the call graph for this function:

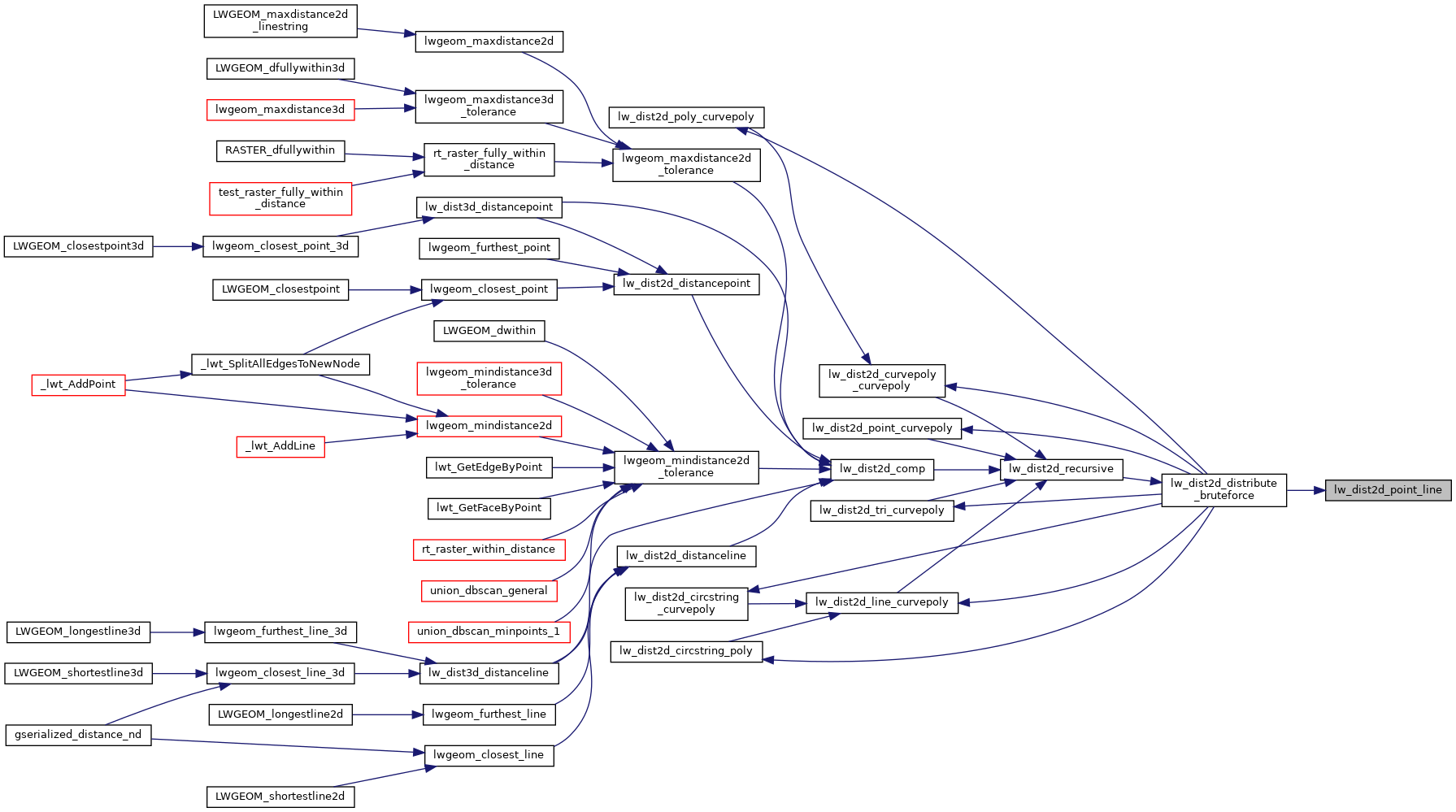

Here is the caller graph for this function:
