lwcurvepoly_to_wkt_sb()

static void lwcurvepoly_to_wkt_sb ( const LWCURVEPOLY *  cpoly, stringbuffer_t *  sb, int  precision, uint8_t  variant  )

static

Definition at line 367 of file lwout_wkt.c.

{
        uint32_t i = 0;

        if ( ! (variant & WKT_NO_TYPE) )
        {
                stringbuffer_append_len(sb, "CURVEPOLYGON", 12); /* "CURVEPOLYGON" */
                dimension_qualifiers_to_wkt_sb((LWGEOM*)cpoly, sb, variant);
        }
        if ( cpoly->nrings < 1 )
        {
                empty_to_wkt_sb(sb);
                return;
        }
        stringbuffer_append_len(sb, "(", 1);
        variant = variant | WKT_IS_CHILD; /* Inform the sub-geometries they are childre */
        for ( i = 0; i < cpoly->nrings; i++ )
        {
                int type = cpoly->rings[i]->type;
                if ( i > 0 )
                        stringbuffer_append_len(sb, ",", 1);
                switch (type)
                {
                case LINETYPE:
                        /* Linestring subgeoms don't get type identifiers */
                        lwline_to_wkt_sb((LWLINE*)cpoly->rings[i], sb, precision, variant | WKT_NO_TYPE );
                        break;
                case CIRCSTRINGTYPE:
                        /* But circstring subgeoms *do* get type identifiers */
                        lwcircstring_to_wkt_sb((LWCIRCSTRING*)cpoly->rings[i], sb, precision, variant );
                        break;
                case COMPOUNDTYPE:
                        /* And compoundcurve subgeoms *do* get type identifiers */
                        lwcompound_to_wkt_sb((LWCOMPOUND*)cpoly->rings[i], sb, precision, variant );
                        break;
                default:
                        lwerror("lwcurvepoly_to_wkt_sb: Unknown type received %d - %s", type, lwtype_name(type));
                }
        }
        stringbuffer_append_len(sb, ")", 1);
}

References CIRCSTRINGTYPE, COMPOUNDTYPE, dimension_qualifiers_to_wkt_sb(), empty_to_wkt_sb(), LINETYPE, lwcircstring_to_wkt_sb(), lwcompound_to_wkt_sb(), lwerror(), lwline_to_wkt_sb(), lwtype_name(), LWCURVEPOLY::nrings, precision, LWCURVEPOLY::rings, stringbuffer_append_len(), LWGEOM::type, ovdump::type, variant, WKT_IS_CHILD, and WKT_NO_TYPE.

Referenced by lwgeom_to_wkt_sb(), and lwmsurface_to_wkt_sb().

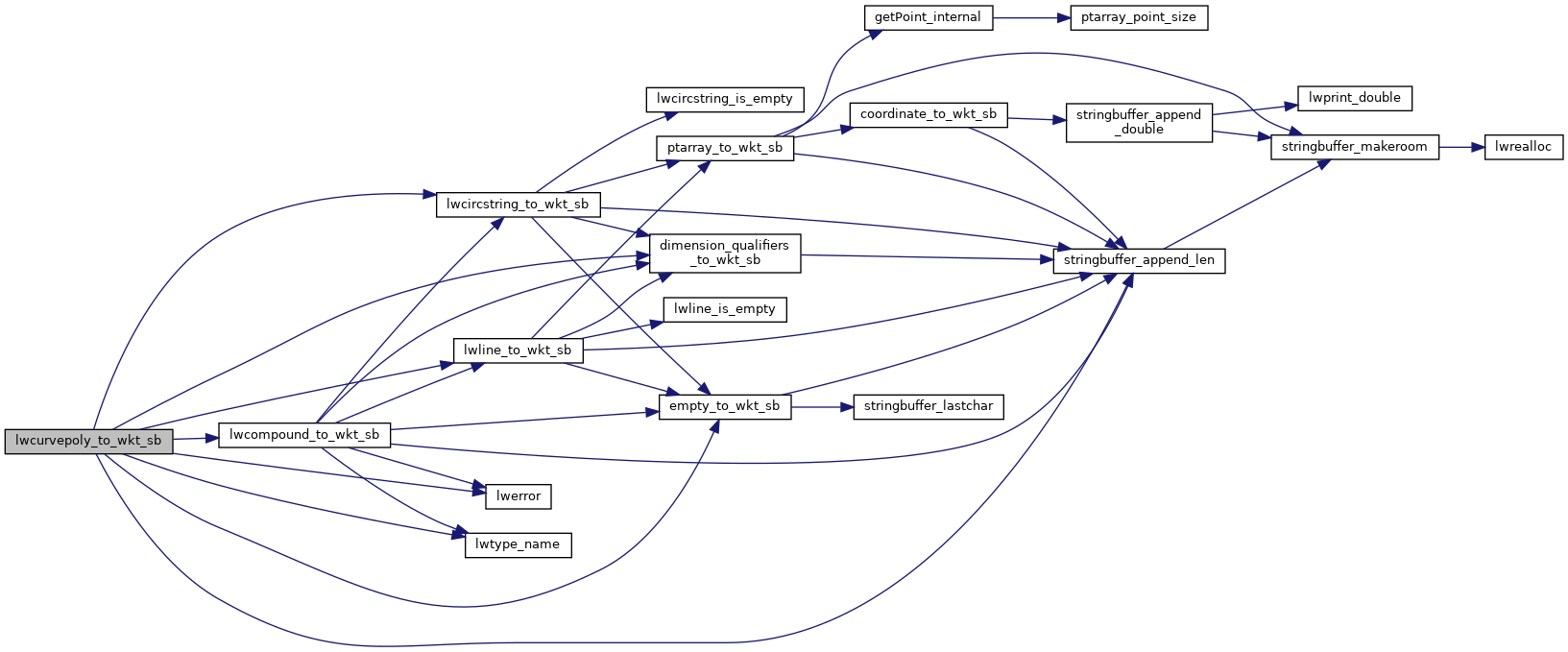

Here is the call graph for this function:

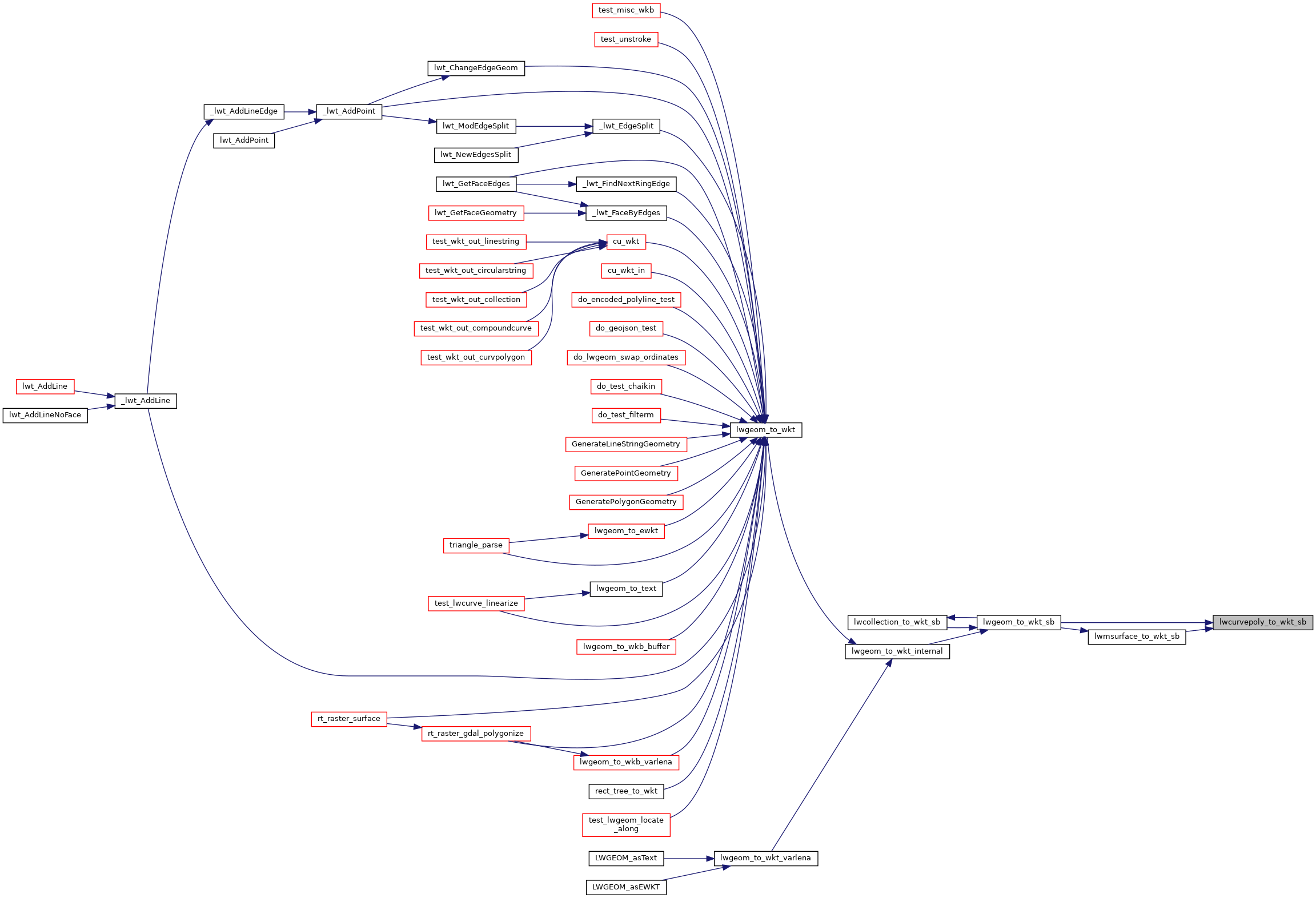

Here is the caller graph for this function:
