PostGIS  3.4.0dev-r@@SVN_REVISION@@

◆ geometry_to_path()

Datum geometry_to_path ( PG_FUNCTION_ARGS  )

Definition at line 96 of file geometry_inout.c.

97 {
98  PATH *path;
99  LWLINE *lwline;
100  LWGEOM *lwgeom;
101  GSERIALIZED *geom;
102  POINTARRAY *pa;
103  uint32_t i;
104  const POINT2D *pt;
105  size_t size;
106
107  POSTGIS_DEBUG(2, "geometry_to_path called");
108
109  if ( PG_ARGISNULL(0) )
110  PG_RETURN_NULL();
111
112  geom = PG_GETARG_GSERIALIZED_P(0);
113
114  if ( gserialized_get_type(geom) != LINETYPE )
115  elog(ERROR, "geometry_to_path only accepts LineStrings");
116
117  lwgeom = lwgeom_from_gserialized(geom);
118  if ( lwgeom_is_empty(lwgeom) )
119  PG_RETURN_NULL();
120  lwline = lwgeom_as_lwline(lwgeom);
121
122  pa = lwline->points;
123  size = offsetof(PATH, p[0]) + sizeof(path->p[0]) * pa->npoints;
124  path = (PATH*)palloc(size);
125  SET_VARSIZE(path, size);
126  path->npts = pa->npoints;
127  path->closed = 0;
128  path->dummy = 0;
129
130  for ( i = 0; i < pa->npoints; i++ )
131  {
132  pt = getPoint2d_cp(pa, i);
133  (path->p[i]).x = pt->x;
134  (path->p[i]).y = pt->y;
135  }
136
137  lwgeom_free(lwgeom);
138  PG_FREE_IF_COPY(geom,0);
139
140  PG_RETURN_PATH_P(path);
141 }
LWGEOM * lwgeom_from_gserialized(const GSERIALIZED *g)
Allocate a new LWGEOM from a GSERIALIZED.
Definition: gserialized.c:239
uint32_t gserialized_get_type(const GSERIALIZED *g)
Extract the geometry type from the serialized form (it hides in the anonymous data area,...
Definition: gserialized.c:89
LWLINE * lwgeom_as_lwline(const LWGEOM *lwgeom)
Definition: lwgeom.c:179
void lwgeom_free(LWGEOM *geom)
Definition: lwgeom.c:1155
#define LINETYPE
Definition: liblwgeom.h:103
static const POINT2D * getPoint2d_cp(const POINTARRAY *pa, uint32_t n)
Returns a POINT2D pointer into the POINTARRAY serialized_ptlist, suitable for reading from.
Definition: lwinline.h:101
static int lwgeom_is_empty(const LWGEOM *geom)
Return true or false depending on whether a geometry is an "empty" geometry (no vertices members)
Definition: lwinline.h:203
POINTARRAY * points
Definition: liblwgeom.h:483
double y
Definition: liblwgeom.h:390
double x
Definition: liblwgeom.h:390
uint32_t npoints
Definition: liblwgeom.h:427

References getPoint2d_cp(), gserialized_get_type(), LINETYPE, lwgeom_as_lwline(), lwgeom_free(), lwgeom_from_gserialized(), lwgeom_is_empty(), POINTARRAY::npoints, LWLINE::points, POINT2D::x, pixval::x, and POINT2D::y.

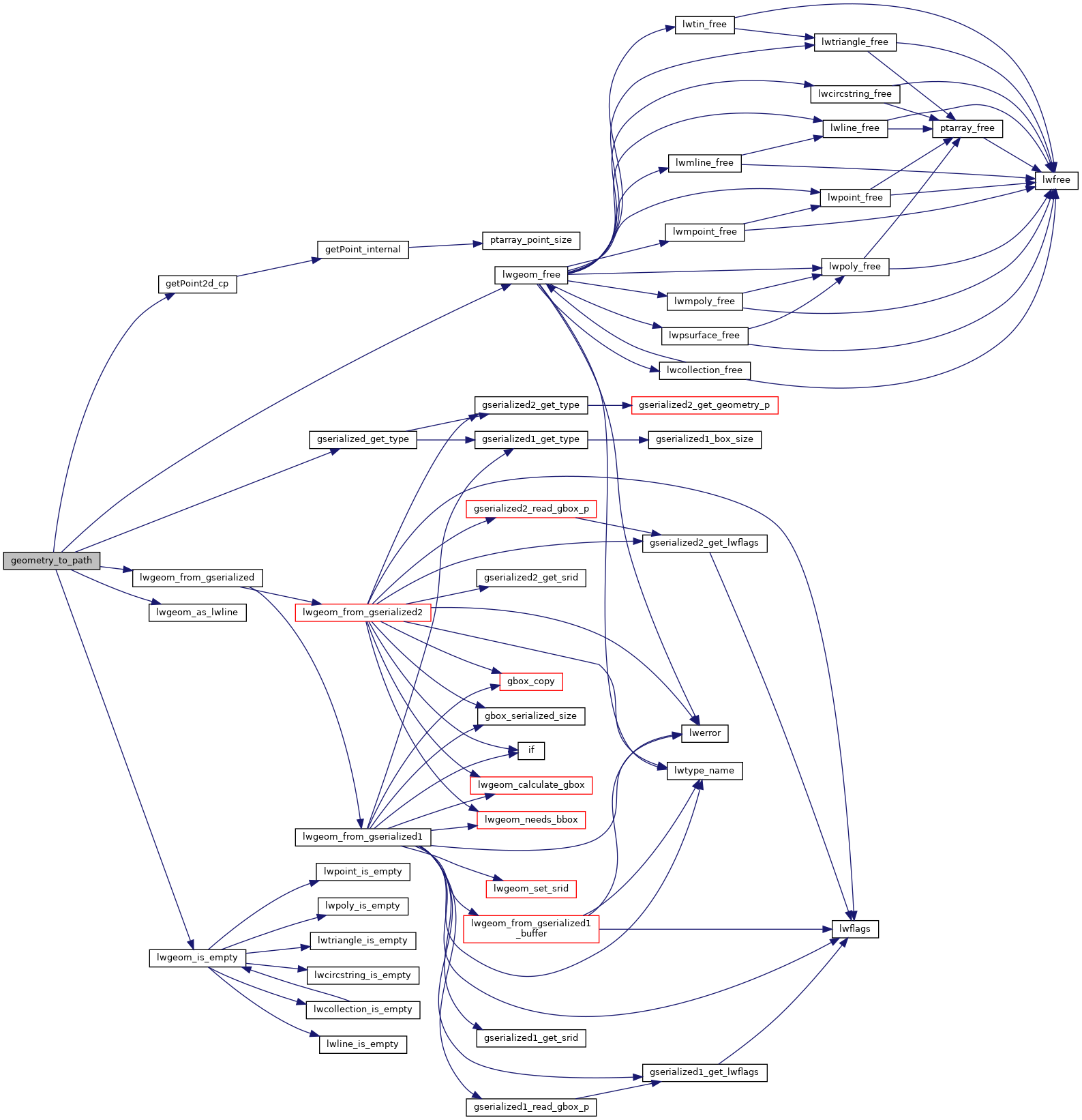

Here is the call graph for this function:
