out_svg_test_geoms()

static void out_svg_test_geoms ( void  )

static

Definition at line 148 of file cu_out_svg.c.

{
        /* Linestring */
        do_svg_test(
            "LINESTRING(0 1,2 3,4 5)",
            "M 0 -1 L 2 -3 4 -5",
            0, 0);

        /* Polygon */
        do_svg_test(
            "POLYGON((0 1,2 3,4 5,0 1))",
            "M 0 -1 L 2 -3 4 -5 Z",
            0, 0);

        /* Polygon - with internal ring */
        do_svg_test(
            "POLYGON((0 1,2 3,4 5,0 1),(6 7,8 9,10 11,6 7))",
            "M 0 -1 L 2 -3 4 -5 Z M 6 -7 L 8 -9 10 -11 Z",
            0, 0);

        /* MultiPoint */
        do_svg_test(
            "MULTIPOINT(0 1,2 3)",
            "cx=\"0\" cy=\"-1\",cx=\"2\" cy=\"-3\"",
            0, 0);

        /* MultiLine */
        do_svg_test(
            "MULTILINESTRING((0 1,2 3,4 5),(6 7,8 9,10 11))",
            "M 0 -1 L 2 -3 4 -5 M 6 -7 L 8 -9 10 -11",
            0, 0);

        /* MultiPolygon */
        do_svg_test(
            "MULTIPOLYGON(((0 1,2 3,4 5,0 1)),((6 7,8 9,10 11,6 7)))",
            "M 0 -1 L 2 -3 4 -5 Z M 6 -7 L 8 -9 10 -11 Z",
            0, 0);

        /* GeometryCollection */
        do_svg_test(
            "GEOMETRYCOLLECTION(POINT(0 1),LINESTRING(2 3,4 5))",
            "cx=\"0\" cy=\"-1\";M 2 -3 L 4 -5",
            0, 0);

        /* CircularString */
        do_svg_test(
            "CIRCULARSTRING(-2 0,0 2,2 0,0 2,2 4)",
            "M -2 0 A 2 2 0 0 1 2 0 A 2 2 0 0 1 2 -4",
                        0, 0);

        /* : Circle */
        do_svg_test(
            "CIRCULARSTRING(4 2,-2 2,4 2)",
            "M 1 -2 m 3 0 a 3 3 0 1 0 -6 0 a 3 3 0 1 0 6 0",
                        0, 0);

        /* CompoundCurve */
        do_svg_test(
            "COMPOUNDCURVE(CIRCULARSTRING(0 0,1 1,1 0),(1 0,0 1))",
            "M 0 0 A 1 1 0 1 1 1 0 L 0 -1", 0, 0);

        /* MultiCurve */
        do_svg_test(
            "MULTICURVE((5 5,3 5,3 3,0 3),CIRCULARSTRING(0 0,2 1,2 2))",
            "M 5 -5 L 3 -5 3 -3 0 -3 M 0 0 A 2 2 0 0 0 2 -2", 0, 0);

        /* CurvePolygon */
        do_svg_test(
            "CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0))",
            "M -2 0 A 1 1 0 0 0 0 0 A 1 1 0 0 0 2 0 A 2 2 0 0 0 -2 0 Z M -1 0 L 0 0 1 0 0 -1 -1 0 Z", 0, 0);

        /* MultiSurface */
        do_svg_test(
            "MULTISURFACE(CURVEPOLYGON(CIRCULARSTRING(-2 0,-1 -1,0 0,1 -1,2 0,0 2,-2 0),(-1 0,0 0.5,1 0,0 1,-1 0)),((7 8,10 10,6 14,4 11,7 8)))",
            "M -2 0 A 1 1 0 0 0 0 0 A 1 1 0 0 0 2 0 A 2 2 0 0 0 -2 0 Z M -1 0 L 0 0 1 0 0 -1 -1 0 Z M 7 -8 L 10 -10 6 -14 4 -11 Z", 0, 0);

        /* Empty GeometryCollection */
        do_svg_test(
            "GEOMETRYCOLLECTION EMPTY",
            "",
            0, 0);

        /* Nested GeometryCollection */
        do_svg_unsupported(
            "GEOMETRYCOLLECTION(POINT(0 1),GEOMETRYCOLLECTION(LINESTRING(2 3,4 5)))",
            "assvg_geom_buf: 'GeometryCollection' geometry type not supported.");

}

References do_svg_test(), and do_svg_unsupported().

Referenced by out_svg_suite_setup().

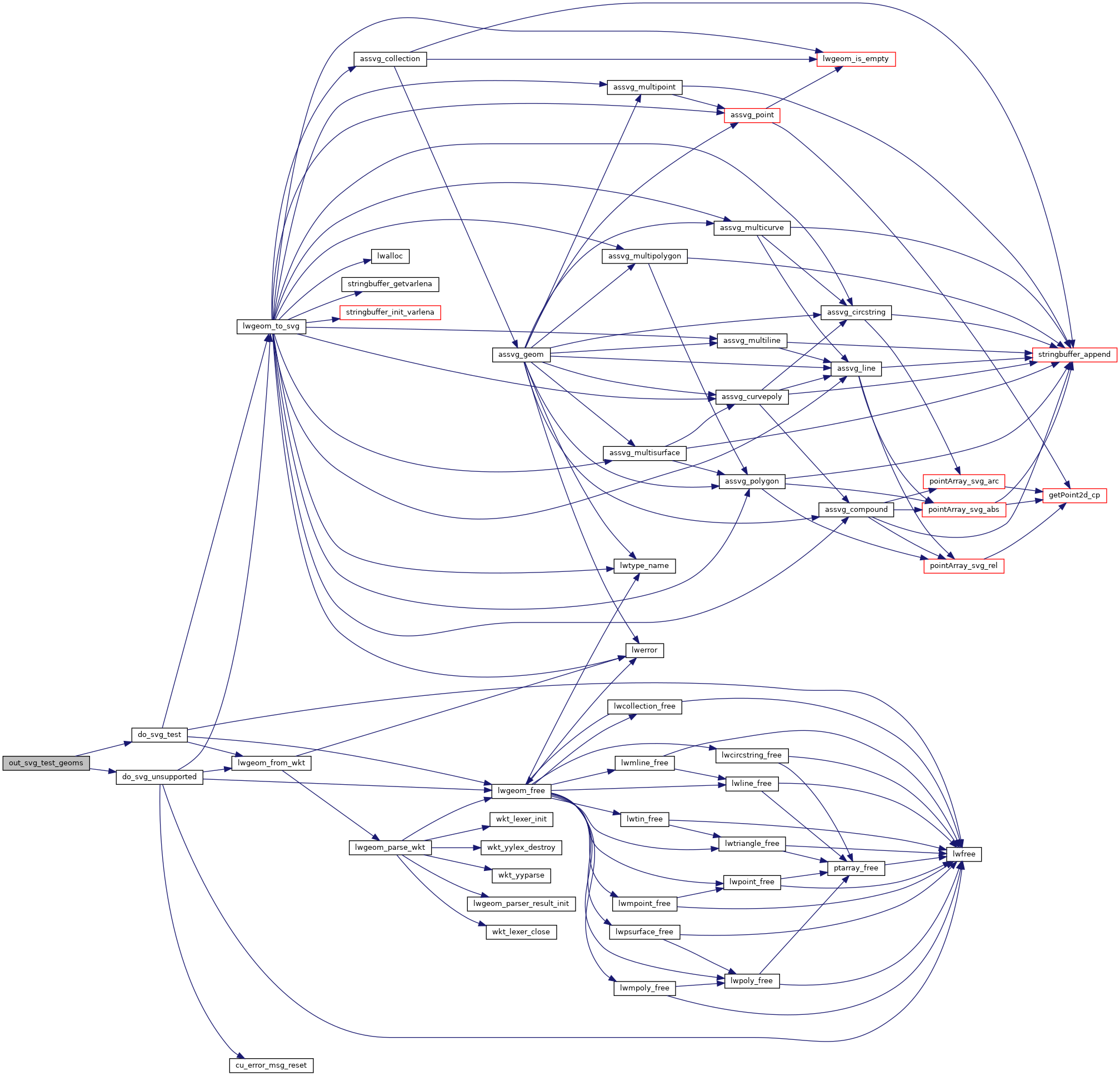

Here is the call graph for this function:

Here is the caller graph for this function:
