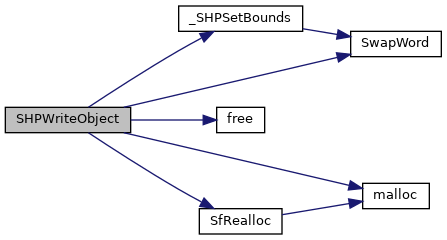

SHPWriteObject()

int SHPAPI_CALL SHPWriteObject	(	SHPHandle	psSHP,
		int	nShapeId,
		SHPObject *	psObject
	)

Definition at line 1334 of file shpopen.c.

{
    SAOffset nRecordOffset;
    unsigned int nRecordSize=0;
    int i;
    uchar       *pabyRec;
    int32       i32;
    int     bAppendToLastRecord = FALSE;
    int     bAppendToFile = FALSE;

    psSHP->bUpdated = TRUE;

/* -------------------------------------------------------------------- */
/*      Ensure that shape object matches the type of the file it is     */
/*      being written to.                                               */
/* -------------------------------------------------------------------- */
    assert( psObject->nSHPType == psSHP->nShapeType
            || psObject->nSHPType == SHPT_NULL );

/* -------------------------------------------------------------------- */
/*      Ensure that -1 is used for appends.  Either blow an             */
/*      assertion, or if they are disabled, set the shapeid to -1       */
/*      for appends.                                                    */
/* -------------------------------------------------------------------- */
    assert( nShapeId == -1
            || (nShapeId >= 0 && nShapeId < psSHP->nRecords) );

    if( nShapeId != -1 && nShapeId >= psSHP->nRecords )
        nShapeId = -1;

/* -------------------------------------------------------------------- */
/*      Add the new entity to the in memory index.                      */
/* -------------------------------------------------------------------- */
    if( nShapeId == -1 && psSHP->nRecords+1 > psSHP->nMaxRecords )
    {
        int nNewMaxRecords = psSHP->nMaxRecords + psSHP->nMaxRecords / 3 + 100;
        unsigned int* panRecOffsetNew;
        unsigned int* panRecSizeNew;

        panRecOffsetNew = STATIC_CAST(unsigned int *,
            SfRealloc(psSHP->panRecOffset,sizeof(unsigned int) * nNewMaxRecords ));
        if( panRecOffsetNew == SHPLIB_NULLPTR )
            return -1;
        psSHP->panRecOffset = panRecOffsetNew;

        panRecSizeNew = STATIC_CAST(unsigned int *,
            SfRealloc(psSHP->panRecSize,sizeof(unsigned int) * nNewMaxRecords ));
        if( panRecSizeNew == SHPLIB_NULLPTR )
            return -1;
        psSHP->panRecSize = panRecSizeNew;

        psSHP->nMaxRecords = nNewMaxRecords;
    }

/* -------------------------------------------------------------------- */
/*      Initialize record.                                              */
/* -------------------------------------------------------------------- */
    pabyRec = STATIC_CAST(uchar *, malloc(psObject->nVertices * 4 * sizeof(double)
                               + psObject->nParts * 8 + 128));
    if( pabyRec == SHPLIB_NULLPTR )
        return -1;

/* -------------------------------------------------------------------- */
/*  Extract vertices for a Polygon or Arc.                              */
/* -------------------------------------------------------------------- */
    if( psObject->nSHPType == SHPT_POLYGON
        || psObject->nSHPType == SHPT_POLYGONZ
        || psObject->nSHPType == SHPT_POLYGONM
        || psObject->nSHPType == SHPT_ARC
        || psObject->nSHPType == SHPT_ARCZ
        || psObject->nSHPType == SHPT_ARCM
        || psObject->nSHPType == SHPT_MULTIPATCH )
    {
        int32           nPoints, nParts;

        nPoints = psObject->nVertices;
        nParts = psObject->nParts;

        _SHPSetBounds( pabyRec + 12, psObject );

        if( bBigEndian ) SwapWord( 4, &nPoints );
        if( bBigEndian ) SwapWord( 4, &nParts );

        ByteCopy( &nPoints, pabyRec + 40 + 8, 4 );
        ByteCopy( &nParts, pabyRec + 36 + 8, 4 );

        nRecordSize = 52;

        /*
         * Write part start positions.
         */
        ByteCopy( psObject->panPartStart, pabyRec + 44 + 8,
                  4 * psObject->nParts );
        for( i = 0; i < psObject->nParts; i++ )
        {
            if( bBigEndian ) SwapWord( 4, pabyRec + 44 + 8 + 4*i );
            nRecordSize += 4;
        }

        /*
         * Write multipatch part types if needed.
         */
        if( psObject->nSHPType == SHPT_MULTIPATCH )
        {
            memcpy( pabyRec + nRecordSize, psObject->panPartType,
                    4*psObject->nParts );
            for( i = 0; i < psObject->nParts; i++ )
            {
                if( bBigEndian ) SwapWord( 4, pabyRec + nRecordSize );
                nRecordSize += 4;
            }
        }

        /*
         * Write the (x,y) vertex values.
         */
        for( i = 0; i < psObject->nVertices; i++ )
        {
            ByteCopy( psObject->padfX + i, pabyRec + nRecordSize, 8 );
            ByteCopy( psObject->padfY + i, pabyRec + nRecordSize + 8, 8 );

            if( bBigEndian )
                SwapWord( 8, pabyRec + nRecordSize );

            if( bBigEndian )
                SwapWord( 8, pabyRec + nRecordSize + 8 );

            nRecordSize += 2 * 8;
        }

        /*
         * Write the Z coordinates (if any).
         */
        if( psObject->nSHPType == SHPT_POLYGONZ
            || psObject->nSHPType == SHPT_ARCZ
            || psObject->nSHPType == SHPT_MULTIPATCH )
        {
            ByteCopy( &(psObject->dfZMin), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            ByteCopy( &(psObject->dfZMax), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            for( i = 0; i < psObject->nVertices; i++ )
            {
                ByteCopy( psObject->padfZ + i, pabyRec + nRecordSize, 8 );
                if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
                nRecordSize += 8;
            }
        }

        /*
         * Write the M values, if any.
         */
        if( psObject->bMeasureIsUsed
            && (psObject->nSHPType == SHPT_POLYGONM
                || psObject->nSHPType == SHPT_ARCM
#ifndef DISABLE_MULTIPATCH_MEASURE
                || psObject->nSHPType == SHPT_MULTIPATCH
#endif
                || psObject->nSHPType == SHPT_POLYGONZ
                || psObject->nSHPType == SHPT_ARCZ) )
        {
            ByteCopy( &(psObject->dfMMin), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            ByteCopy( &(psObject->dfMMax), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            for( i = 0; i < psObject->nVertices; i++ )
            {
                ByteCopy( psObject->padfM + i, pabyRec + nRecordSize, 8 );
                if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
                nRecordSize += 8;
            }
        }
    }

/* -------------------------------------------------------------------- */
/*  Extract vertices for a MultiPoint.                                  */
/* -------------------------------------------------------------------- */
    else if( psObject->nSHPType == SHPT_MULTIPOINT
             || psObject->nSHPType == SHPT_MULTIPOINTZ
             || psObject->nSHPType == SHPT_MULTIPOINTM )
    {
        int32           nPoints;

        nPoints = psObject->nVertices;

        _SHPSetBounds( pabyRec + 12, psObject );

        if( bBigEndian ) SwapWord( 4, &nPoints );
        ByteCopy( &nPoints, pabyRec + 44, 4 );

        for( i = 0; i < psObject->nVertices; i++ )
        {
            ByteCopy( psObject->padfX + i, pabyRec + 48 + i*16, 8 );
            ByteCopy( psObject->padfY + i, pabyRec + 48 + i*16 + 8, 8 );

            if( bBigEndian ) SwapWord( 8, pabyRec + 48 + i*16 );
            if( bBigEndian ) SwapWord( 8, pabyRec + 48 + i*16 + 8 );
        }

        nRecordSize = 48 + 16 * psObject->nVertices;

        if( psObject->nSHPType == SHPT_MULTIPOINTZ )
        {
            ByteCopy( &(psObject->dfZMin), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            ByteCopy( &(psObject->dfZMax), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            for( i = 0; i < psObject->nVertices; i++ )
            {
                ByteCopy( psObject->padfZ + i, pabyRec + nRecordSize, 8 );
                if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
                nRecordSize += 8;
            }
        }

        if( psObject->bMeasureIsUsed
            && (psObject->nSHPType == SHPT_MULTIPOINTZ
                || psObject->nSHPType == SHPT_MULTIPOINTM) )
        {
            ByteCopy( &(psObject->dfMMin), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            ByteCopy( &(psObject->dfMMax), pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;

            for( i = 0; i < psObject->nVertices; i++ )
            {
                ByteCopy( psObject->padfM + i, pabyRec + nRecordSize, 8 );
                if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
                nRecordSize += 8;
            }
        }
    }

/* -------------------------------------------------------------------- */
/*      Write point.                                                    */
/* -------------------------------------------------------------------- */
    else if( psObject->nSHPType == SHPT_POINT
             || psObject->nSHPType == SHPT_POINTZ
             || psObject->nSHPType == SHPT_POINTM )
    {
        ByteCopy( psObject->padfX, pabyRec + 12, 8 );
        ByteCopy( psObject->padfY, pabyRec + 20, 8 );

        if( bBigEndian ) SwapWord( 8, pabyRec + 12 );
        if( bBigEndian ) SwapWord( 8, pabyRec + 20 );

        nRecordSize = 28;

        if( psObject->nSHPType == SHPT_POINTZ )
        {
            ByteCopy( psObject->padfZ, pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;
        }

        if( psObject->bMeasureIsUsed
            && (psObject->nSHPType == SHPT_POINTZ
                || psObject->nSHPType == SHPT_POINTM) )
        {
            ByteCopy( psObject->padfM, pabyRec + nRecordSize, 8 );
            if( bBigEndian ) SwapWord( 8, pabyRec + nRecordSize );
            nRecordSize += 8;
        }
    }

/* -------------------------------------------------------------------- */
/*      Not much to do for null geometries.                             */
/* -------------------------------------------------------------------- */
    else if( psObject->nSHPType == SHPT_NULL )
    {
        nRecordSize = 12;
    }

    else
    {
        /* unknown type */
        assert( FALSE );
    }

/* -------------------------------------------------------------------- */
/*      Establish where we are going to put this record. If we are      */
/*      rewriting the last record of the file, then we can update it in */
/*      place. Otherwise if rewriting an existing record, and it will   */
/*      fit, then put it  back where the original came from.  Otherwise */
/*      write at the end.                                               */
/* -------------------------------------------------------------------- */
    if( nShapeId != -1 && psSHP->panRecOffset[nShapeId] +
                        psSHP->panRecSize[nShapeId] + 8 == psSHP->nFileSize )
    {
        nRecordOffset = psSHP->panRecOffset[nShapeId];
        bAppendToLastRecord = TRUE;
    }
    else if( nShapeId == -1 || psSHP->panRecSize[nShapeId] < nRecordSize-8 )
    {
        if( psSHP->nFileSize > UINT_MAX - nRecordSize)
        {
            char str[128];
            snprintf( str, sizeof(str), "Failed to write shape object. "
                     "File size cannot reach %u + %u.",
                     psSHP->nFileSize, nRecordSize );
            str[sizeof(str)-1] = '\0';
            psSHP->sHooks.Error( str );
            free( pabyRec );
            return -1;
        }

        bAppendToFile = TRUE;
        nRecordOffset = psSHP->nFileSize;
    }
    else
    {
        nRecordOffset = psSHP->panRecOffset[nShapeId];
    }

/* -------------------------------------------------------------------- */
/*      Set the shape type, record number, and record size.             */
/* -------------------------------------------------------------------- */
    i32 = (nShapeId < 0) ? psSHP->nRecords+1 : nShapeId+1;                                      /* record # */
    if( !bBigEndian ) SwapWord( 4, &i32 );
    ByteCopy( &i32, pabyRec, 4 );

    i32 = (nRecordSize-8)/2;                            /* record size */
    if( !bBigEndian ) SwapWord( 4, &i32 );
    ByteCopy( &i32, pabyRec + 4, 4 );

    i32 = psObject->nSHPType;                           /* shape type */
    if( bBigEndian ) SwapWord( 4, &i32 );
    ByteCopy( &i32, pabyRec + 8, 4 );

/* -------------------------------------------------------------------- */
/*      Write out record.                                               */
/* -------------------------------------------------------------------- */

/* -------------------------------------------------------------------- */
/*      Guard FSeek with check for whether we're already at position;   */
/*      no-op FSeeks defeat network filesystems' write buffering.       */
/* -------------------------------------------------------------------- */
/* TOOK OUT GUARD cause causing mingw64 to fail, see https://trac.osgeo.org/postgis/ticket/4603 */
    //if ( psSHP->sHooks.FTell( psSHP->fpSHP ) != nRecordOffset ) {
        if( psSHP->sHooks.FSeek( psSHP->fpSHP, nRecordOffset, 0 ) != 0 )
        {
            char szErrorMsg[200];

            snprintf( szErrorMsg, sizeof(szErrorMsg),
                     "Error in psSHP->sHooks.FSeek() while writing object to .shp file: %s",
                      strerror(errno) );
            szErrorMsg[sizeof(szErrorMsg)-1] = '\0';
            psSHP->sHooks.Error( szErrorMsg );

            free( pabyRec );
            return -1;
        }
    //}
    if( psSHP->sHooks.FWrite( pabyRec, nRecordSize, 1, psSHP->fpSHP ) < 1 )
    {
        char szErrorMsg[200];

        snprintf( szErrorMsg, sizeof(szErrorMsg),
                 "Error in psSHP->sHooks.FWrite() while writing object of %u bytes to .shp file: %s",
                  nRecordSize, strerror(errno) );
        szErrorMsg[sizeof(szErrorMsg)-1] = '\0';
        psSHP->sHooks.Error( szErrorMsg );

        free( pabyRec );
        return -1;
    }

    free( pabyRec );

    if( bAppendToLastRecord )
    {
        psSHP->nFileSize = psSHP->panRecOffset[nShapeId] + nRecordSize;
    }
    else if( bAppendToFile )
    {
        if( nShapeId == -1 )
            nShapeId = psSHP->nRecords++;

        psSHP->panRecOffset[nShapeId] = psSHP->nFileSize;
        psSHP->nFileSize += nRecordSize;
    }
    psSHP->panRecSize[nShapeId] = nRecordSize-8;

/* -------------------------------------------------------------------- */
/*      Expand file wide bounds based on this shape.                    */
/* -------------------------------------------------------------------- */
    if( psSHP->adBoundsMin[0] == 0.0
        && psSHP->adBoundsMax[0] == 0.0
        && psSHP->adBoundsMin[1] == 0.0
        && psSHP->adBoundsMax[1] == 0.0 )
    {
        if( psObject->nSHPType == SHPT_NULL || psObject->nVertices == 0 )
        {
            psSHP->adBoundsMin[0] = psSHP->adBoundsMax[0] = 0.0;
            psSHP->adBoundsMin[1] = psSHP->adBoundsMax[1] = 0.0;
            psSHP->adBoundsMin[2] = psSHP->adBoundsMax[2] = 0.0;
            psSHP->adBoundsMin[3] = psSHP->adBoundsMax[3] = 0.0;
        }
        else
        {
            psSHP->adBoundsMin[0] = psSHP->adBoundsMax[0] = psObject->padfX[0];
            psSHP->adBoundsMin[1] = psSHP->adBoundsMax[1] = psObject->padfY[0];
            psSHP->adBoundsMin[2] = psSHP->adBoundsMax[2] = psObject->padfZ ? psObject->padfZ[0] : 0.0;
            psSHP->adBoundsMin[3] = psSHP->adBoundsMax[3] = psObject->padfM ? psObject->padfM[0] : 0.0;
        }
    }

    for( i = 0; i < psObject->nVertices; i++ )
    {
        psSHP->adBoundsMin[0] = MIN(psSHP->adBoundsMin[0],psObject->padfX[i]);
        psSHP->adBoundsMin[1] = MIN(psSHP->adBoundsMin[1],psObject->padfY[i]);
        psSHP->adBoundsMax[0] = MAX(psSHP->adBoundsMax[0],psObject->padfX[i]);
        psSHP->adBoundsMax[1] = MAX(psSHP->adBoundsMax[1],psObject->padfY[i]);
        if( psObject->padfZ )
        {
            psSHP->adBoundsMin[2] = MIN(psSHP->adBoundsMin[2],psObject->padfZ[i]);
            psSHP->adBoundsMax[2] = MAX(psSHP->adBoundsMax[2],psObject->padfZ[i]);
        }
        if( psObject->padfM )
        {
            psSHP->adBoundsMin[3] = MIN(psSHP->adBoundsMin[3],psObject->padfM[i]);
            psSHP->adBoundsMax[3] = MAX(psSHP->adBoundsMax[3],psObject->padfM[i]);
        }
    }

    return( nShapeId  );
}

References _SHPSetBounds(), SHPInfo::adBoundsMax, SHPInfo::adBoundsMin, bBigEndian, tagSHPObject::bMeasureIsUsed, SHPInfo::bUpdated, ByteCopy, tagSHPObject::dfMMax, tagSHPObject::dfMMin, tagSHPObject::dfZMax, tagSHPObject::dfZMin, DISABLE_MULTIPATCH_MEASURE, SAHooks::Error, FALSE, SHPInfo::fpSHP, free(), SAHooks::FSeek, SAHooks::FWrite, malloc(), MAX, MIN, SHPInfo::nFileSize, SHPInfo::nMaxRecords, tagSHPObject::nParts, SHPInfo::nRecords, nShapeId, SHPInfo::nShapeType, tagSHPObject::nSHPType, tagSHPObject::nVertices, tagSHPObject::padfM, tagSHPObject::padfX, tagSHPObject::padfY, tagSHPObject::padfZ, tagSHPObject::panPartStart, tagSHPObject::panPartType, SHPInfo::panRecOffset, SHPInfo::panRecSize, SfRealloc(), SHPInfo::sHooks, SHPLIB_NULLPTR, SHPT_ARC, SHPT_ARCM, SHPT_ARCZ, SHPT_MULTIPATCH, SHPT_MULTIPOINT, SHPT_MULTIPOINTM, SHPT_MULTIPOINTZ, SHPT_NULL, SHPT_POINT, SHPT_POINTM, SHPT_POINTZ, SHPT_POLYGON, SHPT_POLYGONM, SHPT_POLYGONZ, STATIC_CAST, str, SwapWord(), and TRUE.

Referenced by ShpLoaderGenerateShapeRow().

Here is the call graph for this function:

Here is the caller graph for this function:
