test_lwtriangle_clip()

static void test_lwtriangle_clip ( void  )

static

Definition at line 744 of file cu_algorithm.c.

{
        LWCOLLECTION *c;
        LWGEOM *g = NULL;
        char *ewkt;

        g = lwgeom_from_wkt("TRIANGLE((0 0 0, 1 1 1, 3 2 2, 0 0 0))", LW_PARSER_CHECK_NONE);
        c = lwgeom_clip_to_ordinate_range(g, 'Z', -10.0, 4.0, 0);

        ewkt = lwgeom_to_ewkt((LWGEOM *)c);
        // printf("c = %s\n", ewkt);
        ASSERT_STRING_EQUAL(ewkt, "TIN(((0 0 0,1 1 1,3 2 2,0 0 0)))");
        lwfree(ewkt);
        lwcollection_free(c);
        lwgeom_free(g);

        g = lwgeom_from_wkt("TRIANGLE((0 0 0, 1 1 1, 3 2 2, 0 0 0))", LW_PARSER_CHECK_NONE);
        c = lwgeom_clip_to_ordinate_range(g, 'Z', 0.0, 1.0, 0);

        ewkt = lwgeom_to_ewkt((LWGEOM *)c);
        // printf("c = %s\n", ewkt);
        ASSERT_STRING_EQUAL(ewkt, "TIN(((0 0 0,1 1 1,1.5 1 1,0 0 0)))");
        lwfree(ewkt);
        lwcollection_free(c);
        lwgeom_free(g);

        g = lwgeom_from_wkt("TRIANGLE((0 0 0, 1 1 1, 3 2 3, 0 0 0))", LW_PARSER_CHECK_NONE);
        c = lwgeom_clip_to_ordinate_range(g, 'Z', 1.0, 2.0, 0);

        ewkt = lwgeom_to_ewkt((LWGEOM *)c);
        // printf("c = %s\n", ewkt);
        ASSERT_STRING_EQUAL(
            ewkt,
            "TIN(((1 1 1,2 1.5 2,2 1.333333333333 2,1 1 1)),((1 1 1,2 1.333333333333 2,1 0.666666666667 1,1 1 1)))");
        lwfree(ewkt);
        lwcollection_free(c);
        lwgeom_free(g);

        g = lwgeom_from_wkt(
            "TIN Z (((0 0 2,0 1 2,-1 2 2,0 0 2)),((0 1 2,0 0 2,0 1 4,0 1 2)),((-1 2 2,0 1 2,1 1 2,-1 2 2)),((0 0 2,-1 2 2,-1 -1 2,0 0 2)),((0 1 4,0 0 2,0 0 4,0 1 4)),((0 1 2,0 1 4,1 1 4,0 1 2)),((1 1 2,0 1 2,1 1 4,1 1 2)),((-1 2 2,1 1 2,2 2 2,-1 2 2)),((-1 -1 2,-1 2 2,-1 -1 -1,-1 -1 2)),((0 0 2,-1 -1 2,1 0 2,0 0 2)),((0 0 4,0 0 2,1 0 2,0 0 4)),((0 1 4,0 0 4,1 0 4,0 1 4)),((1 1 4,0 1 4,1 0 4,1 1 4)),((1 1 2,1 1 4,1 0 4,1 1 2)),((2 2 2,1 1 2,2 -1 2,2 2 2)),((-1 2 2,2 2 2,-1 2 -1,-1 2 2)),((-1 -1 -1,-1 2 2,-1 2 -1,-1 -1 -1)),((-1 -1 2,-1 -1 -1,2 -1 -1,-1 -1 2)),((1 0 2,-1 -1 2,2 -1 2,1 0 2)),((0 0 4,1 0 2,1 0 4,0 0 4)),((1 1 2,1 0 4,1 0 2,1 1 2)),((2 -1 2,1 1 2,1 0 2,2 -1 2)),((2 2 2,2 -1 2,2 2 -1,2 2 2)),((-1 2 -1,2 2 2,2 2 -1,-1 2 -1)),((-1 -1 -1,-1 2 -1,2 2 -1,-1 -1 -1)),((2 -1 -1,-1 -1 -1,2 2 -1,2 -1 -1)),((-1 -1 2,2 -1 -1,2 -1 2,-1 -1 2)),((2 2 -1,2 -1 2,2 -1 -1,2 2 -1)))",
            LW_PARSER_CHECK_NONE);
        c = lwgeom_clip_to_ordinate_range(g, 'Z', 0.0, DBL_MAX, 0);

        /* Adjust for Rasberry Pi 64-bit (Debian Buster) */
        gridspec grid = {0};
        grid.xsize = grid.ysize = grid.zsize = grid.msize = 1;
        lwgeom_grid_in_place((LWGEOM *)c, &grid);

        ewkt = lwgeom_to_ewkt((LWGEOM *)c);
        // printf("c = %s\n", ewkt);
        ASSERT_STRING_EQUAL(
            ewkt,
            "TIN(((0 0 2,0 1 2,-1 2 2,0 0 2)),((0 1 2,0 0 2,0 1 4,0 1 2)),((-1 2 2,0 1 2,1 1 2,-1 2 2)),((0 0 2,-1 2 2,-1 -1 2,0 0 2)),((0 1 4,0 0 2,0 0 4,0 1 4)),((0 1 2,0 1 4,1 1 4,0 1 2)),((1 1 2,0 1 2,1 1 4,1 1 2)),((-1 2 2,1 1 2,2 2 2,-1 2 2)),((-1 -1 2,-1 2 2,-1 0 0,-1 -1 2)),((-1 -1 2,-1 0 0,-1 -1 0,-1 -1 2)),((0 0 2,-1 -1 2,1 0 2,0 0 2)),((0 0 4,0 0 2,1 0 2,0 0 4)),((0 1 4,0 0 4,1 0 4,0 1 4)),((1 1 4,0 1 4,1 0 4,1 1 4)),((1 1 2,1 1 4,1 0 4,1 1 2)),((2 2 2,1 1 2,2 -1 2,2 2 2)),((-1 2 2,2 2 2,0 2 0,-1 2 2)),((-1 2 2,0 2 0,-1 2 0,-1 2 2)),((-1 0 0,-1 2 2,-1 2 0,-1 0 0)),((-1 -1 2,-1 -1 0,1 -1 0,-1 -1 2)),((1 0 2,-1 -1 2,2 -1 2,1 0 2)),((0 0 4,1 0 2,1 0 4,0 0 4)),((1 1 2,1 0 4,1 0 2,1 1 2)),((2 -1 2,1 1 2,1 0 2,2 -1 2)),((2 2 2,2 -1 2,2 1 0,2 2 2)),((2 2 2,2 1 0,2 2 0,2 2 2)),((0 2 0,2 2 2,2 2 0,0 2 0)),((-1 -1 2,1 -1 0,2 -1 0,-1 -1 2)),((-1 -1 2,2 -1 0,2 -1 2,-1 -1 2)),((2 1 0,2 -1 2,2 -1 0,2 1 0)))");
        lwfree(ewkt);
        lwcollection_free(c);
        lwgeom_free(g);
}

References ASSERT_STRING_EQUAL, LW_PARSER_CHECK_NONE, lwcollection_free(), lwfree(), lwgeom_clip_to_ordinate_range(), lwgeom_free(), lwgeom_from_wkt(), lwgeom_grid_in_place(), lwgeom_to_ewkt(), gridspec_t::msize, gridspec_t::xsize, gridspec_t::ysize, and gridspec_t::zsize.

Referenced by algorithms_suite_setup().

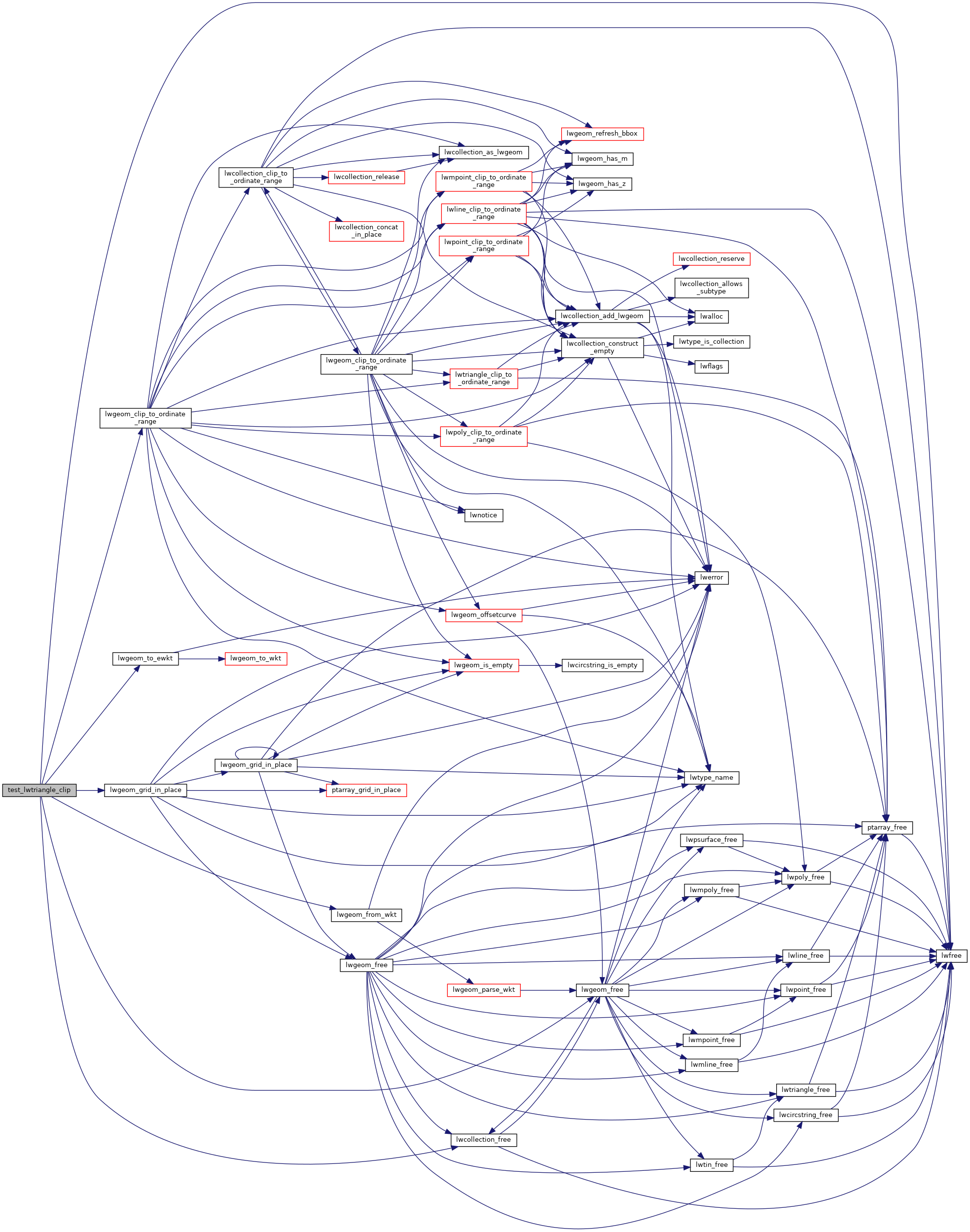

Here is the call graph for this function:

Here is the caller graph for this function:
