ST_ClipByBox2d()

Datum ST_ClipByBox2d

(

PG_FUNCTION_ARGS

)

Definition at line 1589 of file postgis/lwgeom_geos.c.

{
        static const uint32_t geom_idx = 0;
        static const uint32_t box2d_idx = 1;
        GSERIALIZED *result;
        LWGEOM *lwgeom1, *lwresult ;
        GBOX bbox1 = {0};
        GBOX *bbox2;
        uint8_t type;
        int32_t srid;
        lwflags_t flags;

        if (!gserialized_datum_get_internals_p(PG_GETARG_DATUM(geom_idx), &bbox1, &flags, &type, &srid))
        {
                /* empty clips to empty, no matter rect */
                PG_RETURN_DATUM(PG_GETARG_DATUM(geom_idx));
        }

        /* WARNING: this is really a BOX2DF, use only xmin and ymin fields */
        bbox2 = (GBOX *)PG_GETARG_POINTER(box2d_idx);
        bbox2->flags = 0;

        /* if bbox1 is covered by bbox2, return lwgeom1 */
        if (gbox_contains_2d(bbox2, &bbox1))
        {
                PG_RETURN_DATUM(PG_GETARG_DATUM(geom_idx));
        }

        /* If bbox1 outside of bbox2, return empty */
        if (!gbox_overlaps_2d(&bbox1, bbox2))
        {
                /* Get type and srid from datum */
                lwresult = lwgeom_construct_empty(type, srid, 0, 0);
                result = geometry_serialize(lwresult) ;
                lwgeom_free(lwresult) ;
                PG_RETURN_POINTER(result);
        }

        lwgeom1 = lwgeom_from_gserialized(PG_GETARG_GSERIALIZED_P(geom_idx));
        lwresult = lwgeom_clip_by_rect(lwgeom1, bbox2->xmin, bbox2->ymin,
                                       bbox2->xmax, bbox2->ymax);

        lwgeom_free(lwgeom1);

        if (!lwresult)
                PG_RETURN_NULL();

        result = geometry_serialize(lwresult) ;
        PG_RETURN_POINTER(result);
}

References GBOX::flags, gbox_contains_2d(), gbox_overlaps_2d(), gserialized_datum_get_internals_p(), lwgeom_clip_by_rect(), lwgeom_construct_empty(), lwgeom_free(), lwgeom_from_gserialized(), result, ovdump::type, GBOX::xmax, GBOX::xmin, GBOX::ymax, and GBOX::ymin.

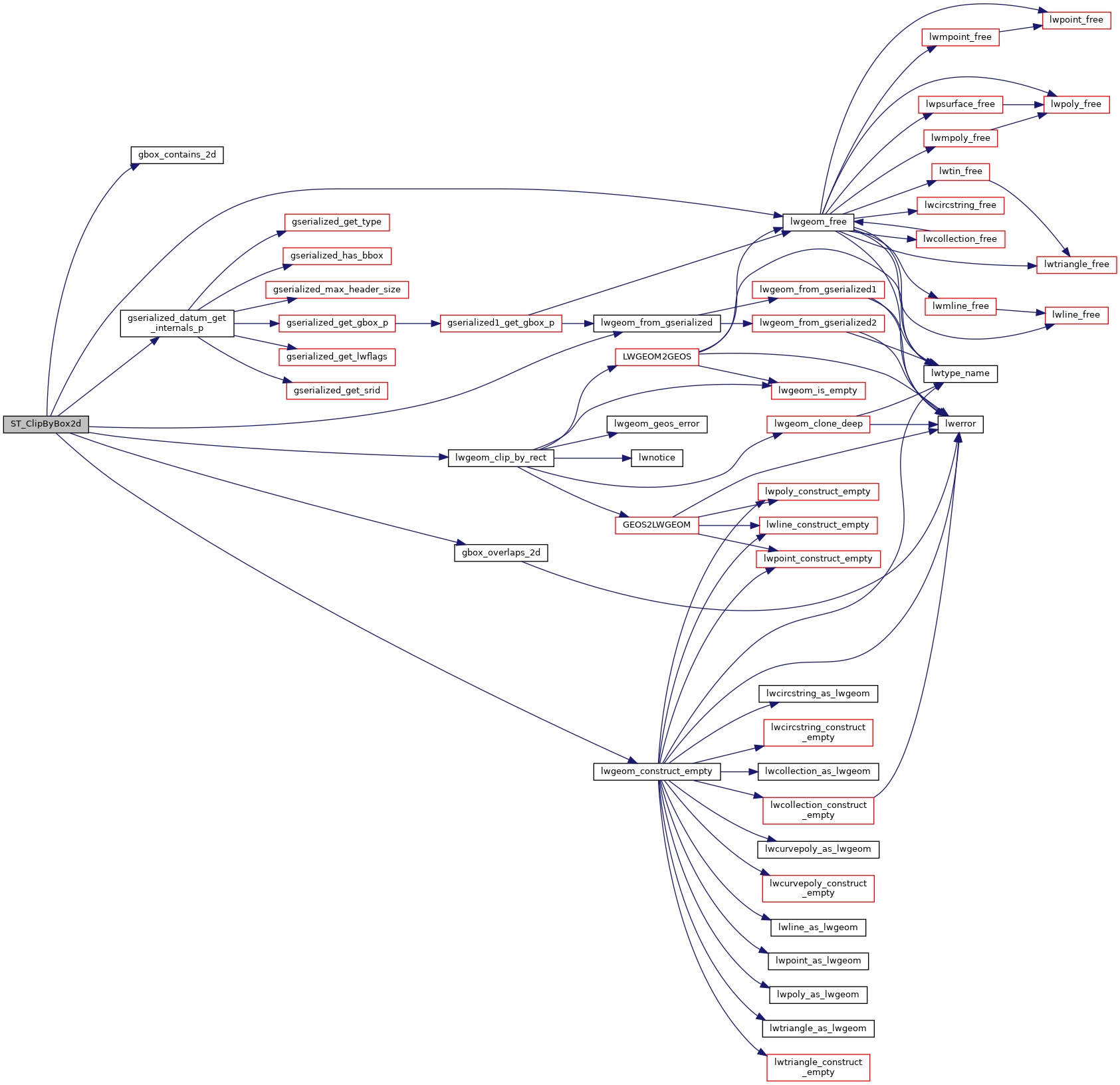

Here is the call graph for this function:
