asgml3_circstring()

static void asgml3_circstring ( stringbuffer_t *  sb, const LWCIRCSTRING *  circ, const GML_Options *  opts  )

static

Definition at line 507 of file lwout_gml.c.

{
        int dimension = FLAGS_GET_Z(circ->flags) ? 3 : 2;

        stringbuffer_aprintf(sb, "<%sCurve", opts->prefix);
        if (opts->srs)
        {
                stringbuffer_aprintf(sb, " srsName=\"%s\"", opts->srs);
        }
        if (opts->id)
        {
                stringbuffer_aprintf(sb, " %sid=\"%s\"", opts->prefix, opts->id);
        }
        stringbuffer_append(sb, ">");
        stringbuffer_aprintf(sb, "<%ssegments>", opts->prefix);
        stringbuffer_aprintf(sb, "<%sArcString>", opts->prefix);
        stringbuffer_aprintf(sb, "<%sposList", opts->prefix);

        if (IS_DIMS(opts->opts))
        {
                stringbuffer_aprintf(sb, " srsDimension=\"%d\"", dimension);
        }
        stringbuffer_append(sb, ">");

        asgml3_ptarray(sb, circ->points, opts);

        stringbuffer_aprintf(sb, "</%sposList>", opts->prefix);
        stringbuffer_aprintf(sb, "</%sArcString>", opts->prefix);
        stringbuffer_aprintf(sb, "</%ssegments>", opts->prefix);
        stringbuffer_aprintf(sb, "</%sCurve>", opts->prefix);
}

References asgml3_ptarray(), LWCIRCSTRING::flags, FLAGS_GET_Z, IS_DIMS, ovdump::opts, LWCIRCSTRING::points, stringbuffer_append(), and stringbuffer_aprintf().

Referenced by asgml3_curvepoly(), asgml3_multicurve(), and lwgeom_to_gml3().

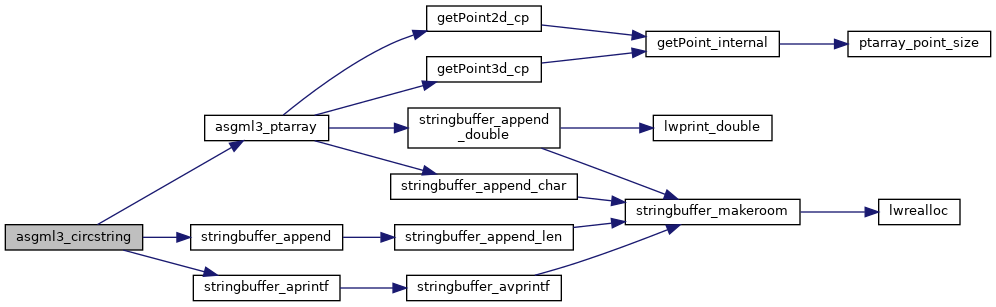

Here is the call graph for this function:

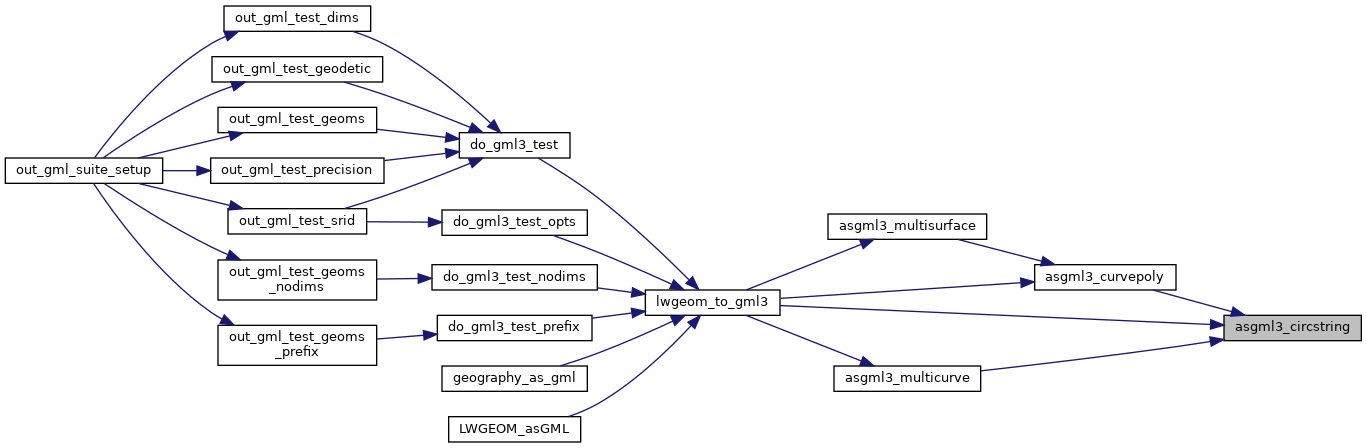

Here is the caller graph for this function:
